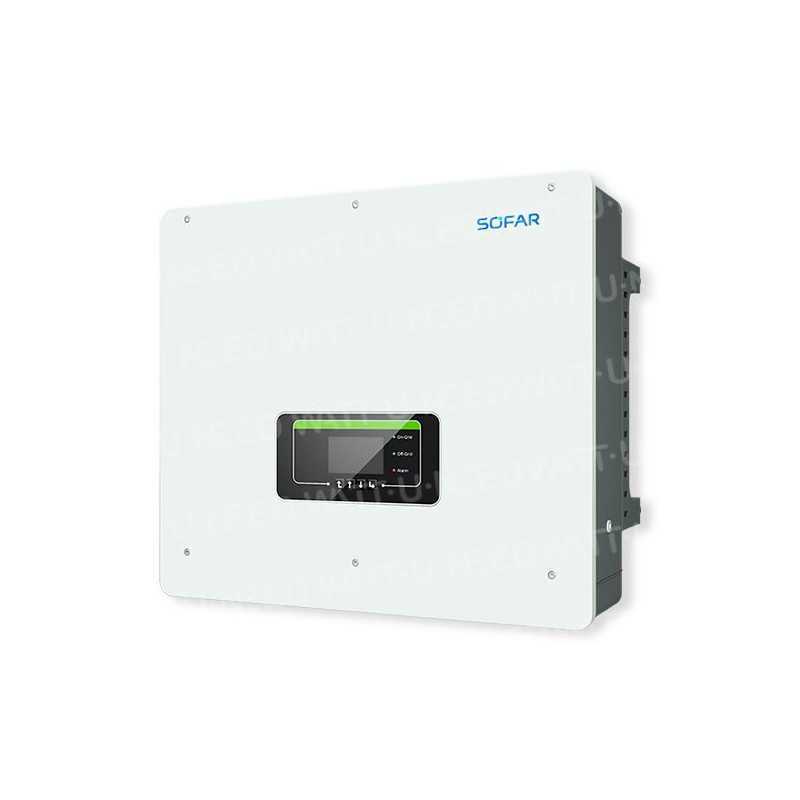

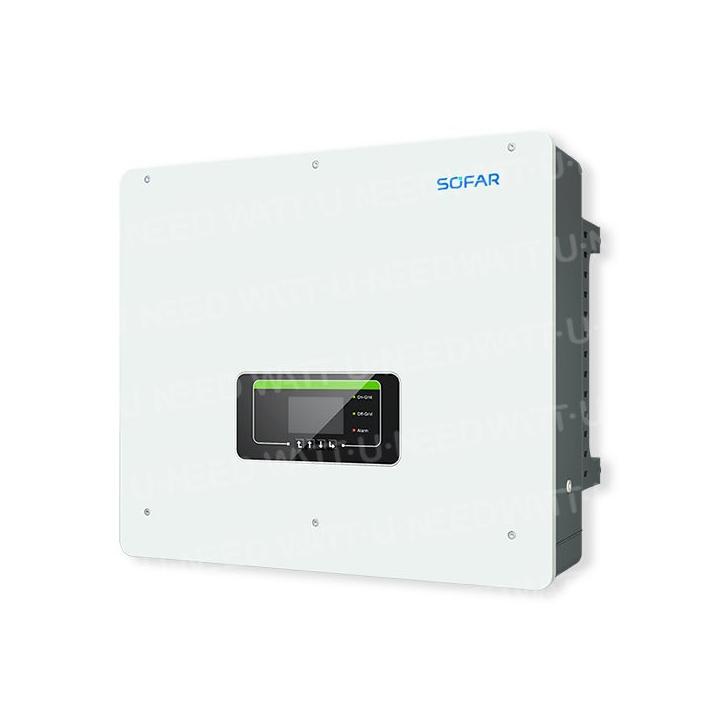

Sofar Solar HYD10KTL-3PH three-phase hybrid inverter
the perfect solution to enable energy storage in your PV installation with on-grid and off-grid functions.
The HYD 5K...20KTL-3PH is a versatile three-phase hybrid inverter for solar and storage applications. During grid failures, it can provide up to 20 kW of unbalanced three-phase emergency power supply (EPS) in 10 ms thanks to its integrated EPS port.
Two MPPTs and two independent battery ports (on models 10K to 20KTL) enable multiple battery capacity configurations in 2.5 kWh steps.
Up to 10 inverters can be connected in parallel on the EPS and AC port, making this device ideal for microgrid installations (on or off-grid).
The integrated energy management system features several user-friendly modes, optimizing the user experience, including an automatic self-use mode. Users can also define different time and/or date ranges, or rules for the day of the week.
All modes can be easily configured on the large LCD display. In particular, this inverter is compatible with SofarSolar's AMASS Store high-voltage battery unit (GTX 3000-H). A WiFi stick is supplied with the inverter, for easy connection to the Sofar monitoring portal.
Features
l
| Battery voltage range (V) | 180 - 800 |
| Battery voltage range for full charge (V) | 200-800 |
| Nominal charging / discharging power (W) | 10000 |
| Max. charging / discharging current |
| (A) | 50 (25 / 25) |
| Peak charge/discharge current, duration (A, s) | 70 (35 / 35, |
| 60 |
| Battery recharging strategy |
Auto-tuning to BMS (battery management system) |
| Communication interfaces | CAN (RS485) |
| Start-up operating voltage (V) | 200 |
| MPPT voltage range (V) | 180 - 960 |
| Nominal DC voltag |
| e (V) | 600 |
| Full MPPT power in voltage range (V) | 220 - 850 |
| Max. short current (A) | 30 / 30 |
| Number of strings per MPP tracker |
| Max. power. |
| AC output to mains (VA) | 11000 |
| Max. power from mains (VA) | 20000 |
| Max. AC current output to mains (A) | 16 |
| Max. AC current. |
| from mains (A) | 29 |
| Rated mains voltage |
| / N / PE, |
| 230 / 400 |
| Mains voltage range | 184 - 276 Vac |
| Nominal mains frequency | 50 / 60 Hz |
| Mains frequency range | 45 - 55 Hz / 55 - 65 Hz |
| Output power factor |
| default (+/-0.8 adjustable) |
| THDi output (at nominal output) | < 3% |
| Nominal output power (W) | 10000 |
| Max. output power. |
| (VA) | 11000 |
| P |
| eak output power, d |
| uration (VA, s) | 20000, 60 |
| Rated output current (A) | 14,5 |
| Peak output current, duration (A, s) | 30, 60 |
| Rated output voltage |
| / N / PE, 230 / 400 |
| Rated output frequency | 50 / 60 Hz |
| THDv output (at rated output) | < |
|
| % |
| Max. battery charge/discharge efficiency | 97.8% |
| Reverse polarity protection for PV modules | yes |
| Output overcurrent protection | yes |
| Residual current detection | yes |
| Insulation resistance detection | yes |
|
type II standard, AC: type II standard |
| Battery inversion protection | yes |
| Dimensions (mm) | 571.4*515*264.1 |
| UPS topology | Transformerless |
| Standby power consumption (W) | < |
| 15 W |
| Operating temperature range |
| - 60℃ |
| Operating altitude | < |
| 4000 m |
| AC network terminal | Connector |
| 5P |
| Standby AC terminal | 5P connector |
| Standard warranty |
| years, optional : |
| up to 20 years |
| Certifications & |
| Standards |
| (electromagnetic compatibility) | EN 61000-6-1, EN 61000-6-3 |
| Safety | IEC 62109-1, IEC 62109-2, |
| IEC 62040 - 1 |
V 0124-100, V0126-1-1, VDE-AR-N 4105, CEI 0-16 / CEI 0-21, EN 50549, G98 / G99, UTE C15-712-1 |
