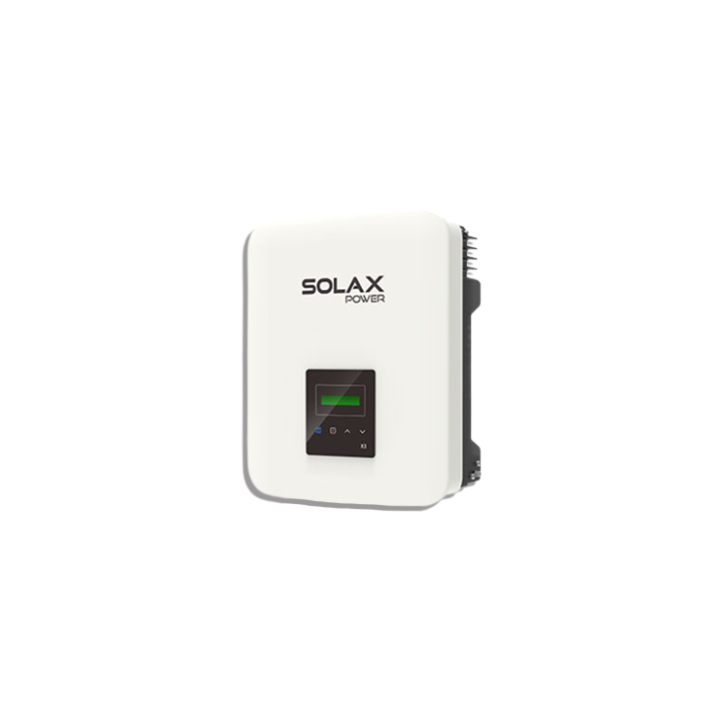

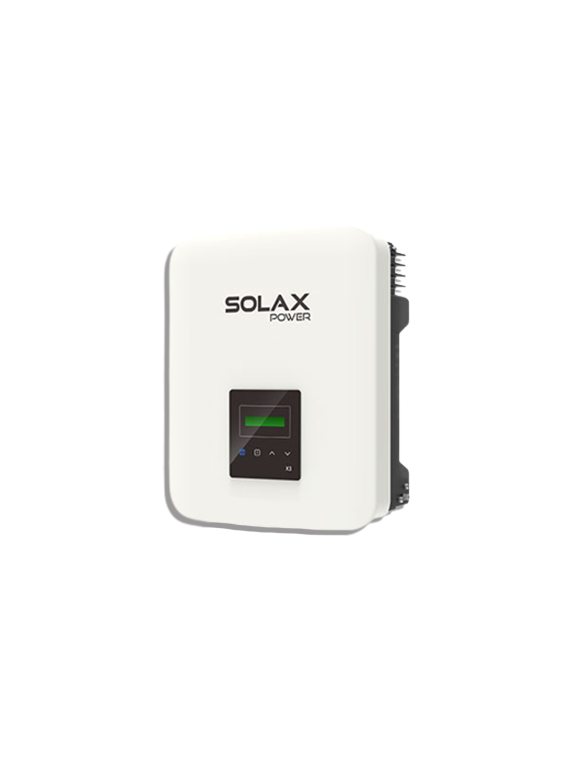

    SolaX X3 MIC X3-MIC-8.0-G2 three-phase inverter
    SolaX X3 MIC X3-MIC-8.0-G2 three-phase inverter

    SolaX X3 MIC X3-MIC-8.0-G2 three-phase inverter

    €1,451.01
    Tax included
    X3-MIC-8.0-T-D
    0768563819681

    The SolaX X3-MIC-8.0-G2 three-phase inverter is the ideal solution for optimizing your solar energy production. Compact and efficient, it is perfectly suited to the needs of both individuals and businesses looking to reduce their energy consumption and carbon footprint.

    Why choose the SolaX X3-MIC inverter?

    • Maximum efficiency: With a high conversion efficiency (up to 98.3%) and a wide MPPT voltage range, this inverter captures the maximum amount of solar energy.
    • Flexibility: Adapts to different roof configurations with its 2 MPPT trackers.
    • Intelligence: Benefit from smart management of your installation with remote monitoring and advanced features.
    • Reliability: Built to last, it guarantees stable performance over time.

    Key advantages:

    • Compact and lightweight: Easily integrates into any type of installation.
    • Robustness: Weather-resistant IP66 design.
    • Versatility: Compatible with a wide range of solar panels.
    • Cost-effective: High power density for reduced operating costs.

    SolaX X3-MIC: The cost-effective investment for clean and independent energy.

    1 item(s) left in Stock!

    SolaX X3 MIC X3-MIC-8.0-G2...

    €1,451.01

    SolaX X3 MIC 8 kVA : Compact, high performance, IP66 solar inverter

    Détails de l'onduleur Solax X3 Mic

    Installation plug & play



    Perfect for small commercial photovoltaic panels

    Plug & Play installation

    The X3 Mic G2 is the ultimate small commercial or residential solar inverter, perfectly designed for homes with solar panels on different sides of the roof. With two MPPT trackers, the X3 Mic/Pro G2 can be connected to two separate panels, and our X3 Mic G2 is also IP66-rated, meaning it can be installed outdoors.








    Simple, reliable, efficient

    Make the most of your solar system

    The Solax X3 Mic G2 is among the most efficient residential and commercial solar inverters available on the market today, with a massive 98.3% efficiency and a maximum DC voltage of 1000V. You can be sure you're getting the most out of your energy.





    High efficiency

    - Maximum efficiency up to 98.3%.

    - Low start-up voltage, ultra-wide MPPT voltage range

    - 200% oversizing, 110% overload output (except 15 kW model)

    - Integrated global MPP scan for superior efficiency



    Safety

    - IP66 protection

    - Integrated SPD protection for AC and DC



    Intelligent

    - Integrated export power control

    - Remote parameterization and upgrade

    - 24-hour monitoring and maintenance (optional)

    - Intelligent load management - heat pump (adapter required)

    - Multiple monitoring methods: Pocket WiFi/LAN (optional)/4G (optional)



    Economical

    - Ultra-high power density

    - Maximum DC input current of 16A per string, compatible with high-power solar panels



    Specifications

    Model
    DC INPUT
    PV grid input power [Wp]6000
    100001200016000200002400030000
    PV input voltage max.
    PV input voltage [V]1000
    Start-up voltage [V]150
    Nominal input voltage [V]640
    Voltage range
    MPP tracker [V]120~980
    Number of MPP trackers/Chains per MPP tracker
    (1/1)
    Max. input current16
    1632/16
    Max. short-circuit current20/2040/20
    AC
    Nominal AC output power [W]3000400050006000
    100001200015000
    Nominal AC output current [A]
    .6/4.4
    .1/5.8
    .6/7.3
    .1/8.712.2/11.615.2/14.518.2/17.422.7/21.8
    Max. apparent power [A]
    Apparent AC output power [VA]33004400550066008800110001320015000
    Apparent power max.AC output current [A].8.4.612.816.019.122.7
    Rated AC voltage [V]220/380V, 230/400V, 3/N/PE
    Rated mains frequency/Mains frequency [Hz]50/60
    Displacement power factor
    .8 peak-0.8 offset
    THDi (nominal power) [%]<3
    SYSTEM
    Maximum efficiency [%]98.3
    Euro efficiency [%]97.8
    Standby power consumption (night) [W]<3
    Intrusion protectionIP66
    Operating temperature range [ C]
    (Declining above 45)
    Maximum operating altitude [m]4000(Declining above 3000)
    Relative humidity [%]
    Typical noise emissions [dB]<30<45<50
    Storage temperature [ C]
    Dimensions (L×H×D) [mm]342*434*144.5342*434*156
    Weight [kg]15.51718
    Cooling conceptNatural coolingIntelligent fan cooling
    Communication interfacesUSB / RS485 / DRM / Pocket WiFi (Optional:
    Pocket LAN/4G) / Adapter box(Optional)
    PROTECTION
    Overvoltage and undervoltage protectionvoltagesyes
    DC insulation protectionyes
    DC reversal protectionyes
    monitoring
    yes
    DC injection monitoringyes
    Return current monitoringyes
    detection
    current
    yes
    Islanding protectionyes
    Overheating protectionyes
    SPD (DC/AC)Type III / Type
    III
    Arc fault circuit interrupter (AFCI)optional
    Auxiliary power supply AC (APS)optional
    STANDARD
    SafetyIEC/EN 62109-1;
    IEC/EN 62109-2; NB/T 32004
    IEC/EN 61000; NB/T 32004
    Certification
    ; EN 50549; AS 4777.2; VDE4105; IEC 61727; IEC 62116; IEC 61683; IEC 60068; EN 50530; NB/T 32004
    X3-MIC-8.0-T-D

    Data sheet

    Inverter power
    8000VA
    MPPT/PWM
    MPPT
    Phase
    Triphasé
    Number of MPPT
    2 MPPT
    Video Youtube 1 - ID
    Et8WfdYeiiA
    Video Youtube 2 - ID
    iwpoiii®

    Specific References

    New

    Download

    DataShSolaxX3MIC X3-MIC-G2-EN

    Download (1.88MB)
