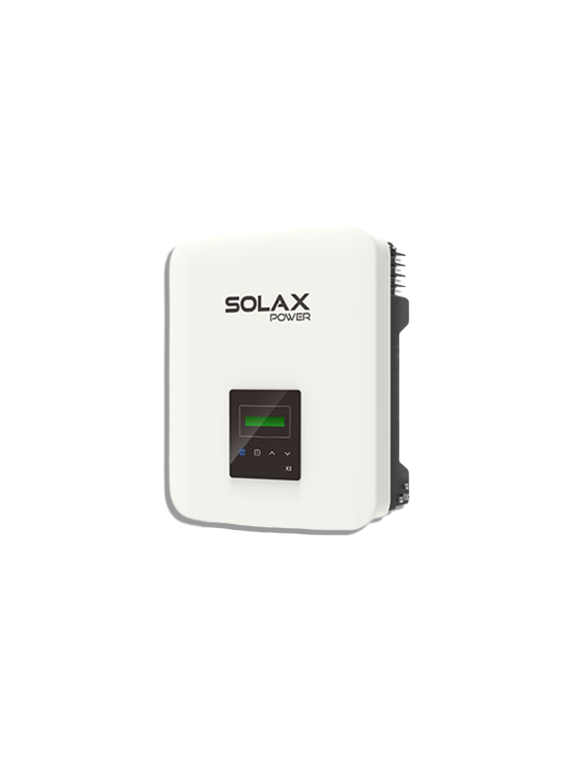

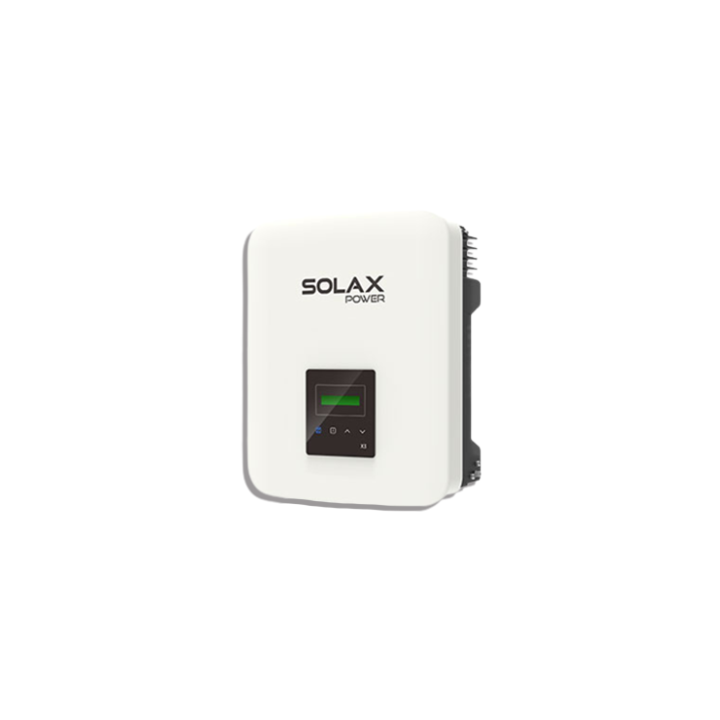

SolaX three-phase X3 MIC X3-MIC-10.0-T-D
Perfect for small commercial photovoltaic panels
Plug & Play installation
The X3 Mic G2 is the ultimate small commercial or residential solar inverter, perfectly designed for homes with solar panels on different sides of the roof. With two MPPT trackers, the X3 Mic/Pro G2 can be connected to two separate panels, and our X3 Mic G2 is also IP66-rated, meaning it can be installed outdoors.
Simple, reliable, efficient
Make the most of your solar system
The Solax X3 Mic G2 is among the most efficient residential and commercial solar inverters available on the market today, with a massive 98.3% efficiency and a maximum DC voltage of 1000V. You can be sure you're getting the most out of your energy.
High efficiency
- Maximum efficiency up to 98.3%.
- Low start-up voltage, ultra-wide MPPT voltage range
- 200% oversizing, 110% overload output (except 15 kW model)
- Integrated global MPP scan for superior efficiency
Safety
- IP66 protection
- Integrated SPD protection for AC and DC
Intelligent
- Integrated export power control
- Remote parameterization and upgrade
- 24-hour monitoring and maintenance (optional)
- Intelligent load management - heat pump (adapter required)
- Multiple monitoring methods: Pocket WiFi/LAN (optional)/4G (optional)
Economical
- Ultra-high power density
- Maximum DC input current of 16A per string, compatible with high-power solar panels
Specifications
| PV grid input power [Wp] | 6000 |
| 10000 | 12000 | 16000 | 20000 | 24000 | 30000 |
| PV input voltage max. |
| PV input voltage [V] | 1000 |
| Nominal input voltage [V] | 640 |
| Voltage range |
| MPP tracker [V] | 120~980 |
| Number of MPP trackers/Chains per MPP tracker |
| (1/1) |
| Max. input current | 16 |
| 16 | 32/16 |
| Max. short-circuit current | 20/20 | 40/20 |
| Nominal AC output power [W] | 3000 | 4000 | 5000 | 6000 |
| Nominal AC output current [A] |
| .6/4.4 |
| .1/5.8 |
| .6/7.3 |
| .1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.7/21.8 |
| Max. apparent power [A] |
| Apparent AC output power [VA] | 3300 | 4400 | 5500 | 6600 | 8800 | 11000 | 13200 | 15000 |
| Apparent power max. | AC output current [A] | .8 | .4 | .6 | 12.8 | 16.0 | 19.1 | 22.7 |
| Rated AC voltage [V] | 220/380V, 230/400V, 3/N/PE |
| Rated mains frequency/Mains frequency [Hz] | 50/60 |
| Displacement power factor |
| .8 peak-0.8 offset |
| THDi (nominal power) [%] | <3 |
| Maximum efficiency [%] | 98.3 |
| Standby power consumption (night) [W] | <3 |
| Operating temperature range [ C] |
| (Declining above 45) |
| Maximum operating altitude [m] | 4000(Declining above 3000) |
| Typical noise emissions [dB] | <30 | <45 | <50 |
| Dimensions (L×H×D) [mm] | 342*434*144.5 | 342*434*156 |
| Cooling concept | Natural cooling | Intelligent fan cooling |
| Communication interfaces | USB / RS485 / DRM / Pocket WiFi (Optional: |
| Pocket LAN/4G) / Adapter box(Optional) |
| Overvoltage and undervoltage protectionvoltages | yes |
| DC insulation protection | yes |
| DC reversal protection | yes |
| DC injection monitoring | yes |
| Return current monitoring | yes |
| Overheating protection | yes |
| SPD (DC/AC) | Type III / Type |
| III |
| Arc fault circuit interrupter (AFCI) | optional |
| Auxiliary power supply AC (APS) | optional |
| Safety | IEC/EN 62109-1; |
| IEC/EN 62109-2; NB/T 32004 |
| Certification |
| ; EN 50549; AS 4777.2; VDE4105; IEC 61727; IEC 62116; IEC 61683; IEC 60068; EN 50530; NB/T 32004 |
