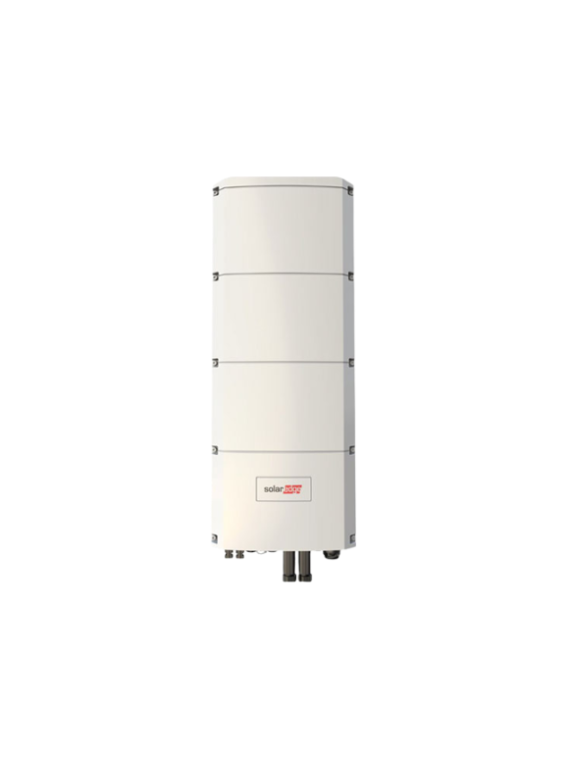

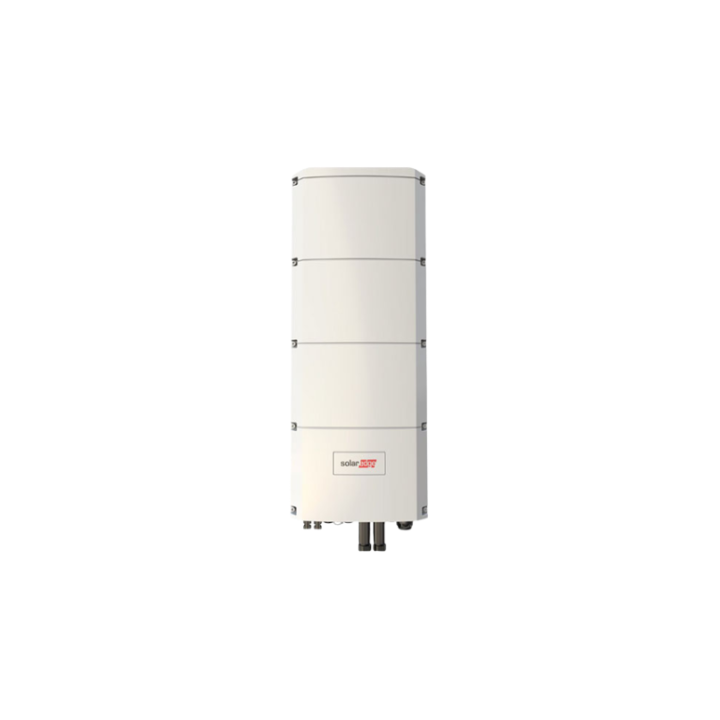

Three-phase hybrid inverter 5 kVA SE5K-RWB48BFN4
€3,693.78
Tax included
SE5K-RWB48
0768563817618
Inverter that simultaneously manages photovoltaic solar energy production, battery storage and operation during power failures for complete home backup applications (requires additional hardware and firmware version upgrade).
Sorry, there are no more items in stock.
Three-phase hybrid inverter 5 kVA SE5K-RWB48BFN4
Three-phase UPS for storage and backup applications
Simple installation with a single inverter to manage photovoltaic solar power generation, battery storage and operation during power failures for complete home backup applications (requires additional hardware and firmware version upgrade).
More energy thanks to a direct current (DC) solution architecture that stores photovoltaic solar energy directly in the battery without loss of conversion to alternating current (AC).
Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp application.
Designed to eliminate high voltage during installation, maintenance or fire-fighting, for enhanced safety.
Allows module-level monitoring and full visibility of battery status, solar PV production and self-consumption data.
Allows connection of batteries from SolarEdge and other suppliers (subject to firmware support) for greater flexibility.
Ready for backup
By combining our Hub inverters with the Backup SolarEdge Home interface, you can provide homeowners with backup power for their electrical appliances in the event of a grid failure.
Advanced security features
Includes enhanced safety features to protect installations by reducing the risk of electric shock and fire:
- Module-level supervision for precise identification of potential problems
- SafeDC™- Guarantees that the system's DC voltage is reduced to a Safe Very Low Voltage whenever the system is shut down
- Sense Connect- Checks connectors and prevents arcing
- Mechanisms for early detection and prevention of electric arcs
Designed to speed up installations
- Remote communication between inverter and SolarEdge Home Network, reducing wiring, labor and the risk of installation errors
- Simple plug-and-play installation, with automatic smartphone configuration via SetApp
- Flexible installation - indoors or outdoors
- Simplified ordering with a single point of contact for service, warranty, software and training
Connection diagram
SE5K-RWB48
Data sheet
- Phase
- Triphasé
- Rated AC output power
- 5000/1667 VA (per phase)
- Battery Type
- SolarEdge Home BAT-05K48 battery (1 to 5 battery modules)
- Maximum charge/discharge power
- 5000 W
- AC frequency
- 50/60 ± 5 Hz
- Transformerless, groundless
- Oui
- Reverse polarity protection
- Oui
- AC output voltage - Cable to cable / Cable to neutral conductor (nominal)
- 380/220 ; 400/230
- AC output voltage - phase-to-neutral range (range)
- 184 - 264.5 Vac
- Maximum continuous output current (per phase)
- 8 A
- Protection against phase fault currents (120 ms)
- 11 A
- Residual current detector / Residual current level detector
- 300/30 mA
- Compatible networks
- Three-phase 3 / N / PE (Star with neutral)
- Maximum AC output power (total/per phase)
- 5000/1667 VA
- Automatic switching delay
- Less than 3 sec
- Maximum permissible phase imbalance
- 1.66 Kw
- Maximum DC power (STC module)
- 10000 W
- Input voltage range
- 40 / 62 Vdc
750 - 900 Vdc - Maximum input current
- 13.3 Adc
- Ground fault detection
- 700 kΩ sensitivity
- Maximum continuous input/output current
- 125 Adc
- Communication from battery to inverter
- CAN
- Rendement PV vers réseau
- 98 %
- PV to DC battery efficiency
- 98.4 %
- European weighted yield
- 97,3 %
Specific References
- UPC
- 768563817618
- EAN13
- 0768563817618
