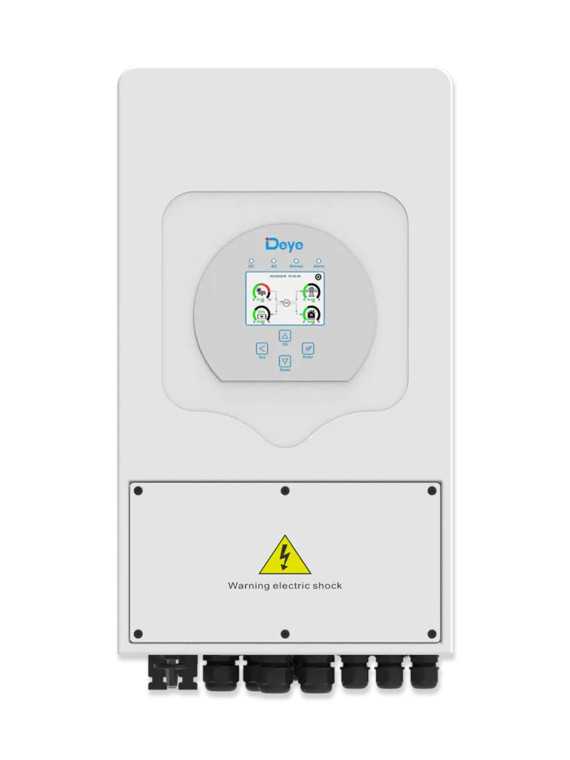

Deye Hybrid Inverter SUN-6K-SG01/03/LP1-EU

Description

Boost your energy independence with the SUN 6K-SG hybrid inverter, specially designed for homes and small businesses. This system optimizes the self-consumption of your solar energy, reducing your bills while increasing your independence. During the day, it captures solar energy to power your equipment and stores excess energy in the battery for later use. In case of a power outage, rest assured! With its compatibility with a generator, you benefit from uninterrupted power supply. Moreover, its RS485/CAN port ensures intelligent energy management. Choose a clean, reliable, and economical energy solution!

Key Features

1. Flexible Power

The SUN 3.6/6K-SG is available in several nominal power ratings — 5 kW and 6 kW. This flexibility allows it to meet a wide range of energy needs, whether for a single-family home or light commercial activities. Choose the power that best matches your energy consumption.

2. Optimization of Self-Consumption

This inverter is designed to maximize the use of generated solar energy. During the day, it directly powers your devices and stores excess energy in the battery, allowing you to reduce your dependence on the grid and lower your electricity bills.

3. Intelligent Energy Management

The system integrates advanced energy management technology that prioritizes real-time device power supply. When there is excess solar energy, it is used to charge the battery, ensuring electricity availability even when solar production is low.

4. Reliable Backup Power

In case of a power outage, the SUN 3.6/5K-SG easily connects to a generator, ensuring continuous power supply. This gives you the peace of mind needed to face unforeseen events without compromising your comfort or productivity.

5. RS485/CAN Communication Port

Equipped with an RS485/CAN port, this inverter facilitates communication with energy management systems and batteries. This allows for real-time performance monitoring and remote software updates, ensuring optimal system operation.

6. Simplified Installation

The SUN 3.6/6K-SG is designed for quick and hassle-free installation. Its intuitive design allows installers to commission it swiftly, thereby reducing installation time and costs.

7. Advanced Monitoring Functionality

With a user-friendly interface, you have access to real-time data on energy production, consumption, and battery status. This enables you to track your energy performance and optimize your savings.

Conclusion

The SUN 3.6/6K-SG, with its flexible power options and advanced features, represents an ideal solution for those looking to maximize their energy efficiency. Whether you are an individual or a professional, this inverter helps you reduce your energy costs while contributing to a sustainable future. Choose the SUN 3.6/6K-SG and transform your energy consumption!

Main Screen

The LCD screen is touchscreen and displays the general information of the inverter.

1 • The icon in the center of the home screen indicates that the system is functioning normally. If it displays "comm./F01~F64," it means that the inverter has communication errors or other issues. The error message will be displayed below this icon (errors F01-F64, details of the errors can be consulted in the system's Alarm menu).

2 • The time is displayed at the top of the screen.

3 • System configuration icon. Tap this button to access the system configuration screen, which includes basic settings, battery configuration, network configuration, system operating mode, generator port usage, advanced functions, and Li-Ion battery information.

4 • The main screen displays information regarding solar power, grid power, load, and battery. It also indicates the direction of the energy flow with arrows. When the power approaches a high level, the color of the panels changes from green to red, clearly visualizing the system information on the main screen.

- PV power and load power always remain positive.

- A negative grid power indicates a sale to the grid, while a positive one indicates receiving from the grid.

- A negative battery power indicates charging, while a positive one indicates discharging.

Remote Shutdown Function

Intelligent Monitoring Platform

Thanks to the intelligent monitoring platform, the complete range of Deye inverter products supports immediate remote shutdown in case of an accident. The parameters can be adjusted and firmware updated remotely, making it easier to operate and maintain photovoltaic installations.

Technical Data

Battery Compatibility and Input

Compatible with lead-acid and lithium-ion batteries, automatically adapting to Battery Management Systems (BMS). Battery voltage range of 48V.

High Efficiency

Maximum efficiency of 97.6%, European efficiency of 96.5%, and MPPT efficiency exceeding 99%, ensuring maximum energy conversion and minimal losses.

Rated Power

Available models range from 3.6 kW to 6 kW (SUN-3.6K, SUN-5K, and SUN-6K), with peak power capabilities reaching double the rated power for durations of up to 10 seconds.

Advanced Protection Mechanisms

Includes comprehensive protection features: DC reverse polarity protection, AC output overcurrent protection, AC output overvoltage protection, thermal protection, and earth fault protection.

Compliance with Standards

Meets many international safety and performance standards, including IEEE 1547.1, EN 62109-1/2, and UL 1741.

Operating Range

Functions well in a wide temperature range (-40°C to +60°C) and can operate at altitudes up to 2000 meters, maintaining noise levels below 30dB.

Monitoring and Communication

Supports various monitoring and communication interfaces, including GPRS, WIFI, Bluetooth, 4G, and LAN. RS485, RS232, and CAN communication interfaces for robust connectivity and flexible integration.

UPS operation with Pylontech batteries

Inverter Installation

Physical Specifications

Dimensions

Measures 330 mm × 580 mm × 232 mm, compact and easy to install.

Weight

Weighs 25 kg, facilitating handling and installation.

Cooling

Intelligent air cooling ensuring effective thermal management.

Protection Rating

IP65 protection, suitable for various indoor and outdoor installations.

Discover the Advanced Features of Deye Hybrid Inverters

Optimize your solar installation and manage your energy consumption more efficiently with videos dedicated to Deye hybrid inverters. Discover the best features and applications of this innovative technology. Simply click on the title to access the corresponding video.

1. Peak Shaving Function of the Deye Hybrid Inverter

Learn how to use the Peak Shaving function to reduce your energy consumption during peak demand times and optimize your energy costs.

2. Priority Re-injection Mode for Deye Hybrid Inverter

Discover the first sales mode for the Deye hybrid inverter, an essential video for understanding how to present and sell this product.

3. Configuration with Pylontech Lithium-ion Battery

Follow our guide to connect and configure a Deye inverter with a Pylontech lithium-ion battery to maximize the efficiency of your installation.

4. Time of Use Function of the Deye Hybrid Inverter

Optimize your energy consumption based on the time of day with the Time of Use function to better manage your energy costs.

5. Smart Charging Function of the Deye Hybrid Inverter

Maximize the efficiency of your installation with the smart charging function, which enables optimal energy management.

6. Using the Inverter without Battery Mode with Deye Hybrid Inverter

Learn how to operate your Deye hybrid inverter without a battery for a simpler and more cost-effective setup.

7. Parallel Function of the Deye Hybrid Inverter

Discover how to connect multiple Deye inverters in parallel to increase the capacity of your installation according to your energy needs.

8. Battery Charging with a Diesel Generator

An ideal solution for areas without constant access to the electric grid. Learn how to use a diesel generator to charge your batteries with the Deye hybrid inverter.

Optimize your energy consumption today!

Choose the video that interests you and discover how to take advantage of the advanced features of Deye hybrid inverters for optimal energy management and sustainable savings.

Warranty and Support

Warranty

5-year or 10-year warranty, providing peace of mind and assurance of reliability. The warranty period may vary depending on the installation site and applicable terms.

The Deye SUN 3.6/6K-SG hybrid inverter is a powerful and flexible solution for optimized energy management. With high efficiency, comprehensive protection, and advanced control features, it is perfect for your energy storage needs and solar applications. Its intelligent design and robust features make it an excellent choice for modern energy needs.
