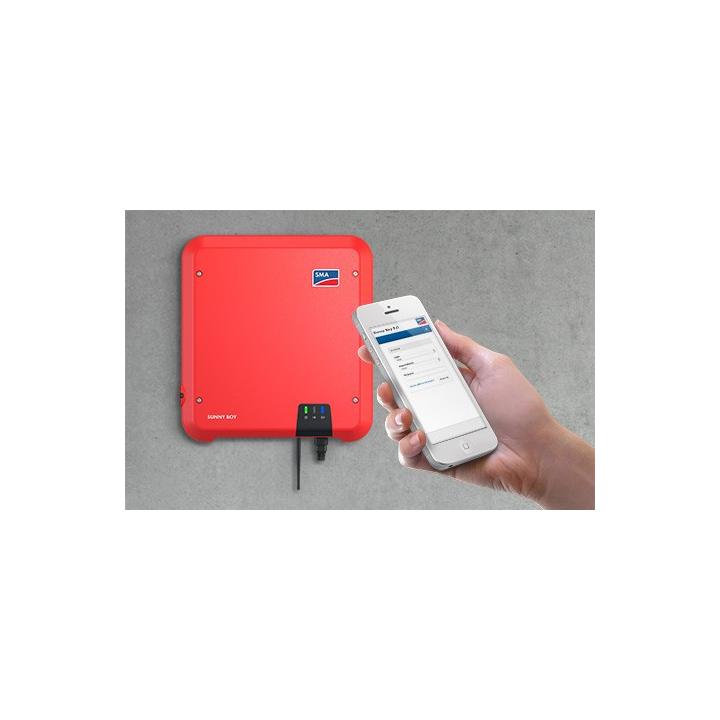

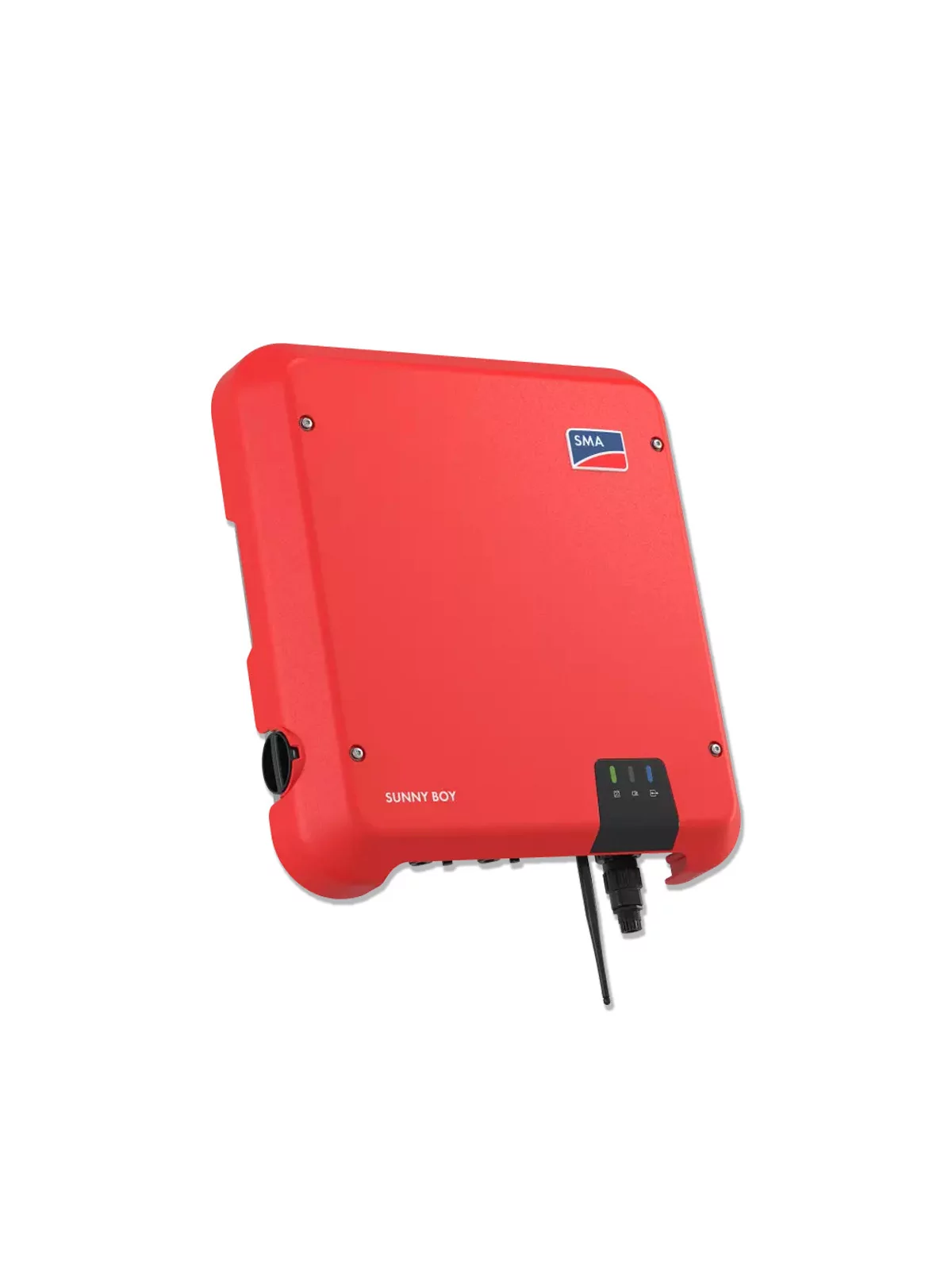

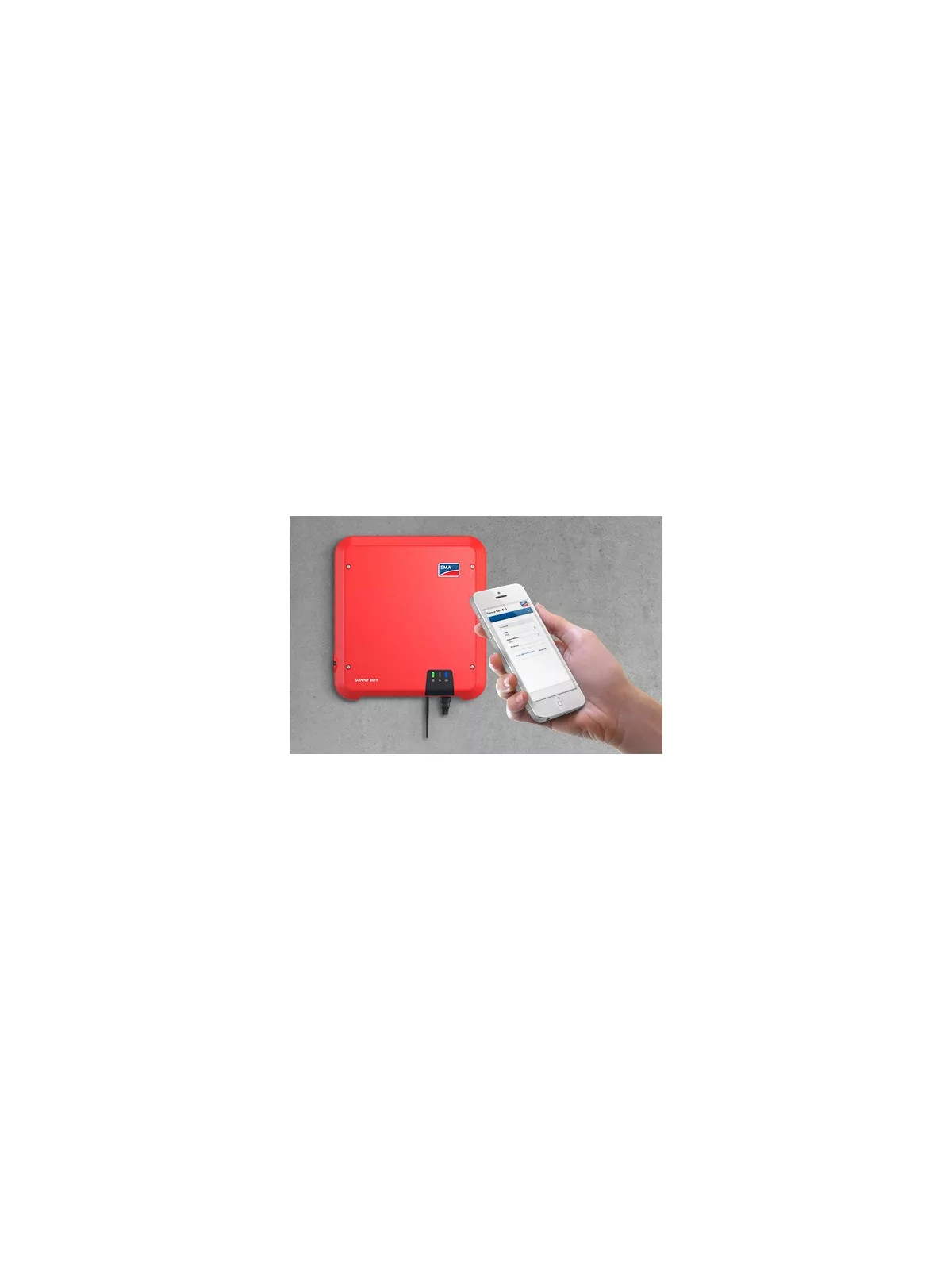

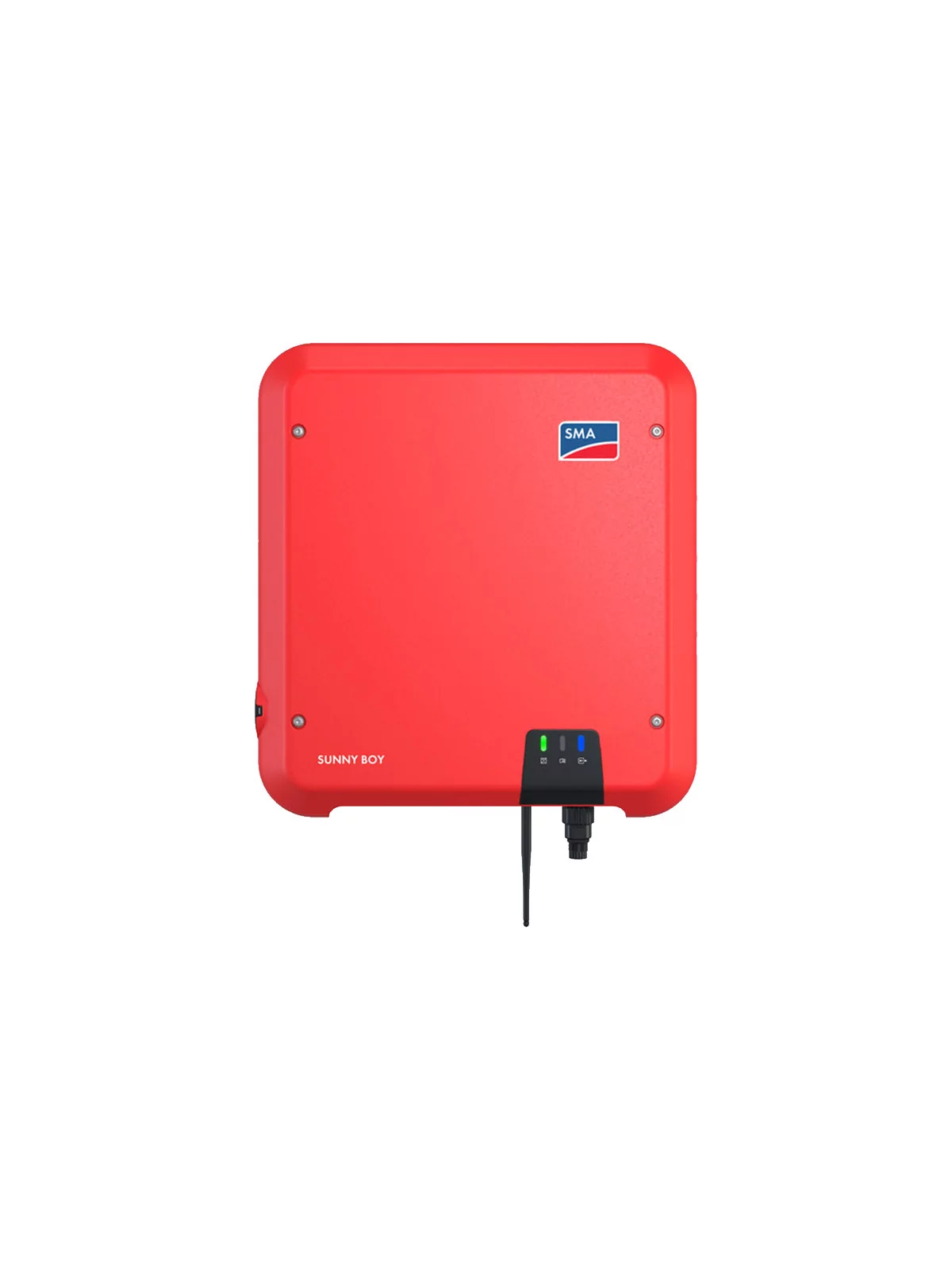

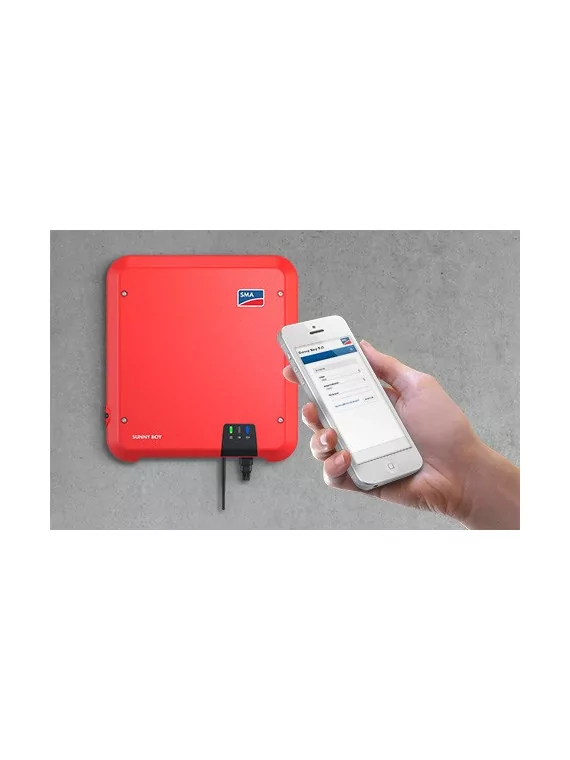

Intelligent solar inverter: SMA Sunny Boy 4.0
The new Sunny Boy 3.0-6.0 guarantees maximum energy production for the home.
The new Sunny Boy 3.0-5.0, successor to the globally successful Sunny Boy 3000-5000TL, is much more than a photovoltaic inverter:
The Sunny Boy 3.0-5.0 is ideal for solar power generation in single-family homes.
Quick and easy installation
Thanks to its low weight, Sunny Boy is quick and compact to install.
Quick installation by a single person, thanks to its low weight of 17.5 kg
Compact design takes up minimal space
Quick installation thanks to external connections
Intelligent optimization of energy production
Proven functionalities and integrated software solutions ensure optimized energy production over the lifetime of the system. Even in the event of shading. SMA ShadeFix is patented inverter-integrated software for optimizing energy production in almost any situation. In the case of greater shading or complex roofs, the TS4-R optimizers, which are simple and selective to install, ensure optimum production.
SMA ShadeFix is an integrated software package for optimizing energy production
Dynamic active power limitation: direct use of surplus energy, less energy taken from the grid
Integrated TS4-R communication for selective production optimization of heavily shaded panels

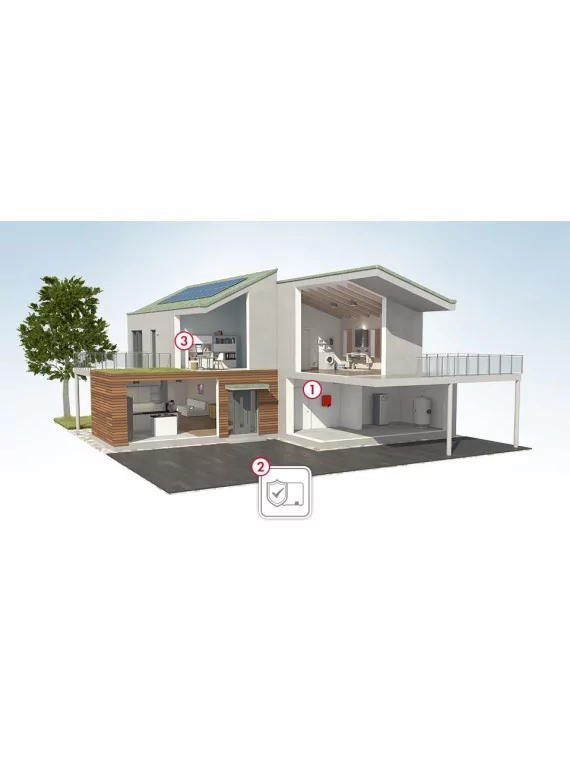

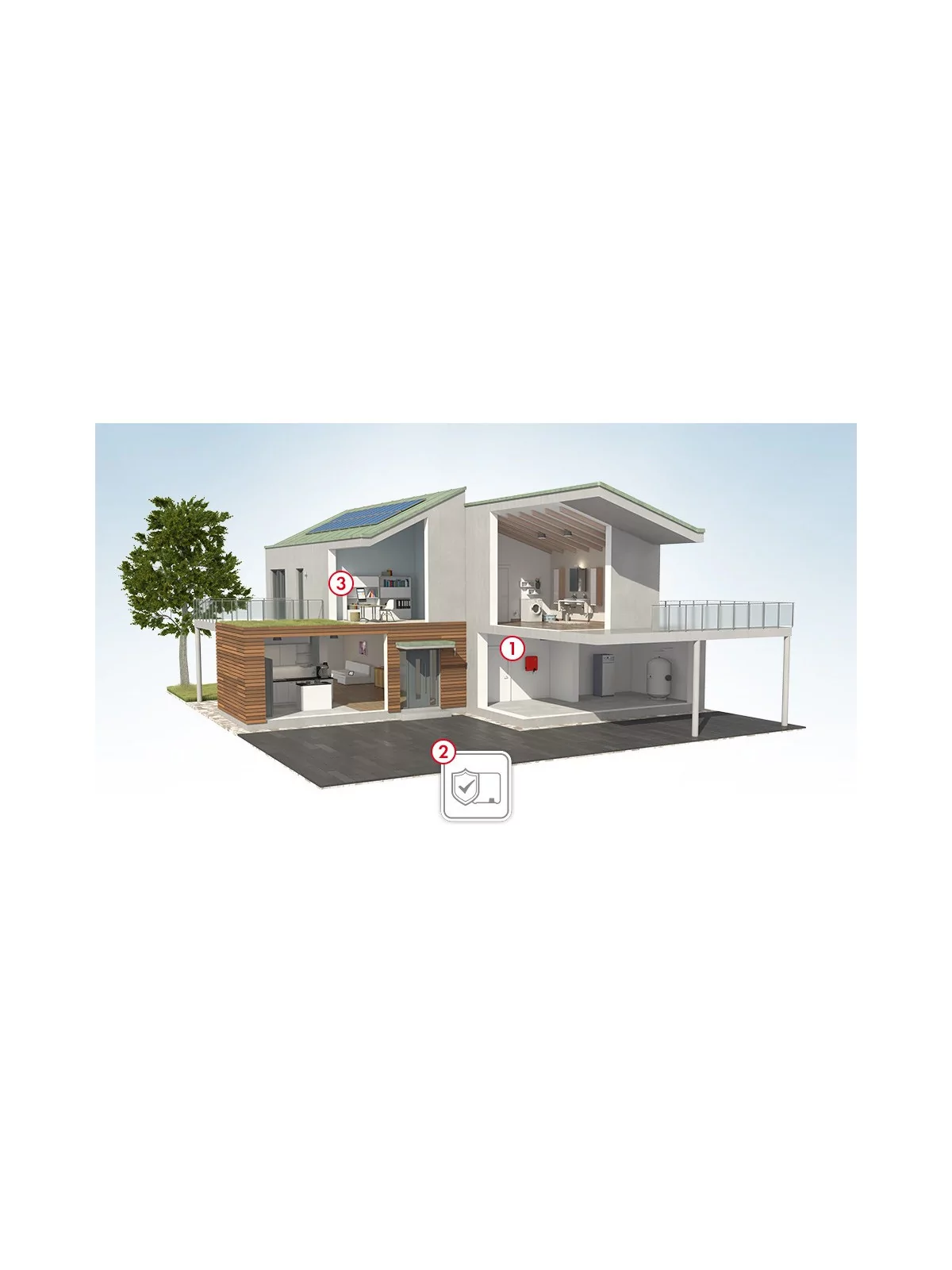

Expandable at any time
With Sunny Boy, photovoltaic system owners always benefit from maximum output from their photovoltaic system. Should the household's use of solar power increase, Sunny Boy systems can be upgraded at any time with SMA's intelligent energy management and storage solutions.
Features
| Sunny Boy 3.0 | Sunny Boy 3.6 | Sunny Boy 4.0 | Sunny Boy 5.0 | Sunny boy 6.0 |
| Max. DC power (when cos φ =1) | 5500 W | 5500 W | 7500 W | 7500 W |
| MPP voltage range | 110 V to 500 V | 130 V to 500 V | 140 V to 500 V | 210 V to 500 V | 175V to 500V |
| Assigned input voltage | 365 V |
| Min. input voltage |
| / starting input voltage | 100 V / 125 V |
| Max. input current input A / input B | 15 A / 15 A |
| Max. input current. |
| per string input A / input B | 15 A / 15 A |
| Number of independent MPP inputs / strings per MPP input |
| / A:2 ; B:2 |
| Rated power (for 230 V, 50 Hz) |
| ,000 W |
| 680 W |
| ,000 W |
| ,000 W | 6,000W |
| Max. apparent AC power. | 3 |
| 000 VA |
| 680 VA |
| 000 VA |
| 000 VA** | 6000VA |
| Rated AC voltage / range | 220 V, 230 V, 240 V / 180 V to 280 V |
| AC mains frequency / range | 50 Hz, |
| 60 Hz / -5 Hz to +5 Hz |
| Rated mains frequency / rated mains voltage | 50 Hz / 230 V |
| Max. output current | 16 |
| A | 16 A | 22 A*** | 22 A*** | 26.1 |
| Power factor for rated power |
| Adjustable phase shift factor |
| .8 inductive to 0.8 capacitive |
| Injection phases / connection |
| phases |
| / European efficiency | 97.0 % / 96.4 % | 97.0 % / 96.5 | 97.0 % / 96.5 | 97.0 % / 96.5 | 97.0%/96,6% |
| DC-side disconnection device | ● |
| Ground fault monitoring / network monitoring | ● / ● |
| DC reverse polarity protection / AC short-circuit resistance / galvanic separation | ● / ● / - |
| Fault current monitoring unit, |
| sensitive to all currents | ● |
| Protection class (to IEC 62103) / overvoltage category (to IEC 60664-1) |
| / III |
| Dimensions (L/H/P) |
| mm / 470 mm / 176 mm (17, |
1
| inches / 18.5 inches / 6.9 inches) |
| Operating temperature range | -25 °C to +60 °C (-13° F to +140 °F) |
| Noise emission, typical | 25 dB(A) |
| Autoconsumption (night) |
| , |
| W |
| Degree of protection (to IEC 60529) | IP65 |
| Climatic class (to IEC 60721-3-4) |
| Maximum permissible relative humidity (non-condensing) | 100,00% |
| DC |
| / AC connection | SUNCLIX / AC plug |
| Shading management : |
| SMA Shadefix (integrated) / TS4-R | ● / ○ |
| Warranty: |
| 5 / 10 years | ● / ○/ ○ |
| Certifications and approvals (others on request) | AS 4777, C10/11, CE, CEI 0-21, EN 50438, G59/3, G83/2, DIN EN 62109 / IEC 62109, NEN-EN50438, VDE-AR-N 4105, VDE0126-1-1 |
| Certifications and approvals (planned) | AS 4777.2, C10/11, CE, CEI 0-21, EN 50438, G59/3-4, G83/2-1, DIN EN 62109 / IEC 62109,
NEN-EN50438, IE-EN50438, NT_Ley20.571, ÖVE/ÖNORM E 8001-4-712 & TOR D4, PPDS, PPC, RD1699,
TR3.2.1, UTE C15-712, VDE-AR-N 4105, VDE0126-1-1, VFR 2014, RfG compliant |
| Certifications and approvals (planned) | DEWA, IEC 61727, IEC 62116, MEA, NBR16149, PEA, SI4777, TR3.2.2 |
Standard equipment ○ Optional equipment - Not available
Data under nominal conditions Version :11/2019 |
| ) 4 825 W for VDE-AR-N 4105 |
| ) 4 600 W / 4 600 VA for VDE-AR-N 4105 |
| ) AS 4777: 21,7 A |
| Type designation | SB3.0-1AV-41 | .6-1AV-41 | .0-1AV-41 | .0-1AV-41 | .0-1AV-41 |
