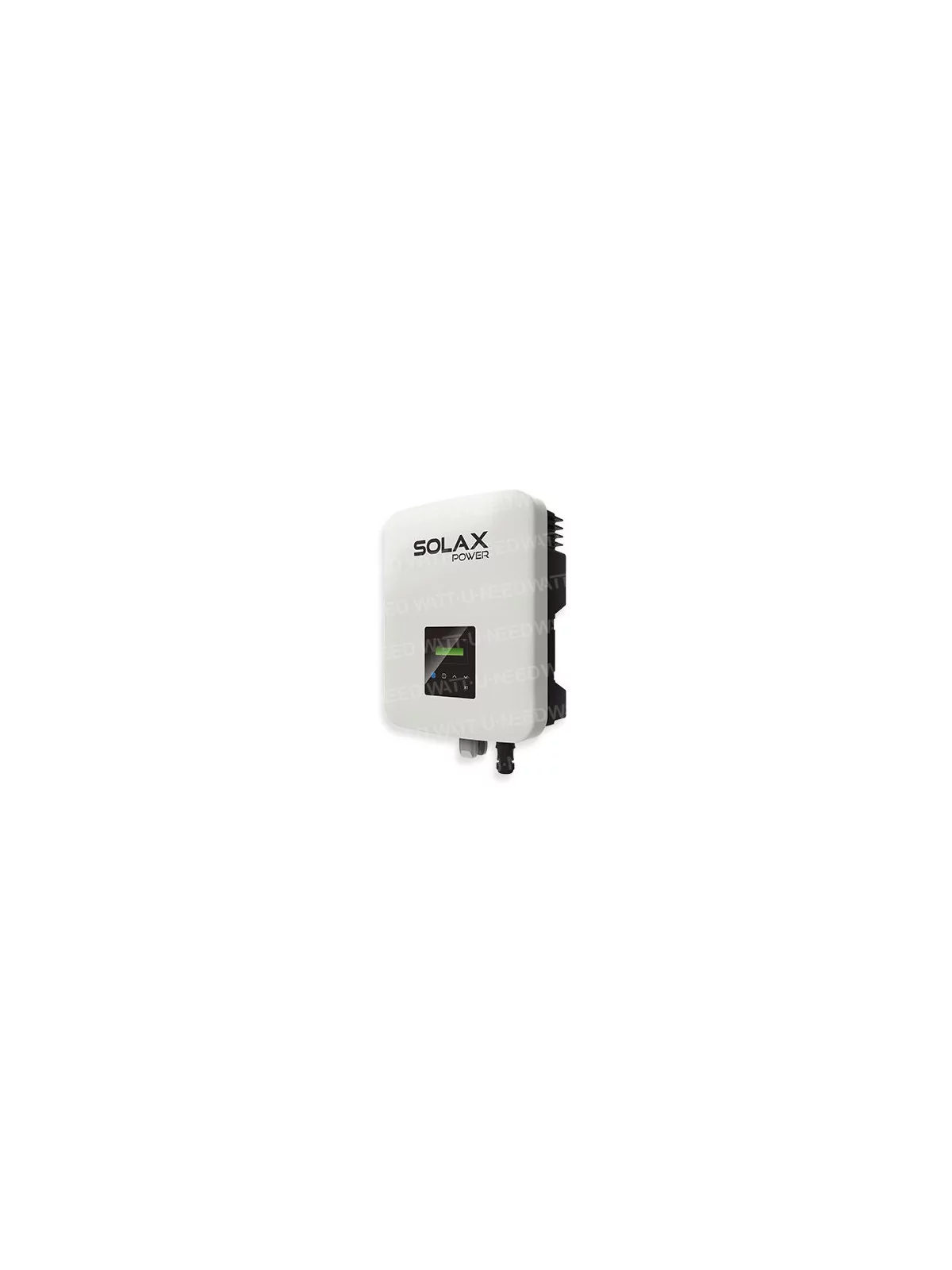

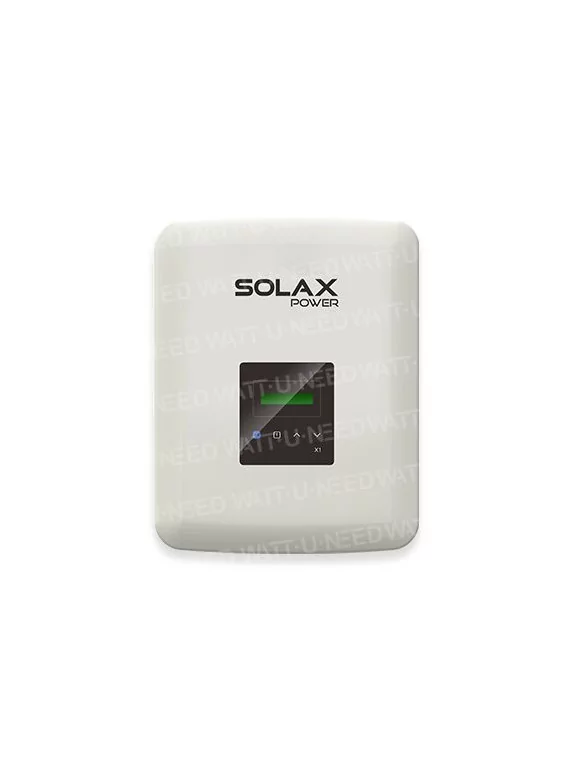

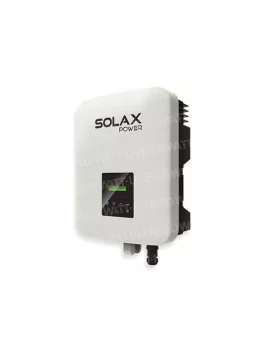

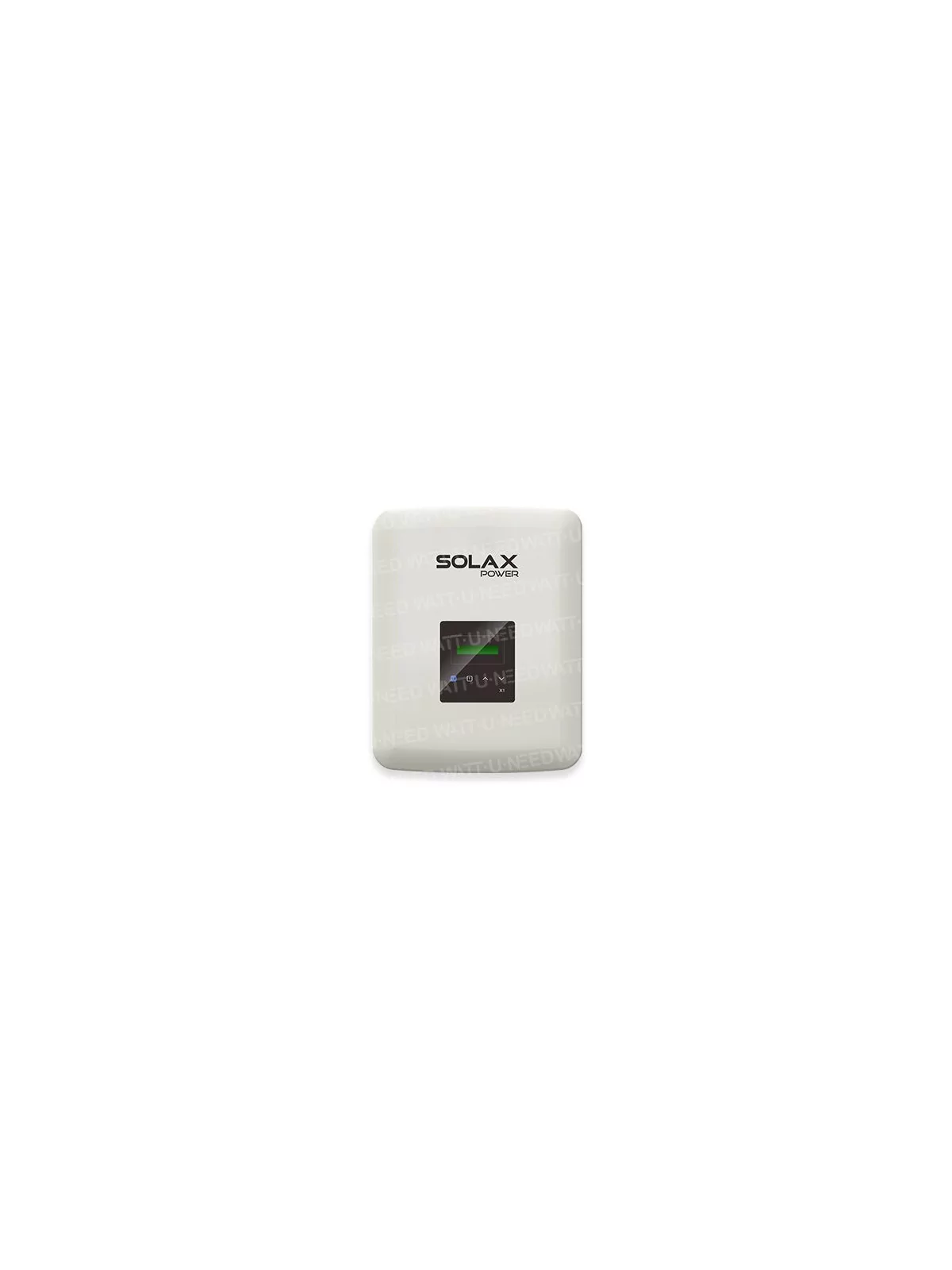

SolaX single-phase X1 BOOST X1-4.2-T-D
SolaX has developed a range of single-phase inverters unrivalled in the industry for their quality, reliability and efficiency. SolaX single-phase inverters feature a wide MPPT voltage range for greater energy recovery and a maximum input voltage of 600 V, with a maximum efficiency of 97.8%. What's more, SolaX single-phase inverters are IP66-rated, have no internal fan, and come with an optional "plug & play" WIFI system. The dual MPPT "Boost" range is also compatible with SolaX's new "Smart Plug" for remote device control.
Perfect for residential photovoltaic panels
The X1 Boost is the ultimate residential solar inverter, perfectly designed for homes with solar panels on different sides of the roof. With two MPPT trackers, the X1 Boost can be connected to two separate panel arrays, our X1 Boost is also IP66 rated, meaning it can be installed outdoors.
PLUG & PLAY installation
The X1 Boost is the ultimate residential solar inverter, perfectly designed for homes with solar panels on different sides of the roof. With two MPPT trackers, the X1 Boost can be connected to two separate panel arrays. The X1 Boost is also IP66-rated, which means it can be installed outdoors.
Simple, reliable, efficient
The SolaX X1 Boost is among the most efficient residential string solar inverters available on the market today, with a massive 97.8% efficiency and a maximum DC voltage of 600 V, you can be sure of getting the most out of your solar power.
Install indoors or outdoors
The X1 Boost is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.
Features
Password to enter parameters: 2014
| Max. power of photovoltaic panels (Wp) | 6300 |
| Max. DC power. |
| Recommended (W) |
| : 3300 B : 3300 |
| Nominal DC operat |
| ing voltage (V) | 360 |
| Max. input current (A) | 12/12 |
| MPPT voltage range (V) | 70-580 |
| Start-up operating voltage (V) | 100 |
| MPP/MPPT follow-ups / Chains per MPP/MPP |
| T follow-up |
| Nominal mains voltage (AC voltage range) (V) |
| Nominal mains frequency/range (Hz) |
| | Max. AC current (A) 18,3 Max. AC current |
| (A) | 20.1 |
| Displacement power factor |
| .8 capacitive - 0.8 inductive |
| European efficiency (%) | 97.0 |
| Standby power consumption (night) (W) | <0,5 |
| Overvoltage protection | Yes |
| Overcurrent protection | Yes |
| DC insulation resistance monitoring | Yes |
| monitoring |
| ground fault current | Yes |
| DC injection monitoring | Yes |
| Earth leakage circuit breaker protection | Yes |
| EN 61000-6-1, |
| EN 61000-6-2, EN 61000-6-3 |
| Certification |
| , G99, AS 4777, VDE4105, EN 50549, |
| IEC 0-21 |
| Degree of protection (in accordance with IEC 60529) | IP66 |
| Operating temperature range (°C) |
| to + 60 (derating to 45) |
| Max. operating altitude |
| (m | <2000 |
| Humidity(%) |
| to 100 (condensation) |
| Storage temperature (°C) |
| ~ 60 |
| Typical noise level (dB) | 25 |
| Dimensions (L x W x D) (mm) | 430 x 341.5 x 143 |
| Communication interfaces |
Fi handheld (option)
LAN handheld (option) |
(option)
Counter (option)
RS485
DRM
USB for |
| Standard warranty (years) | 10 |
