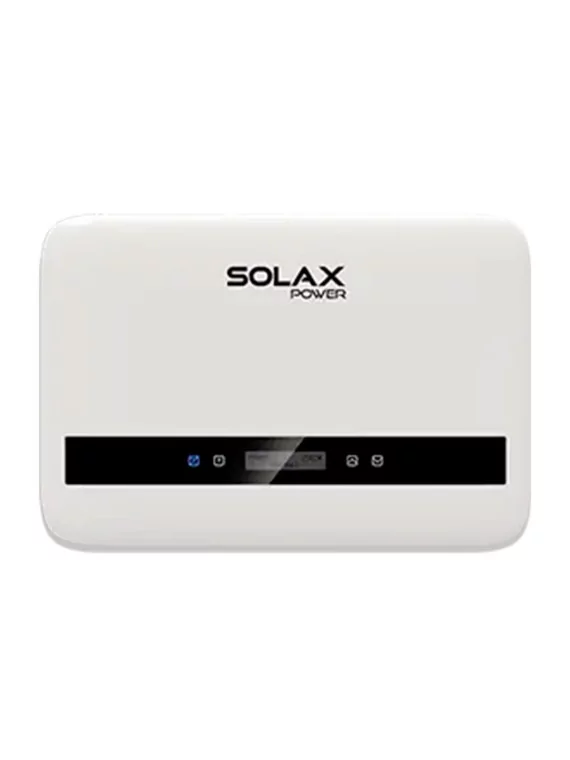

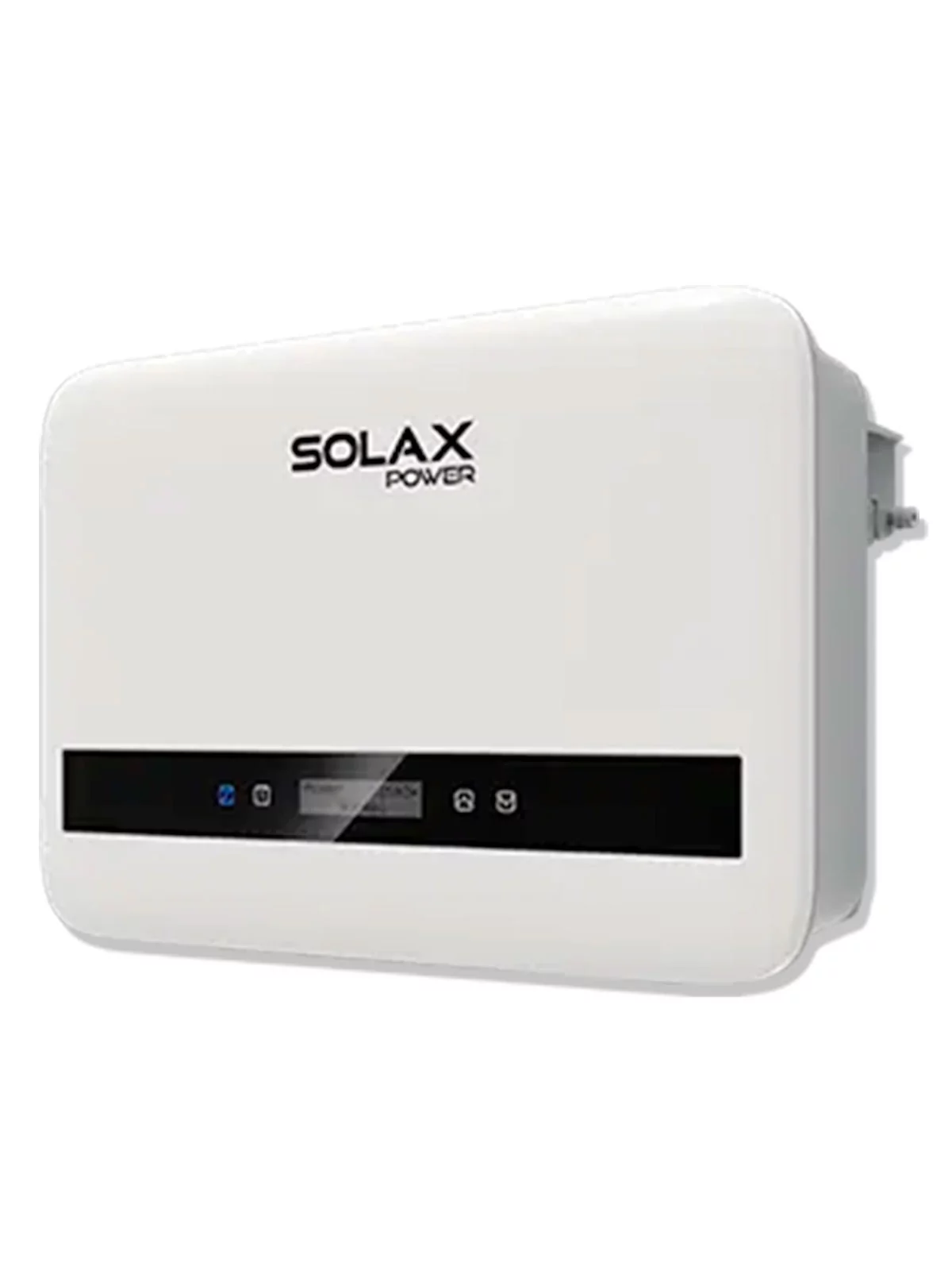

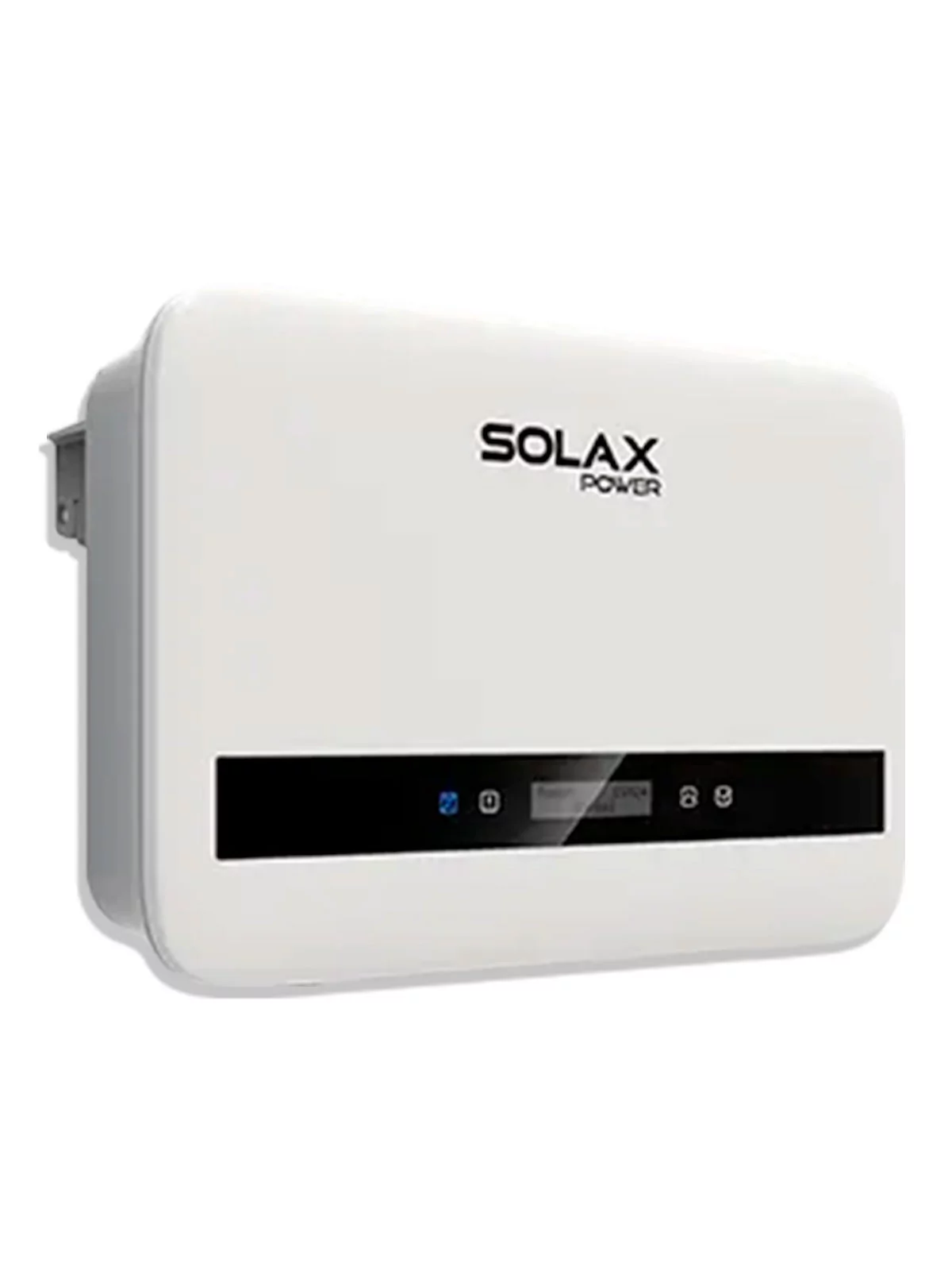

Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4
€1,057.33
Tax included
X1-BOOST-5K-G4
0712971136533
SolaX X1 Boost 5 kVA Inverter: Revolutionize Your Solar Energy Production
Discover the future of solar energy with the SolaX X1 Boost 5 kVA inverter. Designed to optimize your electricity production and adapt to your evolving needs, this compact and powerful inverter is the ideal solution for connected residential installations.
Why choose the SolaX X1 Boost 5 kVA inverter?
- Maximum efficiency: 200% DC, global MPP scanning.
- Total flexibility: Electric vehicles, heat pumps, microgrids.
- Easy installation: Quick and intuitive setup.
- Connected monitoring: Mobile app.
- Enhanced safety: Type II SPD, external RSD.
Key benefits:
- Increase your solar energy production: Maximize the yield of your solar panels.
- Simplify your installation: Easy and intuitive configuration.
- Adaptability: Fits your needs and environment.
- Reliability: Robust design for long-lasting performance.
- Connectivity: Easily integrates into your energy ecosystem.
Ideal for:
- Individuals looking to optimize self-consumption.
- Connected residential photovoltaic installations.
- Users seeking a flexible and high-performance solution.
Discover the difference with the SolaX X1 Boost 5 kVA inverter.
Request your personalized quote now and choose excellence in solar energy.
3 item(s) left in Stock!
SolaX X1 Boost 5 kVA solar inverter: The champion of energy efficiency
Superior performance
- DC input: 200% oversizing, 16A current, 50V start-up voltage
- Global MPP sweep for improved integrated efficiency
Easy-to-use monitoring
- 10-second data update interval (optional new Wi-Fi dongle required)
- Quick and easy configuration (Wi-Fi&APP)
Guaranteed safety and reliability
- Integrated type II AC/DC SPD (optional) and I-V curve diagnostics supported
- Optional external RSD (Rapid Shutdown) and integrated DC AFCI protection (optional )
- Integrated export control function
Excellent adaptability
- Home EV Charger and Heat Pump Adaptable solution
- Mass management and extensive expansion via Datahub
- Master/slave parallel solution via Modbus supported
X1-BOOST-5K-G4
Data sheet
- Inverter power
- 5000VA
- MPPT/PWM
- MPPT
- Phase
- Monophasé
- Number of MPPT
- 2 MPPT
- Max. power of photovoltaic panels (Wp)
- 10000 Wc
- Tension DC max.
- 600 V
- Rated DC operating voltage
- 360 V
- Max. input current
- 16/ 16 A
- Max. short-circuit current (A)
- 22 / 22 A
- MPPT voltage range
- 40~560
- Starting voltage
- 50 V
- Rated AC power
- 5000W (4600W for VDE4105 standard)
- Max. AC power
- 5000 VA (4600 for VDE4105 standard)
- Nominal mains voltage
- 220/230/240; 180~280
- Rated mains frequency
- 50/60; ±5 Hz
- Rated AC current
- 21,7 A
- Max. AC current
- 21,7 V
- Displacement power factor
- 0.8 capacitive - 0.8 inductive
- Max. efficiency
- 98 %
- Standby consumption (night)
- + 3W
- Protection against overvoltage and overcurrent
- Yes
- Monitoring of DC insulation resistance, earth fault current, DC injection
- Yes
- Protection by differential circuit breaker
- Yes
- Safety
- IEC 62109-1/-2
- EMC
- EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12
- Certification
- IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR
- Degree of protection (in accordance with IEC 60529)
- IP66
- Typical noise level (dB)
- 25
- Type of cooling
- Natural
- Communication interfaces
- RS485/DRM/USB, Optional: CT/Meter
- LCD screen
- 2 x LED + LCD (16 x 2) / APP
- Optional monitoring dongle
- Pocket WiFi/LAN/4G
- Weight
- 11 kg
- Dimensions (L x W x D)
- 404 × 274 × 146 mm
