- Small, compact size - 150% oversize and 110% overload. - Max. DC input 14A per string - Low start-up voltage and wide MPPT range - CT/Meter compatibility - Integrated SPD on AC and DC sides - Remote update and maintenance

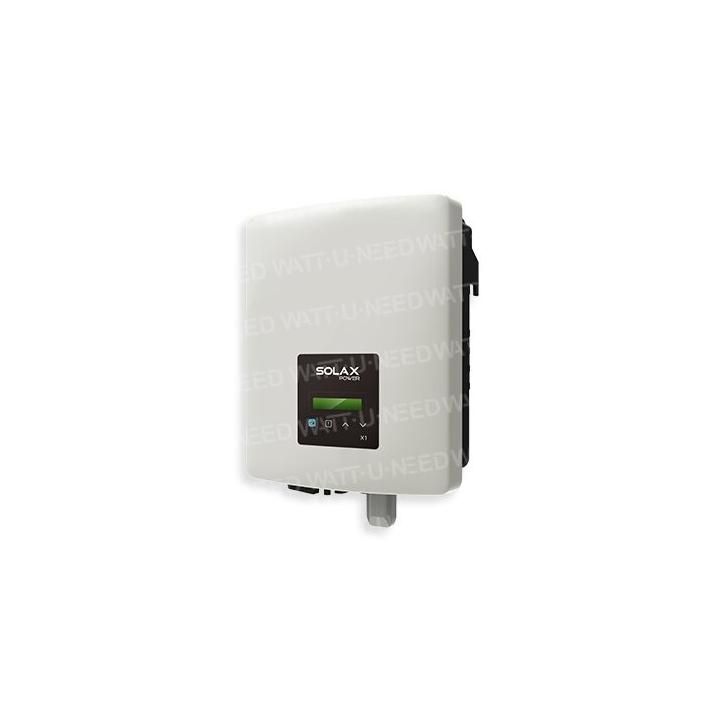

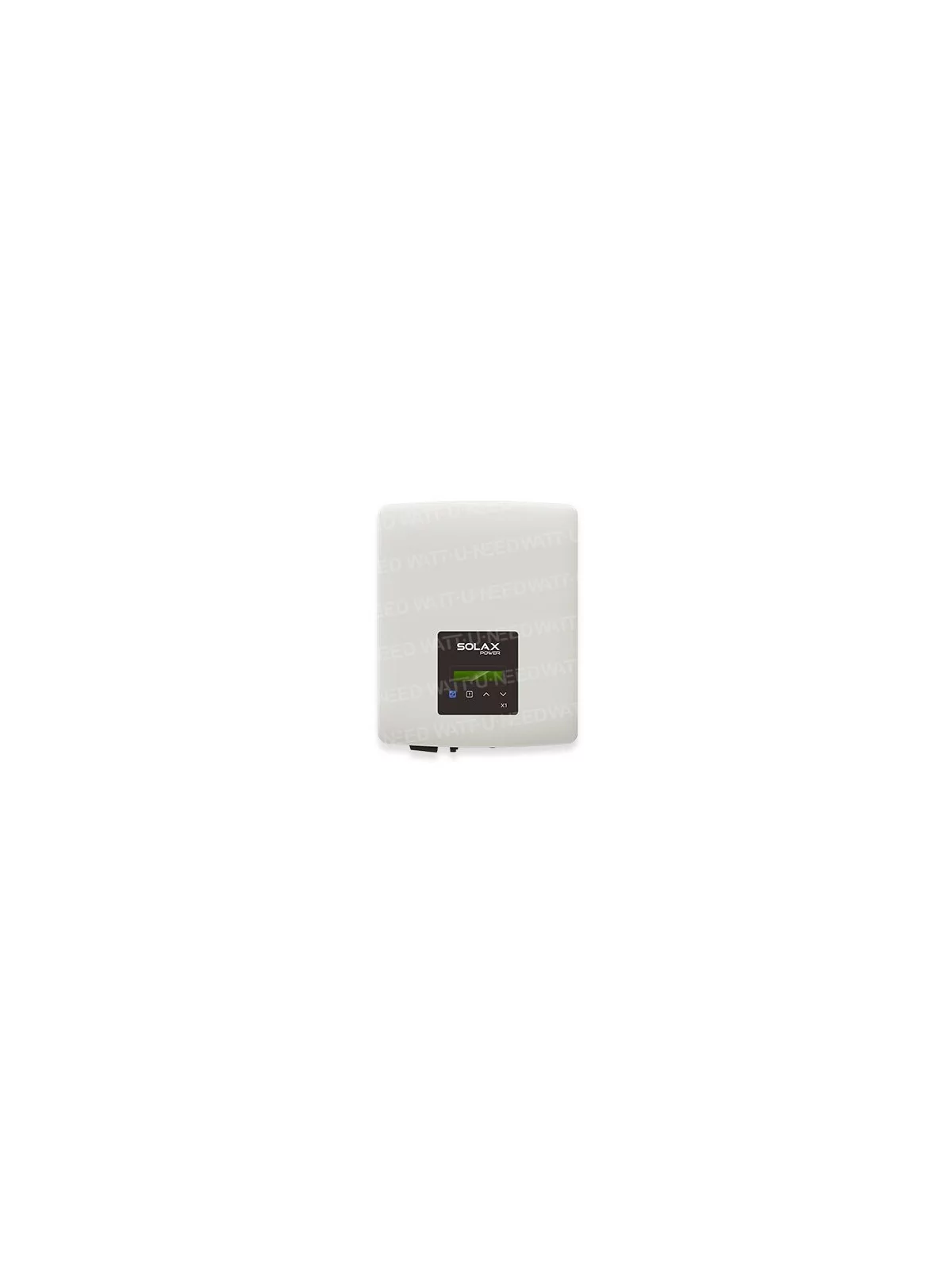

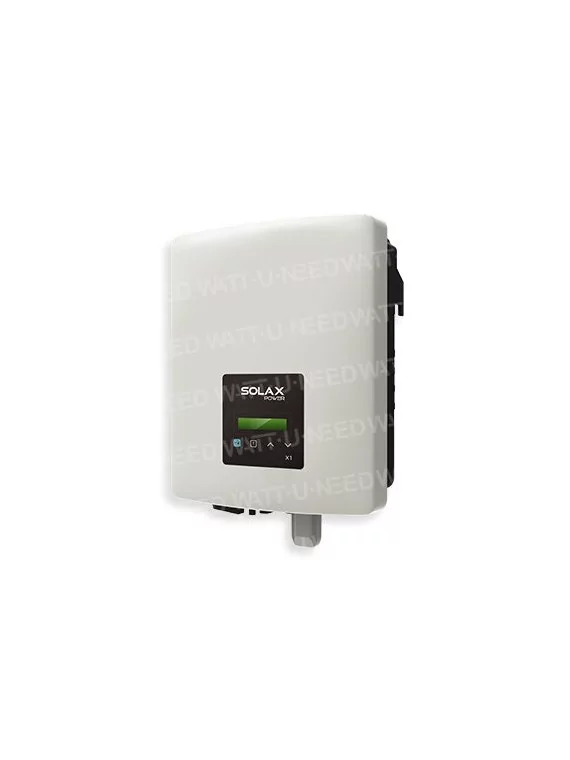

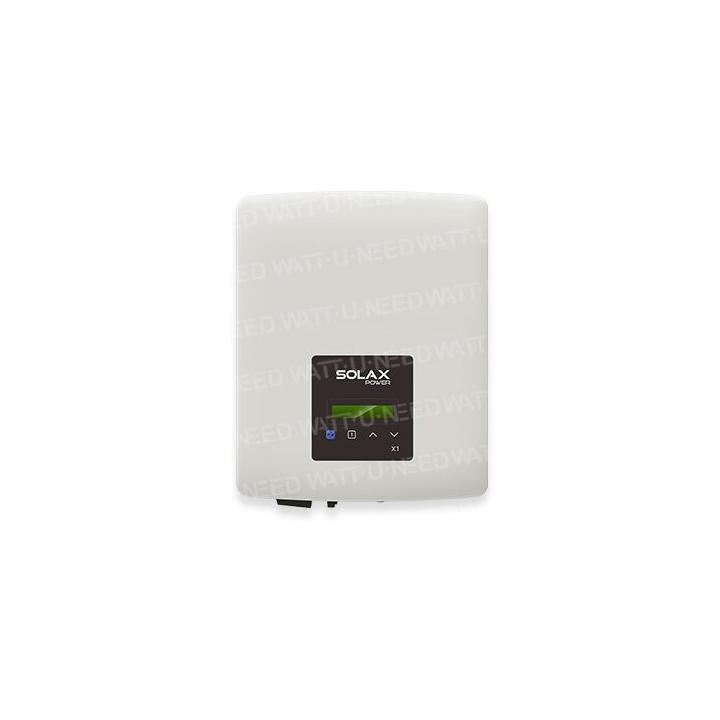

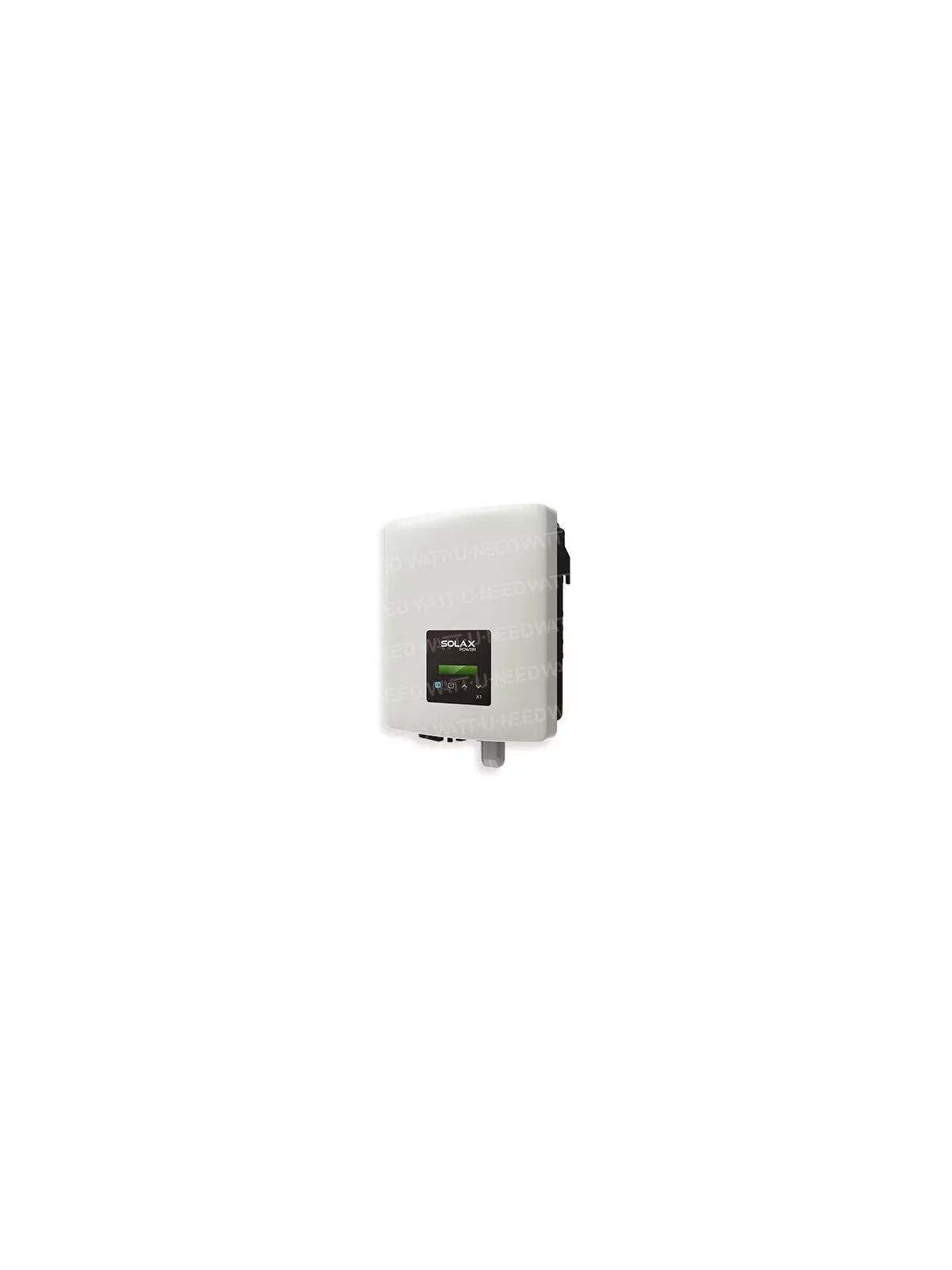

The Solax X1 Mini inverter range is designed for small photovoltaic generators. With a starting voltage of 50V and maximum efficiency of 98%, the mini promises unrivalled performance, enabling you to harvest the maximum possible energy from your PV system.
Small inverter, big performance
Perfect for small photovoltaic panels Our X1 Mini inverter is the perfect solar solution for small photovoltaic panels ranging from 0.6KW to 3.6KW. With a maximum efficiency of 98%, it's one of the most efficient small inverters available on the market today.
Power without compromise
Small, light and silent
The X1 Mini has been designed to fit into the smallest of spaces, with a grip of just 32.8cm and a weight of just 6kg, the X1 mini is small but not lacking in performance.
IP66-rated protection
Indoor or outdoor installation
The x1 Mini is IP66-rated, which means it can be installed indoors or outdoors.
Features
Password to enter parameters: 2014
Model
.3K-S-D MINI G3.1
DC INPUT
Max.
PV generator input power [Wp]
4950
DC input voltage max.
Max. DC input voltage [V]
550
S
tarting voltage [V]
70
Nominal input voltage [V]
360
MPP tracker voltage
range [V]
55~530
Number of MPP trackers / Cords per MPP tracker
Maximum input current [A]
14
Maximum short-circuit current [A] 16 Max.circuit [A]
16
AC OUTPUT
Rated AC out
put power [W]
3300
Rated AC output current [A]
14.3
Max. output apparent powe
r [VA]
3300
AC output current [A]
14.3
Rated AC voltage [V]
220/230/240;180 ~ 280
Rated mains frequency / Mains frequency range [Hz].
