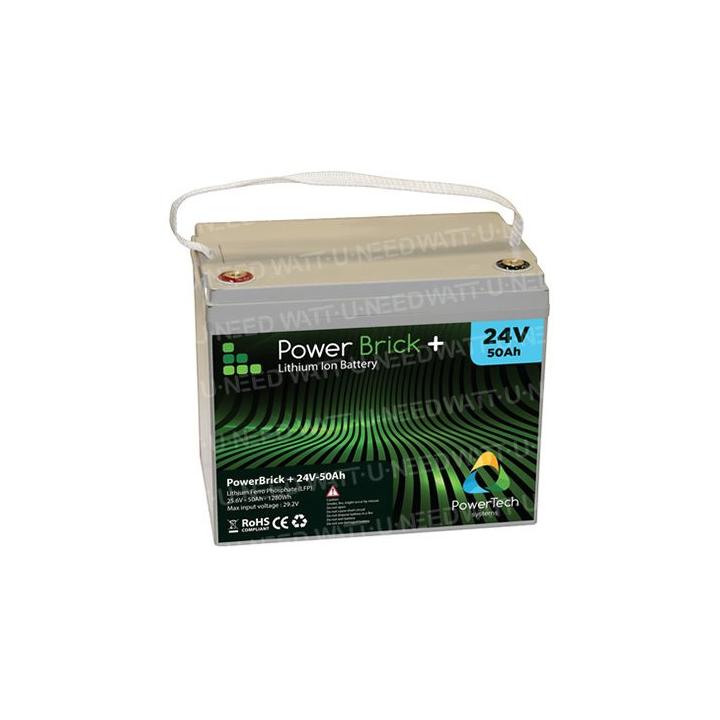

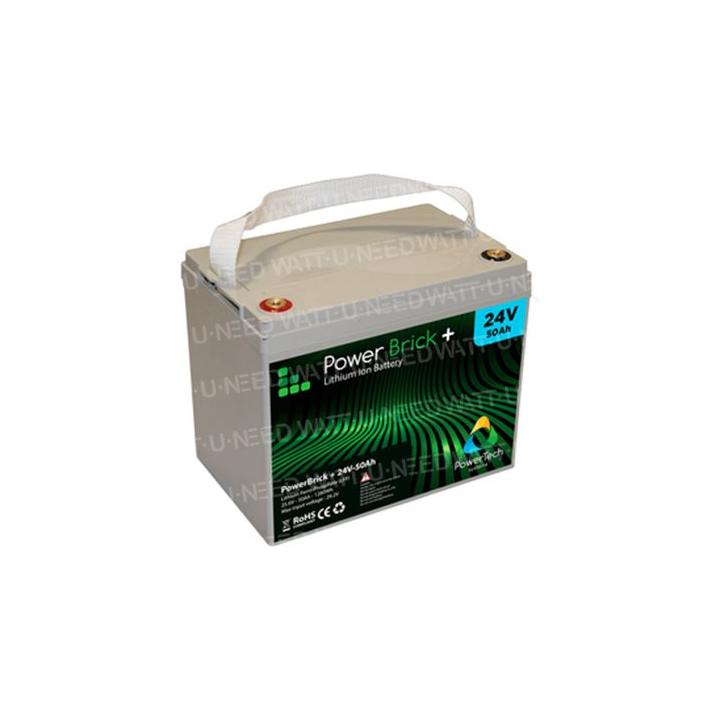

PowerBrick+ 24V 50Ah PB+ 24/50 lithium battery
The PowerBrick+ 24V-50Ah lithium-ion battery offers maximum safety thanks to the use of cylindrical cells in Lithium Ferro Phosphate (LiFePO4 or LFP) technology.
The PowerBrick 24V-50Ah incorporates an innovative control system (BMS) in its casing, ensuring a very high level of safety during use. The BMS constantly monitors and balances the battery cells, to protect the battery and extend its life. The BMS also protects the battery from mishandling: deep discharge, overcharging, etc.
The PowerBrick+ range has been designed to replace lead-acid batteries, offering quadruple the energy density for the same weight and size.
Thanks to its technology, the PowerBrick+ 24V-50Ah lithium battery can be installed in any position (upright, on its side or upside down).
The electrical parameters of the PowerBrick+ 24V-50Ah lithium battery are fully compatible with those of a 24V AGM lead-acid battery. In the vast majority of cases, the charging system can be retained unchanged, and no additional accessories are required for replacement.
Since a PowerBrick+ battery can be discharged to 100% of its capacity, a lead-acid AGM battery can be replaced by a PowerBrick+ with a capacity 2x lower than that of the lead-acid battery (e.g.: a PowerBrick+ 50Ah replaces a 100Ah AGM battery).
The PowerBrick+ 24V-50Ah lithium battery has a nominal voltage of 25.6V. It can be easily assembled in series (up to 4 batteries in series) and in parallel (up to 15 batteries).
The voltage of the final assembly can be 24V and up to 96V (for 4 packs assembled in series), which meets the needs of virtually all electrical applications for traction, solar or wind storage, service, robotics, carts, etc.
The battery is protected by a splash-proof, dust-proof ABS case (IP65).
PowerBrick+ products are lightweight, compact, high-performance and can be used for all types of applications. The PowerBrick+ is a direct replacement for old-generation batteries (VRLA, AGM or OPZ lead-acid batteries) in the 24V range, which are inefficient and harmful to the environment (use of heavy metals and complex recycling).
The PowerBrick+ range comes with a 2-year commercial warranty, extendable to 5 years.
50 Ah LiFePo Lithium batteries
- Extremely long life: from 3,000 cycles to several tens of thousands
- Deep discharges possible (up to 100%)
- Completely safe Lithium Iron Phosphate technology (no risk of explosion or auto-ignition)
BMS- (Battery Management System) integrated into the case:
- maximizes battery life AND safety
- No lead, no rare earths, no acid, no outgassing
- Calendar life > 10 years
- Excellent temperature resistance (-20°C to +60°C)
- Flexible system :
- up to 16 packs in parallel and 4 in series
- Constant power throughout discharge (low internal resistance)
- Very low Peukert losses (energy efficiency >98%)
- Very low self-discharge (<3% per month)
- No memory effect
- Weight saving >50% and 40% smaller footprint than lead-acid
batteries- Certification: CE, RoHS, UN 38.3
Key points
- 24V-50Ah battery pack in Lithium Iron Phosphate (LiFePO4 - LFP) technology
- Nominal voltage: 25.6V
- Stored energy: 1.28 kWh
- New high-performance watertight cylindrical cell
- 3000 cycles at 100% DoD @ 1C (see technical graphs)
- 4500 cycles at 80% DoD @ 1C (see technical graphs)
- 98% energy efficiency
- Weight: 11.8Kg
- Dimensions: 260mm x 168mm x 212mm
- Instantaneous peak discharge current: 350A ±50A (max 300mS)
- Continuous discharge current: 75A (1.92kW)
- Maximum discharge current (< 30s): 115A (3.0kW)
- Maximum charging current: 50A
- Total safety provided by a BMS (Battery Management System) integrated in the case
- Monitoring of cell current and voltage, temperature, cell balancing, etc.
- Intelligent balancing algorithm
- 100% maintenance-free
- Series assembly from 24V to 96V (1 to 4 units in series)
- Parallel assembly up to 16 units (24V-800Ah / 20.5kWh)
- Robust design in an insulated, watertight casing (protection class: IP65)
- Operating temperature under load: 0°C to +60°C
- Operating temperature under discharge: -20°C to +60°C
- Watertight ABS casing (IP65)
- CE, RoHS and UN38.3 certification
- 2-year commercial warranty as standard, extendable to 5 years
Dimensions
Specifications
| Internal resistance | ≤ 50mΩ |
| Number of cycles | >3000 cycles |
| Self-discharge | < 3% per month |
| Charging mode | CC/CV : |
| Constant Current / Constant Voltage |
| Standard charging current (max. continuous current) | 25 A / 50 A |
| BMS cut-off voltage | 29,4 V +- 0.2 V |
| Instantaneous peak discharge current | 350 A +- 50 A (max 300mS) |
| Continuous discharge current | 75 A (1.92 kW) |
| Maximum discharge current (< 30s) | 115 A (3.0 kW) |
0°C
| Charging temperature |
| to +60°C |
-
2
0°C
| Storage temperature |
| to +50°C @60±25% relative humidity |
MECHANICAL
| Dimensions (W x D x H) | 260 x 168 x 212 |
