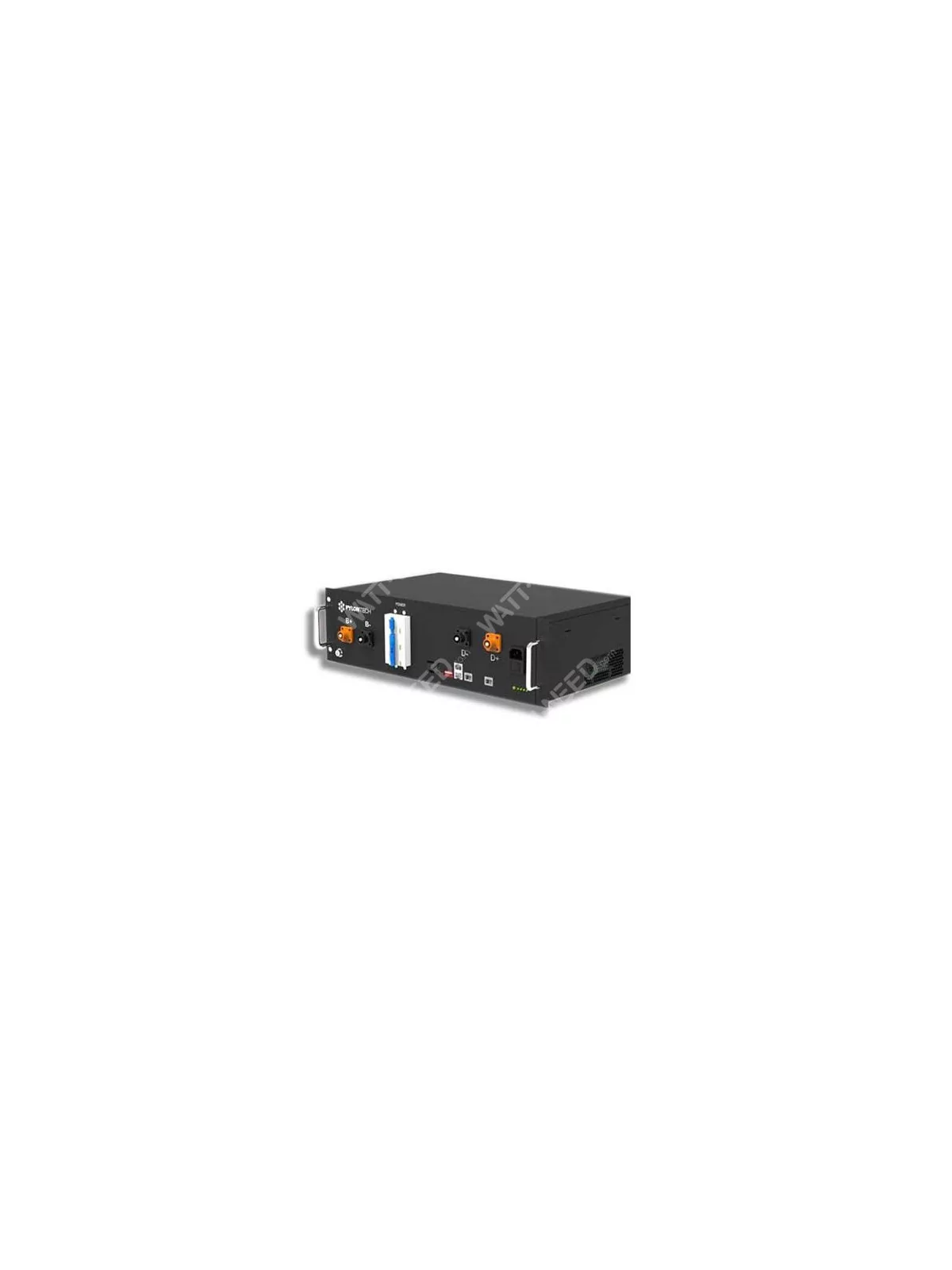

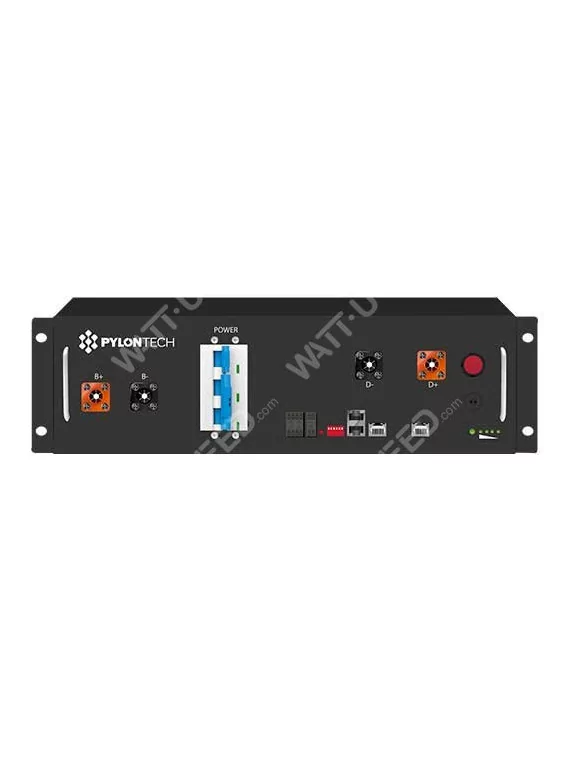

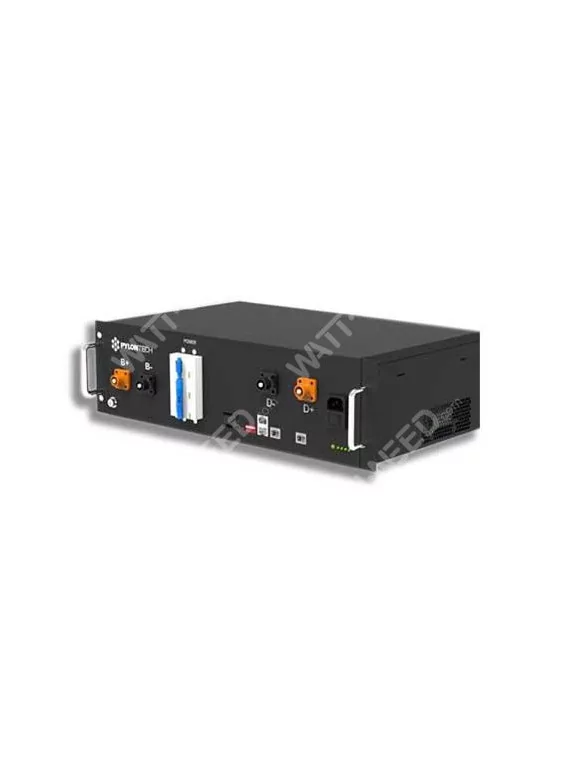

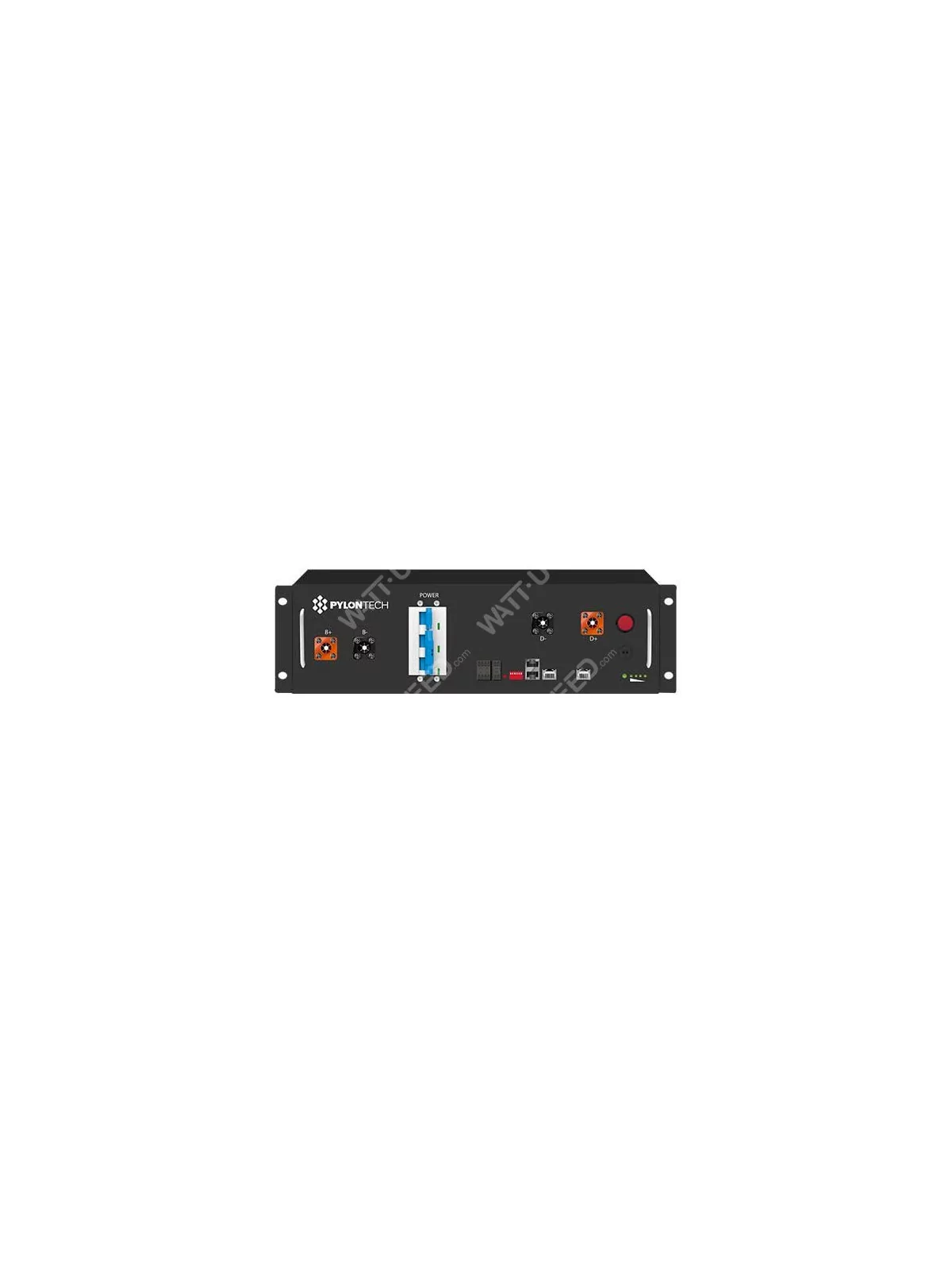

Pylontech SC-0500-100S BMS battery management system
€1,016.21
Tax included
SC0500A
0768563817250
Optimize the performance of your Pylontech battery with the BMS SC-0500-100S!
This intelligent battery management system (BMS) is specially designed to monitor and optimize the performance of Pylontech's high-voltage lithium-iron-phosphate (LFP) batteries, including those used in PowerCube X1 systems. The SC-0500-100S BMS ensures optimum protection for your battery, prolongs its life and guarantees reliable operation of your solar system.
Why choose the SC-0500-100S BMS?
- Enhanced safety: Protects your battery against overcharging, excessive discharging and overheating.
- Performance optimization: Balances battery cells for optimum performance and extended service life.
- Flexibility: Compatible with Pylontech high-voltage batteries, it allows you to configure scalable energy storage systems.
- Reliability: Robust design and high-quality components for long-lasting use.
Key features:
- Operating voltage: 100/430 Vdc
- Maximum charge/discharge current: 100 A
- Communication: RS485/CAN
- Protection: Overload, overdischarge, overcurrent, overtemperature
Ensure a high-performance, long-lasting solar installation with the SC-0500-100S BMS.
Contact our experts for more information and a customized quotation.
Sorry, there are no more items in stock.
BMS Pylontech SC-0500-100S: Optimize your PowerCube X1
PowerCube-X1 is a high-voltage battery storage system based on a lithium iron phosphate battery, is one of the new energy storage products developed and produced by Pylontech, it can be used to support reliable power for different types of equipment and systems. PowerCube-X1 is particularly suited to applications requiring high power, small footprint, low lift and long life.
It manages and monitors cell information, including voltage, current and temperature. In addition, BMS can balance cell charging and discharging to extend cycle life. Multiple batteries can be connected in parallel to increase capacity and parallel power for greater capacity and longer power to support cycle life requirements.
The battery management system (BMS) features protection functions including overdischarge, overcharge, overcurrent and high/low temperature.
The system can automatically manage the state of charge and discharge, and balance the current and voltage of each cell.
The control module offers two types of power supply: internal and external.
Specifications
SC0500A
