BMS Pylontech SC1000-100S
€1,217.54
Tax included
SC1000-100S
0768563817755

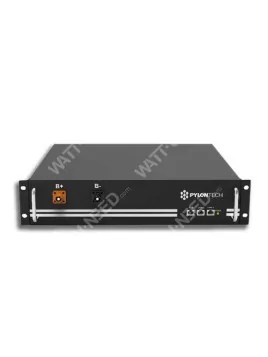

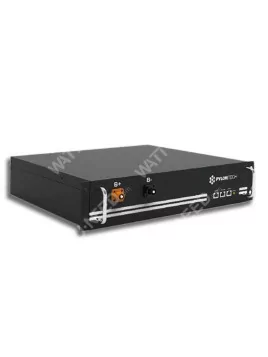

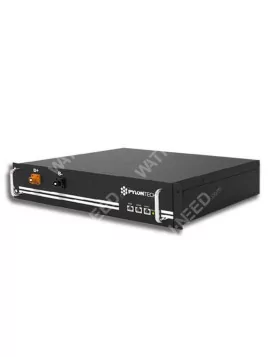

Battery management system used to control LiFePO4 H48050 batteries.
It allows you to efficiently connect and manage the charge and discharge of each battery module.
This model is used in the POWERCUBE X1 high voltage battery.
Indispensable from 9 batteries to ensure communication between them.
11 item(s) left in Stock!
SC01000-100S Battery Management System
PowerCube-X1 is a high voltage battery storage system based on a lithium iron phosphate battery, is one of the new energy storage products developed and produced by Pylontech, it can be used to support reliable power for different types of equipment and systems. PowerCube-X1 is particularly suited to applications of high power, reduced footprint, reduced lift and long lifespan.
It manages and monitors cell information, including voltage, current and temperature. In addition, BMS can balance the load and discharge of cells to prolong the cycle. Several batteries can be connected in parallel to increase capacity and power in parallel for greater capacity and longer power supporting duration requirements.
The battery management system (BMS) has protective functions, including against excessive discharges, overloads, over-intensities of current and high/low temperatures.
The system can automatically manage the state of charge and discharge and balance the current and voltage of each cell.
The control module has two types of power supply: internal power supply and external power supply.
Characteristics
| Model | SC1000-100S |
| Related product | H1/H2 |
| Controller's operating voltage | 200-1000Vdc |
| How the system works | 200-1000Vdc |
| Charge Current (max.) (A) | 100 |
| Discharge voltage (Vdc) | 200-1000 |
| Discharge Current (Max.) (A) | 100 |
| Self-consumption power (W) | 8 |
| Dimension (L-P-H, mm) | 442*380*132 |
| Communication | RS485/CAN |
| Protective class | IP20 |
| Weight (kg) | 8,2 |
| Operation Life | 15 years old |
| Operating temperature | -20-65 degrees Celsius |
| Storage temperature | -40-80 degrees Celsius |
| Product certificate | TV, THIS |
