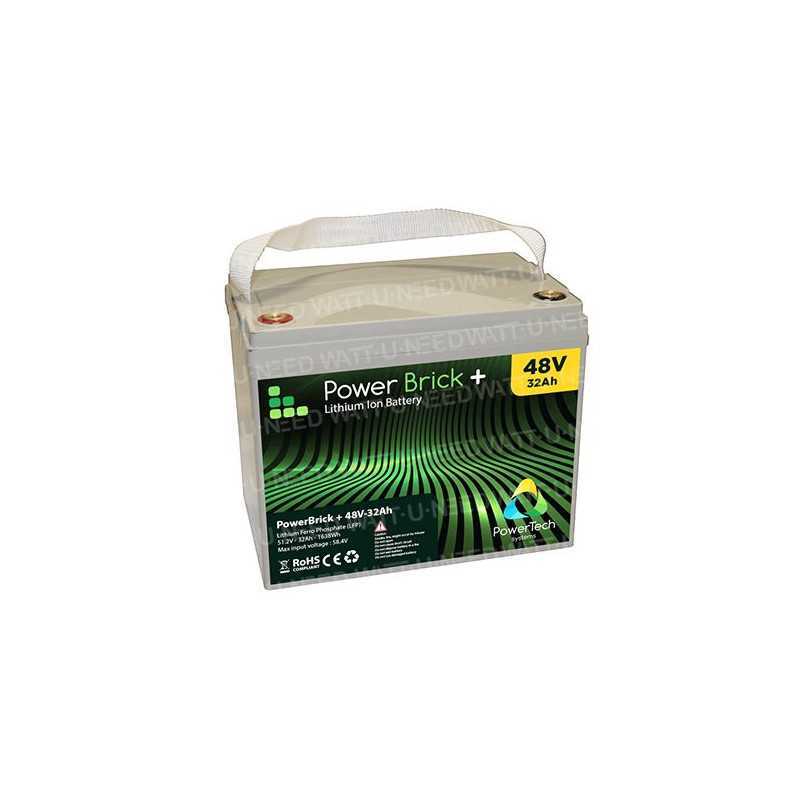

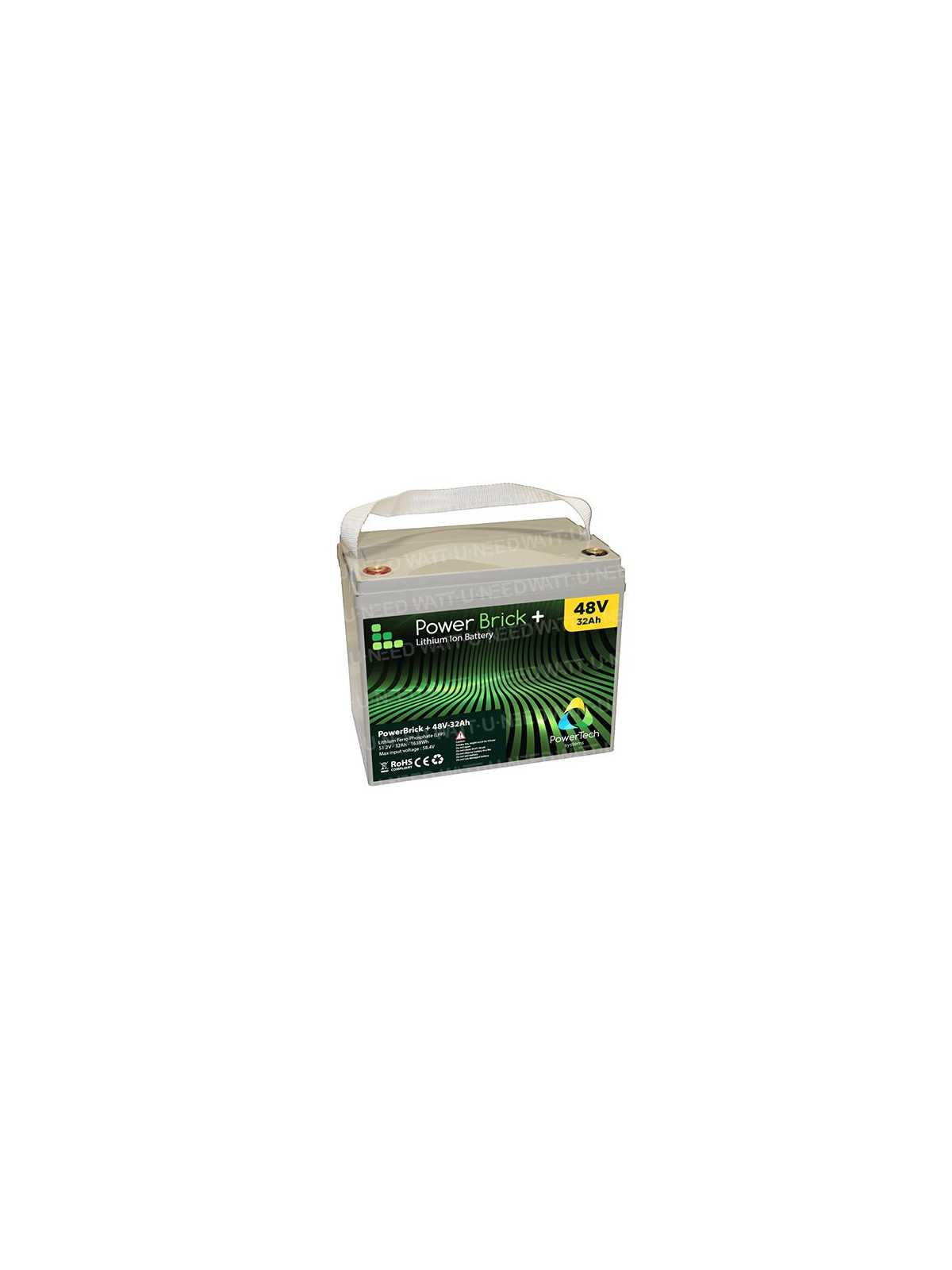

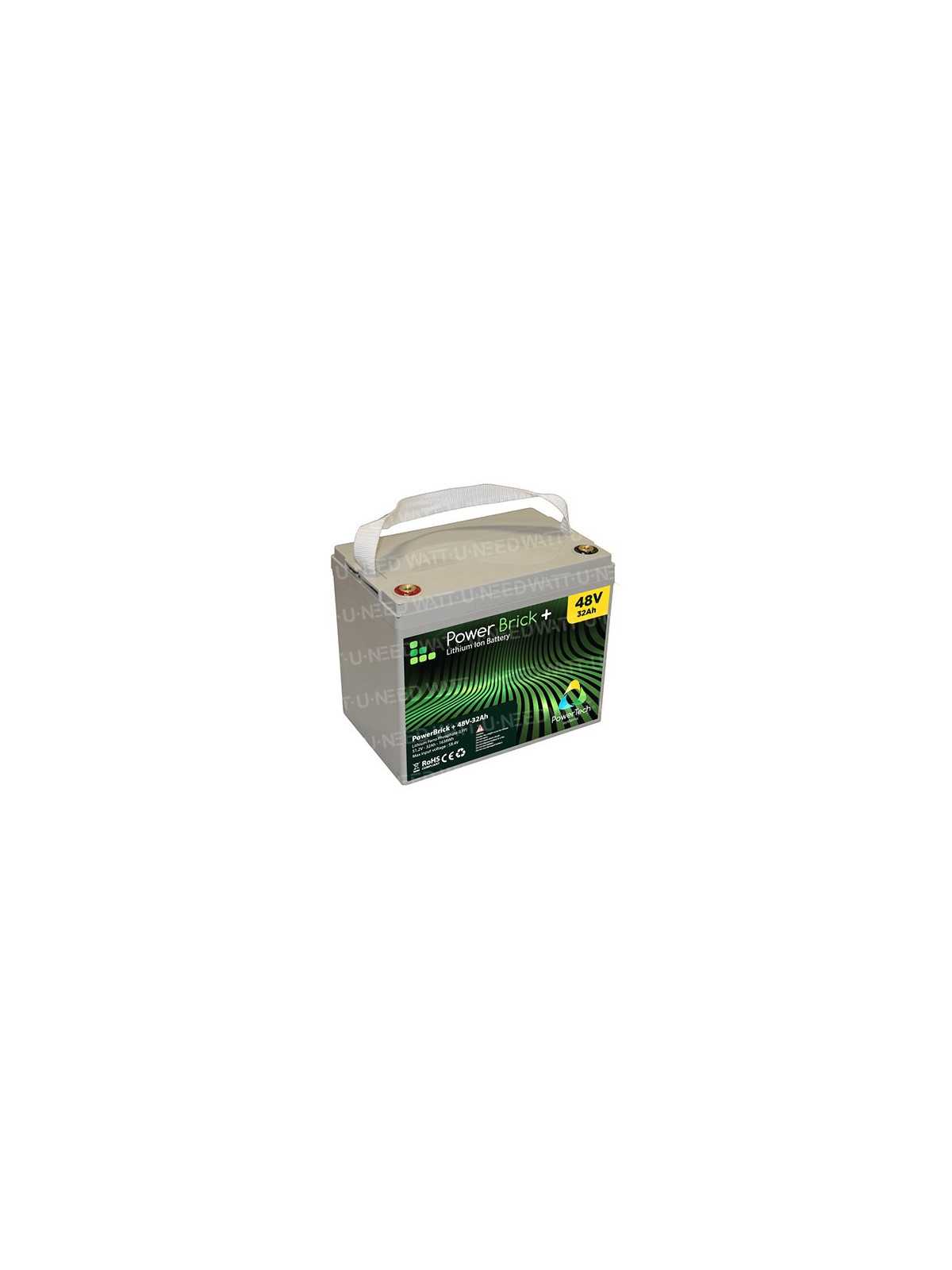

Batterie lithium PowerBrick+ 48V 32Ah PB+48/32
€974.51
Tax included
PB+48/32
0712971137844
Optimize your renewable energy system with the PowerBrick+ 48V 32Ah lithium battery.
Designed to deliver exceptional performance and unmatched durability, this lithium iron phosphate (LiFePO4) battery is the ideal solution for storing excess solar energy or powering your devices independently. With its high capacity of 32Ah and nominal voltage of 51.2V, it guarantees you reliable and continuous power supply.
Why choose PowerBrick+?
- Maximum safety: The integrated BMS continuously monitors the battery, protecting it from overcharging, overheating, and short circuits.
- Exceptional longevity: Enjoy thousands of charge/discharge cycles without significant capacity loss.
- Easy installation: Compatible with most existing solar systems, the PowerBrick+ installs quickly and easily.
- Versatility: Adaptable to many applications, from self-consumption to electric mobility.
Key features:
- LiFePO4 technology: safe, durable, and environmentally friendly.
- Compact dimensions: 260 x 168 x 212 mm.
- Lightweight: 13.2 kg.
- Integrated BMS for optimal protection.
Reduce your dependence on the grid, lower your energy bill, and contribute to a more sustainable future.
Request your personalized quote now and discover how the PowerBrick+ battery can revolutionize your energy system!
PowerBrick+ 48V 32Ah: The long-life Lithium LiFePO4 battery for your projects
The PowerBrick+ 48V-32Ah lithium-ion battery offers maximum safety thanks to the use of cylindrical cells in Lithium Ferro Phosphate (LiFePO4 or LFP) technology.
The PowerBrick 48V-32Ah incorporates an innovative control system (BMS) in its casing, ensuring a very high level of safety during use. The BMS constantly monitors and balances the battery cells, to protect the battery and extend its life. The BMS also protects the battery from mishandling: deep discharge, overcharging, etc.
The PowerBrick+ range has been designed to replace lead-acid batteries, offering quadruple the energy density for the same weight and size.
Thanks to its technology, the PowerBrick+ 48V-32Ah lithium battery can be installed in any position (upright, on its side or upside down).
The electrical parameters of the PowerBrick+ 48V-32Ah lithium battery are fully compatible with those of a 48V AGM lead-acid battery. In the vast majority of cases, the charging system can be retained unchanged, and no additional accessories are required for replacement.
Since a PowerBrick+ battery can be discharged to 100% of its capacity, a lead-acid AGM battery can be replaced by a PowerBrick+ with a capacity 2x lower than that of the lead-acid battery (e.g.: a PowerBrick+ 50Ah replaces a 100Ah AGM battery).
The PowerBrick+ 48V-32Ah lithium battery has a nominal voltage of 51.2V. It can be easily assembled in series (up to 4 batteries in series) and in parallel (up to 15 batteries).
The voltage of the final assembly can be 48V and up to 192V (for 4 packs assembled in series), which meets the needs of virtually all electrical applications for traction, solar or wind storage, servicing, robotics, carts, etc.
The battery is protected by a splash-proof, dust-proof ABS case (IP65).
PowerBrick+ products are lightweight, compact, high-performance and can be used for all types of applications. PowerBrick+ directly replaces old-generation batteries (VRLA, AGM or OPZ lead-acid batteries) in 48V, which are inefficient and harmful to the environment (use of heavy metals and complexity of recycling).
The PowerBrick+ range comes with a 2-year commercial warranty, extendable to 5 years.
32Ah Lithium LiFePo batteries
- Extremely long life: from 3,000 cycles to several tens of thousands
- Deep discharges possible (up to 100%)
- Completely safe Lithium Iron Phosphate technology (no risk of explosion or auto-ignition) BMS
- (Battery Management System) integrated into the case:
- maximizes battery life AND safety
- No lead, no rare earths, no acid, no outgassing
- Calendar life > 10 years
- Excellent temperature resistance (-20°C to +60°C)
- Flexible system :
- up to 16 packs in parallel and 4 in series
- Constant power throughout discharge (low internal resistance)
- Very low Peukert losses (energy efficiency > 98%)
- Very low self-discharge (<3% per month)
- No memory effect
- Weight saving > 50% and 40% smaller footprint than lead-acid batteries
- Certification: CE, RoHS, UN 38.3
Key points
- 48V-32Ah battery pack in Lithium Iron Phosphate (LiFePO4 - LFP) technology
- Nominal voltage: 51.2V
- Stored energy: 1.64 kWh
- New high-performance watertight cylindrical cell
- 3000 cycles at 100% DoD @ 1C (see technical graphs)
- 4500 cycles at 80% DoD @ 1C (see technical graphs)
- 98% energy efficiency
- Weight: 13.2Kg
- Dimensions: 260mm x 168mm x 212mm
- Instantaneous peak discharge current: 270A ±30A (max 100mS)
- Continuous discharge current: 65A (3.33kW)
- Maximum discharge current (< 30s): 100A (5.12kW)
- Maximum charging current: 32A
- Total safety provided by a BMS (Battery Management System) integrated in the case
- Monitoring of cell current and voltage, temperature, cell balancing, etc.
- Intelligent balancing algorithm
- 100% maintenance-free
- Series assembly from 48V to 192V (1 to 4 units in series)
- Parallel assembly up to 16 units (48V-512Ah / 26.2kWh)
- Robust design in an insulated, watertight casing (protection class: IP65)
- Operating temperature on load: 0°C to +60°C
- Operating temperature on discharge: -20°C to +60°C
- Watertight ABS casing (IP65)
- CE, RoHS and UN38.3 certification
- 2-year commercial warranty as standard, extendable to 5 years
Dimensions
Characteristics
| Electrical | |
| Nominal tension | 51.2 V |
| Nominal capacity | 32 Ah |
| Energy | 1638 Wh |
| Internal resistance | ≤ 50m |
| Number of cycles | >3000 cycles |
| Self-unloading | < 3% per month |
| energy efficiency | > 98% |
| CHARGE STANDARD | |
| Charge tension | 57.6 V - 0.8V |
| Charge mode | CC/CV: Constant Current / Constant Voltage |
| Standard charge current (Continuous maxi current) | 16 A / 32 A |
| BMS cut-off voltage | 59.2 V - 0.4V |
| STANDARD DISCHARGE | |
| Instant peak discharge current | 270 A - 30 A (max 100mS) |
| Continuous discharge current | 65 A (3.33 kW) |
| Maximum discharge current (< 30s) | 100 A (5.12 kW) |
| BMS cut-off voltage | 40 V |
| environment | |
| Charge temperature | 0C to 60C |
| Discharge temperature | -20C to 60C |
| Storage temperature | 0C to 50C -60±25% relative humidity |
| Protection IP | IP 65 |
| mechanics | |
| Cell type | cylindrical |
| package | ABS |
| Dimensions (L x P x H) | 260 x 168 x 212 mm |
| weight | 13.2 kg |

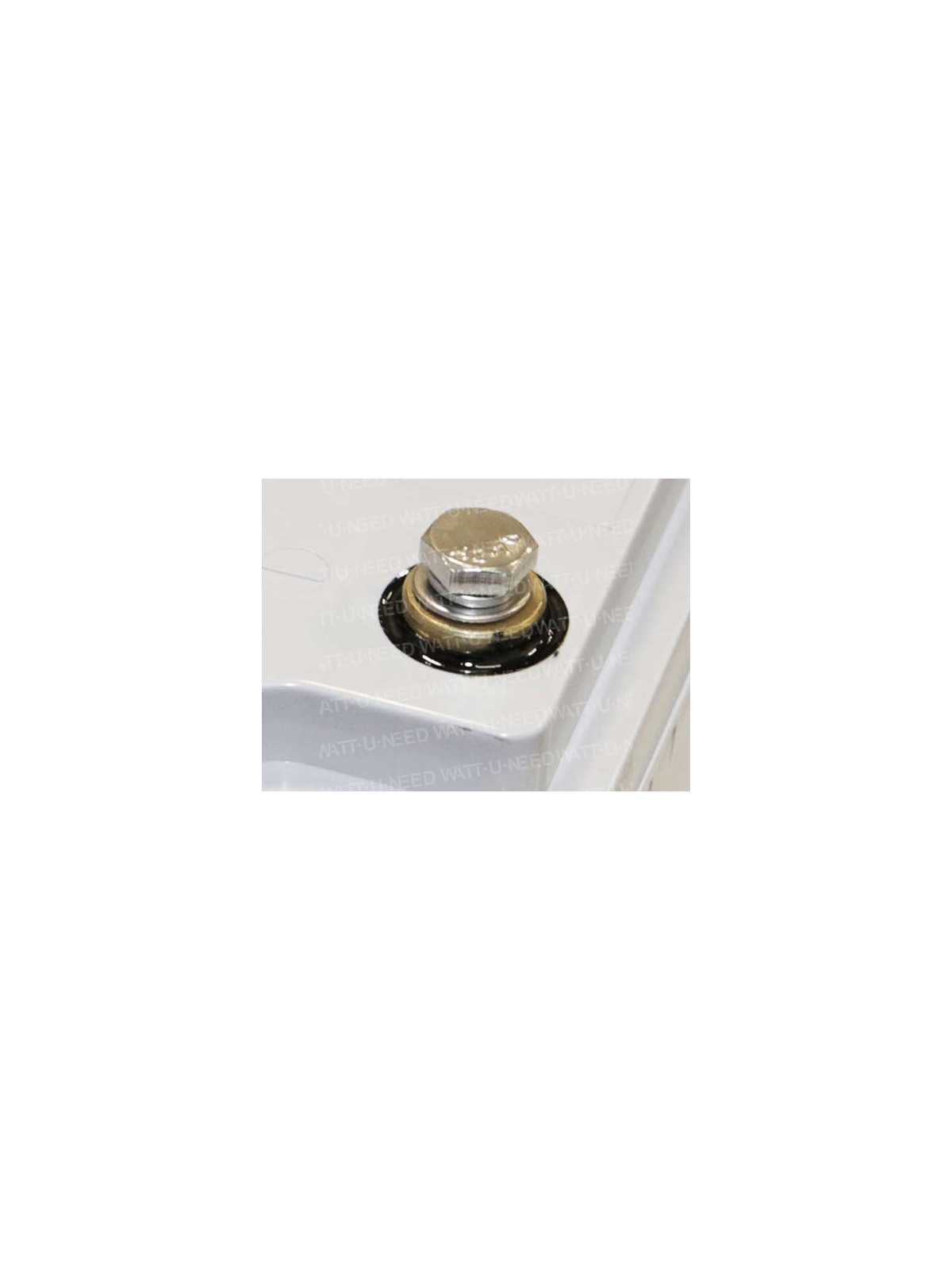

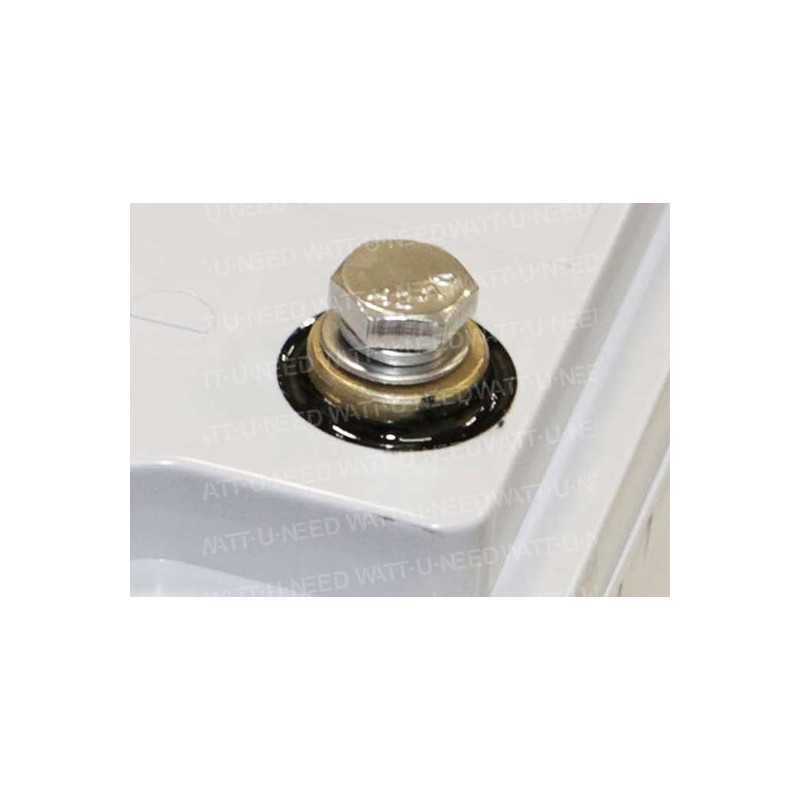

| terminal | Bolt M8 |
PB+48/32
Data sheet
- Voltage
- 48V
- Technology
- Lithium
- Battery capacity
- 32 Ah
- Weight
- 13,2 kg
