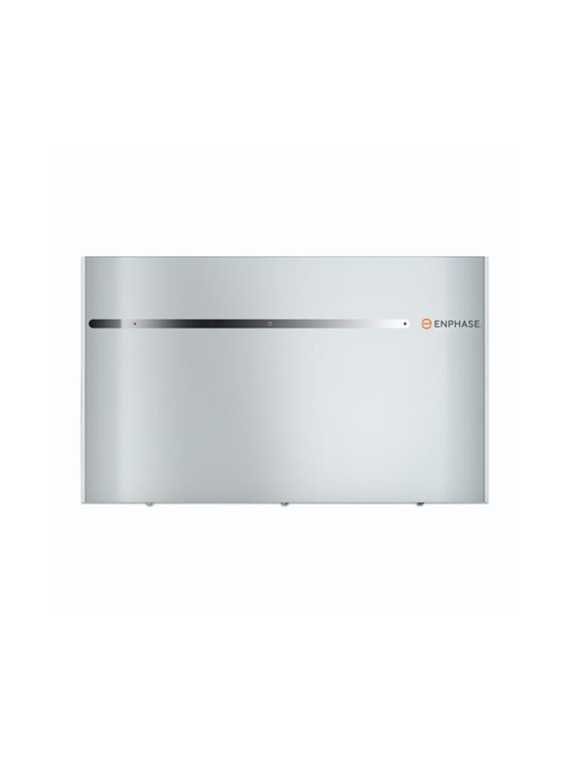

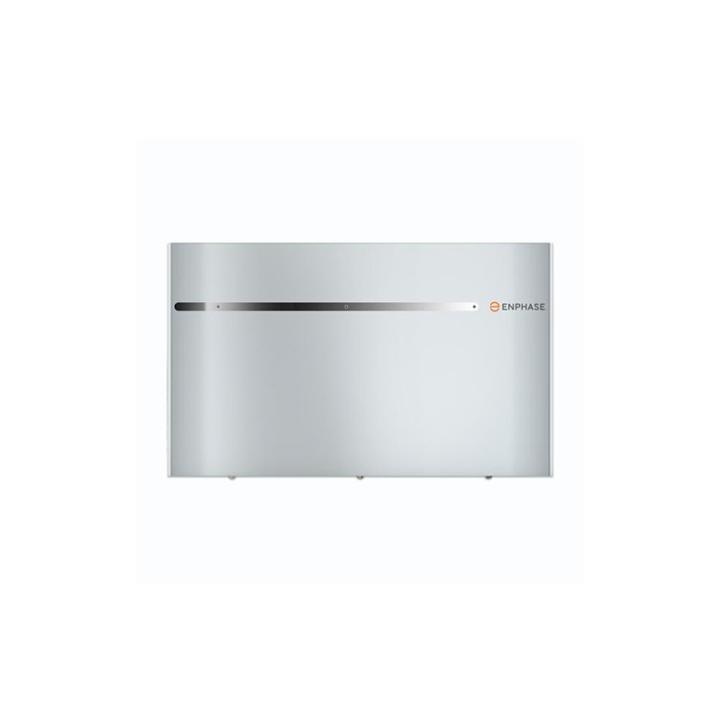

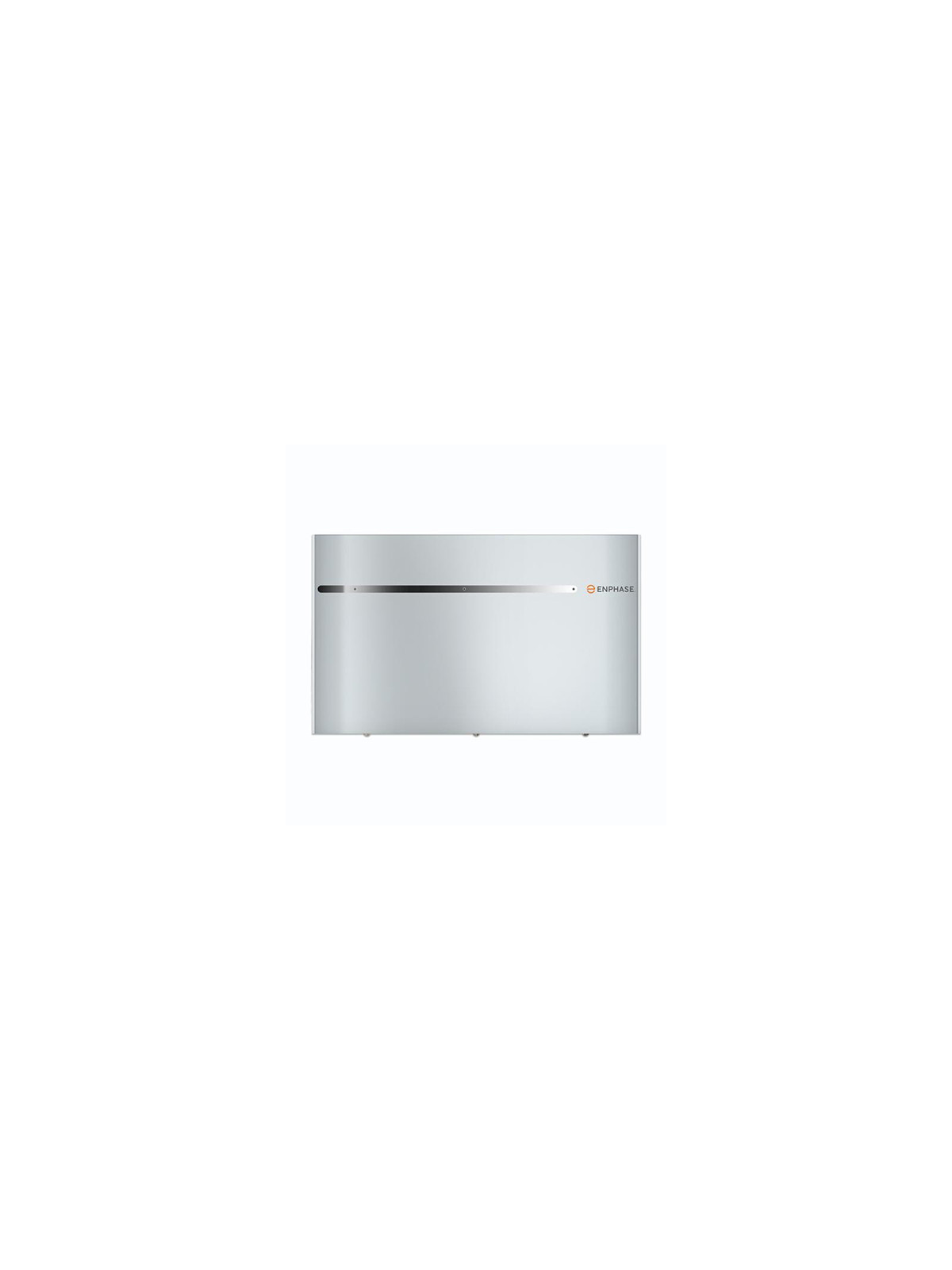

Enphase IQ-Battery Set-10T-1P-INT 10.5 kWh AC lithium battery
€10,032.63
Tax included
Enphase Encharge 10T
0768563819544

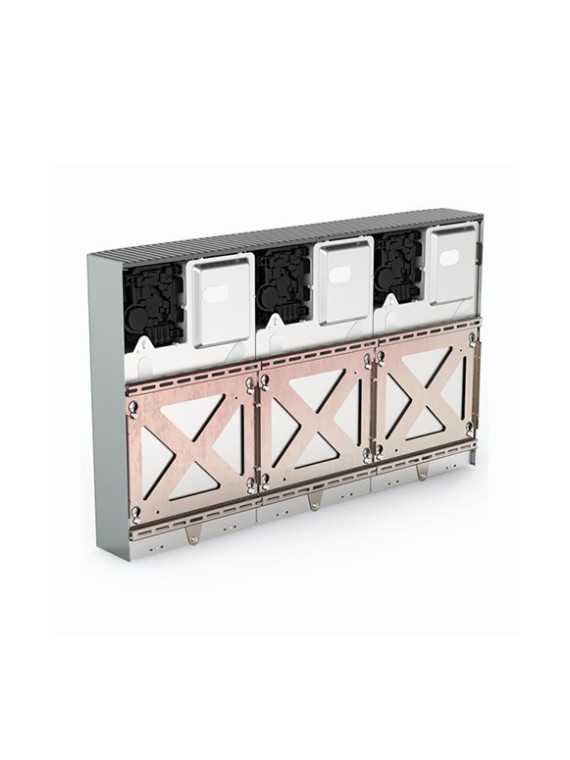

Encharge 10T™ battery storage system with integrated Enphase IQ series microinverters and battery management unit (BMU).
Includes:
- Three Encharge 3T™ base units (B03-T01-INT00-1-2).
- One Encharge 10T™ cover kit with cover, wall-mounting bracket and interconnecting cable for wiring between batteries (B10T-C-1290-O)
Important notice for our customers in Belgium:
As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the acquisition of an Enphase IQ-Battery AC Lithium Battery is subject to a mandatory environmental fee. An amount of €290.39 excluding VAT will be applied to each battery purchased, as a direct contribution to Bebat, the organization in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For further information, click here
Here's the reference list and the corresponding fee!Enphase Encharge storage system 10.5 kWh 10T

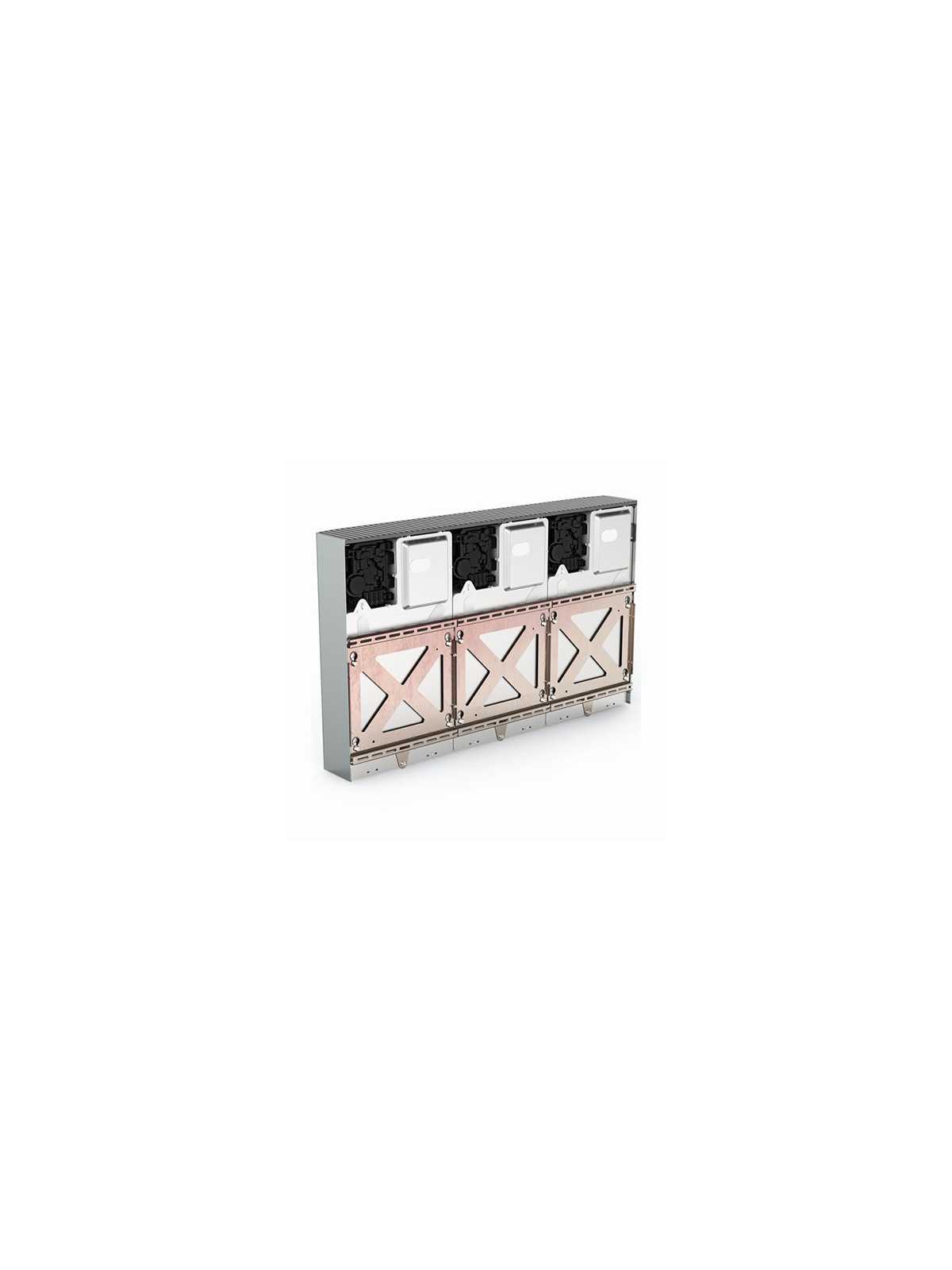

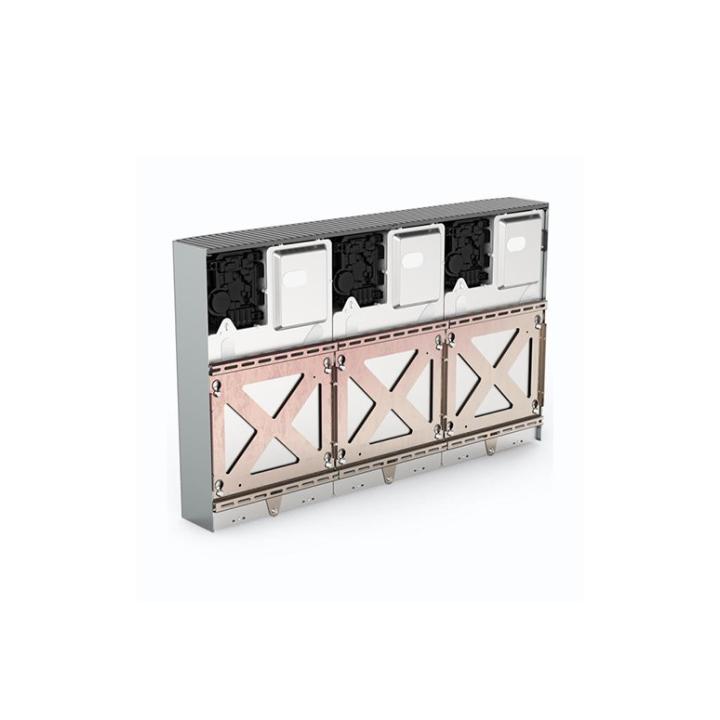

The Enphase Encharge 10T™ all-in-one AC-coupled storage system is reliable, intelligent, simple and safe. It consists of three Encharge 3T™ base storage units, has a total usable energy capacity of 10.5 kWh and twelve integrated microinverters rated at 3.84 kW.
Installers can quickly design the right system size to meet the needs of new and retrofit customers.
The package comprises the following components:
- Enphase IQ 10T 10.5kWh battery (3x IQ Batteries 3T) (cover kit not included) (B03-T01-INT00-1-2)
- Enphase 10T 10.5kWh battery cover kit (3x IQ Batteries 3T not included) (B10T-C-1290-O)
Reliable
- IQ series microinverters with proven reliability
- Ten-year limited warranty
- Three independent Encharge storage base units
- Twelve on-board IQ8X-BAT microinverters
- Passive cooling (no moving parts/fans)
Intelligent
- Remote software and firmware updates
- Mobile application-based monitoring and control
- Support for self-consumption
- Utility time-of-use (TOU) optimization
Simple
- Fully integrated AC battery system
- Quick and easy plug-and-play installation
- Interconnection with standard household AC wiring
Safe
- Safety-tested cells
- Lithium iron phosphate (LFP) chemistry for safety and longevity
Features
| ENCHARGE-10T-1P-INT |
Encharge 10T™ battery storage system with integrated Enphase IQ series microinverters and battery management unit (BMU | ).Includes: |
-
Three Encharge 3T™ base units (B03-T01-INT00-1-2) |
One Encharge 10T™ cover kit with cover, wall-mounting bracket and interconnecting cable for wiring between batteries (B10T-C-1290-O) |
| (AC) |
| Nominal output power (continuous) |
| , |
| 4 kVA |
| Rated voltage / range |
230/207-264 VAC |
| Rated frequency / range | 50/47-52Hz |
| Rated output current | 16.7 A |
| Power factor (adjustable) |
.85 leading ... |
.85 late |
| Maximum number of units per 20 A branch circuit |
unit (single-phase) |
| Interconnection | Single-phase |
| Maximum AC short-circuit fault current over 3 cycles | 69.6 Weapons |
| Round-trip efficiency1 | 89% |
| THE BATTERY |
| Total capacity | 10.5 kWh |
| Useful capacity | 10.5 kWh |
| Round-trip efficiency | 96% |
| Nominal DC voltage | 67.2 V |
| Maximum DC voltage | 75,6V |
| Operating ambient temperature range |
15º C to 55º C (5º F to 131º F) non-condensing |
| Optimum operating temperature range |
C to 30º C |
(32º F to 86º F) |
| Chemistry |
Lithium iron phosphate (LFP) |
| MECHANICAL |
| Dimensions (LxHxD) |
1283 x 775 x 188 mm (50,5 x 30.5 x 7.4 inches) |
| Weight |
Three individual base units weighing 40.5 kg (89.3 lb) plus cover and mounting bracket weighing 22.1 kg (48.7 lb |
total 143.6 kg (316,5 lb) |
| Housing | Outdoor - IP55 |
| Microinverter housing IQ8X-BAT | IP67 |
| Cooling |
Natural convection - No fans |
| Altitude |
Up to 2500 meters (8200 feet) |
| Mounting | mounting |
| wall-mounted |
| CHARACTERISTICS AND CONFORMITY |
| Compatibility |
Compatible with grid-connected PV systems. Compatible with Enphase M215/M250 and IQ Series microphones and Enphase Envoy-S. |
| ommunication | 2.4 GHz wireless |
Self-consumption, TOU, Demand Charge, NEM Integrity |
| Monitoring |
Monitoring options Enlighten Manager and MyEnlighten ; |
PLC integration |
| Compliance |
UN 38.3, EN 62040.1, VDE AR-N 4105:2018 EMI: CE, EFT, ESD, Surge, dips and interruptions, CRF Cell Module: IEC 62619:2017, UN 38. |
, UL1973, UL9540A Inverters: EN 62109-1, EN 62109-2, EN 62909-1:2017, EN 50549 -1:2019 |
| LIMITED WARRANTY |
| Limited warranty2 |
> 70% capacity, up to 10 years or 4000 cycles |

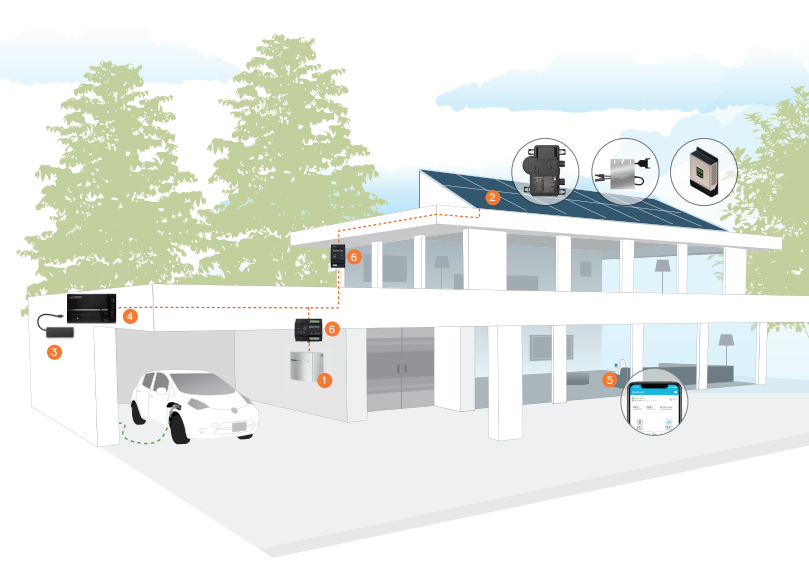

Installation with Enphase systems
- 1 Enphase IQ Battery
- 2 Enphase M-series or Enphase IQ-series microinverter/inverter Inverter
- 3 Enphase communication kit and signal amplifier
- 4 IQ Gateway Metered - network communication device
- 5 Enphase App
- 6 IQ Relay - network system relay controller
Enphase Encharge 10T
1499 Items
Data sheet
- Technology
- Lithium
Specific References
- UPC
- 768563819544
- EAN13
- 0768563819544
New
