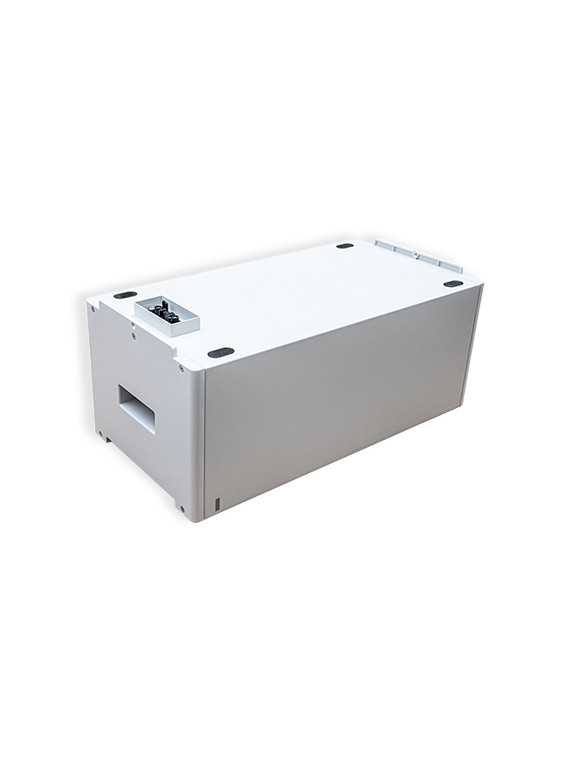

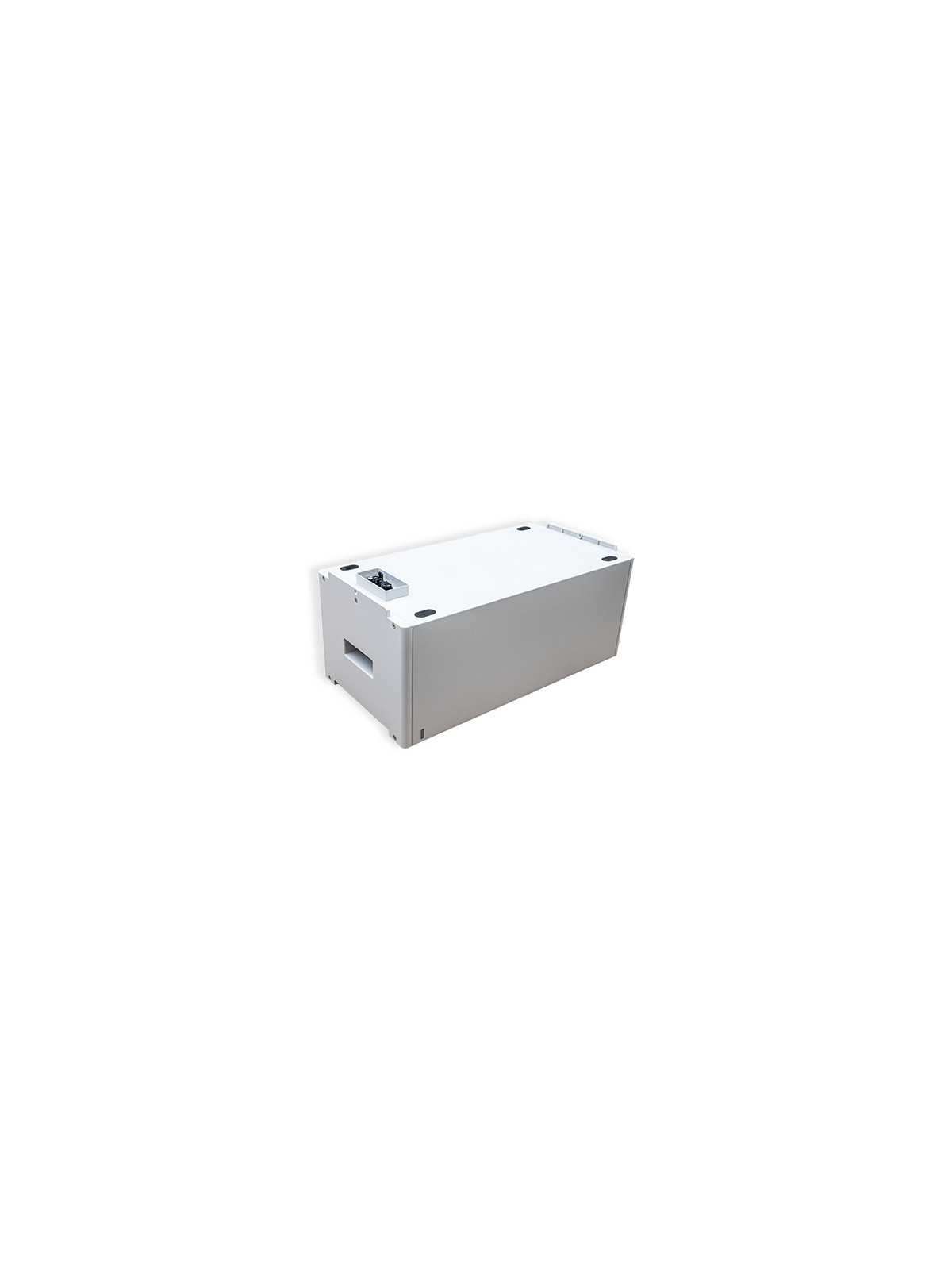

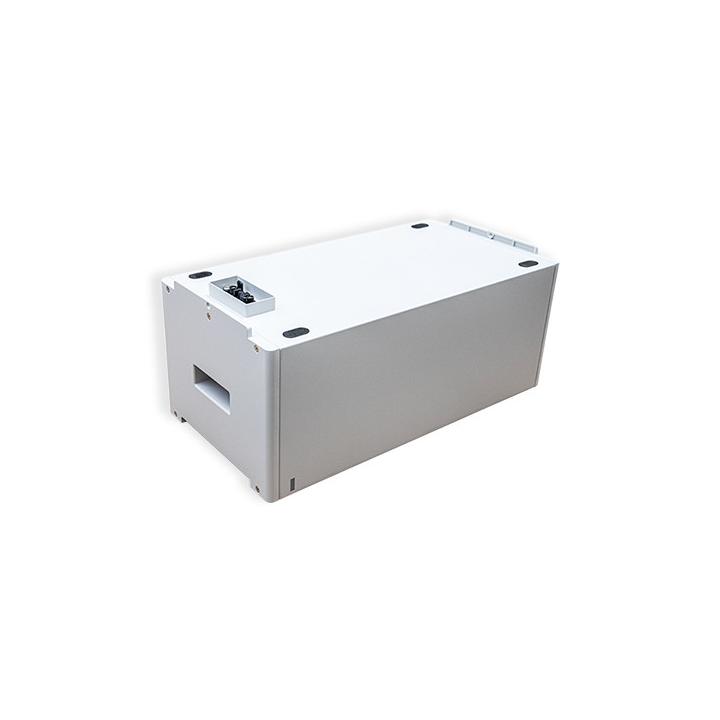

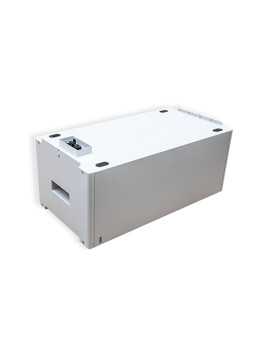

BYD PREMIUM HVM 2.76 kHw lithium battery

€1,605.20
Tax included
BYD-HVM-2,76 kHw
0768563820427

- Modular

- HVM 2.76 kWh

- 51,2V

- 38 kg



Important notice for our customers in Belgium:

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of an HVM Premium Battery-Box is subject to a mandatory environmental contribution. An amount of €90.82 excluding VAT will be charged for each module purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here

Here is the reference list and the corresponding fee !

BYD PREMIUM HVM 2.76 kHw...

€1,605.20

Standby and off-grid functionality thanks to high power output


- Maximum efficiency thanks to true high-voltage series connection
- Patented modular design requires no internal wiring for maximum flexibility and ease of use
- Cobalt-free lithium-iron-phosphate (LFP) battery: maximum safety, longevity and power supply
- Compatible with many single-phase and three-phase high-voltage battery inverters
- Two different models to enable


BATTERY-BOX PREMIUM HVS

A Battery-Box Premium HVM consists of 3 to 8 HVM battery modules connected in series to achieve a useful capacity of 8.3 to 22.1 kWh.
In addition, direct parallel connection of up to 3 identical HVM Premium Battery-Boxes provides a maximum capacity of 66.2 kWh.
Upgradeable by adding HVM modules or parallel HVM batteries at a later date.


FLEXIBLE, EFFICIENT, SIMPLE

Utilisation des batteries

Combinations

Model
8.3
11.0
13.8
16.
19.3
22.1
Battery module
(2.76 kWh, 51.2 V, 35 / 38 kg)
Number of modules
Usable energy
.28 kWh11.04 kWh13.80 kWh16.56 kWh19.32 kWh22.08 kWh
Maximum output current50 A
Peak output current75 A, 3 s
Rated voltage153.6 V204.8 V256 V307.2 V358.4 V409.6 V
Operating voltage120~177 V160~236 V200~295 V240~354 V280~413 V320~472 V
Dimensions (H / W / D)
x 585 x 298 mm1228 x 585 x 298 mm1461 x 585 x
298 mm1694 x 585 x 298 mm1927 x 585 x 298 mm
2160 x 585 x 298 mm
Weight119~129 kg153~167 kg188~205 kg222~243 kg257~281 kg291~319 kg
Operating temperature
10 °C to +50 °C
Battery cell technologyLithium iron phosphate (cobalt-free)
CommunicationCAN / RS485
Protection levelIP55
Flow efficiencyreturn
≥ 96%
Certification
/ IEC62619 / CEC / CE / UN38.3
ApplicationsON Grid / ON Grid + Backup / OFF Grid
Warranty10 years
BYD-HVM-2,76 kHw
996 Items

Data sheet

Power
2,76 kWh
Rated Battery Voltage
51,2
Weight
38 kg
Model
HVM 2,7
Battery module
HVM (2.76 kWh, 51.2 V, 35 / 38 kg)
Number of modules
1
Maximum output current
50A
Peak output current
75A, 3s

Specific References

UPC
768563820427
EAN13
0768563820427

Download

FicheT BYD HVS/HVM -FR

Download (134.11KB)
