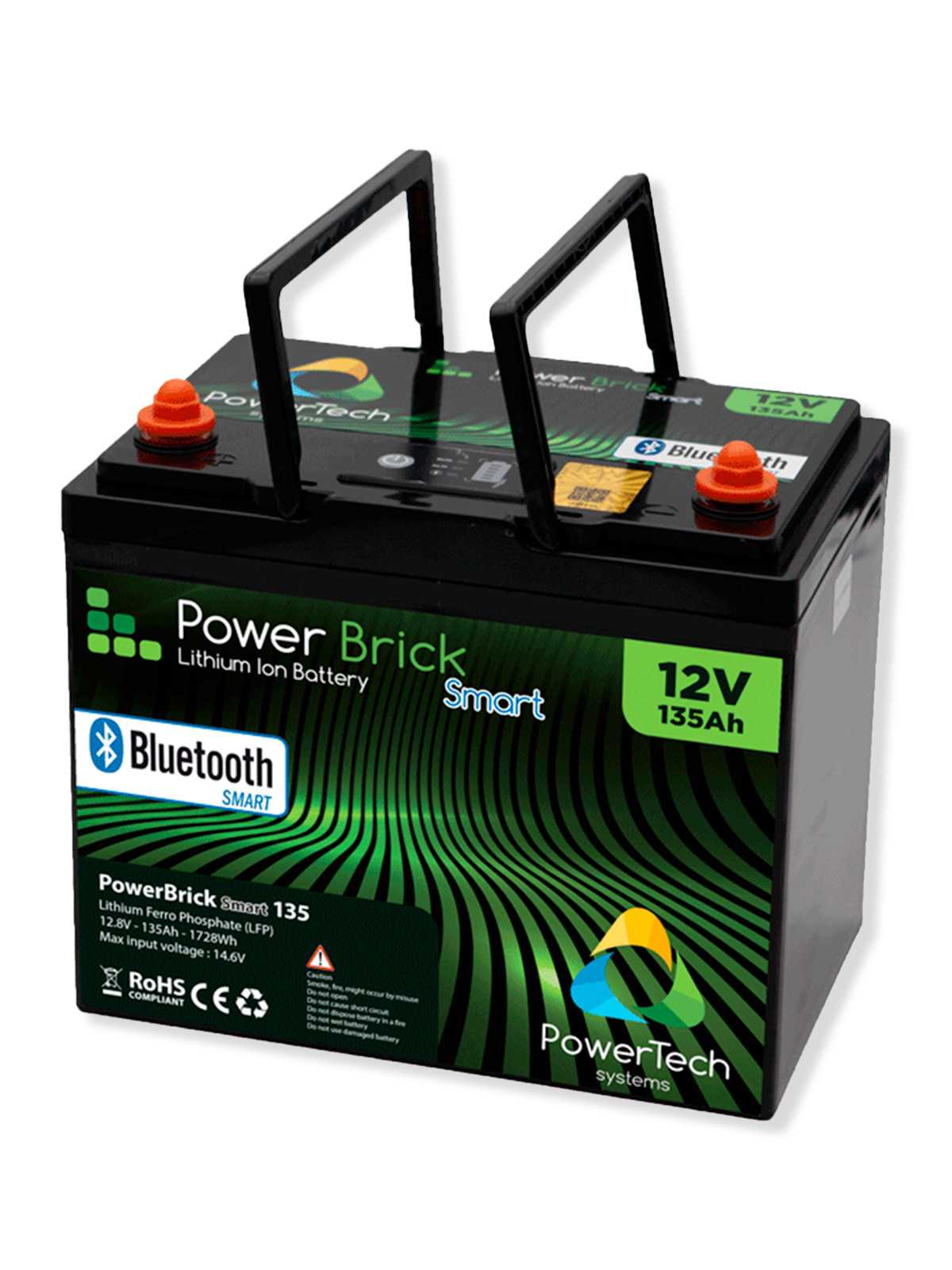

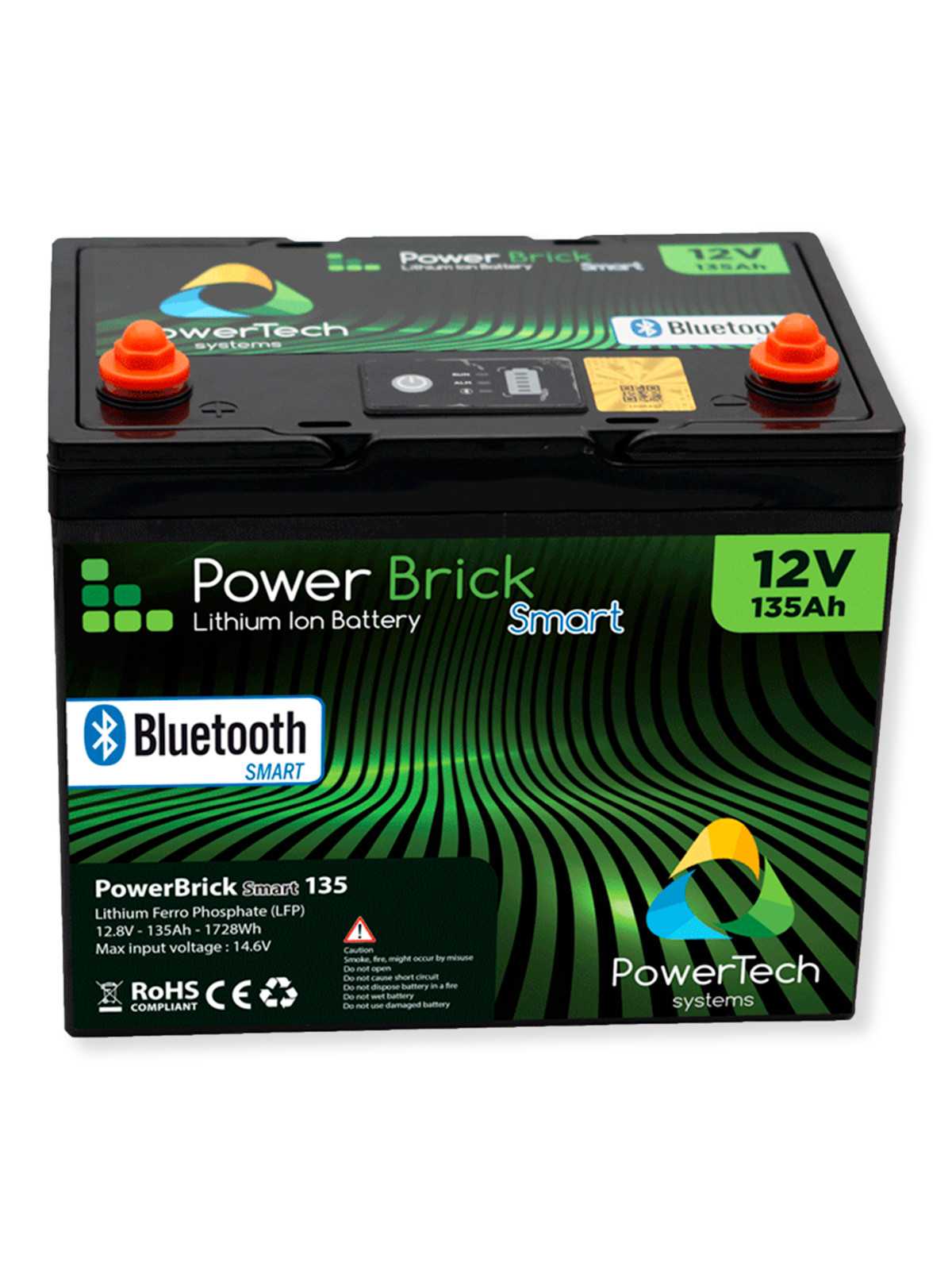

PowerBrick+ Smart BT 12V 135Ah lithium battery PB+BT12/135
The PowerBrick 12V-135Ah "Smart BT" lithium-ion battery offers maximum safety thanks to the use of cylindrical cells in Lithium Iron Phosphate (LiFePO4 or LFP) technology.
The PowerBrick 12V-135Ah "Smart BT" incorporates an innovative control system (BMS) in its casing, ensuring a very high level of safety during use. The BMS constantly monitors and balances the battery cells, to protect the battery and extend its life. The BMS also protects the battery from mishandling: deep discharge, overcharging, etc.
The PowerBrick range has been designed to replace lead-acid batteries, offering quadruple the energy density for the same weight and size.
Thanks to its technology, the PowerBrick 12V-135Ah "Smart BT" lithium battery can be installed in any position (upright, on its side or upside down).
The electrical parameters of the PowerBrick 12V-135Ah "Smart BT" lithium battery are fully compatible with those of a 12V AGM lead battery. In the vast majority of cases, the charging system can be retained unchanged, and no additional accessories are required for replacement.
Since a PowerBrick battery can be discharged to 100% of its capacity, a lead-acid AGM battery can be replaced by a PowerBrick with a capacity 2x lower than that of the lead-acid battery (e.g. a PowerBrick 50Ah replaces an AGM 100Ah battery).
The PowerBrick 12V-135Ah "Smart BT" lithium battery has a nominal voltage of 12.8V. It can be easily assembled in series (up to 4 batteries in series) and in parallel (up to 15 batteries).
The voltage of the final assembly can be 12V and up to 48V (for 4 packs assembled in series), which meets the needs of virtually all electrical applications for traction, solar or wind storage, service, robotics, carts, etc.
The battery is protected by a splash-proof, dust-proof ABS case (IP65).
PowerBrick products are lightweight, compact, high-performance and can be used for all types of applications. PowerBrick directly replaces old-generation 12V batteries (VRLA, AGM or OPZ lead-acid batteries), which are inefficient and harmful to the environment (use of heavy metals and complex recycling).
The PowerBrick range comes with a 2-year commercial warranty, extendable to 5 years.
Lithium LiFePo 135Ah batteries
- Long service life: 3000 cycles and more (see table)

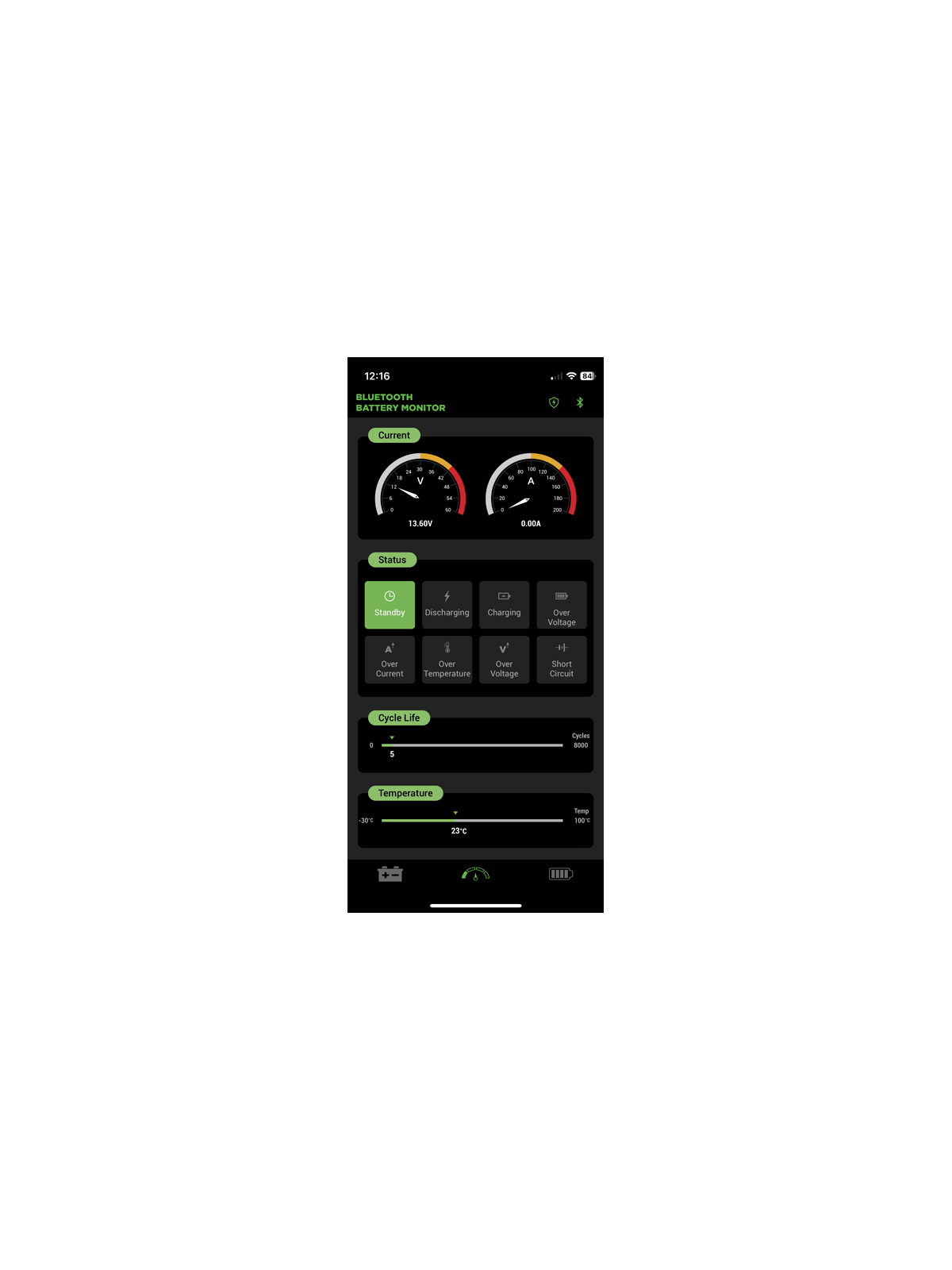

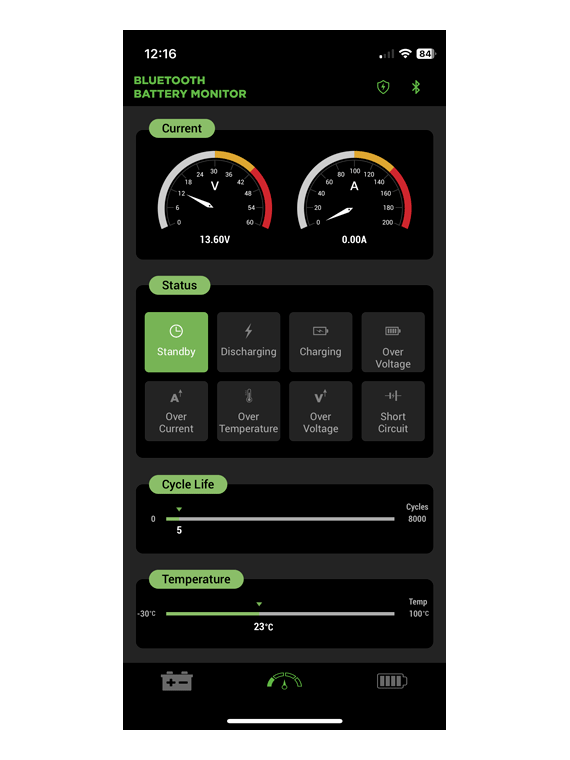

- Remote monitoring via Bluetooth (SOC, cell voltage, SOH, etc.).)
- Permissible deep discharge up to 100%
- Ultra-safe lithium-iron-phosphate chemistry (no thermal runaway, no risk of fire or explosion)
- Integrated
BMS- (Battery Management System) :
- improves battery life AND safety
- No lead, no rare materials, no acid, no outgassing
- Lifetime > 10 years
- Excellent temperature resistance (-20°C to +60°C)
- Flexible deployment :
- up to 16 packs in parallel and 4 in series
- Constant power during discharge (very low internal resistance)
- Very low Peukert losses (energy efficiency > 98%)
- Very low self-discharge (<3% per month)
- No memory effect
- Around 50% lighter and 40% smaller than an equivalent lead-AGM battery with the same usable energy.
- Certification: CE, RoHS, UN 38.3
Key points
- 12V-135Ah "Smart BT" battery pack in Lithium Iron Phosphate (LiFePO4 - LFP) technology
- Nominal voltage: 12.8V
- Stored energy: 1.73 KWh
- Energy
density- : 186.82 Wh / L
- New high-performance sealed cylindrical cell
- 3000 cycles at 100% DoD @ 1C (see technical graphs)
- 4500 cycles at 80% DoD @ 1C (see technical graphs)
- 98% energy efficiency
- Weight: 13.0Kg
- Dimensions: 260mm x 168mm x 212mm
- Instantaneous peak discharge current: 800A ±30A (max 300mS)
- Continuous discharge current: 135A (1.73kW)
- Maximum discharge current (< 30s): 200A (2.56kW)
- Maximum charging current: 70A
- Total safety provided by a BMS (Battery Management System) integrated in the case
- Monitoring of cell current and voltage, temperature, cell balancing, etc.
- Intelligent balancing algorithm
- 100% maintenance-free
- Series assembly from 12V to 48V (1 to 4 units in series)
- Parallel assembly up to 16 units (12V-2160Ah / 27.6kWh)
- Robust design in an insulated, watertight casing (protection class: IP65)
- Operating temperature in charge: 0°C to +60°C
- Operating temperature in discharge: -20°C to +60°C
- Watertight ABS casing (IP65)
- CE, RoHS and UN38.3 certification
- 2-year commercial warranty as standard, extendable to 5 years
Dimensions
![Dim](https://www.wattuneed.com/img/cms/Powerbrick/dim-PB+BT-12V-135.jpg)
Features
Electrical |
Nominal tension | 12,8 V |
Nominal capacity | 135 Ah |
Energy | 1728 Wh |
Internal resistance | 1 mΩ |
Number of cycles | >3000 cycles (see abacus) |
Self-unloading | < 3% per month |
energy efficiency | > 98% |
CHARGE STANDARD |
Charge tension | 14,4 V +- 0,2V |
Charge mode | CC/CV : Constant Current / Constant Voltage |
Standard charge current (Continuous maxi current) | 70 A / 100 A |
BMS cut-off voltage | 14,8 V +- 0,1V |
STANDARD DISCHARGE |
Instant peak discharge current | 800 A (300 ms) |
Continuous discharge current | 135 A |
Maximum discharge current (< 30s) | 200 A |
BMS cut-off voltage | 10 V |
environment |
Charge temperature | 0°C to +55°C |
Discharge temperature | -20C to 60C |
Storage temperature | -5°C to 45°C |
Protection IP | IP 65 |
mechanics |
Cell type | cylindrical |
package | ABS |
Dimensions (L x P x H) | 260 x 170 x 208 mm |
weight | 13 kg |
terminal | Bolt M8 |
