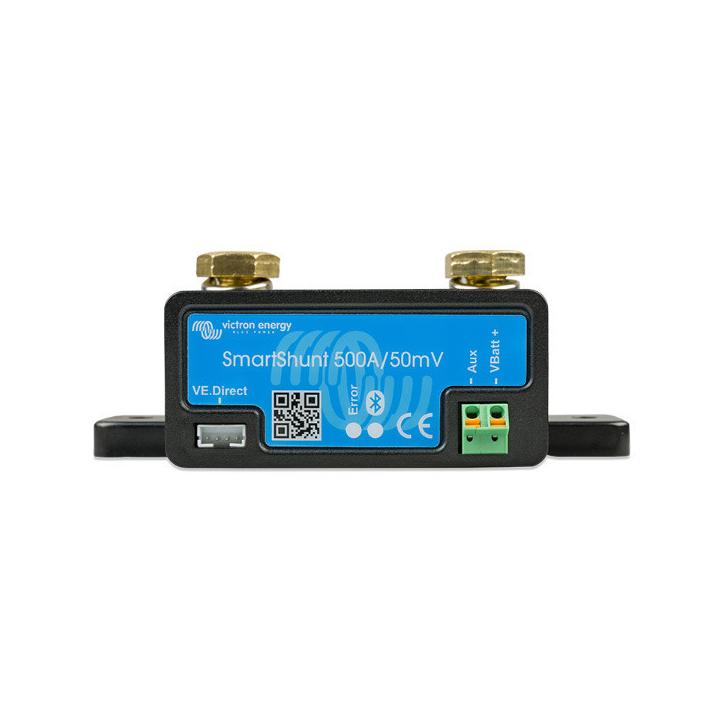

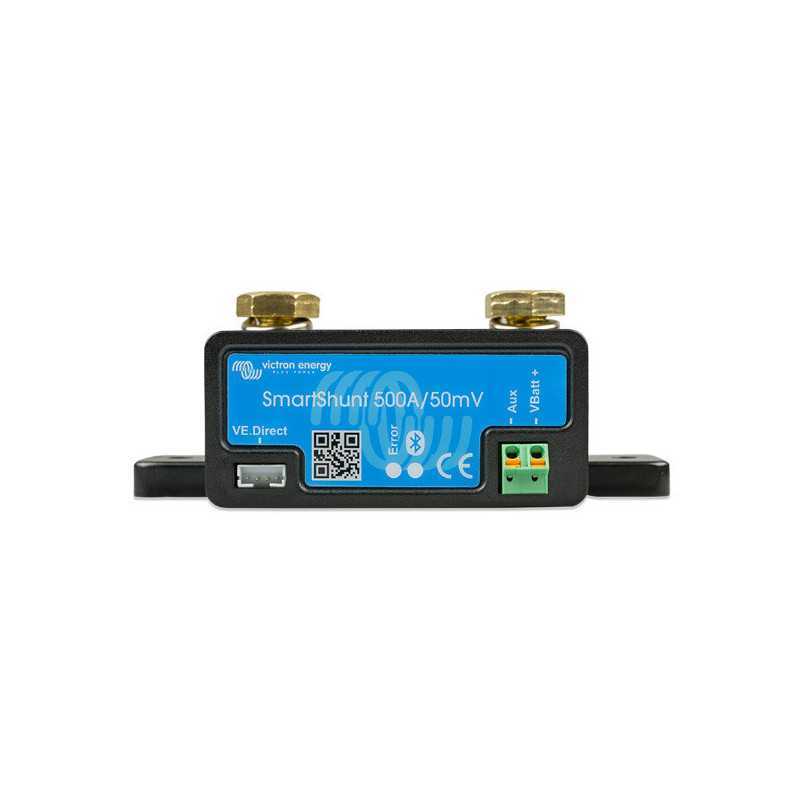

The smart battery shunt
The SmartShunt is an all-in-one battery controller, but without a screen. Your phone serves as the screen. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet), and you can easily read all the battery parameters being monitored, such as state of charge, remaining autonomy, history information and much more.
Alternatively, the Smartshunt can also be connected to and read by a GX device. The SmartShunt can be connected using a VE.Direct cable.
The SmartShunt represents a good alternative to the BMV battery controller, particularly for systems where you want to supervise a battery, but with fewer cables and less clutter.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used to monitor a second battery, a midpoint or a temperature sensor.
Features
| Supply voltage range |
| .5 - 70 VDC |
Input voltage range,
auxiliary battery |
| .5 - 70 VDC |
| Battery capacity (Ah) |
| - 9999 Ah |
| Operating temperature range |
Measures the voltage of a second
battery, |
or temperature,
or midpoint | Yes |
| Temperature measurement range |
| +50℃ |
| VE communication port.Direct | Yes |
| State of charge (0 - 100 %). | ± 0.1 % |
| Time to go (remaining autonomy) | ± 1 min |
| Temperature (if the optional temp. |
s
± 1 °C/°F
(0 - 50°C or 30 - 120°F) |
| Current measurement accuracy | ± 0.4 % |
| Voltage measurement accuracy ± 0.3 % | ± 0.3 % |
| INSTALLATION and DIMENSIONS |
EN-IEC 61000-6-1 - EN-IEC 61000-6-2
EN-IEC 61000-6-3 |
