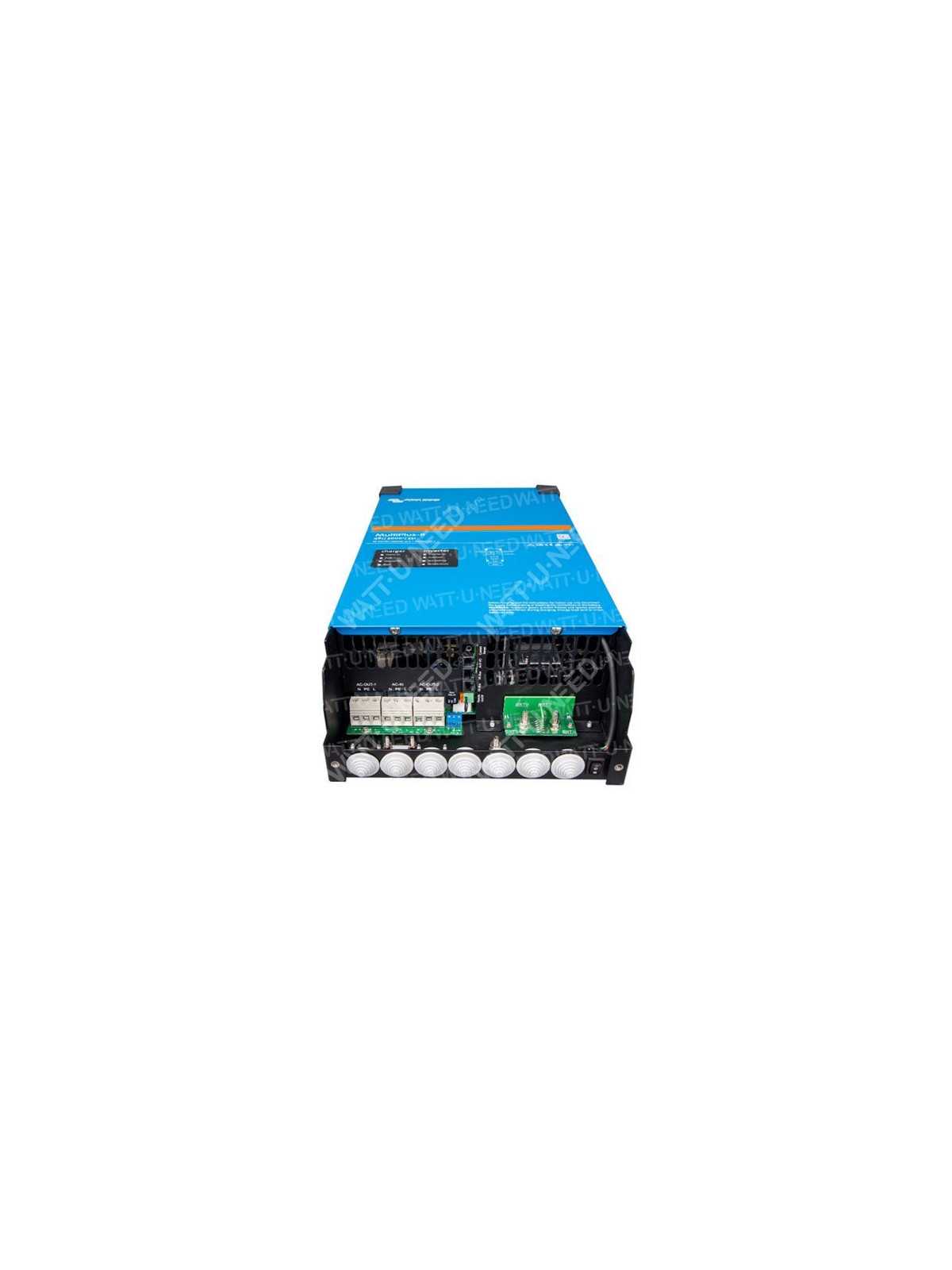

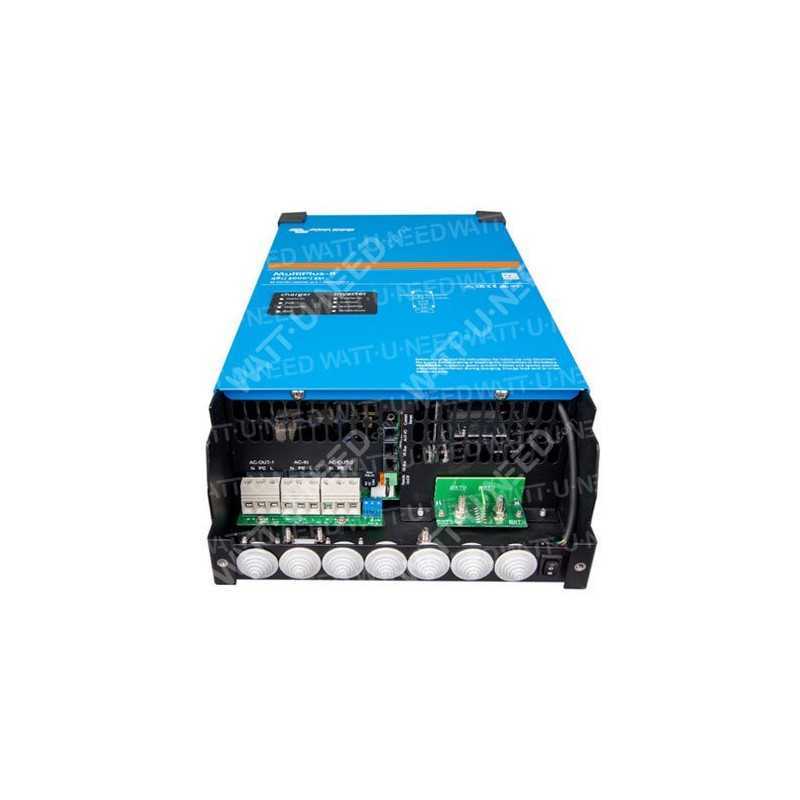

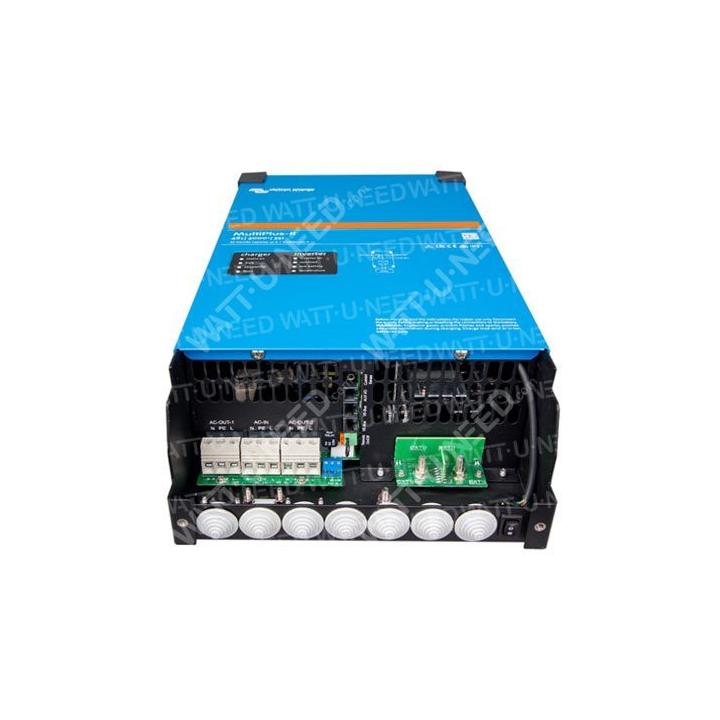

Inverter/Charger Victron MultiPlus-II GX 48V 3000/5000
€957.11
Tax included
PMP482306000
0768563817229
MultiPlus-II combines the functions of MultiPlus and MultiGrid.
It features all the functions of the MultiPlus, with the option of an external current transformer to implement PowerControl and PowerAssist functions, and to optimize self-consumption with an external current probe (max. 32 A).
It also features all MultiGrid functions, with anti-islanding and a long and growing list of certifications for many countries.
Note: for some time, this product was called MultiGrid-II.
New 48 V converter/charger

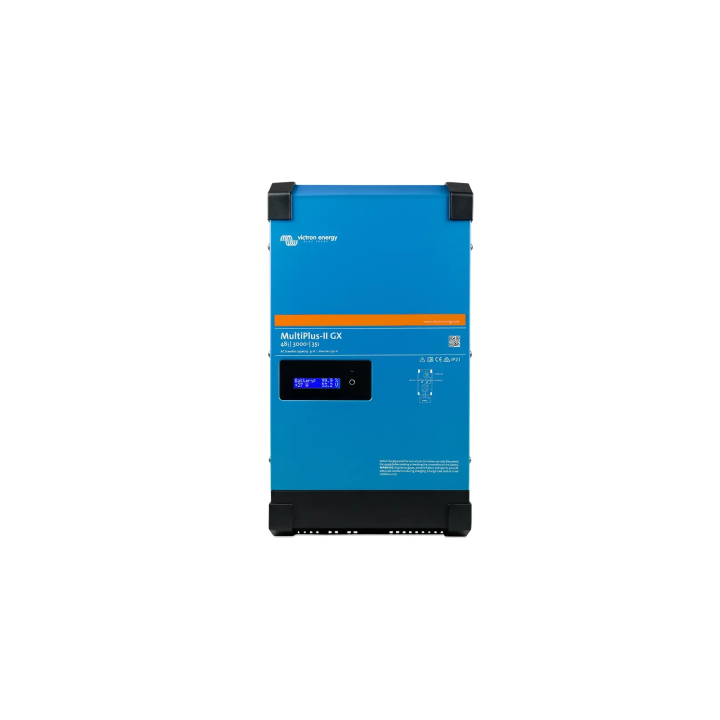

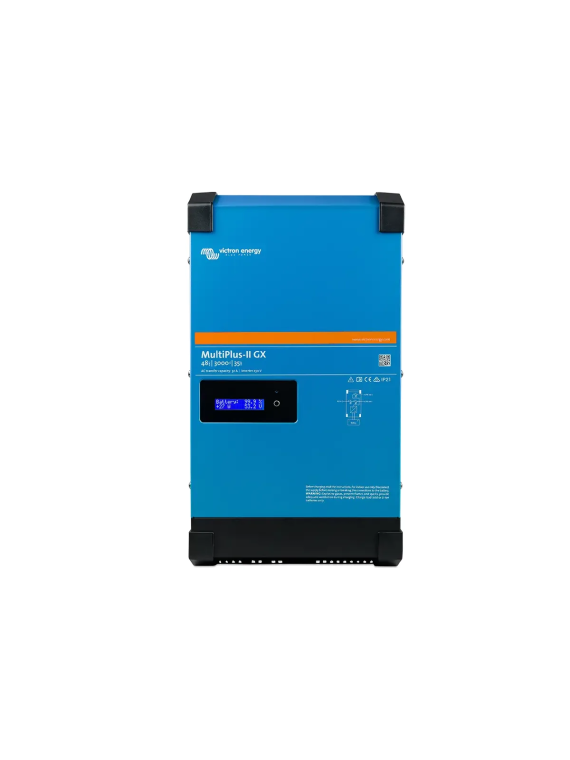

A MultiPlus-II with LCD display and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II converter/charger and a GX device with a 2 x 16-character display.
Display and Wi-Fi
The display reads the parameters of the solar charge controller, battery and inverter.
The same parameters can be accessed from a smartphone or device with Bluetooth enabled.
GX device
The integrated GX device includes :
- BMS-Can interface. It can be used to connect to a bus-Can compatible battery. Note that this is not a VE.Can-compatible port.
- USB port.
- Ethernet port.
- One VE.Direct port.
Applications
The MultiPlus-II GX is designed for applications requiring additional interfacing with other products and/or remote supervision, such as on-grid or off-grid energy storage systems and certain mobile applications.
Parallel or three-phase operation
Only one GX unit is required for parallel or three-phase operation
Standard marine, mobile or off-grid application
Loads that need to be switched off when AC input power is not available can be connected to a second output (not switched off). These loads will be taken into account by the PowerControl and PowerAssist functions to limit the AC input current to a safe value if AC power is available.
Standard mobile or off-grid application with external current sensor
Maximum current detection range: 50 A and 100 A, respectively.
Grid-parallel topology with MPPT solar charge controller
The MultiPlus-II will use data from the AC current sensor (to be ordered separately) or from the power meter to optimize self-consumption and, if necessary, avoid energy feed-backs to the grid. In the event of a power failure, the MultiPlus-II will continue to supply critical loads.
On-grid topology with PV inverter
PV power is converted directly to AC.
The MultiPlus-II will use excess PV power to charge the batteries or return energy to the grid, and will discharge the batteries or use grid energy in the event of a shortage of PV energy. In the event of a power failure, the MultiPlus-II will disconnect from the grid and continue to supply loads.
Features
| MultiPlus-II GX | 48/3000/35-32 | 48/5000/70-50 |
| PowerControl / PowerAssist | Yes | |
| Transfer switch | 32 A | 50 A |
| Maximum AC input current | 32 A | 50 A |
| Auxiliary output | Yes (32 A) | |
| CONVERTER | ||
| DC supply voltage range | 19 - 33V | 38 - 66 V |
| Output | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1% (1) | |
| Continuous output power at 25°C | 3000 VA | 5000 VA |
| Continuous output power at 25°C | 2400 W | 4000 W |
| Continuous output power at 40°C | 2200 W | 3700 W |
| Continuous output power at 65 °C | 1700 W | 3000 W |
| Assumed max. return power | 3000 VA | 5000 VA |
| Peak power | 5500 W | W |
| Maximum efficiency | 95% | 96 |
| No-load power consumption | 11 W | 18 W |
| No-load power consumption in AES mode | W | 12 W |
| Zero charge power in Search mode | W | |
| CHARGER | ||
| AC input | Supply voltage range: 187-265 VAC Input frequency: 45 - 65 | |
| Absorption charging voltage | 57.6 V | |
| Float charge voltage | 55.2 V | |
| Storage mode | 52.8 V | |
| Maximum battery charging current | 35 A | 70 A |
| Battery temperature sensor | Yes | |
| GENERAL | ||
| Interfaces | , USB, Ethernet, VE.Direct, Wi-Fi | |
| External AC current sensor (optional) | 50 A | 100A |
| Programmable relay | Yes | |
| Protection | - g | |
| VE.Bus communication port | For parallel or three-phase operation, remote control and system integration | |
| Universal com. port | Yes, 2x | |
| Remote on/off | Yes | |
| Operating temperature range | 40 to +65°C (fan cooled) | |
| Humidity (non-condensing) | max. 95 | |
| CASING | ||
| Material and color | Steel, blue RAL 5012 | |
| Degree of protection | IP22 | |
| Battery connection | M8 bolts | |
| Connection 230 VAC | Screw terminals 13 mm² (6 AWG) | |
| Weight | 19 kg | 30 kg |
| Dimensions (H x W x D) mm | 506 x 275 x 147 | x 323 x 148 |
| Standards | ||
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 | |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | |
