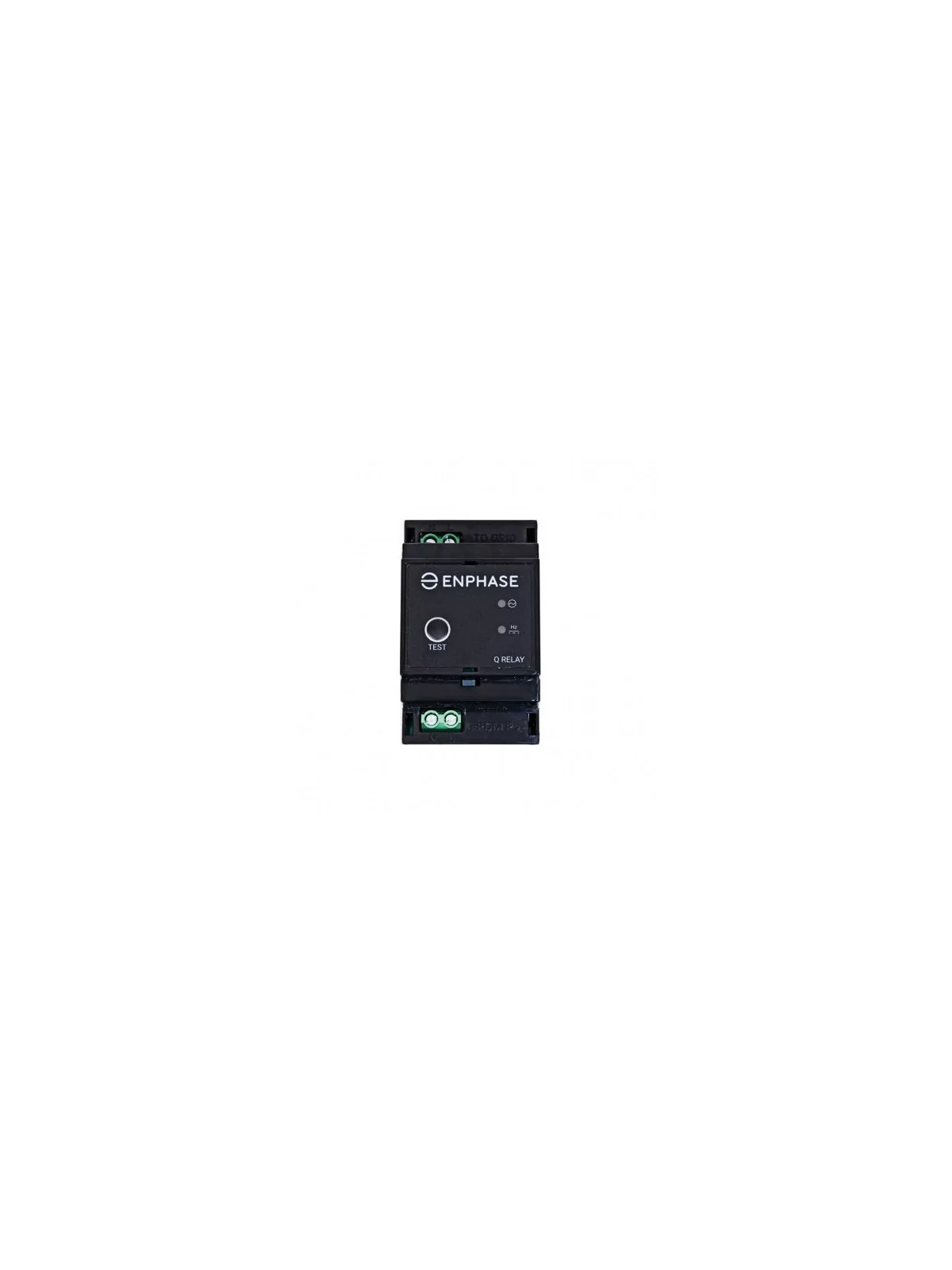

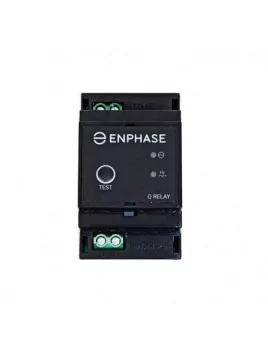

Enphase Relay Q (single-phase)
In Enphase installations, the single-phase Q relay (decoupling protection) acts as a physical grid disconnection device for single-phase installations.
In the event ofspecific grid faults, the Q relay disconnects Enphase microinverters from the AC grid. When voltages and/or frequencies return to acceptable ranges, the Q relay reconnects the system.
The Q relay works in conjunction with the Envoy-S, and ensures that both neutral and phase conductors are disconnected according to grid requirements.
Easy to install
- Lightweight and simple
- DIN rail mounting for rapid installation
Reliable
- Reliable load control
- Automatic reset on return to normal network conditions
Intelligent
- Management of voltage and frequency dips
- Can be updated remotely
- Easy-to-understand LED display
Technical specifications
SPECIFICATIONS Q-RELAY-1P-INT |
Decoupling protection - |
single-phase network (50 Hz) |
| AC voltage operating range | from 85 to 270 Veff |
| Nominal input voltage (Vnom) | 230 / 240 |
| Veff |
| Acquisition time for frequency and voltage values in normal operation | 100 ms |
| Number of protected voltage inputs |
1
| Number of microIQ 7 microinverters per phase | Up to 19 Enphase IQ 7 Microinverters or 16 Enphase IQ 7 Microinverters | .inverters Enphase IQ 7+ |
| Number of Q relays per system | Limited to four active Q relays per system |
Double single-pole normally open contactor (L1 and N) |
| Electrical output type | 230 to 240 Veff, 20A |
| No-load power consumption | 10 VA |
| LEDs | Two red/green LEDs: |
| one dedicated to max/min U trip and another dedicated to max/min frequency trip |
| Mounting | 35 mm DIN rail (standard) |
| Overvoltage - L1 N output | Combination (1kV 2Ω) |
| Operating temperature range |
-| 40 °C to 50 °C |
| Protection class IP | IP 20 (For use in protected environment) |
| Humidity | 0% to 95% non-condensing |
IEC 61326-1, |
BS EN 61000-3-2, BS EN 61000-3-3, BS EN 50065-1, BS EN 50065-2-2 |
