Bi-directional counter for use in the storage system or for implementing dynamic power control.
Compatible with : Solax SK-SU / X3-Hybrid / X3-4.0-10.0-T
The unit measures and displays the characteristics of single-phase two-wire (1p2w), three-phase three-wire (3p3w) and three-phase four-wire (3p4w) power supplies, including voltages, frequencies, currents, powers, active and reactive energies, imported or exported. Energy is measured in kWh, kVArh. Maximum demand current can be measured over predefined periods of up to 60 minutes. To measure energy, the device requires voltage and current inputs in addition to the power supply needed to power the product.

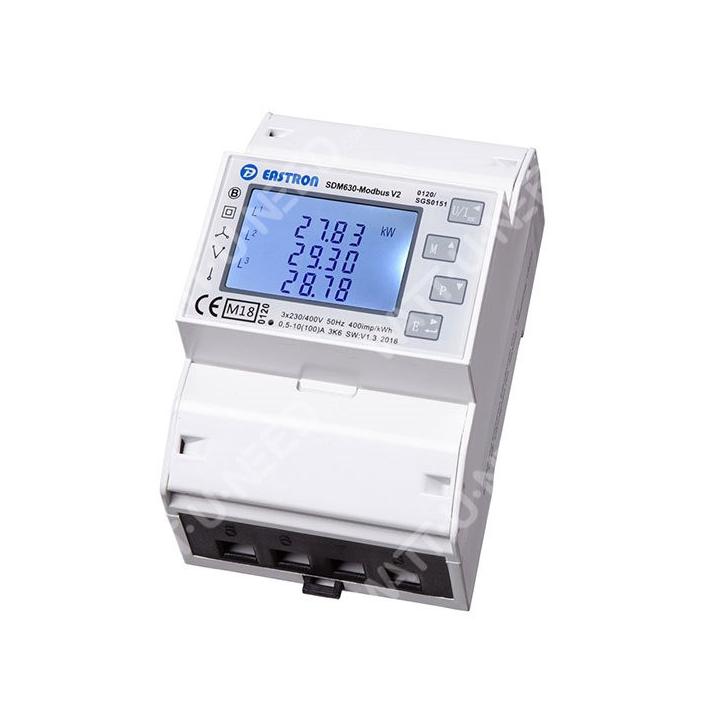

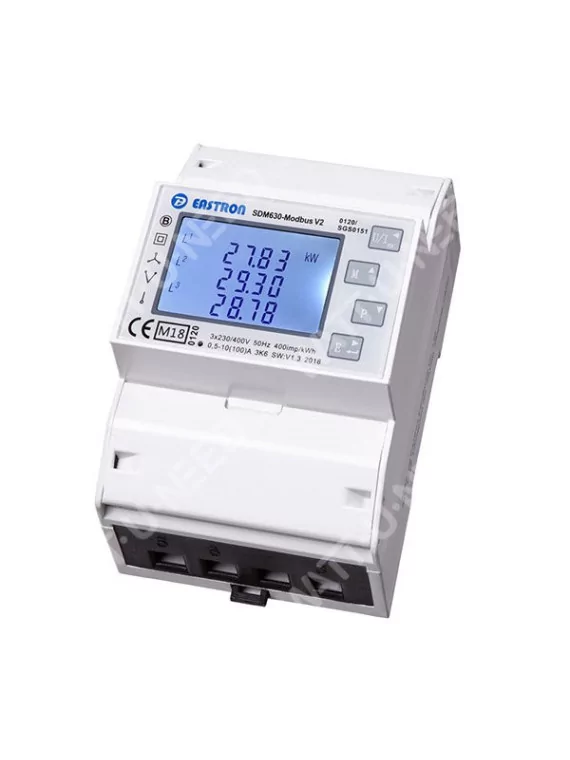

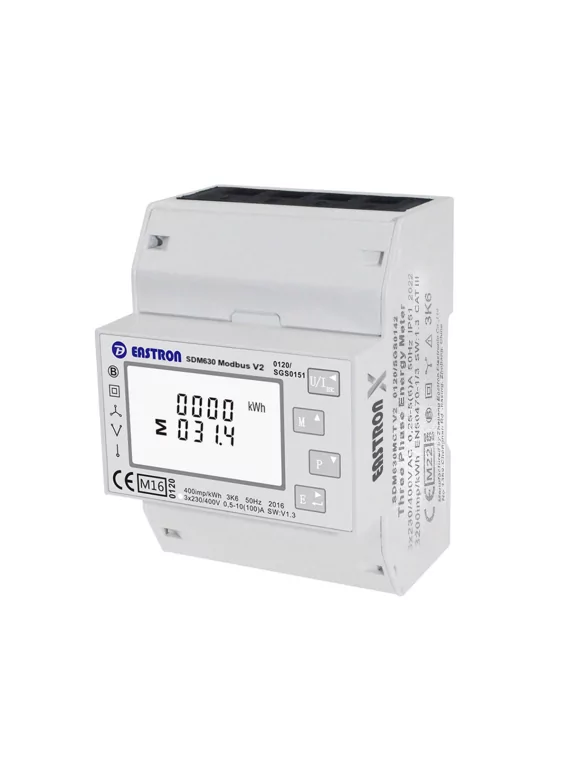

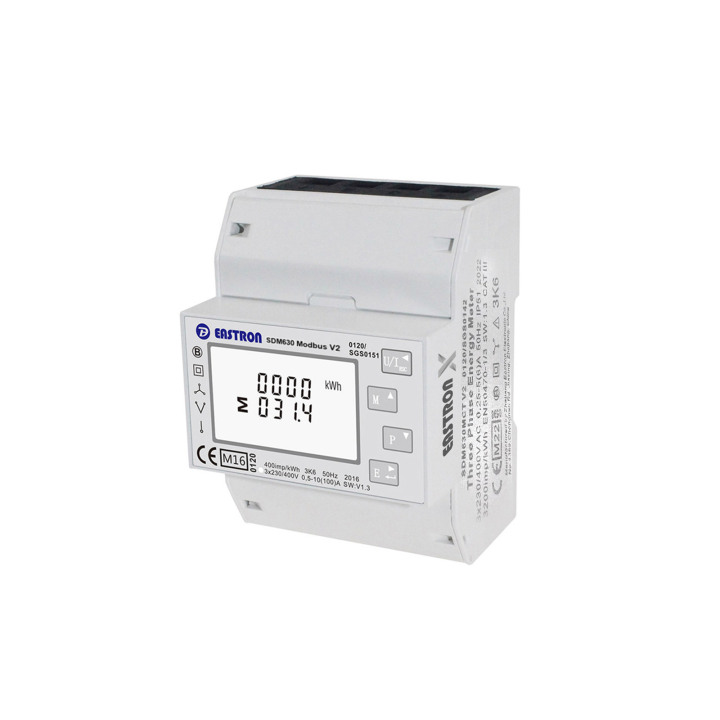

SDM630Modbus supports max. 100A direct connection, saving cost and avoiding the problems of connecting external CTs, giving the device simple, economical operation. Integrated interfaces provide pulse and RS485 Modbus RTU outputs.
- Measures kWh Kvarh, KW, Kvar, KVA, P, F, PF, Hz, dmd, V, A, etc.
- Bidirectional measurement IMP & EXP£
- Two pulse outputs
- 35mm Din rail mounting
- 100A direct connection
- Better than class 1 / B accuracy
- Mains voltage and THD% (total harmonic distortion) of all phases
- Line frequency
- Current, current demand and current THD% of all phases
- Power, maximum power demand and power factor
- Imported and exported active energy

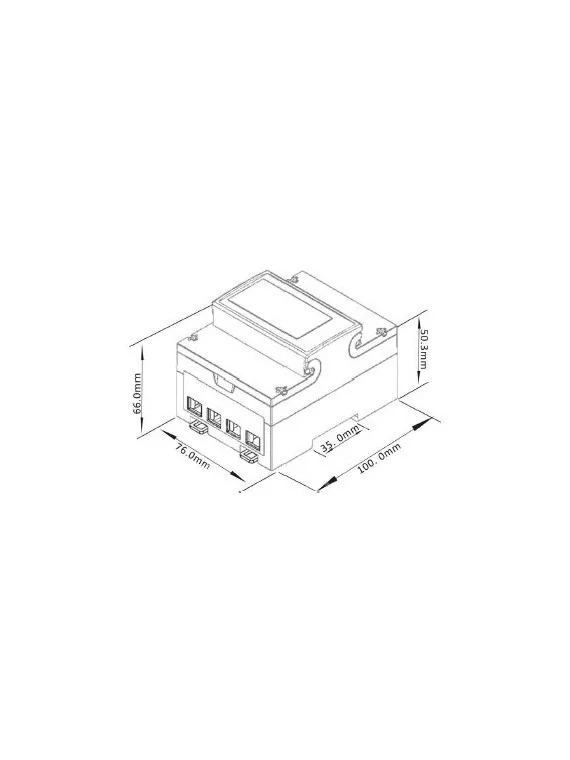

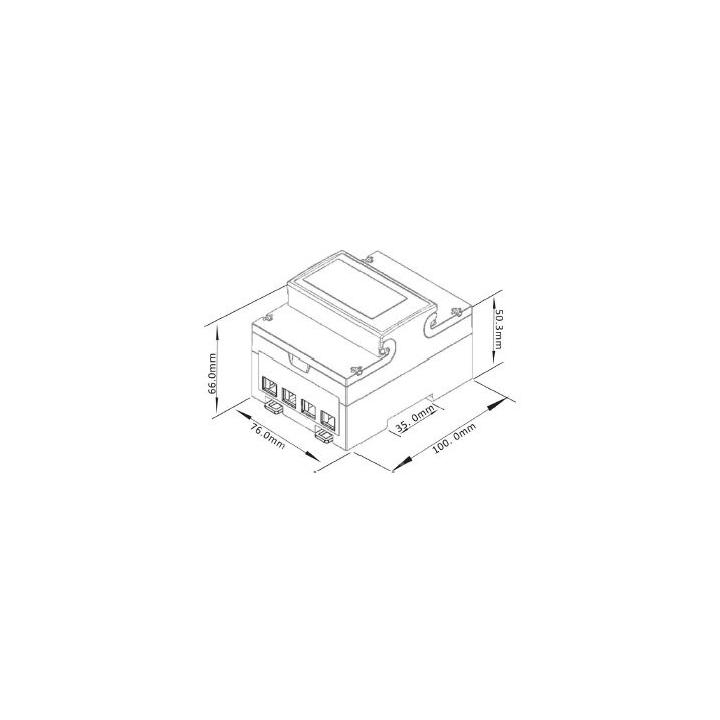

Weight (kg) 0.4
Length (mm) 100
Width (mm) 76
Height (mm) 66
