    The EPS box is a Solax accessory to manage the EPS output of hybrid inverters.

    4 item(s) left in Stock!

    X1-EPS BOX Solax

    €410.30

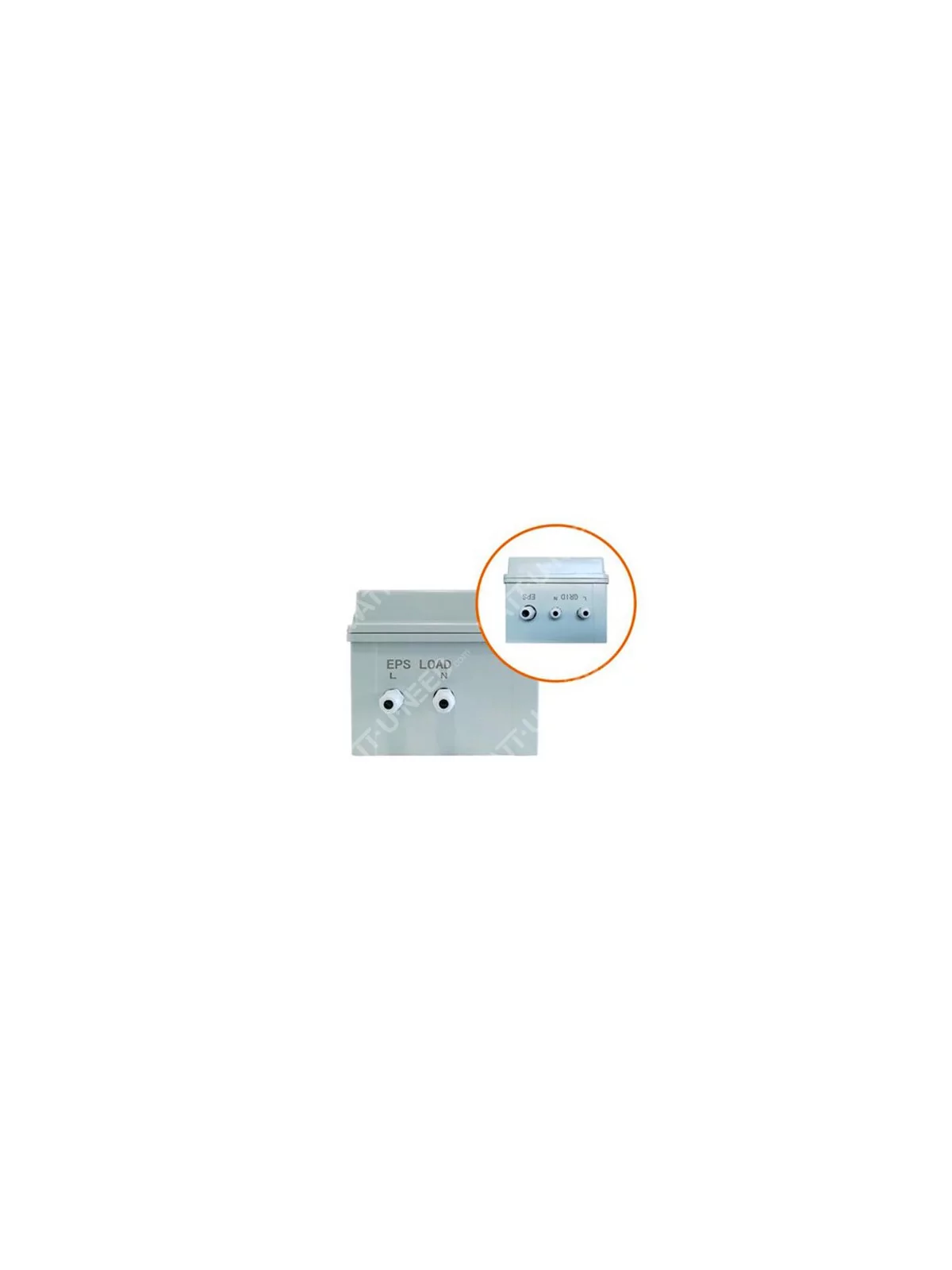

    Solax EPS Box



    Solax EPS Box

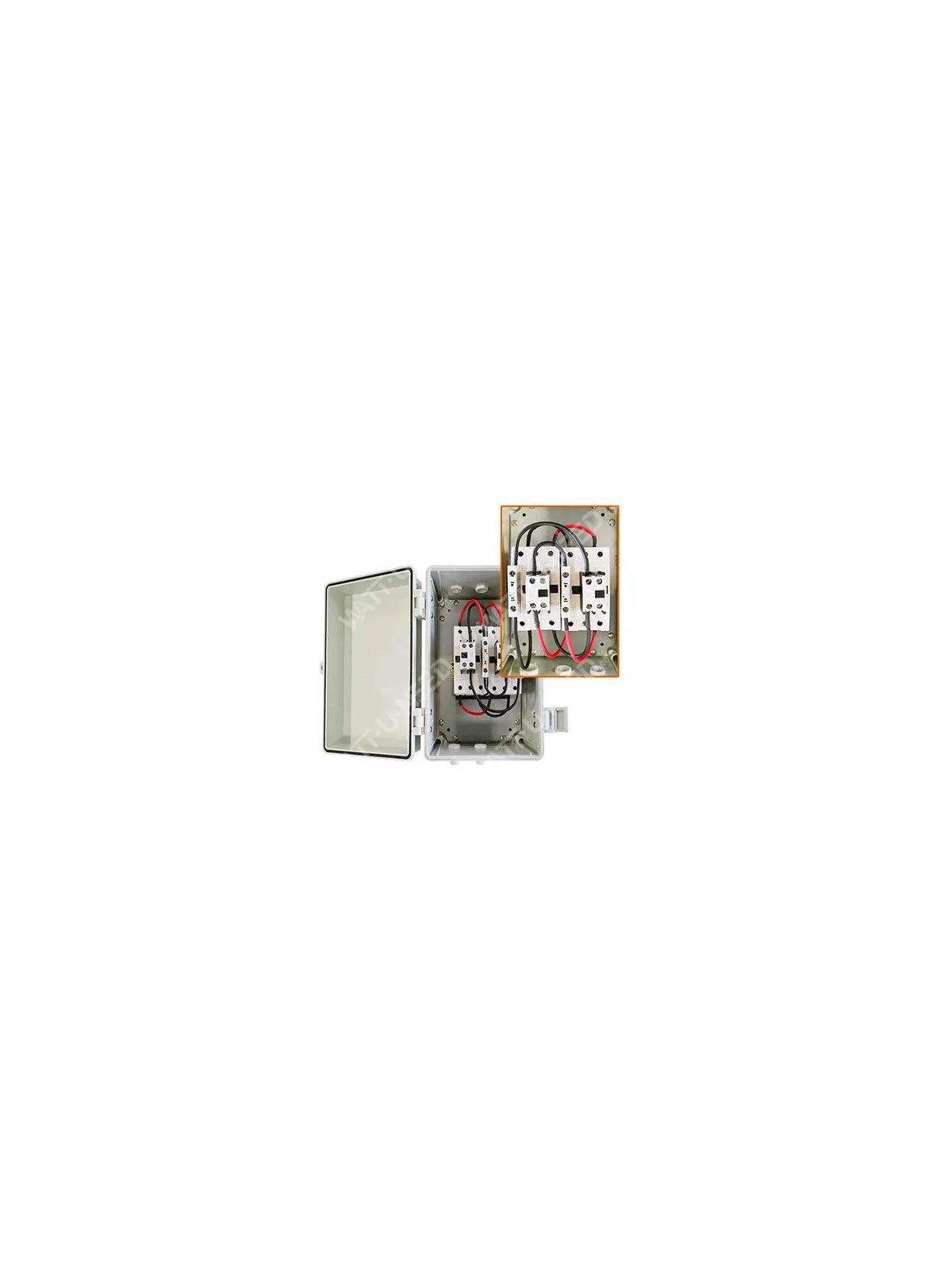

    The EPS box is a Solax accessory to manage the EPS output of hybrid inverters. Thanks to the EPS box, its internal contactors manage the emergency network input (EPS) of Solax hybrid inverters in the event of a power outage in the public network. Later, when the public network returns, they are responsible for the secure closure of the EPS output.
    The X-hybrid E inundor supports off-grid and off-grid modes. When the network is on, the inlent will have an output via the AC output, and it will have an output via the EPS output when the network is unavailable. The user can perform this function automatically with an external contactor installed.




    Characteristics



    Network
    MAX. CA Entry Current (A)63
    AC rated voltage (V) 230
    AC rated frequency (Hz)50/60
    EARNINGS PER SHARE
    Current nominal EPS (A)17
    Rated power voltage (V)230
    Rated frequency EPS (Hz) 50/60
    Load
    Nominal charge output current (A), network mode 63
    Nominal charge output current (A), EPS Mode17
    Nominal network voltage (V) 230
    Nominal network frequency (Hz) 50/60
    GENERAL DATA
    Size (mm) 300x220x170
    Packaging dimensions (mm) 403x263x230
    Weight (kg) 3Kg
    Operating temperature range (C)-10 -50
    Degree of protection IP20
    Standard warranty 1 year old
    X1-EPS-BOX
