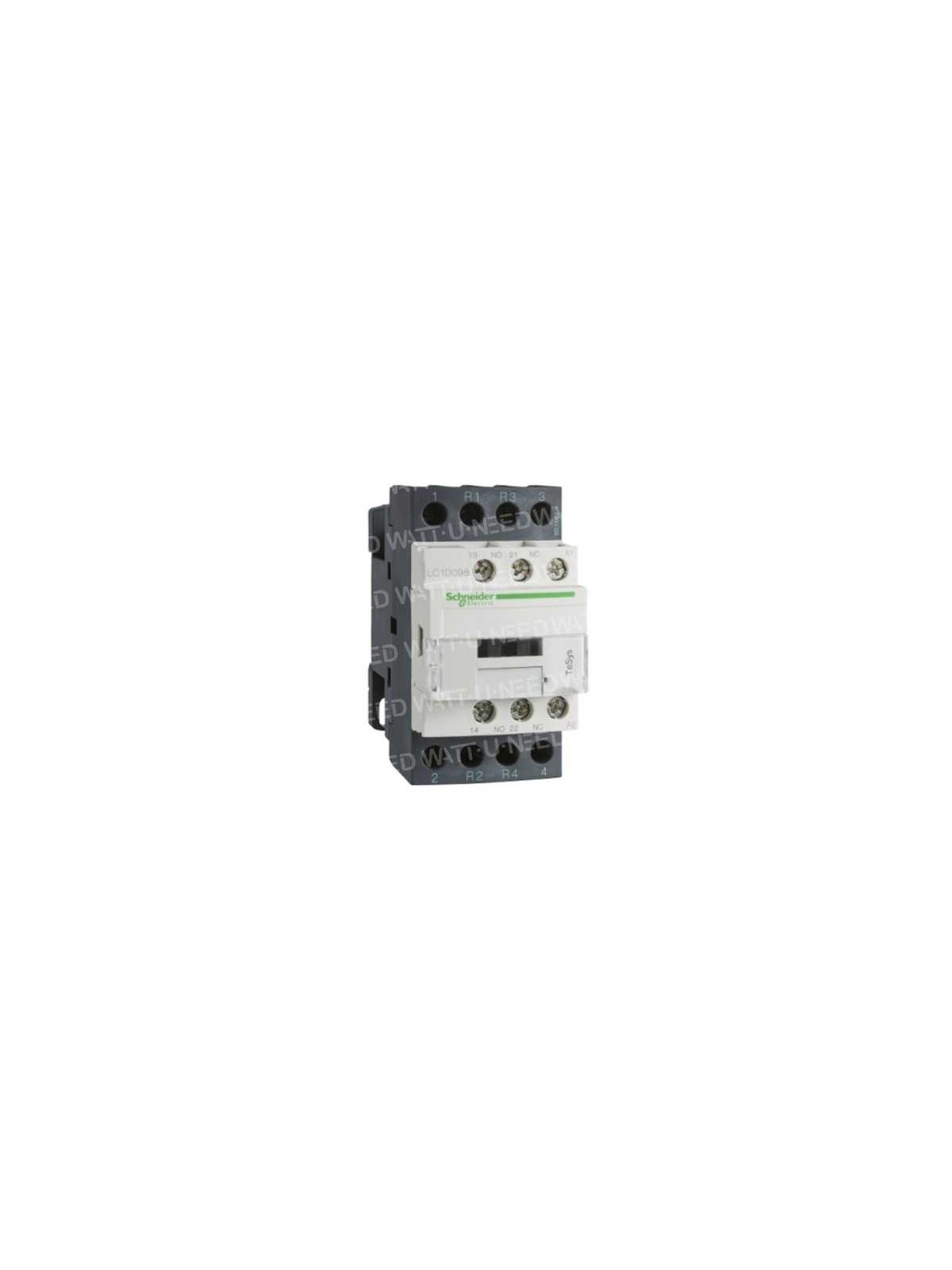

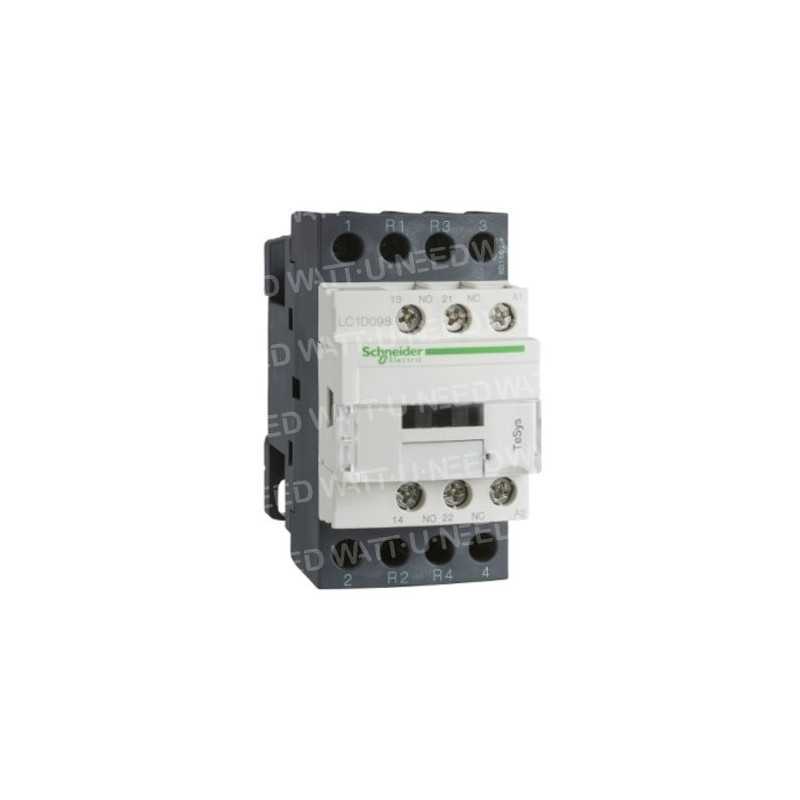

Schneider Contactor TeSys LC1-D - 4P
€75.25
Tax included
TELLC1D128P7
0768563817359
TeSys LC1-D Contactor - 4P (2F - 2O) - AC-1 440V 25 A - reel 230 V CA
Characteristics
| Range | TeSys |
| Product name | TeSys D |
| Product or component type | Contactor |
| Application of the contactor | Resistive charge |
| Job category | AC-1 |
| Description of poles | 4P |
| Power pole contact composition | 2F-2O |
| (Ue) assigned employment tension | Power circuit: 690 V c.a. 25...400 Hz Power circuit: 300 V c.c. |
| (Ie) current assigned employment | 25 a 60 degrees Celsius) at 440 V c.a. AC-1 for power circuit |
| Type of control circuit | Revenue at 50/60 Hz |
| (Uc) voltage control circuit | 230V C.A. 50/60 Hz |
| Auxiliary conctacts available on each contactor | 1F-1O |
| (Uimp) tension assigned to hold to shocks | 6 kV compliant with IEC 60947 |
| Surge category | Ⅲ |
| (Ith) conventional thermal current | 25 A to '60'C for power circuit 10 A to 60 degrees Celsius for signalling circuit |
| IP doorction degree | IP20 front-facing ieC 60529 compliant |
| Protective treatment | TH compliant with IEC 60068-2-30 |
| Pollution level | 3 |
| Running temperature | -5...60oC |
| Room temperature for storage | -60...80oC |
| Operating altitude | 3000m without |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 92 mm |
| Weight | 0.365 kg |
TELLC1D128P7
999 Items
Data sheet
- Type of electrical equipment
- Disjoncteur
Specific References
- UPC
- 76856381735
- EAN13
- 0768563817359
New
