Fixing kit for slate roofs
€64.42
Tax included
0805
0712971129467
Fastening kit for photovoltaic panels.
Suitable for all types of slate roofs.
Choose number of panels and layout (portrait/landscape) in the options.

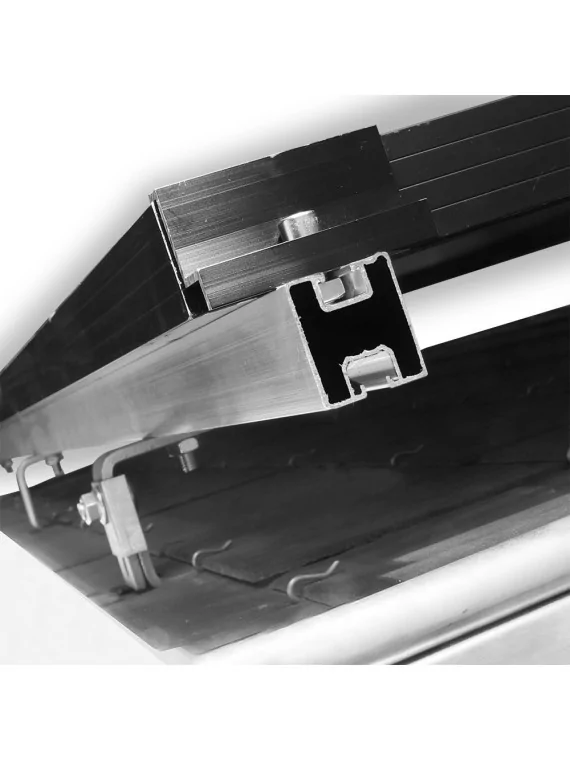

This kit contains all you need to mount your photovoltaic panels on a slate roof.
Simply select in the options the number of panels in portrait or landscape layout on your roof >> the contents of the fixing kit adapt automatically.
Also compatible with flat tiles.

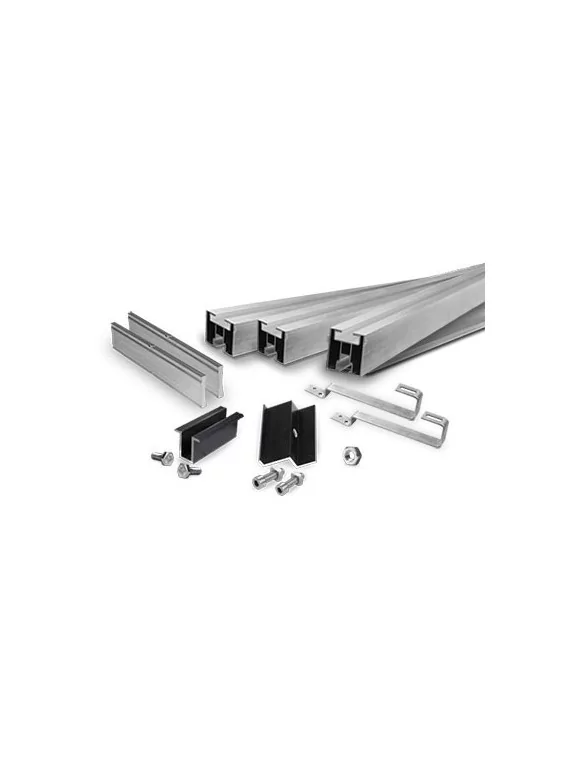

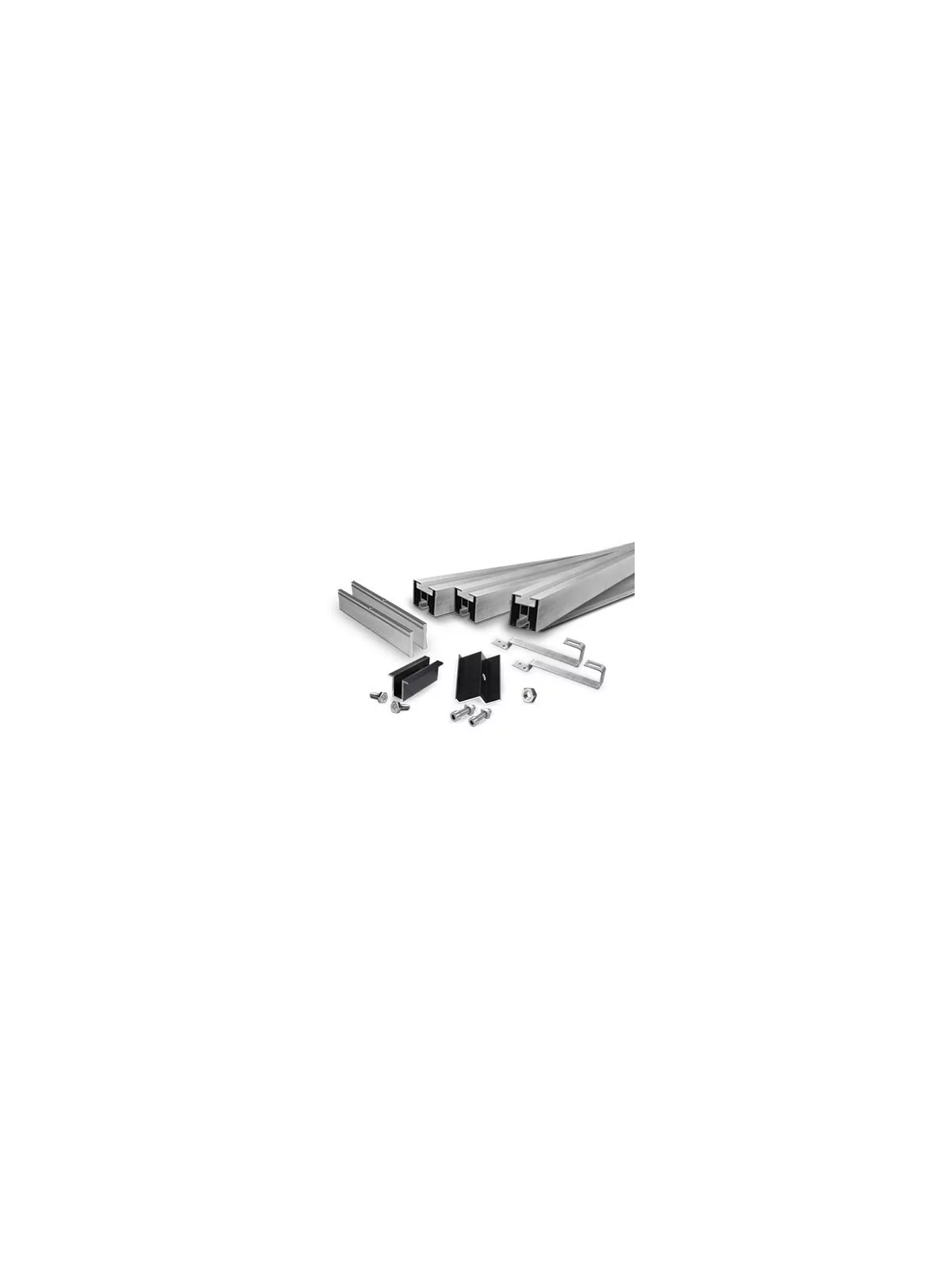

Fastening kit contents

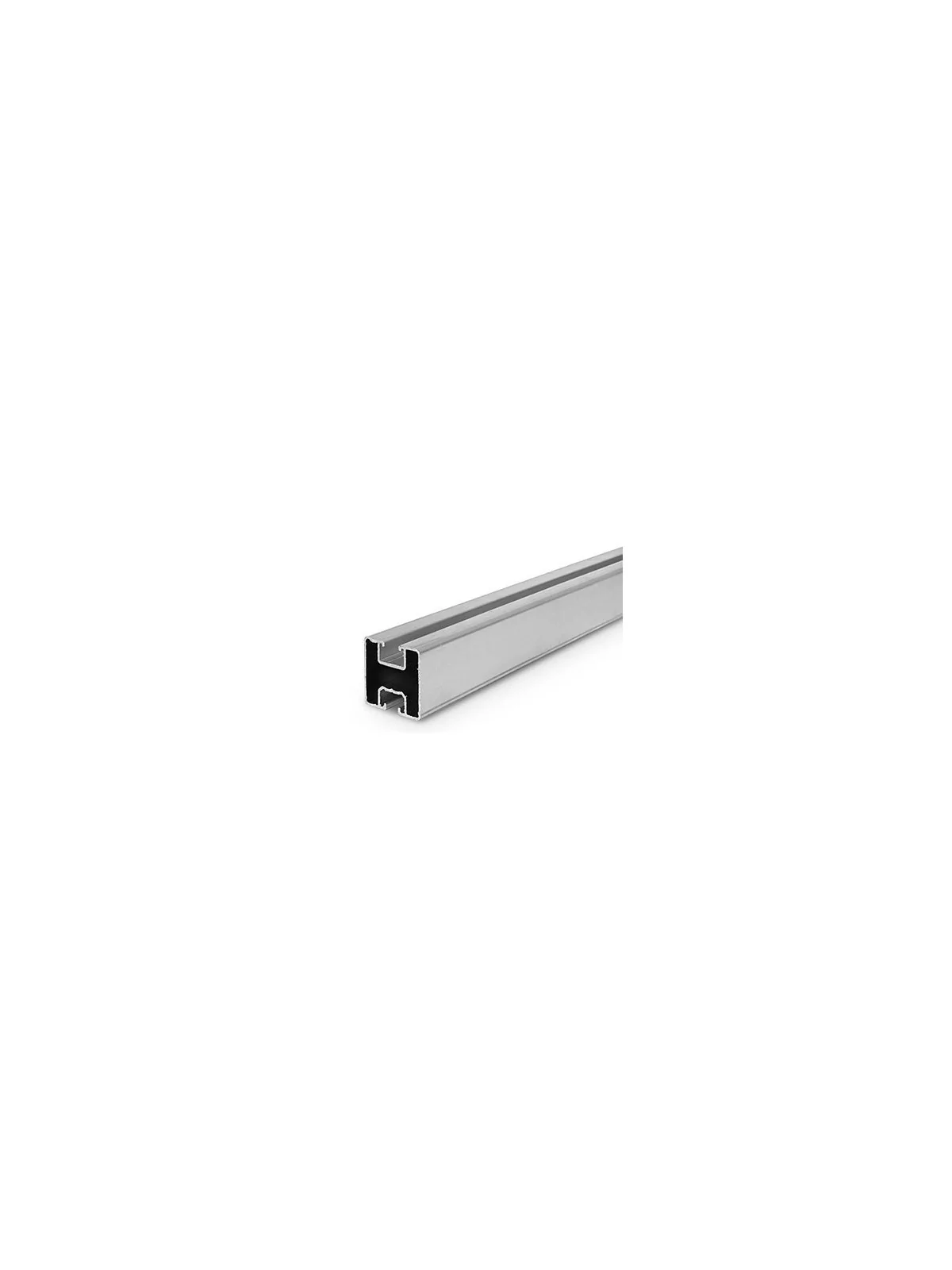

40x40 mm aluminum rail
Aluminum rail for mounting the solar panel. Custom rail available on request.
>> Find out more about 40x40 rail

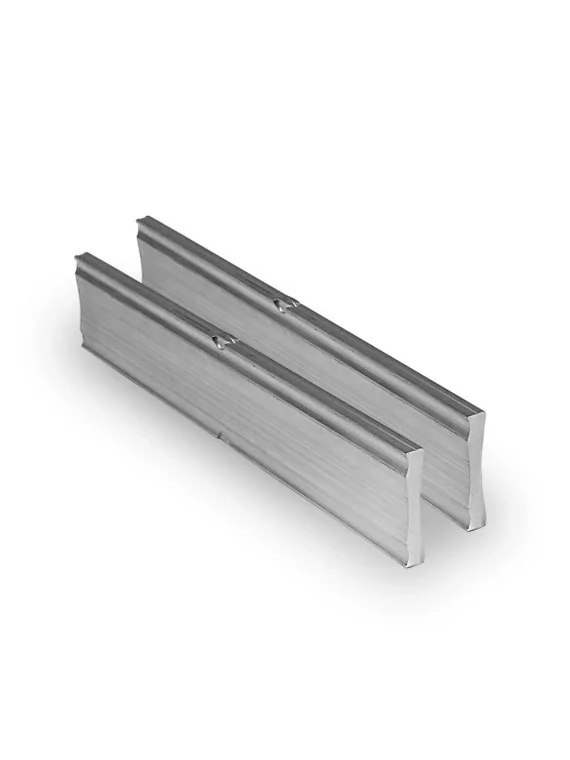

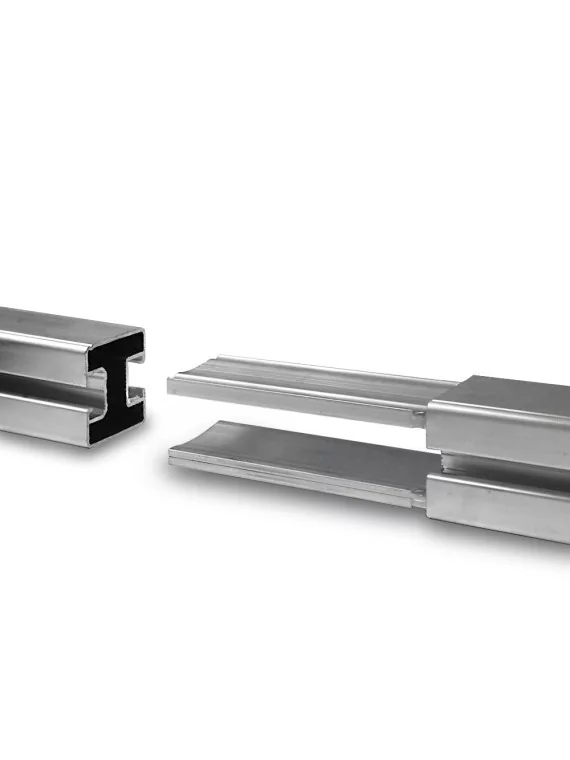

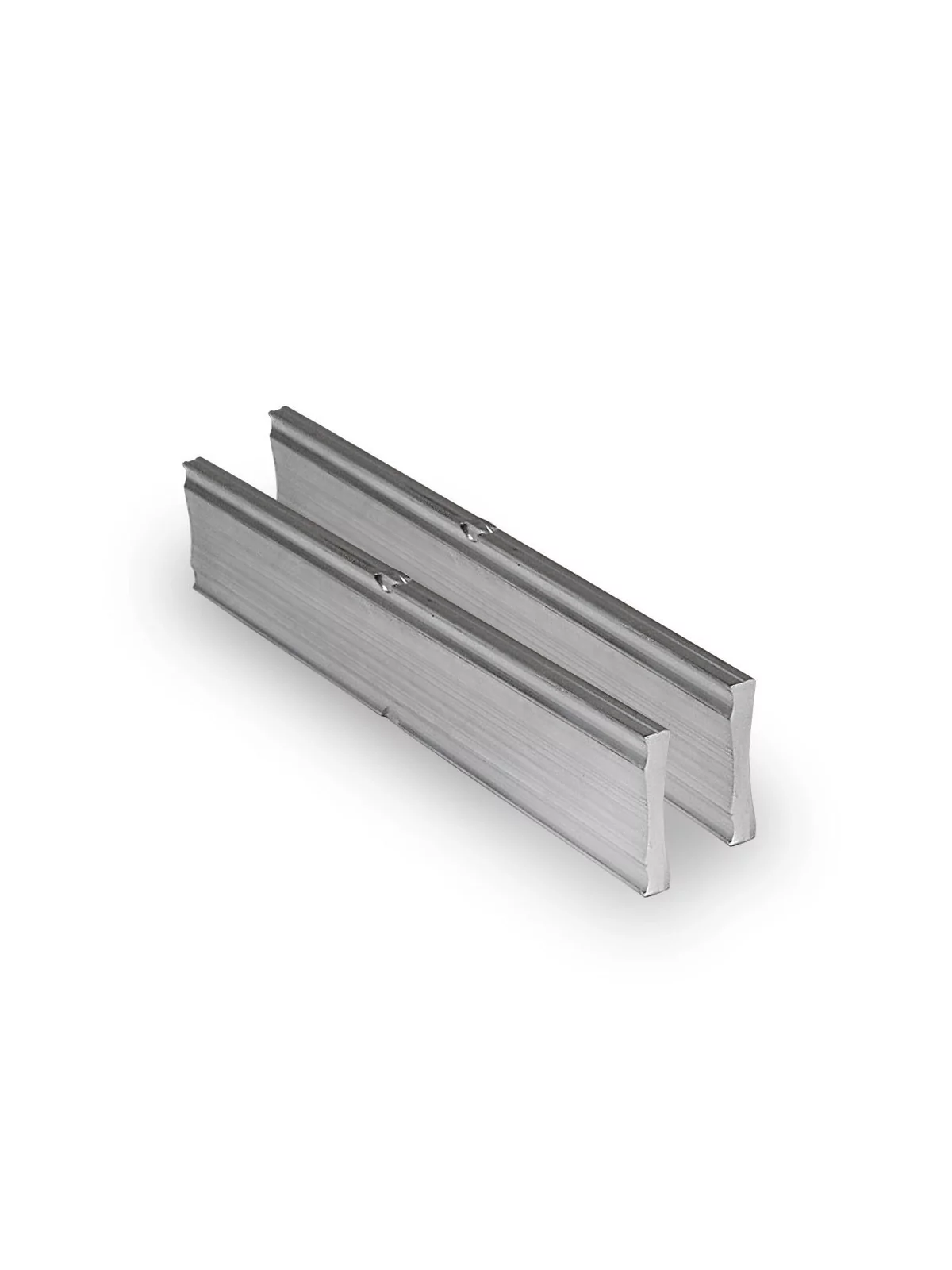

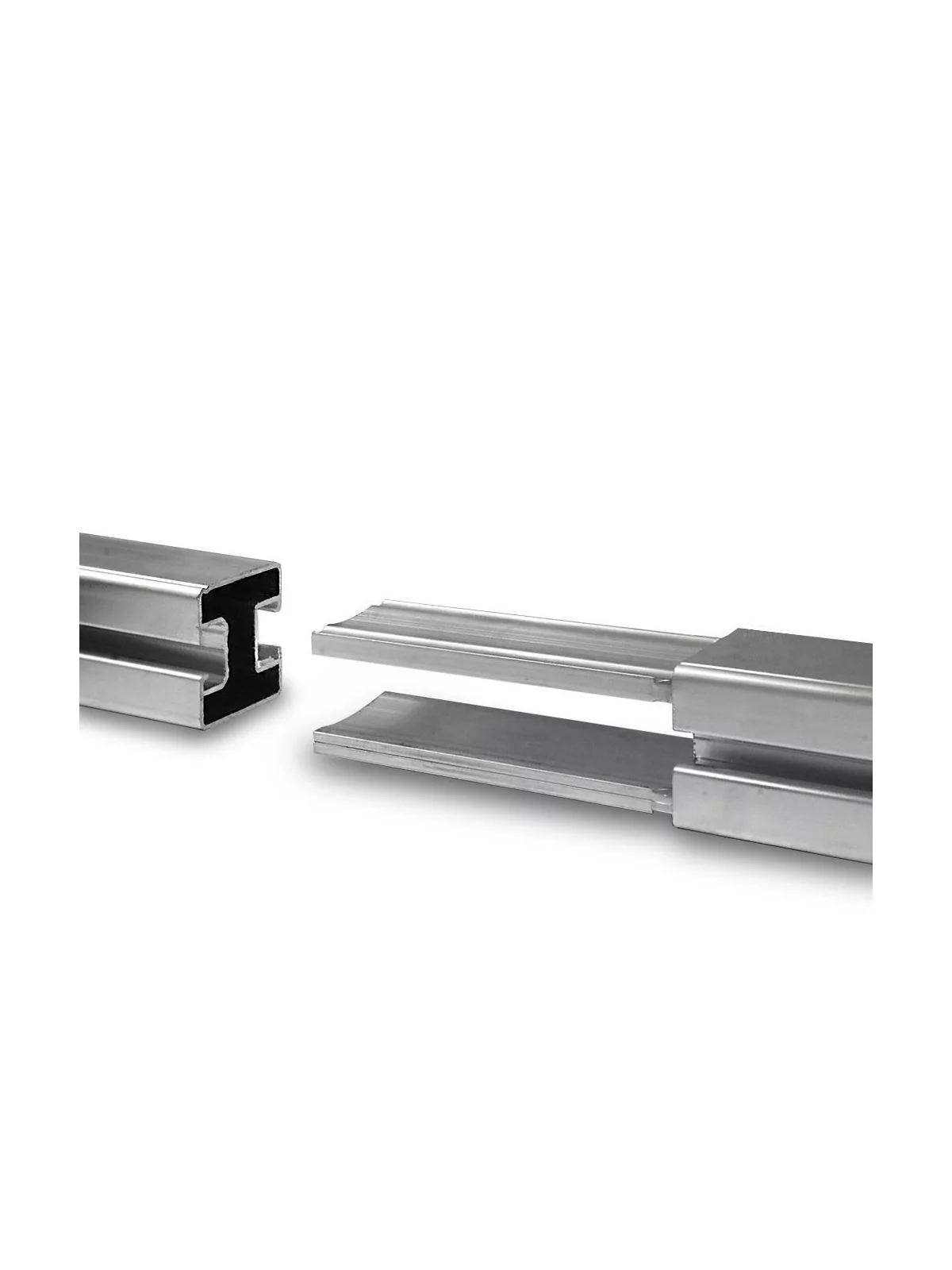

Rail connector - 2 fastening bars
These 2 bars are used to securely join 2 pieces of rail together without screws or tools! Simply insert the connecting bars into the two pieces of rail to be joined.
>> Find out more about the rail connector

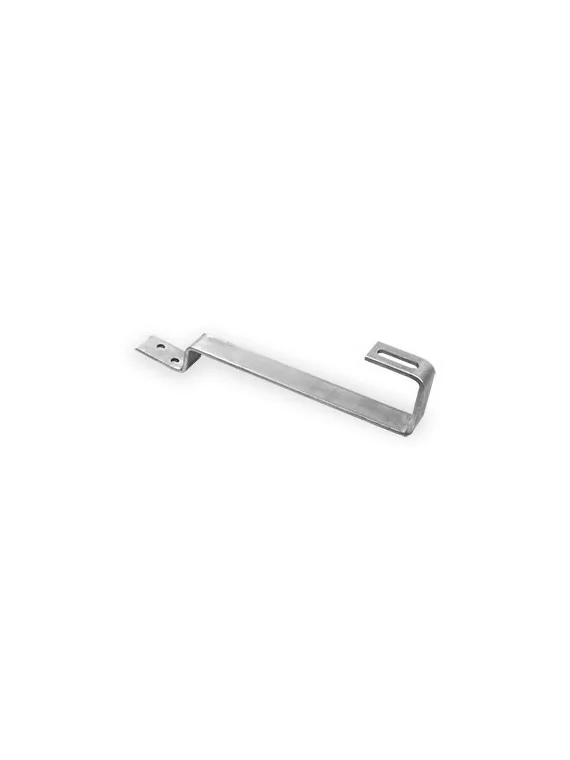

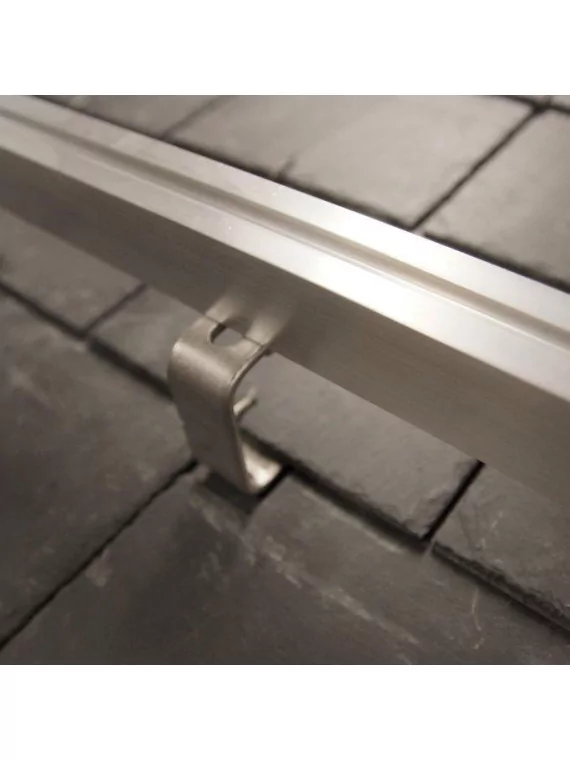

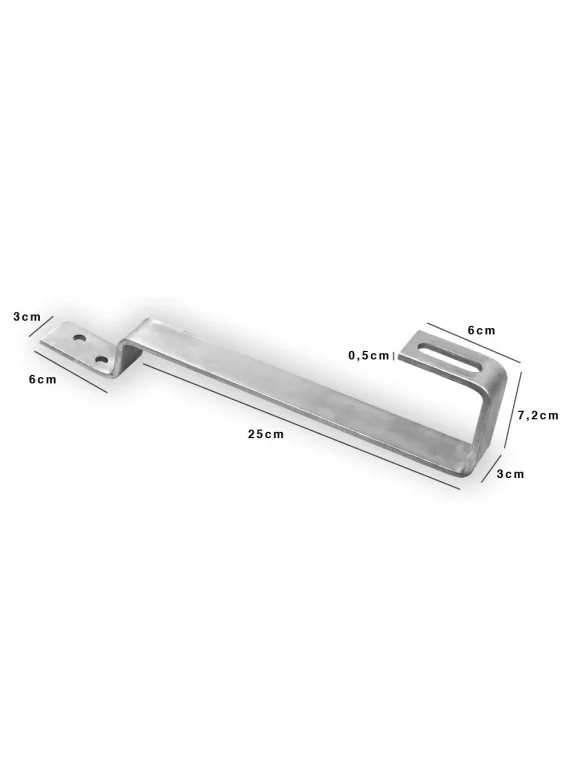

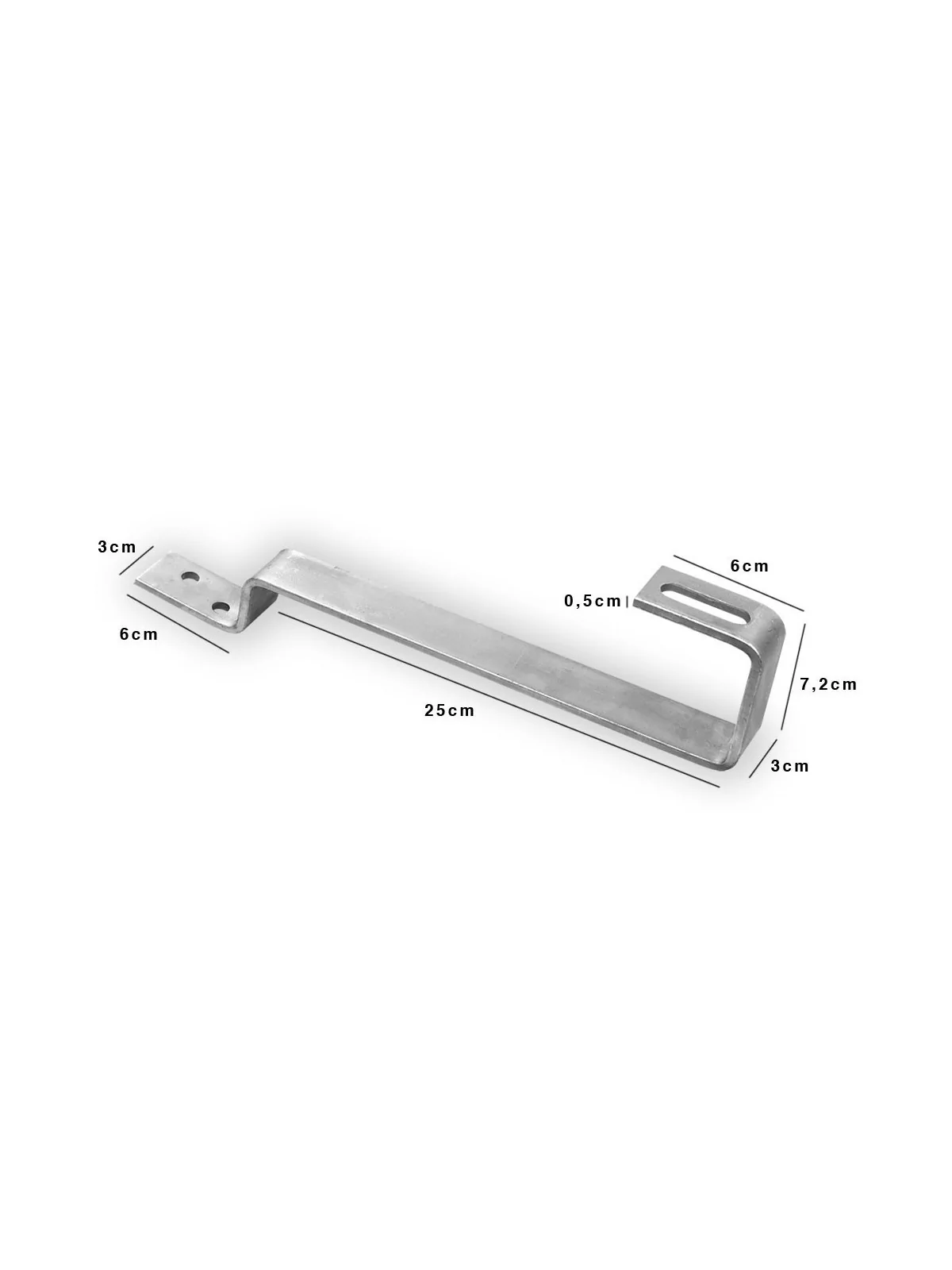

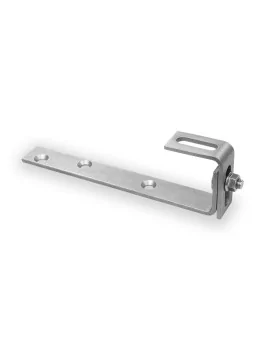

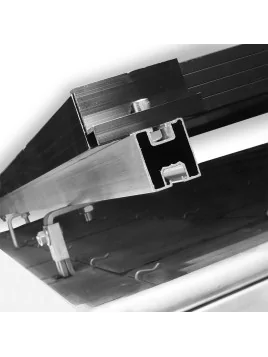

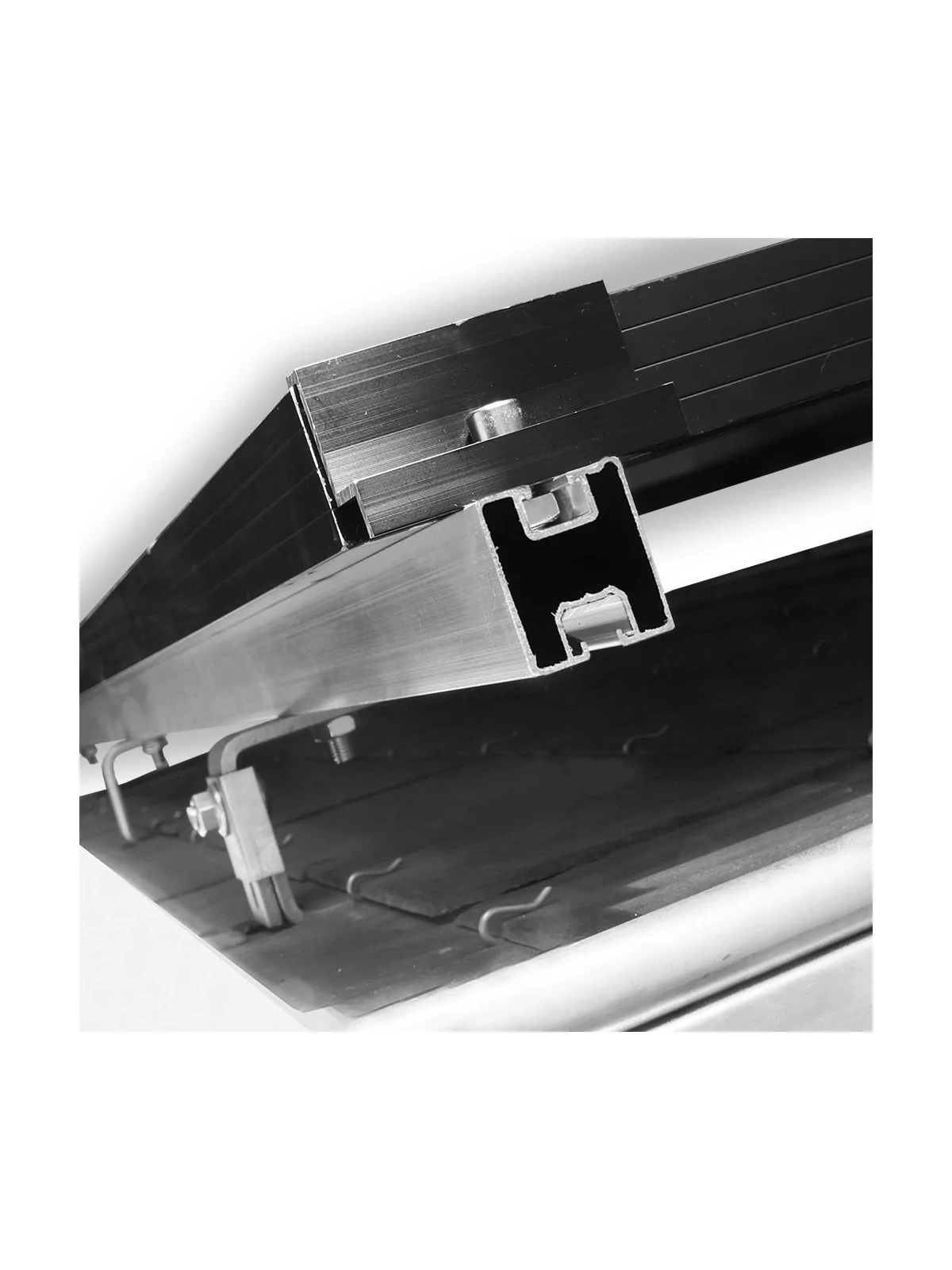

Fastening hook for slate roofs
This hook attaches to the roof, securing the aluminum rail that supports the solar panel.
>> Find out more about Slate roof hooks

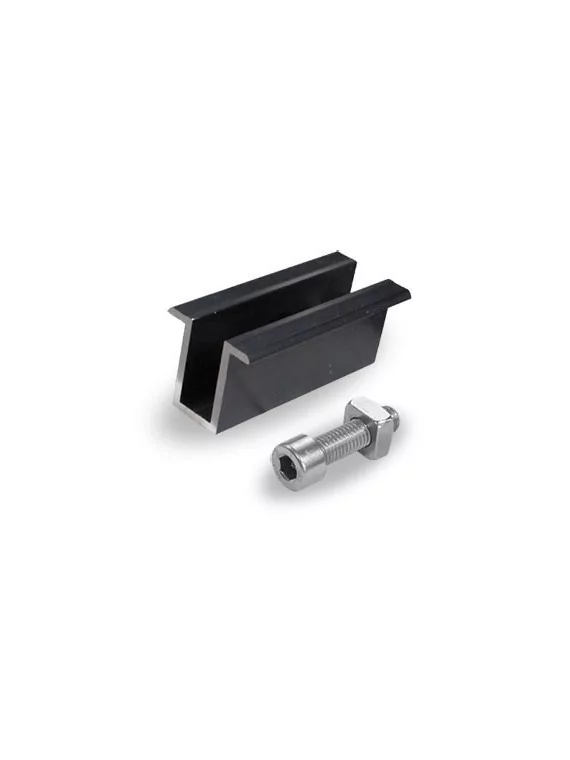

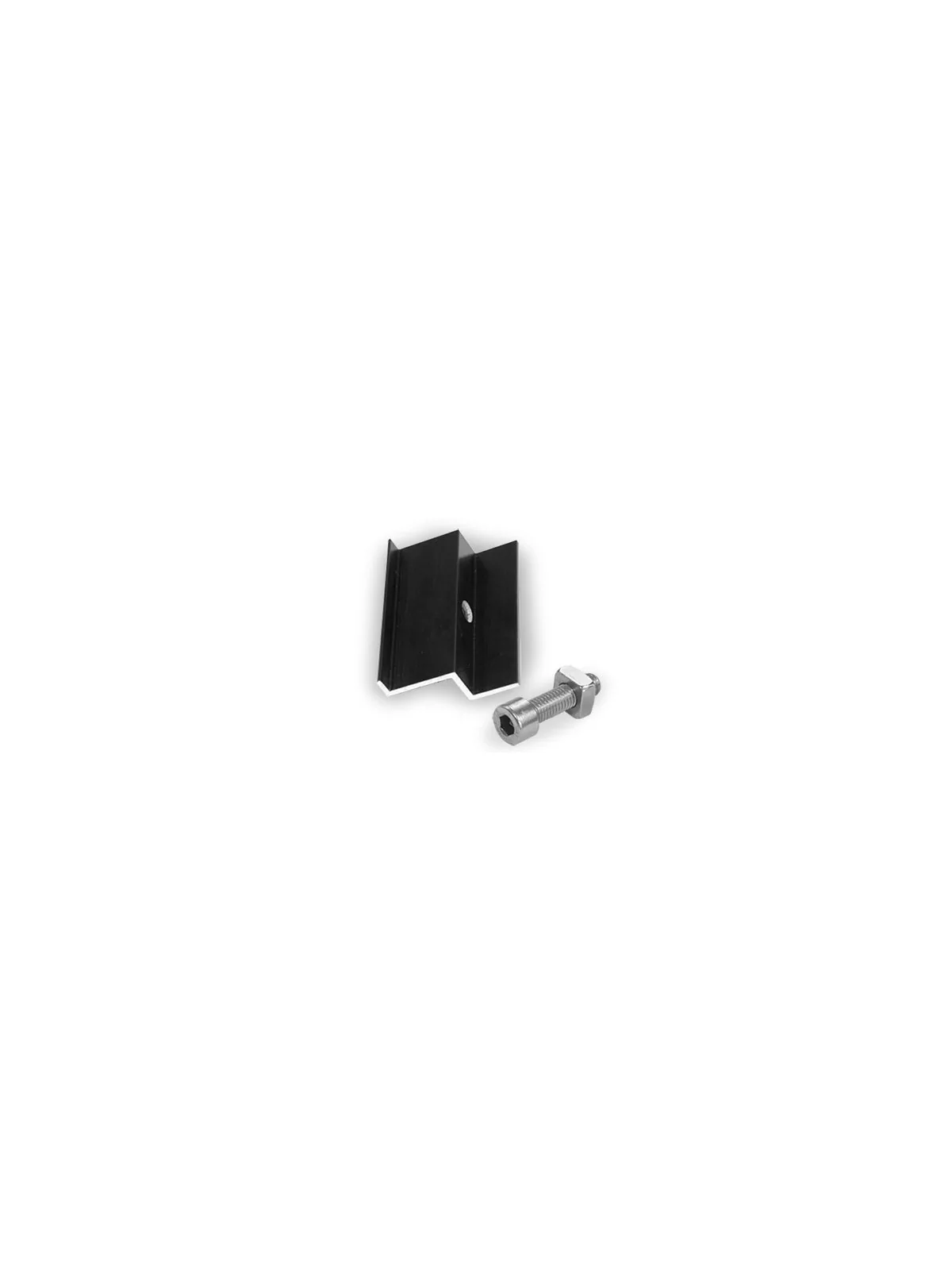

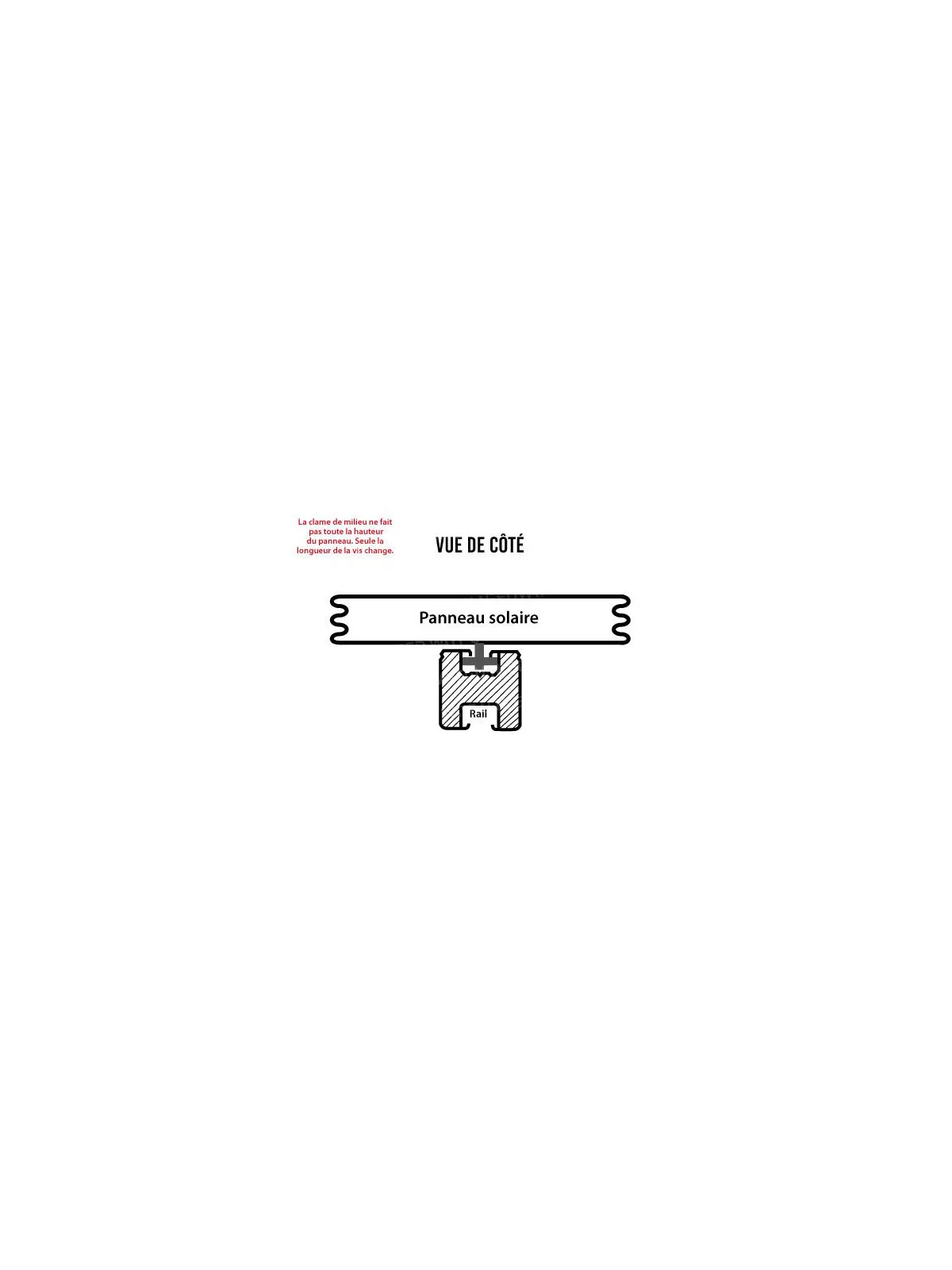

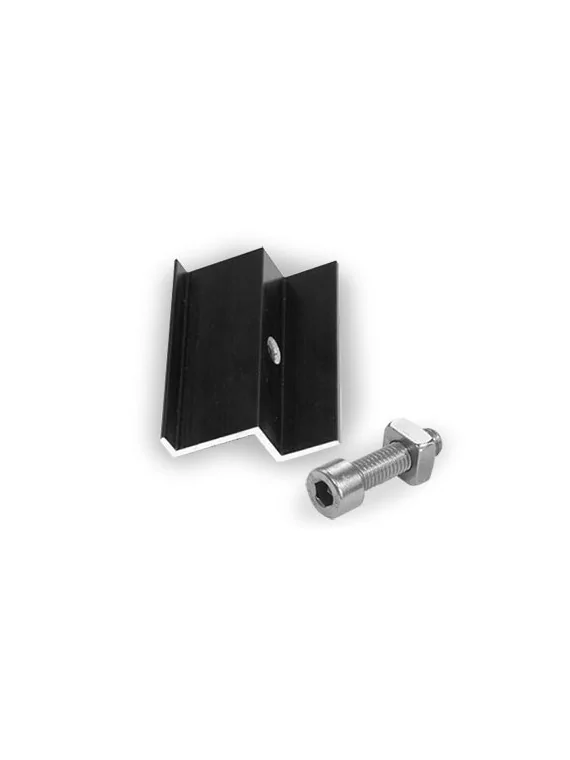

Clame de milieu - panel fastening

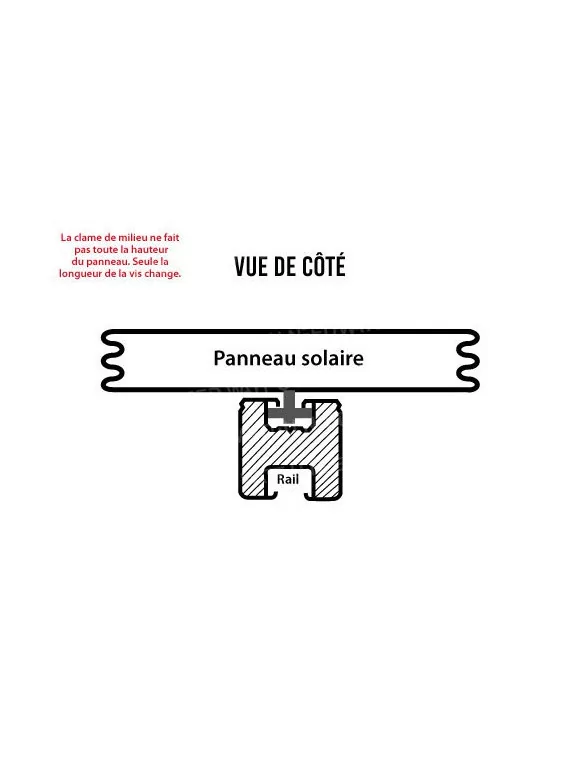

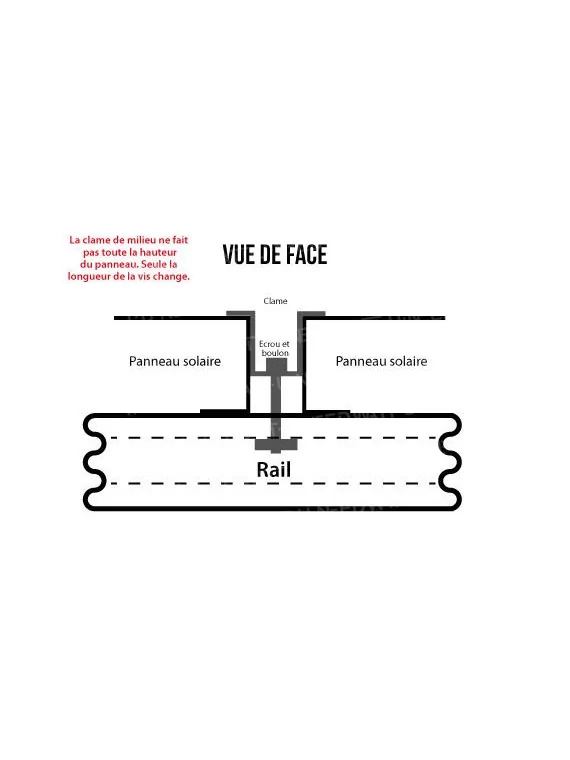

Clam for internal mounting of photovoltaic panels. Height adjustable to suit solar panel frame height: 35 - 50mm. Fixes to aluminum rail with stainless steel bolt and nut (supplied).
Option: Height to be chosen according to panel frame height.
>> Find out more about the middle clamp
Clame de fin - panel fastening
Clame for external panel fixing. Available heights: 35mm - 40mm - 45mm - 47mm - 50mm. Fixes to aluminum rail with bolt and nut (supplied).
>> Find out more about the end clam
How do I choose the right kit for my panels?
The fixing kit is suitable for all slate roofs. Thanks to its options, it can be adapted to the layout of your panels.
Fasteners are compatible with standard panel sizes.
1. Select the number of panels in portrait or landscape
Select the number of panels per row in portrait or landscape format.

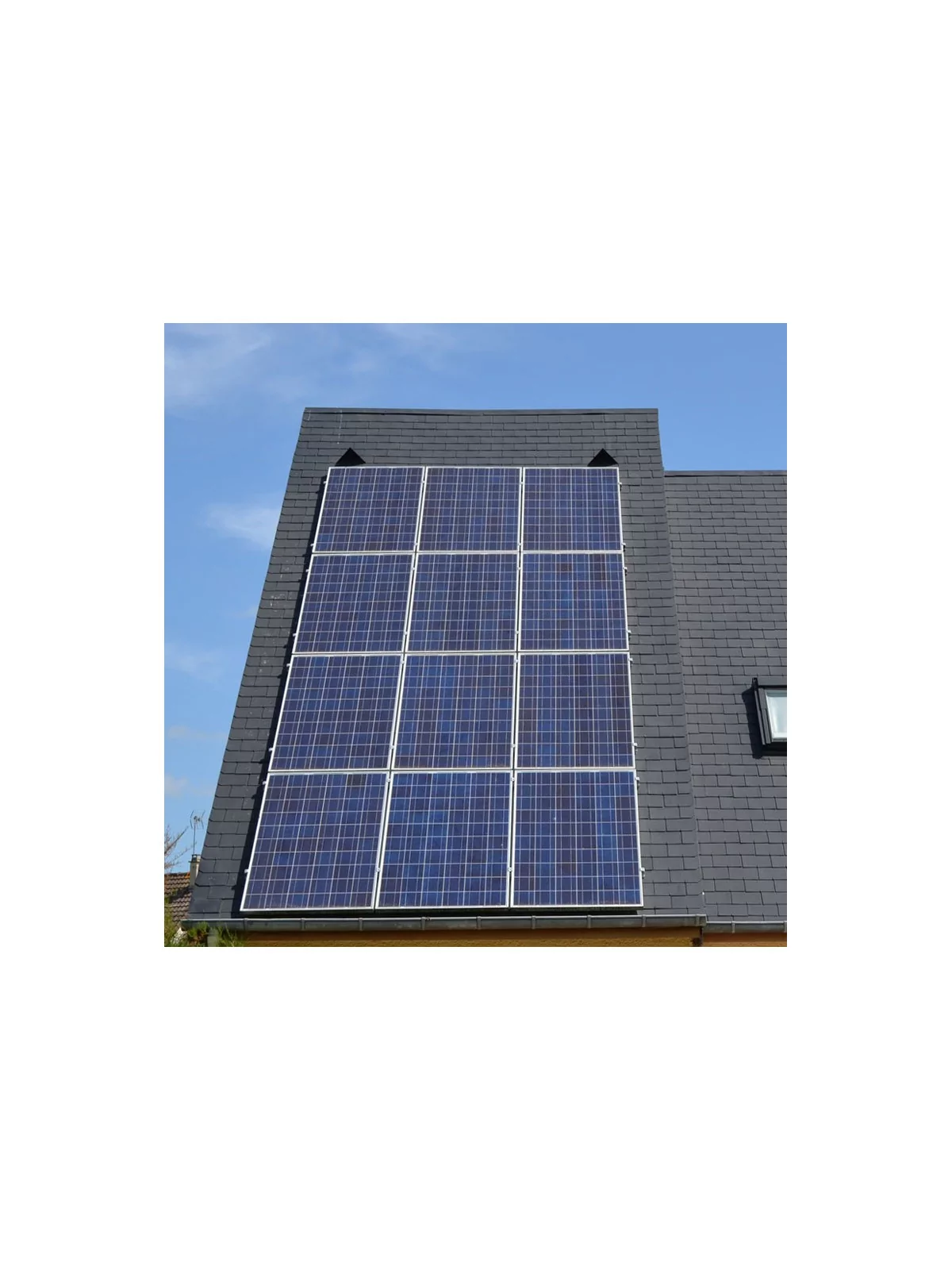

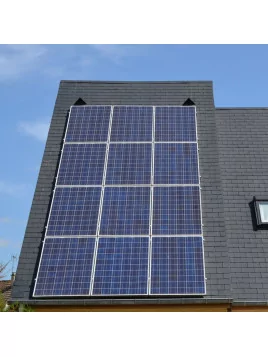

For example, the layout shown opposite requires 3x the Fixing Kit product:
> 1st kit for row 1: 3 portrait panels
> 2nd kit for row 2: 2 landscape panels
> 3rd kit for row 3: 2 landscape panels
2. Select the right clame for your panel
The clamp is used to secure the panel to the aluminum rail. Its height must correspond to the thickness of your panel's frame, so that it can be securely fastened to the rail.
Available panel heights: 35 - 40 - 45 - 47 - 50 mm

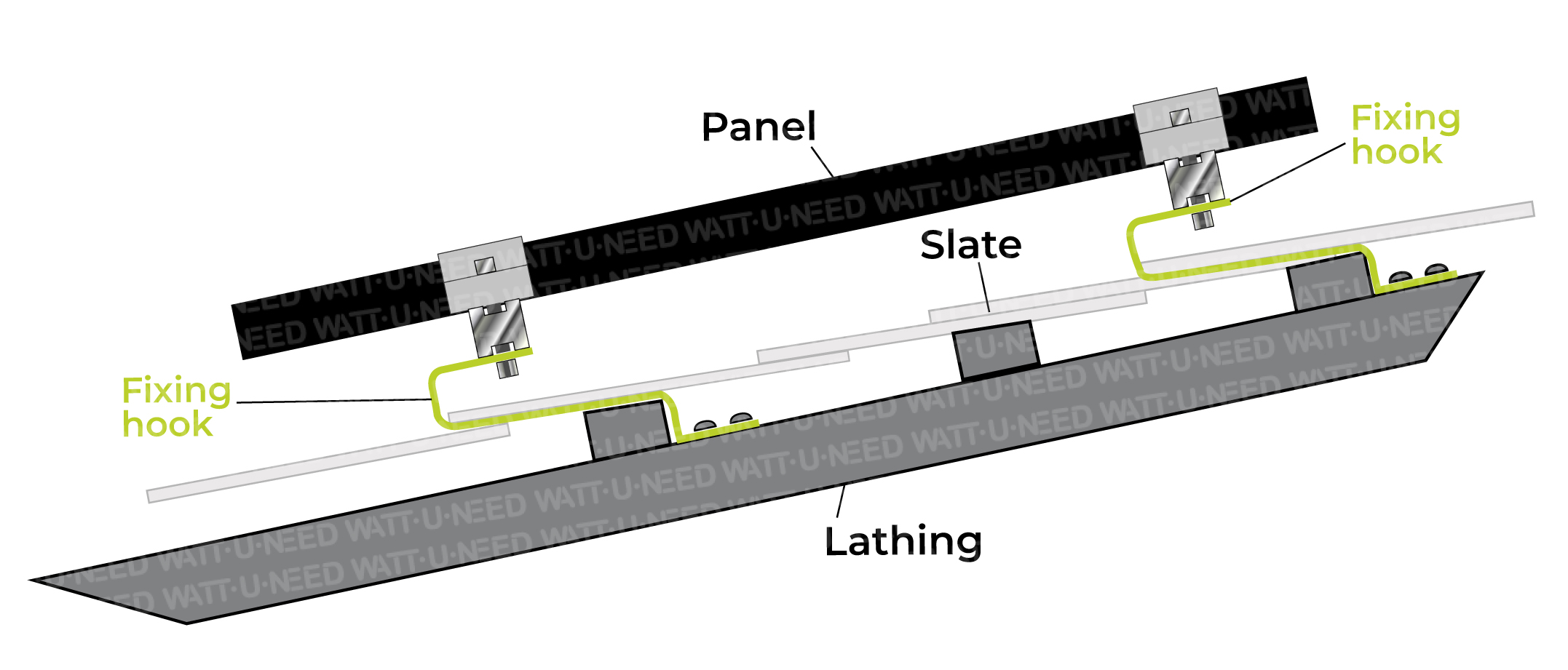

Installation diagram for slate roof fasteners
Details of materials supplied according to panel quantity
Panneaux en portrait | ||||||
| Nombre de panneaux | Rail (m) | Détail des rails* | Jonction | Crochet | Clame de milieu | Clame de fin |
| 1 panneau | 2,4 | (2 x 1,20m) | 0 | 4 | 0 | 4 |
| 2 panneaux | 4,8 | (2 x 2,40m) | 0 | 6 | 2 | 4 |
| 3 panneaux | 7,2 | (4 x 1,80) | 2 | 8 | 4 | 4 |
| 4 panneaux | 9,6 | (4 x 2,40m) | 2 | 10 | 6 | 4 |
| 5 panneaux | 12,0 | (4 x 2,40m et 2 x 1,20m) | 4 | 12 | 8 | 4 |
| 6 panneaux | 14,4 | (6 x 2,40m) | 4 | 14 | 10 | 4 |
| 7 panneaux | 16,8 | (6 x 2,40m et 2 x 1,20m) | 6 | 16 | 12 | 4 |
| 8 panneaux | 19,2 | (8 x 2,40m) | 6 | 18 | 14 | 4 |
| 9 panneaux | 21,6 | (8 x 2,40m et 2 x 1,20m) | 8 | 20 | 16 | 4 |
| 10 panneaux | 24 | (10 x 2,40m) | 8 | 22 | 18 | 4 |
| 11 panneaux | 26,4 | (10 x 2,40m et 2 x 1,20m) | 10 | 24 | 20 | 4 |
| 12 panneaux | 28,8 | (12 x 2,40m) | 10 | 26 | 22 | 4 |
| 13 panneaux | 31,2 | (12 x 2,40 et 2 x 1,20m) | 12 | 30 | 24 | 4 |
| 14 panneaux | 33,6 | (14 x 2,40m) | 12 | 30 | 26 | 4 |
| 15 panneaux | 36,0 | (14 x 2,40m et 2 x 1,20m) | 14 | 34 | 28 | 4 |
| 16 panneaux | 38,4 | (16 x 2,40m) | 14 | 36 | 30 | 4 |
| 17 panneaux | 40,8 | (16 x 2,40m et 2 x 1,20m) | 16 | 38 | 32 | 4 |
| 18 panneaux | 43,2 | (18 x 2,40m) | 16 | 40 | 34 | 4 |
| 19 panneaux | 45,6 | (18 x 2,40m et 2 x 1,20m) | 18 | 44 | 36 | 4 |
| 20 panneaux | 48 | (20 x 2,40) | 18 | 46 | 38 | 4 |
Panneaux en paysage | ||||||
| Nombre de panneaux | Rail (m) | Détail des rails* | Jonction | Crochet | Clame de milieu | Clame de fin |
| 1 panneau | 3,6 | (2 x 1,80m) | 0 | 4 | 0 | 4 |
| 2 panneaux | 7,2 | (4 x 1,80m) | 2 | 6 | 2 | 4 |
| 3 panneaux | 10,4 | (4 x 1,80m et 2 x 1,60m) | 4 | 8 | 4 | 4 |
| 4 panneaux | 14,0 | (6 x 1,80m et 2 x 1,60m) | 6 | 10 | 6 | 4 |
| 5 panneaux | 17,6 | (8 x 1,80m et 2 x 1,60m) | 8 | 12 | 8 | 4 |
| 6 panneaux | 21,2 | (10 x 1,80m et 2 x 1,60m) | 10 | 14 | 10 | 4 |
| 7 panneaux | 24,4 | (10 x 1,80m et 4 x 1,60m) | 12 | 16 | 12 | 4 |
| 8 panneaux | 28,0 | (12 x 1,80m et 2 x 1,60m) | 14 | 18 | 14 | 4 |
| 9 panneaux | 31,6 | (14 x 1,80m et 4 x 1,60m) | 16 | 20 | 16 | 4 |
| 10 panneaux | 35,2 | (16 x 1,80m et 4 x 1,60m) | 18 | 22 | 18 | 4 |
| 11 panneaux | 38,8 | (18 x 1,80m et 4 x 1,60m) | 20 | 24 | 20 | 4 |
| 12 panneaux | 42,4 | (20 x 1,80m et 4 x 1,60 m) | 22 | 26 | 22 | 4 |
| 13 panneaux | 46,0 | (22 x 1,80m et 4 x 1,60m) | 24 | 28 | 24 | 4 |
| 14 panneaux | 49,6 | (24 x 1,80m et 4 x 1,60m) | 26 | 30 | 26 | 4 |
| 15 panneaux | 53,2 | (26 x 1,80m et 4 x 1,60m) | 28 | 32 | 28 | 4 |
| 16 panneaux | 56,8 | (28 x 1,80m et 4 x 1,60m) | 30 | 34 | 30 | 4 |
| 17 panneaux | 60,4 | (30 x 1,80m et 4 x 1,60m) | 32 | 36 | 32 | 4 |
| 18 panneaux | 64,0 | (32 x 1,80m et 4 x 1,60m) | 34 | 38 | 34 | 4 |
| 19 panneaux | 67,6 | (34 x 1,80m et 4 x 1,60m) | 36 | 40 | 36 | 4 |
| 20 panneaux | 71,2 | (36 x 1,80m et 4 x 1,60m) | 38 | 42 | 38 | |
* Rail details are given as an indication only and depend on panel size (which causes rail lengths to vary).
