Tile roof mounting kit

€268.70
Tax included
0803
0712971132665

Fastening kit for photovoltaic panels.
Suitable for all types of tiled roofs.

Choose number of panels and layout (portrait/landscape) in the options.

Suitable for tiles with a maximum overlap of 11 to 12cm.

Clames: 30 mm
Number of panels per row: 5 panels in portrait

Tile roof mounting kit

€268.70

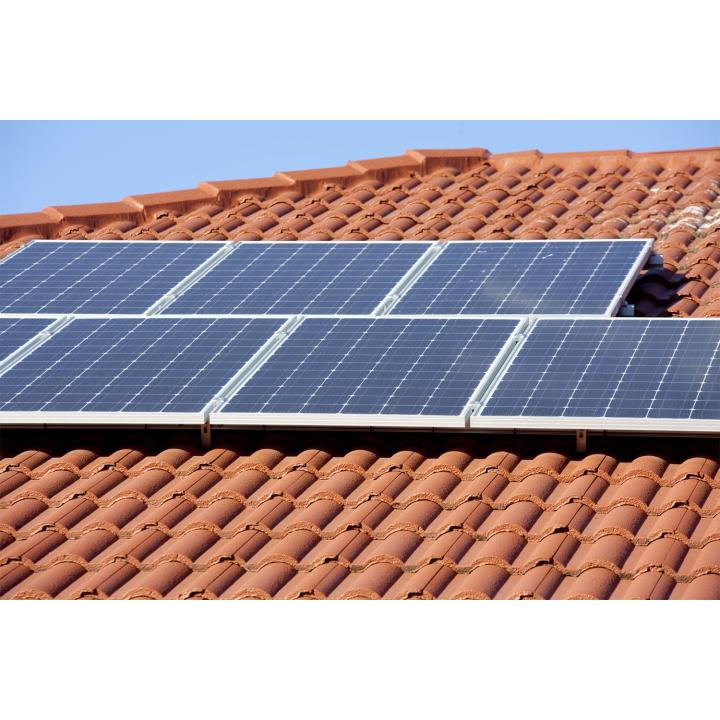

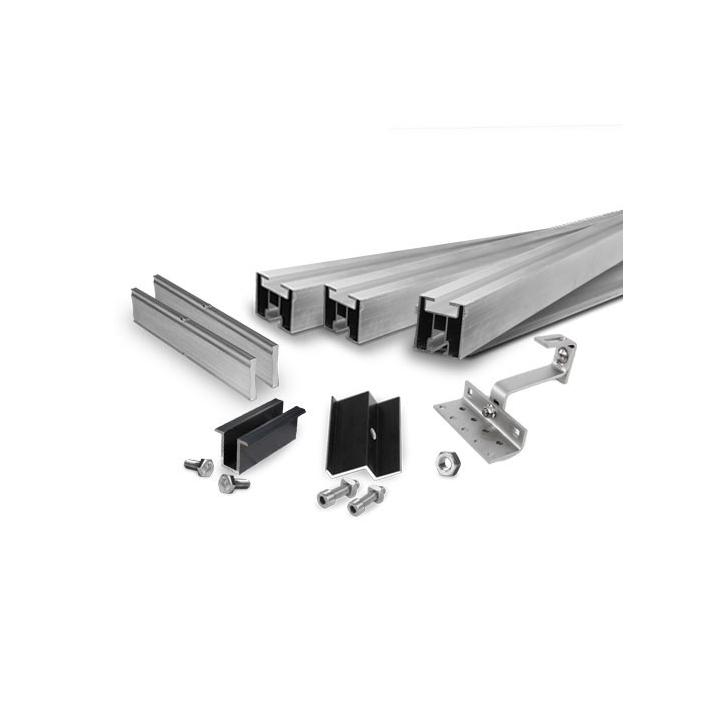

This kit contains all you need to mount your photovoltaic panels on a tiled roof.
Simply select in the options the number of panels in portrait or landscape layout on your roof >> the contents of the fixing kit are automatically adapted.

Suitable for tiles with a maximum overlap of 11 to 12cm


Fastening kit contents

Rail de fixation pour panneaux solaires

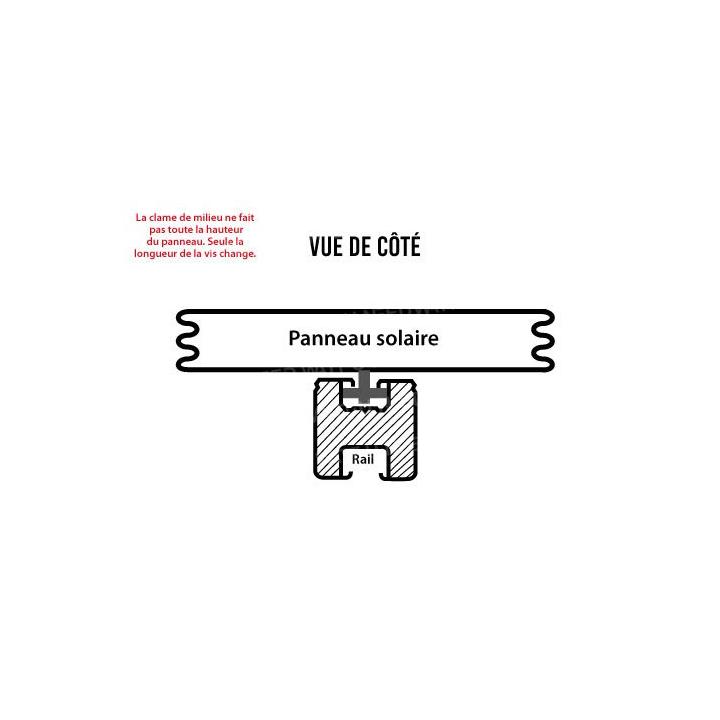

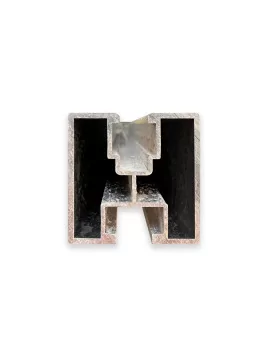

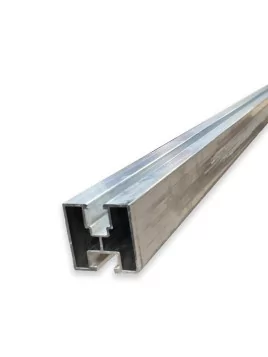

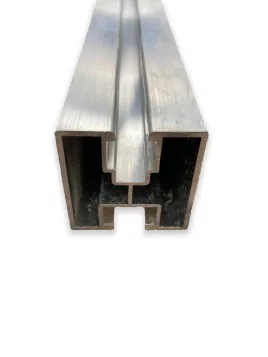

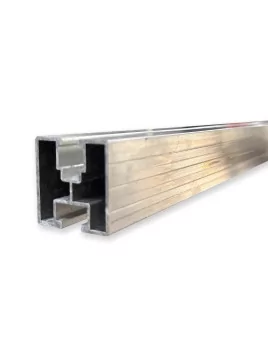

40x40 mm aluminum rail

Aluminum rail for mounting the solar panel. Custom rail available on request.

>> Find out more about 40x40 rail


Jonction pour rails

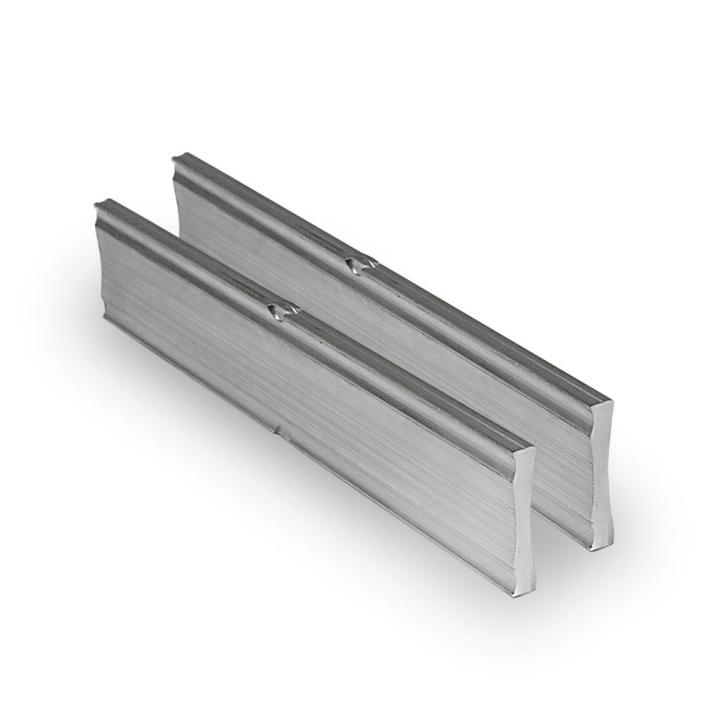

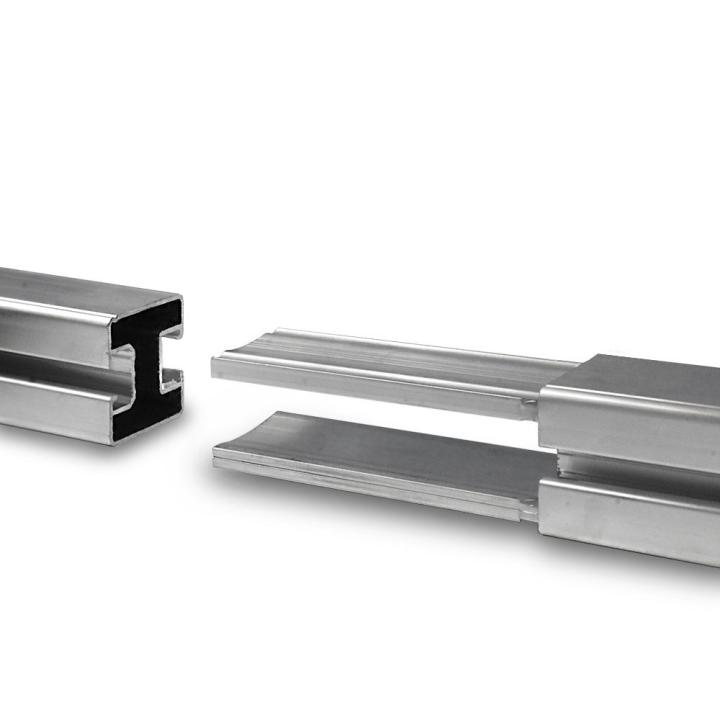

Rail connector - 2 fastening bars

These 2 bars are used to securely join 2 pieces of rail together without screws or tools! Simply insert the connecting bars into the two pieces of rail to be joined.

>> Find out more about the rail connector

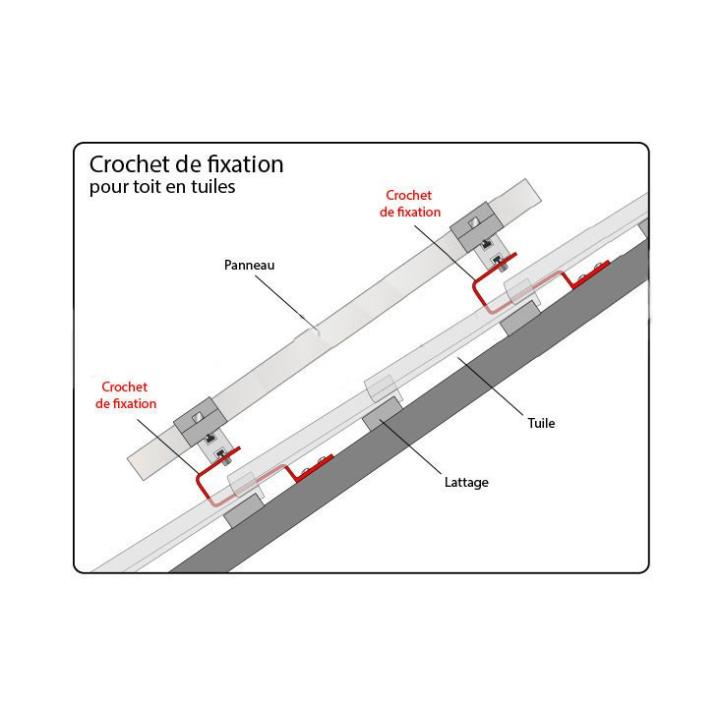

Crochet de fixation pour panneaux sur toit en tuile

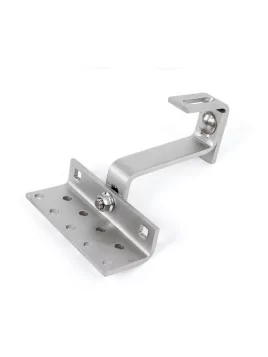

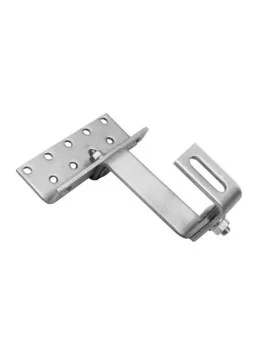

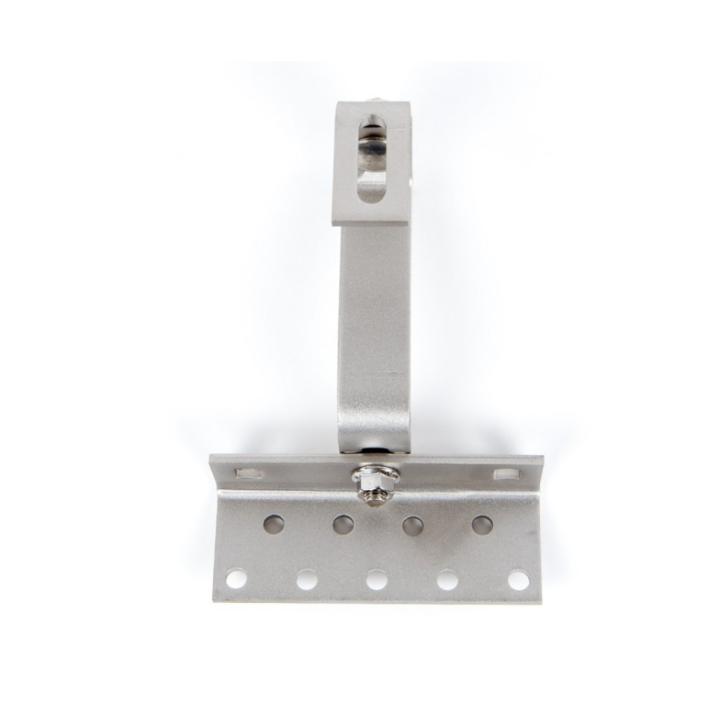

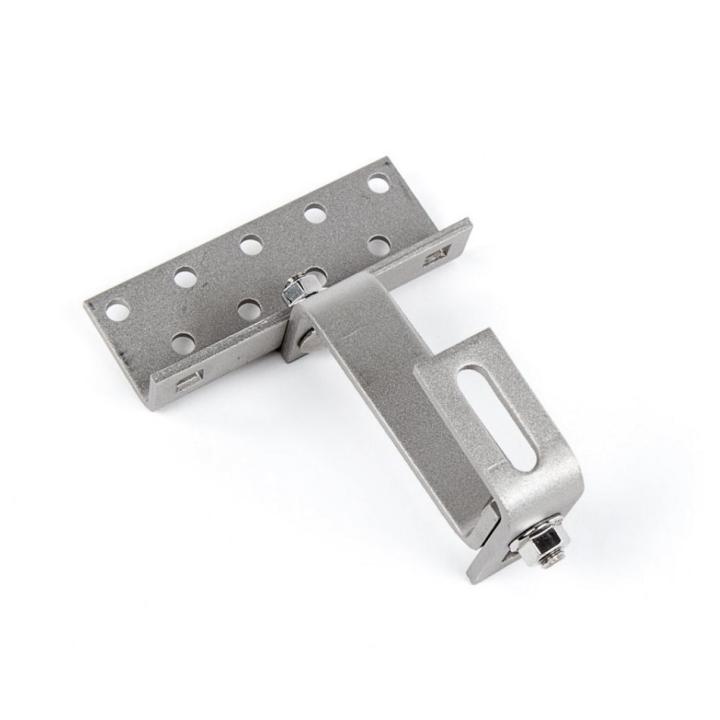

Double-adjustable fixing hook for tiled roofs

This hook is fastened to the roof to secure the aluminum rail that supports the solar panel.
The hook's double adjustment allows it to adapt to any lathing height, and can also recover any roof waves.

>> Find out more about the Double-adjustable hook for tiled roofs

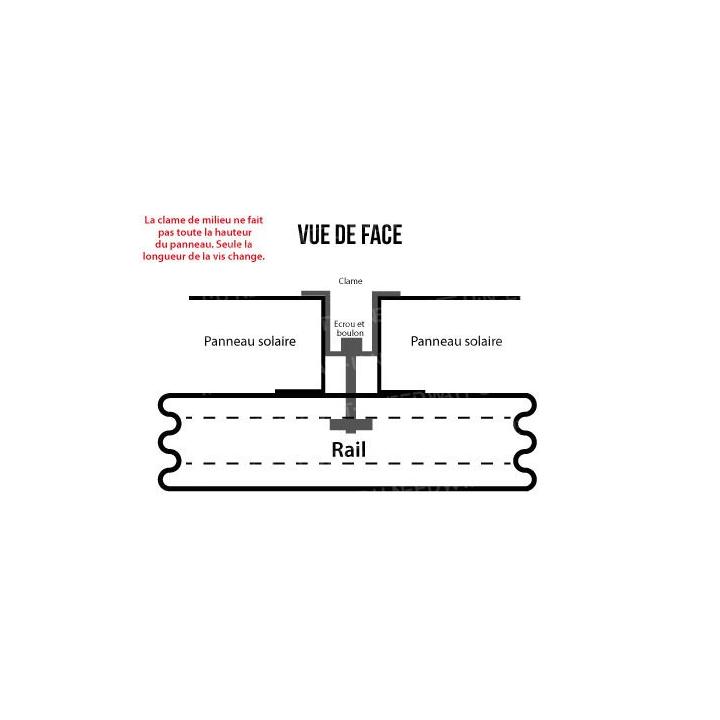

Clame de milieu pour panneaux sur toit en tuile

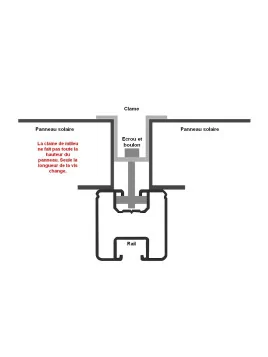

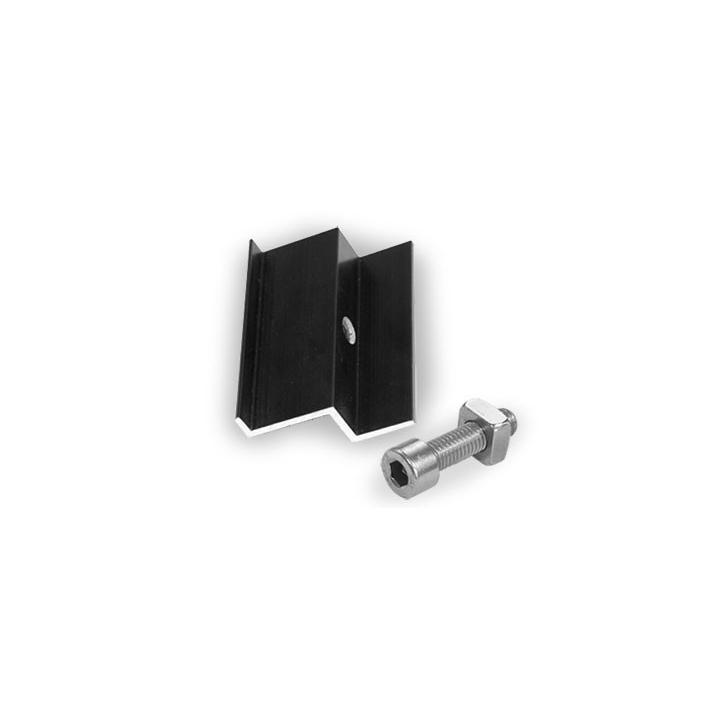

Clame de milieu - panel fastening

Clam for internal mounting of photovoltaic panels. Height adjustable to suit solar panel frame height: 35 - 50mm. Fixes to aluminum rail with stainless steel bolt and nut (supplied).

Option: Height to be chosen according to panel frame height.

>> Find out more about the middle clamp


Clame de fin pour panneaux sur toit en tuile

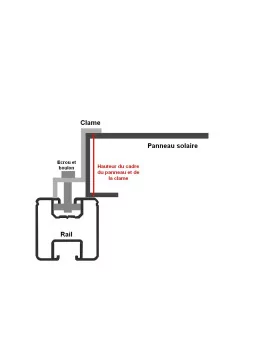

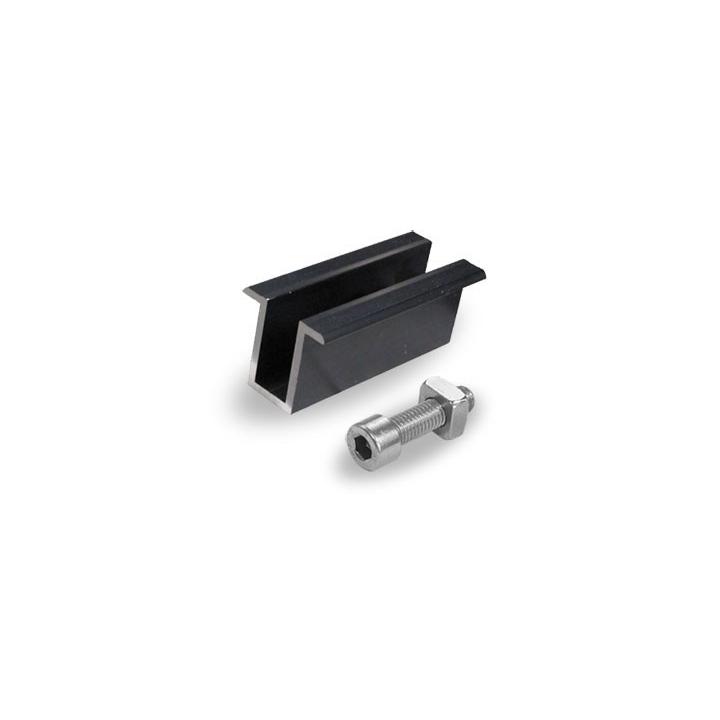

Clame de fin - panel fastening

Clame for external panel fixing. Available heights: 35mm - 40mm - 45mm - 47mm - 50mm. Fixes to aluminum rail with bolt and nut (supplied).

>> Find out more about the end clam


schéma montage de panneaux solairesHow do I choose the right kit for my panels?

The fixing kit is suitable for all tiled roofs. Thanks to its options, it can be adapted to the layout of your panels.

Fasteners are compatible with standard panel sizes.

1. Select number of panels in portrait or landscape

Select the number of panels per row in portrait or landscape format.

For example, the layout shown opposite requires 3x the Fixing Kit product:
> 1st kit for row 1: 3 portrait panels
> 2nd kit for row 2: 2 landscape panels
> 3rd kit for row 3: 2 landscape panels

2. Select the right clame for your panel

The clamp is used to secure the panel to the aluminum rail. Its height must correspond to the thickness of your panel's frame, so that it can be securely fastened to the rail.

Available panel heights: 35 - 40 - 45 - 47 - 50 mm


Installation diagram for solar panel mounting brackets

Schéma de montage sur toit tuiles

Details of materials supplied according to panel quantity

Portrait panels
Number of panelsRail (m
Rail detail*JunctionDouble-adjustable hookMiddle clampEnd clamp
panel
,4(2 x 1,20m)
panels
,8(2 x 2,40m)
panels
,2(2 x 2,40m and 2 x 1,20m)
panels
,6(4 x 2,40m)
10
panels12(4 x 2,40m and 2 x 1,20m)
12
panels14,4(6 x 2,40m)
1410
panels16,8(6 x 2,40m and 2 x 1,20m)
1612
panels19,2(8 x 2,40m)
1814
panels21,6(8 x 2,40m and 2 x 1,20m)
2016
10 panels24(10 x 2,40m)
2218
11 panels26,4(10 x 2,40m and 2 x 1,20m)102420
12 panels28,8(12 x 2,40m)102622
13 panels31,2(12 x 2,40m and 2 x 1,20m)123024
14 panels33,6(14 x 2,40m)123026
15 panels36(14 x 2,40m and 2 x 1.20m)143428
16 panels38.4(16 x 2.40m)143630
17 panels40.8(16 x 2.40m and 2 x 1.20m)163832
18 panels43,2(18 x 2.40m)164034
19 panels45.
(18 x 2.40m and 2 x 1.20m)184436
20 panels48(20 x 2.40 m)184638

Landscape panels
Number of panelsRail (m
Rail detail*JunctionDouble-adjustable hookMiddle clampEnd clamp
panel
,6(2 x 1,80m)
panels
,2(4 x 1,80m)
panels10,4(4 x 1,80m and 2 x 1,60m)
panels14(6 x 1,80m and 2 x 1.60m)
10
panels17.6(8 x 1.80m and 2 x 1.60m)
12
panels21.2(10 x 1.80m and 2 x 1.60m)101410
panels24,4(10 x 1.80m and 4 x 1.60m)121612
panels28(12 x 1.80m and 4 x 1.60m)141814
panels31,6(14 x 1.80m and 4 x 1,60m)162016
10 panels35,2(16 x 1,80m and 4 x 1,60m)182218
11 panels38,8(18 x 1,80m and 4 x 1,60m)202420
12panels42,4(20 x 1.80m and 4 x 1.60m)222622
13 panels46(22 x 1.80m and 4 x 1.60m)242824
14 panels49,6(24 x 1.80m and 4 x 1,
6
0m)263026
15 panels53,2(26 x 1,80m and 4 x 1,60m)283228
16 panels56,8(28 x 1,80m and 4 x 1,60m)303430
17 panels60,4(30 x 1,80m and 4 x 1.60m)323632
18 panels64(32 x 1.80m and 4 x 1.60m)343834
19 panels67.6(34 x 1.80m and 4 x 1.60m)364036
20 panels71.2(36 x 1.80m and 4 x 1.60m)384238

* Track details are given as an indication and depend on panel size (which causes track lengths to vary).
