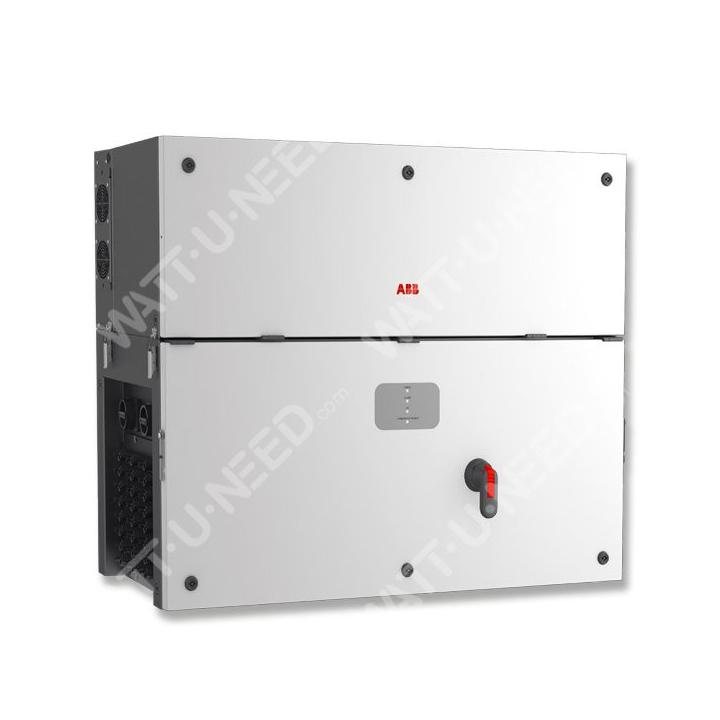

Three-phase UPS 100kVA ABB PVS 100TL
The PVS-100/120 inverter is the three-phase inverter connected to the Cloud that meets your needs for performance and flexibility both for your roof-top projects connected to 400V and for your PV power plant projects connected to the HTA grid.
Modular design
The high power output of the inverter enables you to reduce the total number of units, directly reducing your installation, logistics and maintenance costs. Thanks to its compact size and versatile mounting bracket, it can be easily installed either flat (e.g. behind a roof acroterion) or vertically against a wall. The inverter, together with its integrated protection cabinet, enables you to make significant savings on both the DC side (no other enclosure required) and the AC side (TGBT).
Design flexibility
The double-stage topology and six MPPTs guarantee flexible sizing and optimum performance, whatever the number and model of PV modules used, and whatever their soiling and shading conditions.
Highlights
- 6 independent MPPTs
- Double-stage topology
- High efficiency and IP66 protection
- Capacities :
- 100kW (400Vac)
- Integrated Ethernet / Wifi datalogger
- Fast commissioning and maintenance
- DC/AC enclosure with all protection features
- Vertical or horizontal installation
- Remote monitoring and updating via Aurora Vision®
- Modbus TCP/RTU communication Sunspec
Features
| Absolute maximum DC input voltage (Vmax,abs) | 1000V |
| Starting DC input voltage (Vstart) | 420V (400...500 V) |
| Operating DC input voltage range (Vdcmin...Vdcmax) | 360...1000 V |
| Nominal DC input voltage (Vdcr) | 620V |
| Nominal DC input power (Pdcr) | 102 000W |
| Number of independent MPPTs |
| DC voltage range (VMPPTmin. |
| VMPPTmax) at Pacr | 480. | 850V |
| Maximum input power for each MPPT (PMPPT,max) | 17500 W [480V≤VMPPT≤850V] |
| Maximum DC input current for each MPPT (Idcmax) | 36 A |
| Short-circuit currentcircuit (Iscmax) for each MPPT | 50 A 1) |
| Number of DC input pairs for each MPPT |
| DC connection type | Connectors 2) |
| Reverse polarity protection | Yes, |
| from a limited current source |
| Input overvoltage protection for each MPPT |
| Surge arresters | Type 2 with monitoring |
| Photovoltaic field insulation monitoring | According to IEC62109 |
| DC switch characteristics for each MPPT | 50 A / 1000 V |
| String current monitoring |
| : Monitoring of 24 SX input currents: |
| Monitoring the 6 MPPT currents |
| Type of AC grid connection | Three-phase 3P+PE or 3P+N+PE |
| Rated AC power (Pacr @cosφ=1) | 100,000 |
| W |
| Maximum AC output power (Pacmax @cosφ=1) | 100,000 W |
| Maximum AC output power (Pacmax @cosφ=1) | 100,000 VA |
| Nominal AC mains voltage (Vac,r) | 400 V |
| AC voltage range | 320...480 V 4) |
| Maximum AC output current (Iac,max) | 145 A |
| Nominal mains frequency (fr) | 50 Hz / 60 Hz |
| Mains frequency range (fmin...fmax) | 45...55 Hz / 55...65 Hz 5) |
| Nominal power factor and setting range | > 0.995, 0...1 inductive/capacitive with max. |
| Smax |
| Total harmonic distortion | < |
| 3% |
| Maximum permissible cross-section | 185mm2 Cu or Alu |
| Type of AC connection |
| on Alu/Cu pad, |
| 4x PE M40 + 1x PE M25 for single-core cable (or optionally 1x PE M63 for multi-core cable) |
| Anti-islanding protectionislanding |
| According to local standards |
| Maximum external AC protection rating | 225 A |
| Overvoltage protection - replaceable PF modules | Type 2 with monitoring |
| Maximum efficiency (ηmax) | 98.4% |
| Weighted efficiency (EURO) | 98.2% |
| Integrated communication interface |
| RS485, 2x Ethernet (RJ45), WLAN (IEEE802.11 b/g/n @ 2.4 Ghz) |
| User interface |
| LEDs, User web interface |
| Communication protocols | Modbus RTU/TCP (Sunspec) |
| Monitoring | Web interface, |
| Mobile application |
| Remote monitoring services | Access to Aurora Vision monitoring portal |
| Advanced features | Integrated datalogger, Data transfer to ABB cloud |
| Ambient temperature range |
| ...+60°C power reduction > 40°C |
| Relative humidity | 4% |
| 100% condensation |
| Noise emission level | 68dB(A) @ 1m |
| Maximum operating altitude | 2000 m |
| rating |
| environmental protection | IP66 (fan unit IP54) |
| Weight | 70kg power module ; |
| ~55kg DC/AC cabinet |
| Mounting brackets | For "wall" or "floor" mounting |
| Insulation level | Transformerless |
| EMC and safety standards | IEC/EN 62109-1, |
| IEC/EN 62109-2 |
| Network standards (check with your sales channel for availability) | DIN VDE 0126-1-1A1 VFR2014, IEC 0-16, IEC 61727, IEC 62116, IEC 60068, |
| IEC 61683 |
| Available variants (Module/Case) |
| Power module | PVS-100-TL-POWERMODULE-400 |
| 24 DC inputs fused on both polarities + DC inter-sec + monitoring of 24 DC inputs + AC inter-sec + DC and AC surge arresters Type 2 |
| SX2-PVS-100/120-TL |
| 24 DC inputs fused on one pole + DC inter-sec + monitoring of 6 MPPT + DC and AC surge arresters Type 2 |
| Multipole AC cable plate 1x PE M63 + 1x PE M25 | MULTICORE AC PLATE |
