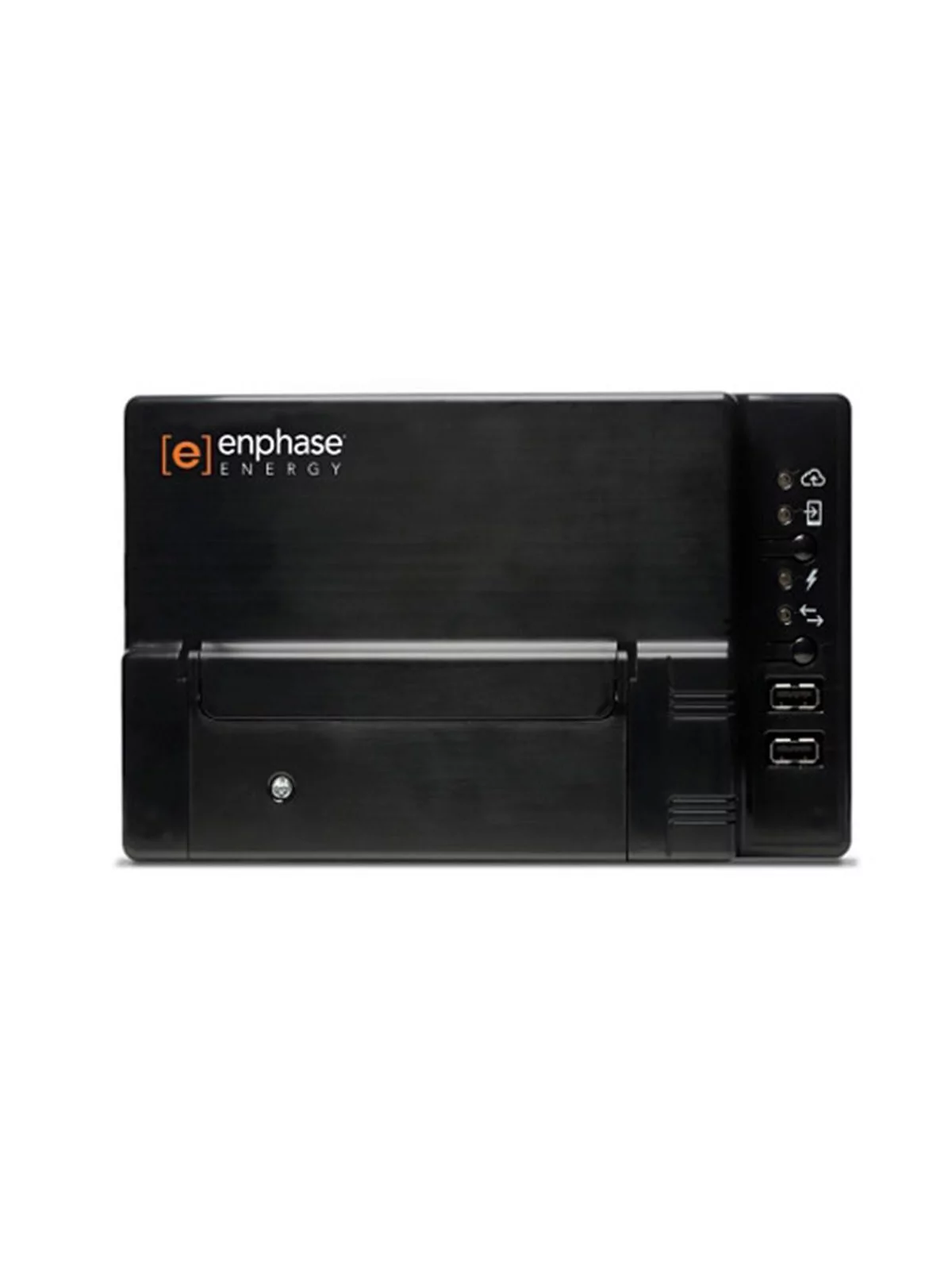

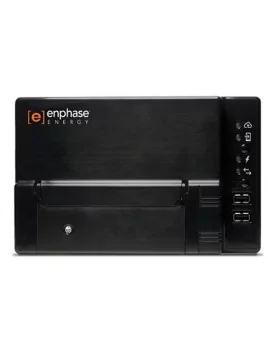

The Enphase Envoy-S Metered™ communication gateway transmits photovoltaic production and energy consumption data to Enlighten™, Enphase's monitoring and analysis software for fully remote maintenance and management of an Enphase system.
With production and consumption measurement options, the Envoy-S is an intelligent platform for comprehensive energy management and works in conjunction with the Enphase™ AC battery.
Intelligence
- Offers web-based control and monitoring
- Two-way communications for remote upgrading
Simplicity
- Simple system configuration with the Installer Toolkit mobile app
- Flexible network connection: Wi-Fi, Ethernet or cellular
Reliability
- Designed for indoor or outdoor installation, in an enclosure
- 5-year warranty
Features
| ENV-S-WM-230 (three-phase) | Enphase Envoy-S communication gateway offering integrated measurement of photovoltaic production and energy consumption |
C
| ONFIGURATION REQUIRED FOR POWER SUPPLY |
| Wired | 230 V AC or 400Y/230 V AC, 50 Hz
Max. 20 A overcurrent protection. |
| required |
| Number of devices detected | Up to 600 microinverters |
| Dimensions (W x H x D) | 213 x 126 x 45 mm |
| Ambient temperature range |
| 40 °C to 65 °C |
| 40 °C to 46 °C if installed in an enclosure |
| Environmental classification | IP30 for indoor installation or in an IP54 (or higher) enclosure |
A
| USB ports | Two USB 2.0 ports, auto-detect, auto-negotiate |
| INTERNET CONNECTION OPTIONS |
| Integrated Wi-Fi | 802.11b/g/n (2.4 GHz, 5 GHz) |
3
| , Ethernet Cat5E (or Cat 6) UTP cable (not included) |
| Mobile | Optional, CELLMODEM-02 (not included) |
| Conformity | IEC/EN 61010-1:2010, EN50065-1, EN61000-4-5, EN61000-6-1, EN61000-6-2 |
