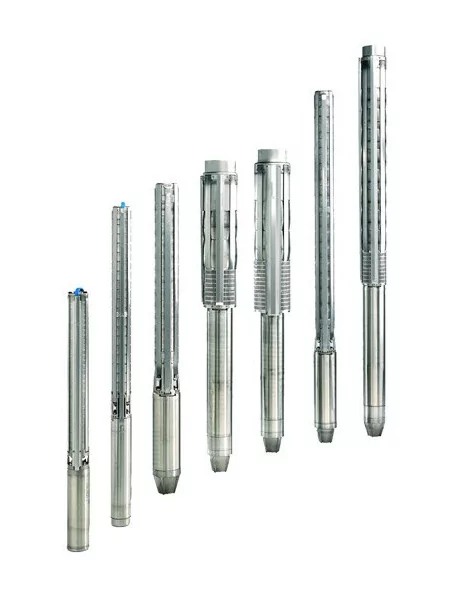

    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A
    Immersed pump Grundfos SP 5A

    Immersed pump Grundfos SP 5A

    €1,240.07
    Tax included
    10015
    0712971135840

    Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range.

    The SP 5A pumps are recommended for a 60% efficiency at a height between 15m and 100m for a flow rate between 4m³/h and 5,6m³/h.

    Logo Grundfos

    Pump model SP: 3x 230V SP 5A-4

    Immersed pump Grundfos SP 5A

    €1,240.07

    Grundfos SP

    " Reliable and robust, a pump for multiple applications "



    Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.

    Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

    The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.



    The pumps are suitable for



    • Groundwater supply to waterworks

    • Irrigation in horticulture and agriculture

    • Groundwater lowering

    • Pressure boosting

    • Industrial applications.

    Features and benefits



    • State-of-the-art hydraulics provide high efficiency and low operating costs

    • 100 % stainless steel inside and outside

    • Sand resistant

    • Resistant to aggressive water

    • Motor burnout protection

    • Dry-running protection

    • Monitoring, protection and communication via the MP 204 protection unit and the R100 remote control.

    In short



    • High efficiency

    • Corrosion-resistant

    • Complete range of pumps and motors SP System


    Pump SP 5ASP 5A-4SP 5A-6SP 5A-8SP 5A-12SP 5A-17SP 5A-21
    Liquid temperature+40 °C max
    Protection classIP 68
    MEI≥ 0,56
    MaterialStainless steel AISI 304
    Stages5
    Voltage3x 230V or 3x 400V
    Pump diameter4"
    ConnectionRp 1 1/2
    Power (kW)0,370,550,751,11,52,2
    In (A) 3x 400V1,42,22,33,44,25,5
    Cable (m)1,7

    Recommended Height and FlowSP 5A-4SP 5A-6SP 5A-8SP 5A-12SP 5A-17SP 5A-21
    Height max (m)2030405580100
    Height min (m)152025355070
    Min flow (at the max. height recommended)4,0 m³/h
    Max flow (at recommended height min)5,6 m³/h
    Yield60%
