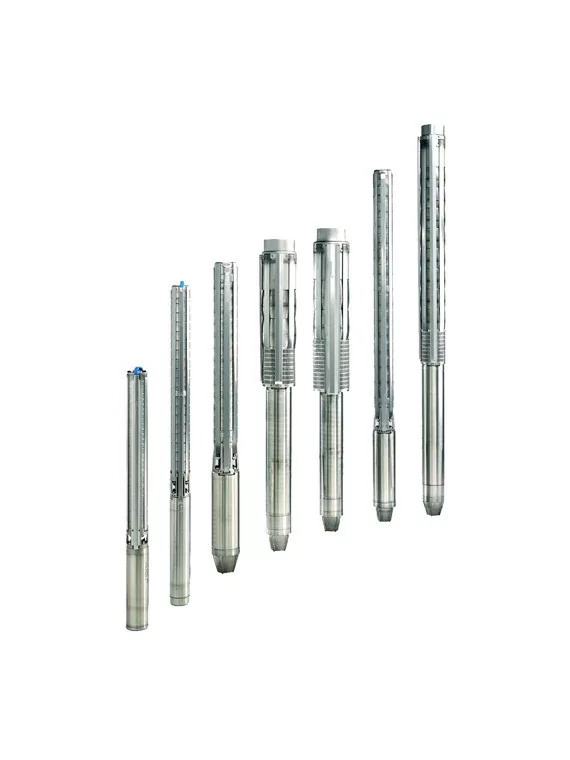

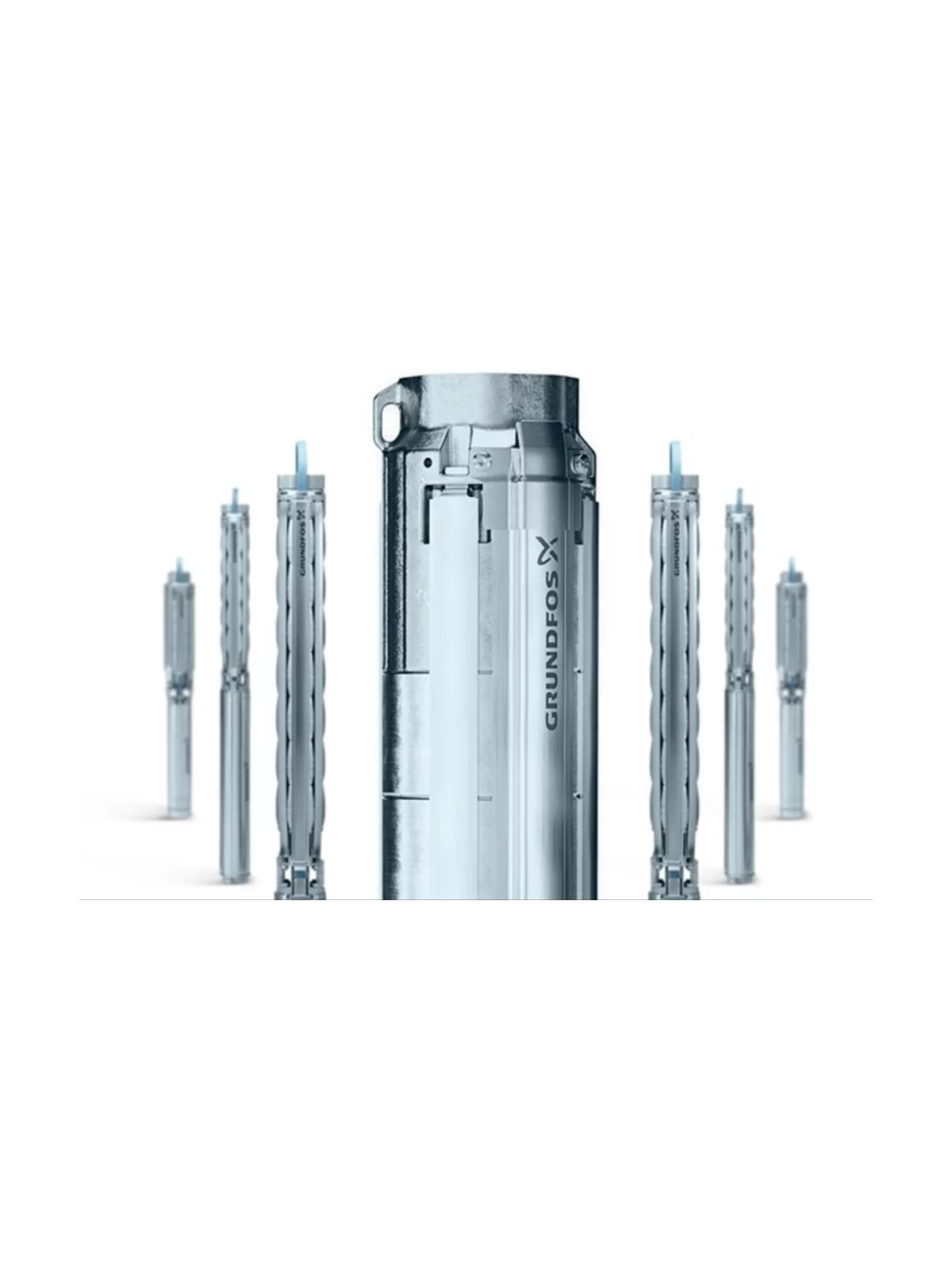

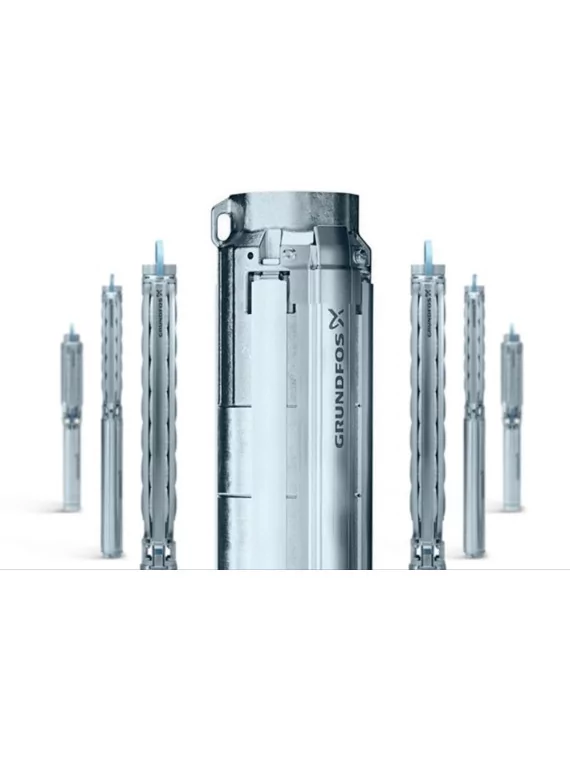

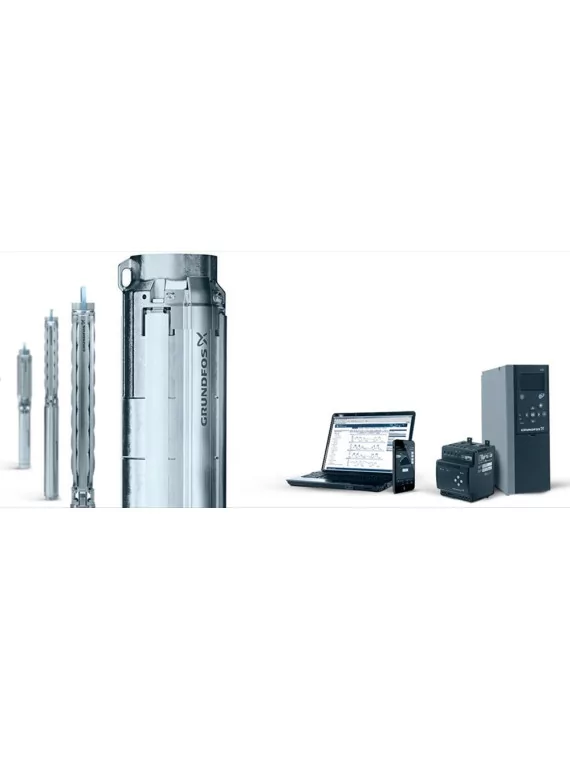

Immersed pump Grundfos SP 14
€1,586.54
Tax included
10019
0712971135888
Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range.
The SP 11 pumps are recommended for a 70% efficiency at a height between 13m and 107m for a flow rate between 12m³ / h and 16m³ / h.
" Reliable and robust, a pump for multiple applications "
Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.

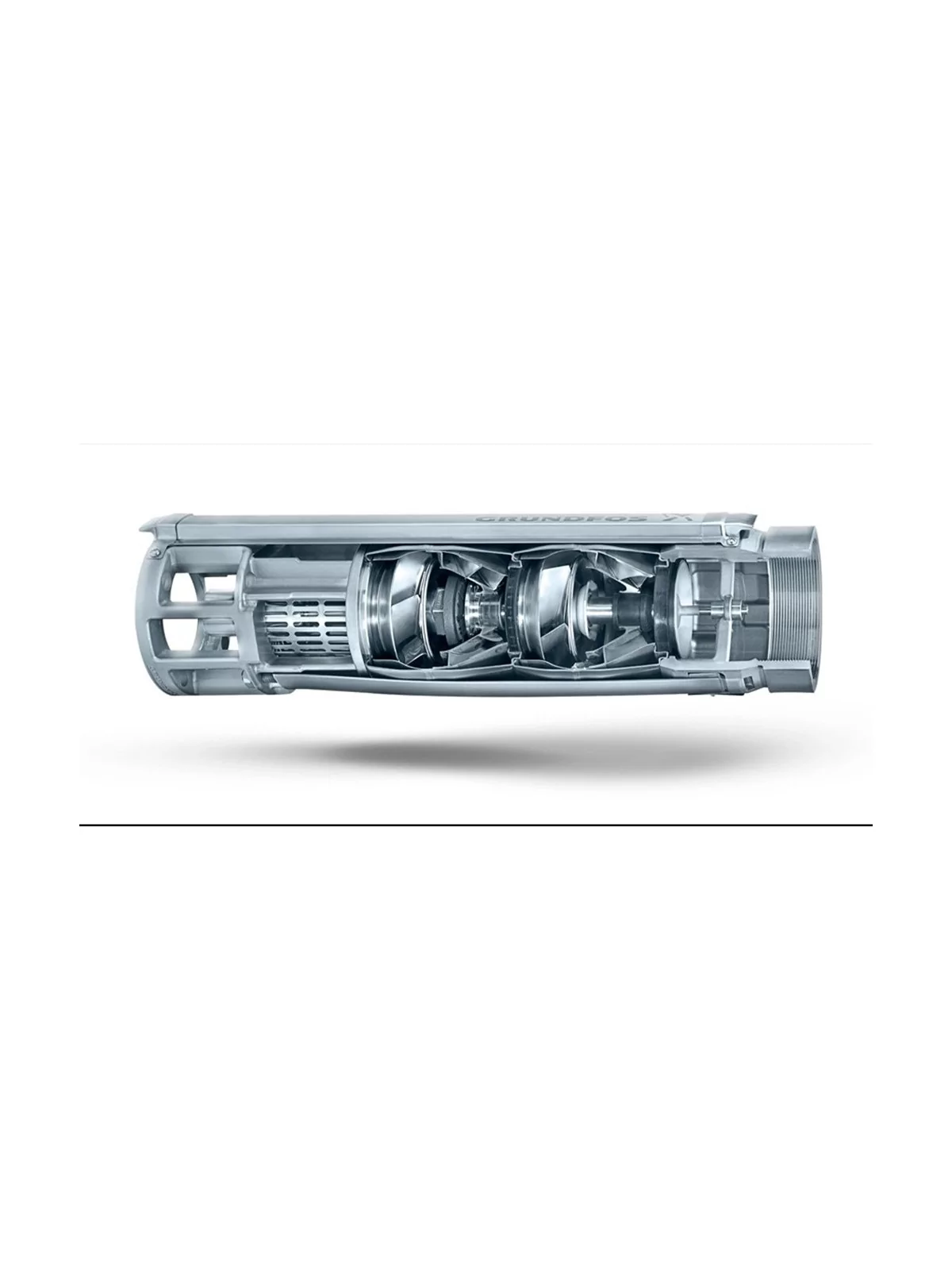

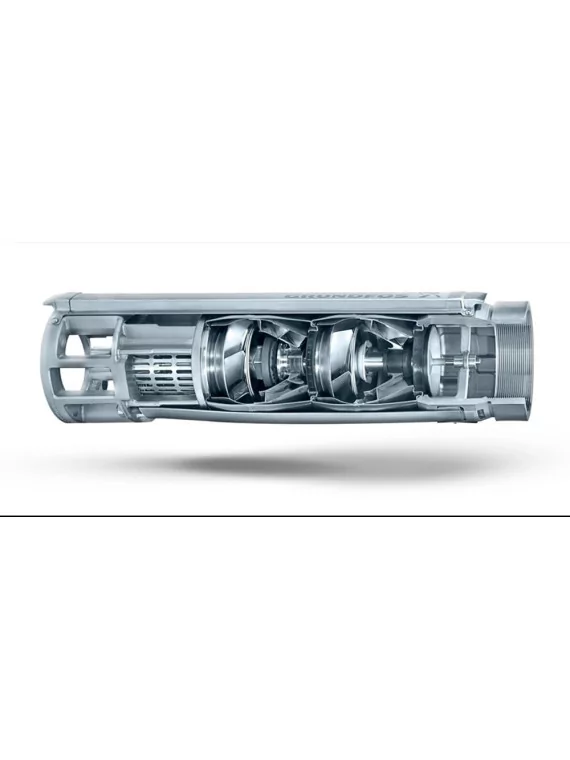

Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.
The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.
The pumps are suitable for
- Groundwater supply to waterworks
- Irrigation in horticulture and agriculture
- Groundwater lowering
- Pressure boosting
- Industrial applications.
Features and benefits
- State-of-the-art hydraulics provide high efficiency and low operating costs
- 100 % stainless steel inside and outside
- Sand resistant
- Resistant to aggressive water
- Motor burnout protection
- Dry-running protection
- Monitoring, protection and communication via the MP 204 protection unit and the R100 remote control.
In short
- High efficiency
- Corrosion-resistant

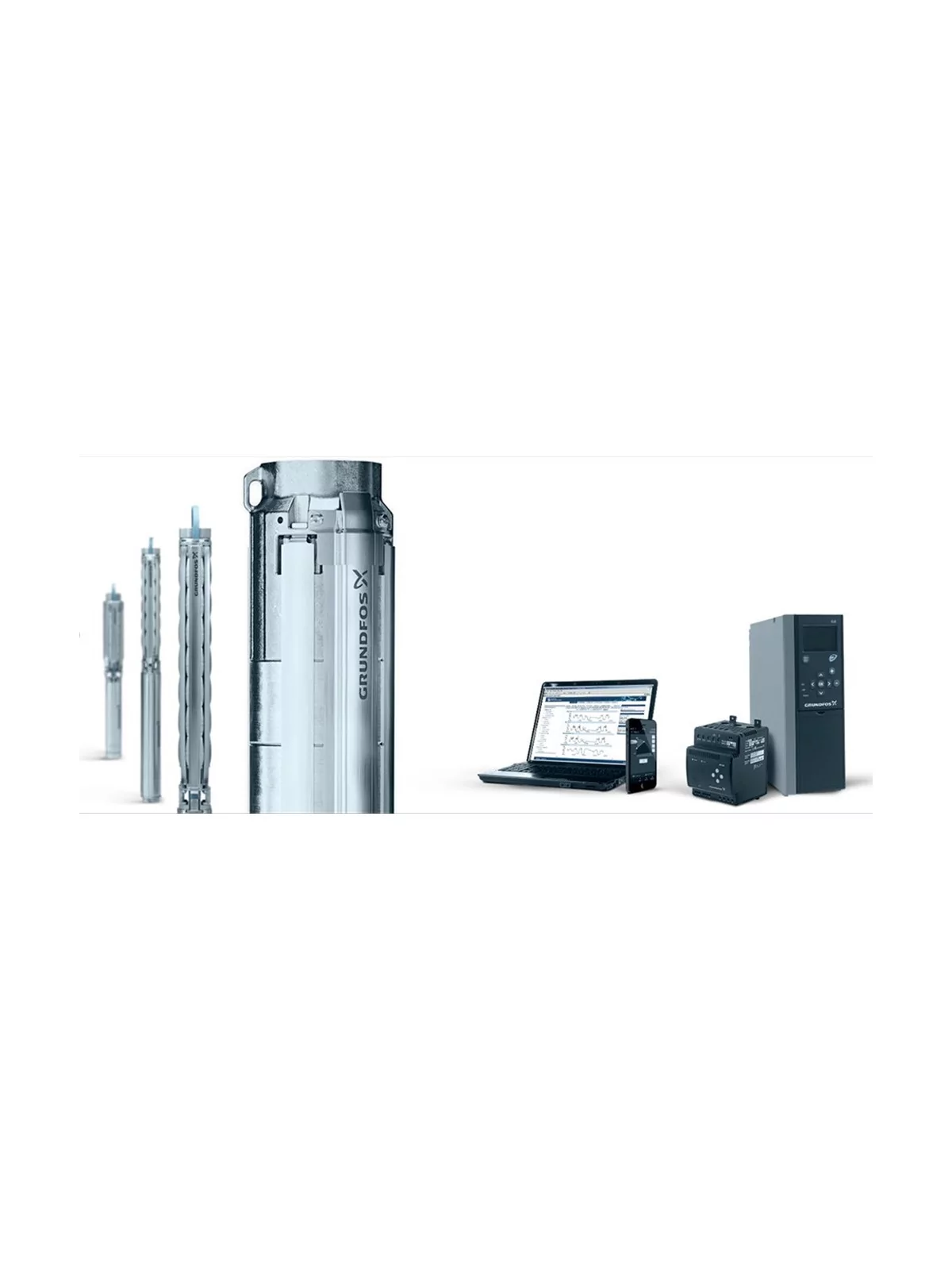

- Complete range of pumps and motors SP System
| Pump SP 14 | SP 14-4 | SP 14-6 | SP 14-8 | SP 14-11 | SP 14-13 | SP 14-15 | SP 14-17 | SP 14-20 | SP 14-23 |
| Liquid temperature | +40 °C max | ||||||||
| Protection class | IP 68 | ||||||||
| MEI | ≥ 0,44 | ||||||||
| Material | Stainless steel AISI 304 | ||||||||
| Stages | 14 | ||||||||
| Voltage | 3x 230V or 3x 400V | ||||||||
| Pump diameter | 4" | ||||||||
| Connection | Rp 2 | ||||||||
| Power (kW) | 1,1 | 1,5 | 2,2 | 3 | 3 | 4 | 4 | 5,5 | 5,5 |
| In (A) 3x 400V | 3,4 | 4,2 | 5,5 | 7,9 | 7,9 | 9,6 | 9,6 | 13,6 | 13,6 |
| Cable (m) | 1,7 | 2,5 | |||||||
| Recommended Height and Flow | SP 14-4 | SP 14-6 | SP 14-8 | SP 14-11 | SP 14-13 | SP 14-15 | SP 14-17 | SP 14-20 | SP 14-23 |
| Height max (m) | 20 | 27 | 33 | 53 | 60 | 70 | 77 | 95 | 107 |
| Height min (m) | 13 | 22 | 28 | 40 | 40 | 55 | 63 | 75 | 85 |
| Min flow (at the max. height recommended) | 12 m³/h | ||||||||
| Max flow (at recommended height min) | 16 m³/h | ||||||||
| Yield | 70% | ||||||||
