    Immersed pump Grundfos SP 30

    €1,769.75
    Tax included
    10021
    0712971135901

    Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range.

    The SP 30 pumps are recommended for a 75% return at a height between 5 m and 275 m for a flow between 24 m³/h and 32 m³/h.

    Logo Grundfos

    Pump model SP: 3x 230V SP 30-1

    Immersed pump Grundfos SP 30

    €1,769.75

    Grundfos SP

    Reliable and resistant, a pump for multiple applications



    Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range. Manufactured entirely in stainless steel, corrosion-resistant, the SP pumps are ideal for a multitude of applications.

    SP Grundfos pumps represent what it does best in hydraulics. Designed to provide optimal performance during periods of high demand, the SP pumps offer low long-term costs and a high operating reliability regardless of the application.

    The range SP Grundfos is characterized by a high-performanceone high level of resistance to the sand and abrasivesone protection against the breakdown of the engine and a easy maintenance. A comprehensive system of monitoring and control is available for a constant optimization of the pumping system.

    The SP pumps are suitable for the following applications



    • Groundwater of the network of water supply

    • Irrigation in horticulture and agriculture

    • Water table drawdown

    • Overpressure

    • Industrial applications

    Features and benefits



    • Hydraulics at the forefront of technology, for high performance and low operating costs

    • Interior and exterior 100% stainless steel

    • Resistance to the sand

    • Resistance to corrosive water

    • Protection against the breakdown of the engine

    • Protection against dry running

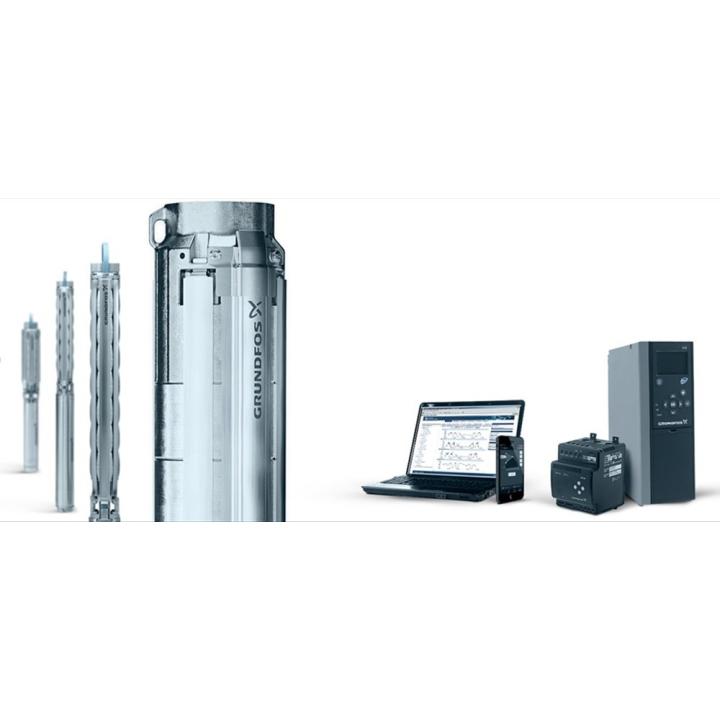

    • Monitoring, protection and communication via the MP 204 protection unit and the R100 remote controller

    In brief



    • High-performance

    • Corrosion resistance

    • Full range of pumps and motors
    Pump SP 30ASP 30-1SP 30-2SP 30-3SP 30-4SP 30-5SP 30-6SP 30-7SP 30-8SP 30-9SP 30-10SP 30-11SP 30-12SP 30-13SP 30-14SP 30-15SP 30-16
    Temperature liquid+ 40 ° C max
    Index of protectionIP 68
    MEI≥ 0.5
    MaterialsStainless Steel AISI 304
    Floors30
    Voltage3 x 230V or 3 x 400V
    Diameter pump6 "
    Motor diameter4 "6 "
    ConnectionPR 3
    Power (kW)1.12.2345.55.57.57.59.29.29.21111131315
    In (A) 3x230V6.21014.617.624.224.2323239.539.539.5454554.554.562
    In (A) 3 x 400V3.45.57.99.613.613.617.617.621.821.821.824.824.8303034
    Cable (m)1.72.55
    Pump SP 30ASP 30-17SP 30-18SP 30-19SP 30-20SP 30-21SP 30-22SP 30-23SP 30-24SP 30-25SP 30-26SP 30-27SP 30-28SP 30-29SP 30-30SP 30-31
    Temperature liquid+ 40 ° C max
    Index of protectionIP 68
    MEI≥ 0.5
    MaterialsStainless Steel AISI 304
    Floors30
    Voltage3 x 230V or 3 x 400V
    Diameter pump6 "
    Motor diameter6 "
    ConnectionPR 3
    Power (kW)1518.518.518.518.522222222222626262626
    In (A) 3x230V6276.576.576.576.587.587.587.587.587.5100100100100100
    In (A) 3 x 400V344242424248484848485757575757
    Cable (m)5
    Height and flow adviceHeight (m)Height min (m)Flow min. height recommendedMax for height min. recommended flowPerformance
    SP 30-17524 m³/h32 m³/h75%
    SP 30-21714
    SP 30-32520
    SP 30-33527
    SP 30-54435
    SP 30-65342
    SP 30-76250
    SP 30-87055
    SP 30-98063
    SP 30-109070
    SP 30-119575
    SP 30-1210585
    SP 30-1311590
    SP 30-1412398
    SP 30-15132105
    SP 30-16140110
    SP 30-17150115
    SP 30-18160125
    SP 30-19170130
    SP 30-20175140
    SP 30-21180147
    SP 30-22195160
    SP 30-23205165
    SP 30-24213170
    SP 30-25220175
    SP 30-26225180
    SP 30-27240190
    SP 30-28250200
    SP 30-29255205
    SP 30-30260210
    SP 30-31275215

    Grundfos SP

    Grundfos SP

    10021
    1000 Items

    Specific References

    UPC
    712971135901
    EAN13
    0712971135901
    New
