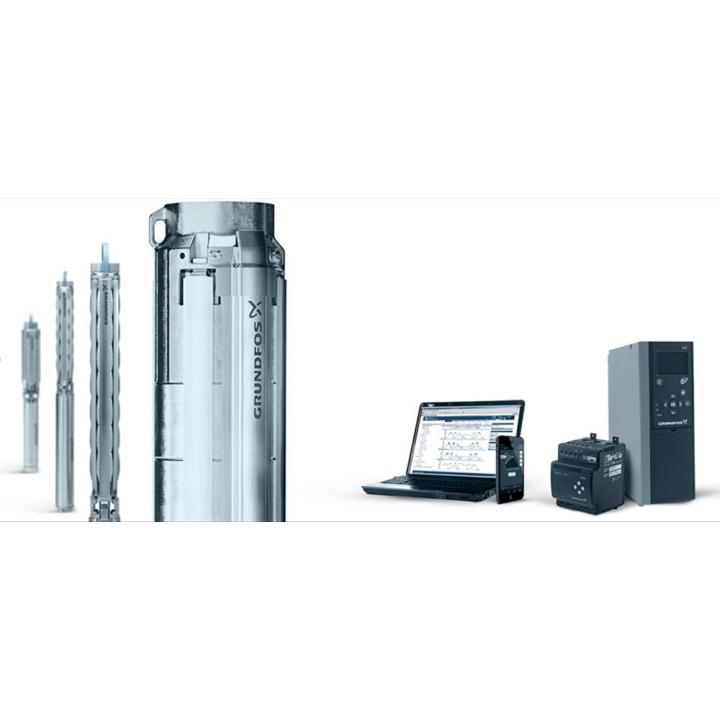

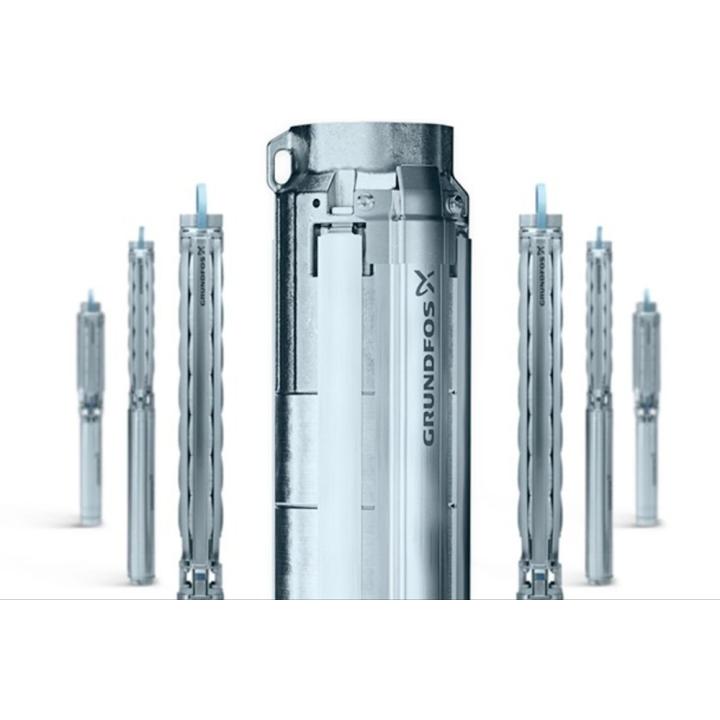

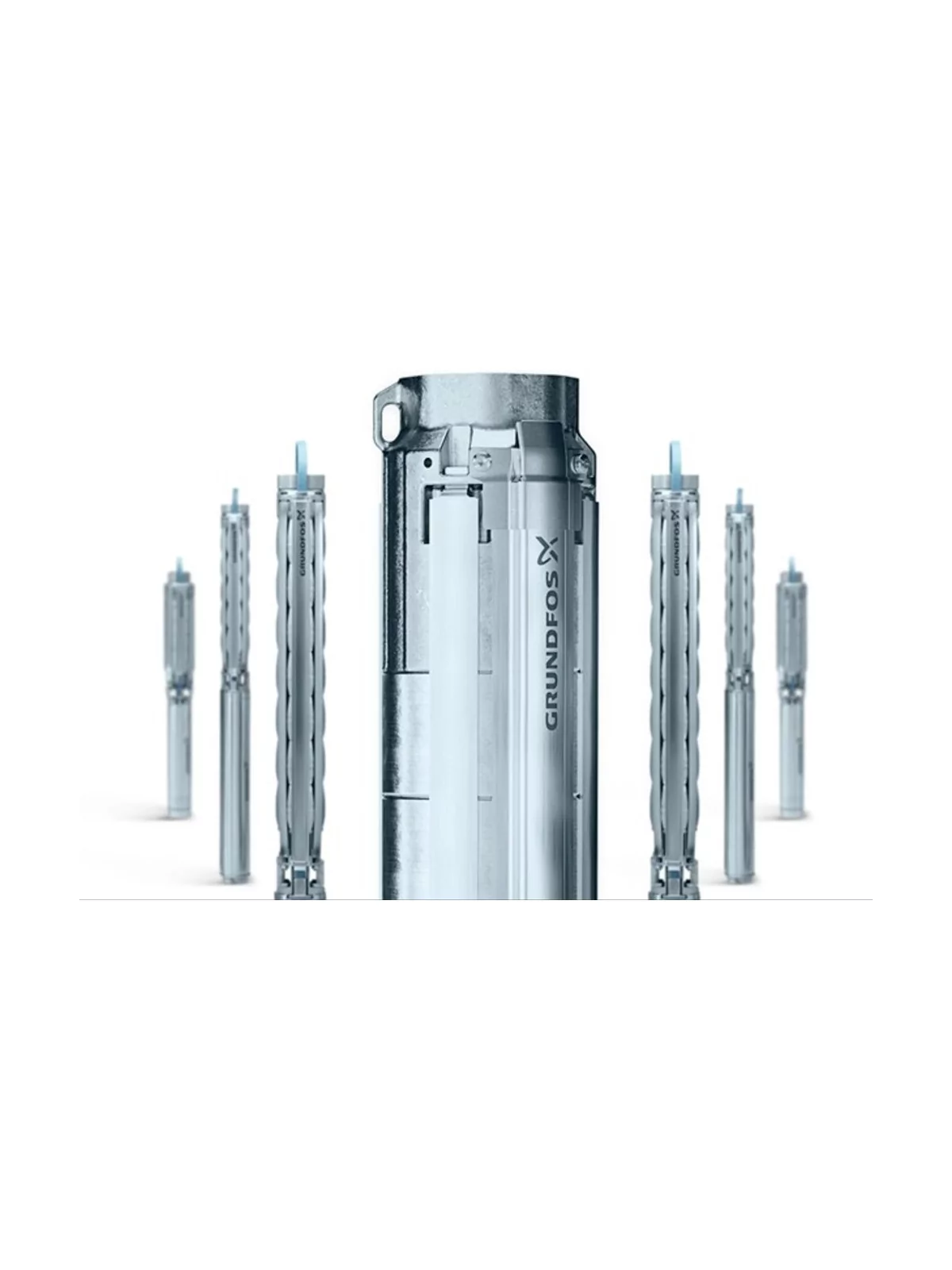

Immersed pump Grundfos SP 46
€2,511.29
Tax included
10022
0712971135918

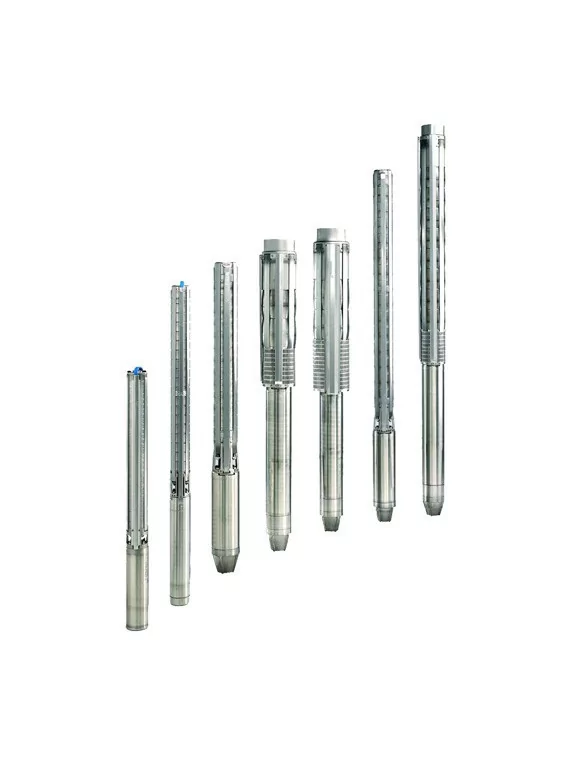

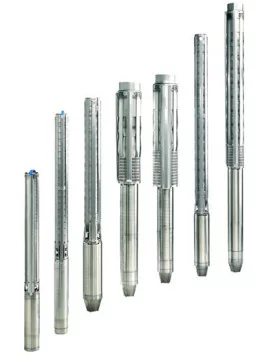

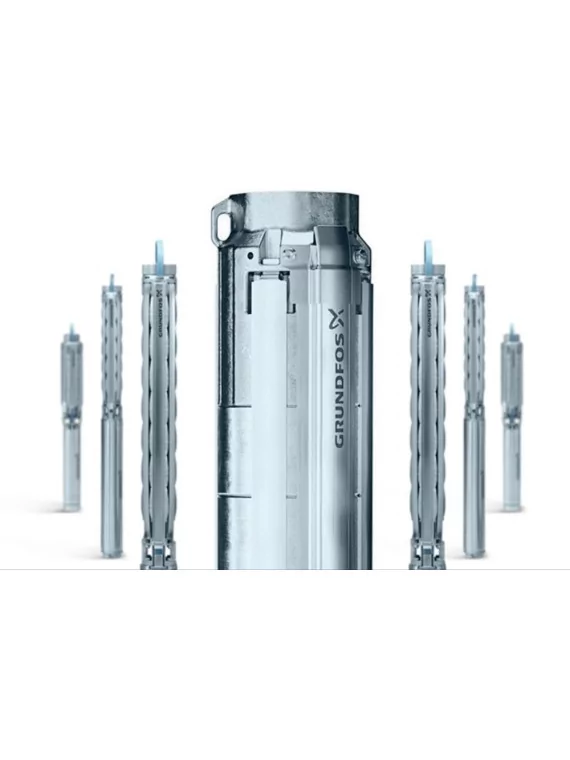

Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range.
SP 46 pumps are recommended for a 75% return at a height between 5 m and 145 m for a flow between 40 m³/h and 50 m³/h.
-petit%20logo.png){kind=logo}
Reliable and resistant, a pump for multiple applications

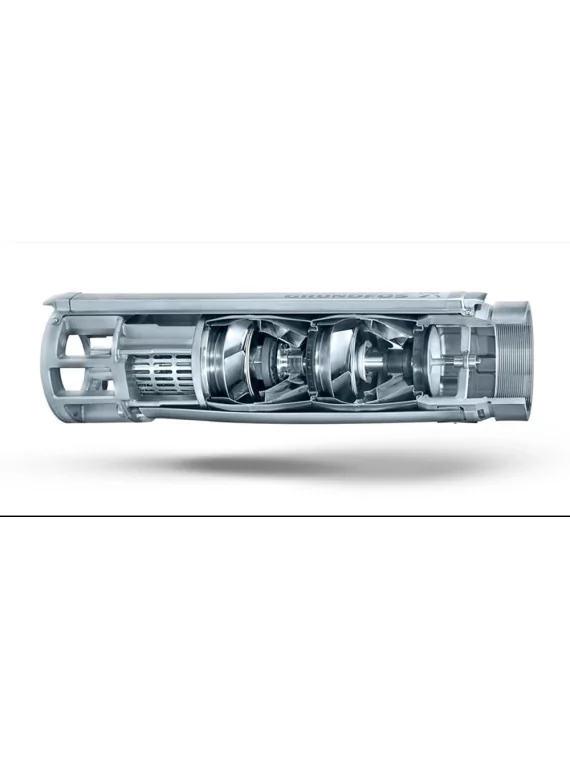

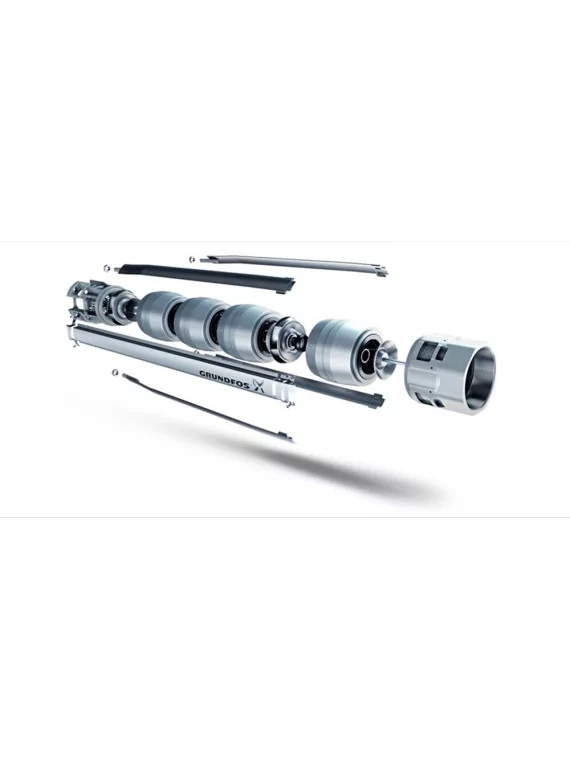

Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range. Manufactured entirely in stainless steel, corrosion-resistant, the SP pumps are ideal for a multitude of applications.
SP Grundfos pumps represent what it does best in hydraulics. Designed to provide optimal performance during periods of high demand, the SP pumps offer low long-term costs and a high operating reliability regardless of the application.
The range SP Grundfos is characterized by a high-performanceone high level of resistance to the sand and abrasivesone protection against the breakdown of the engine and a easy maintenance. A comprehensive system of monitoring and control is available for a constant optimization of the pumping system.
The SP pumps are suitable for the following applications
- Groundwater of the network of water supply
- Irrigation in horticulture and agriculture
- Water table drawdown
- Overpressure
- Industrial applications
Features and benefits
- Hydraulics at the forefront of technology, for high performance and low operating costs
- Interior and exterior 100% stainless steel
- Resistance to the sand
- Resistance to corrosive water
- Protection against the breakdown of the engine
- Protection against dry running

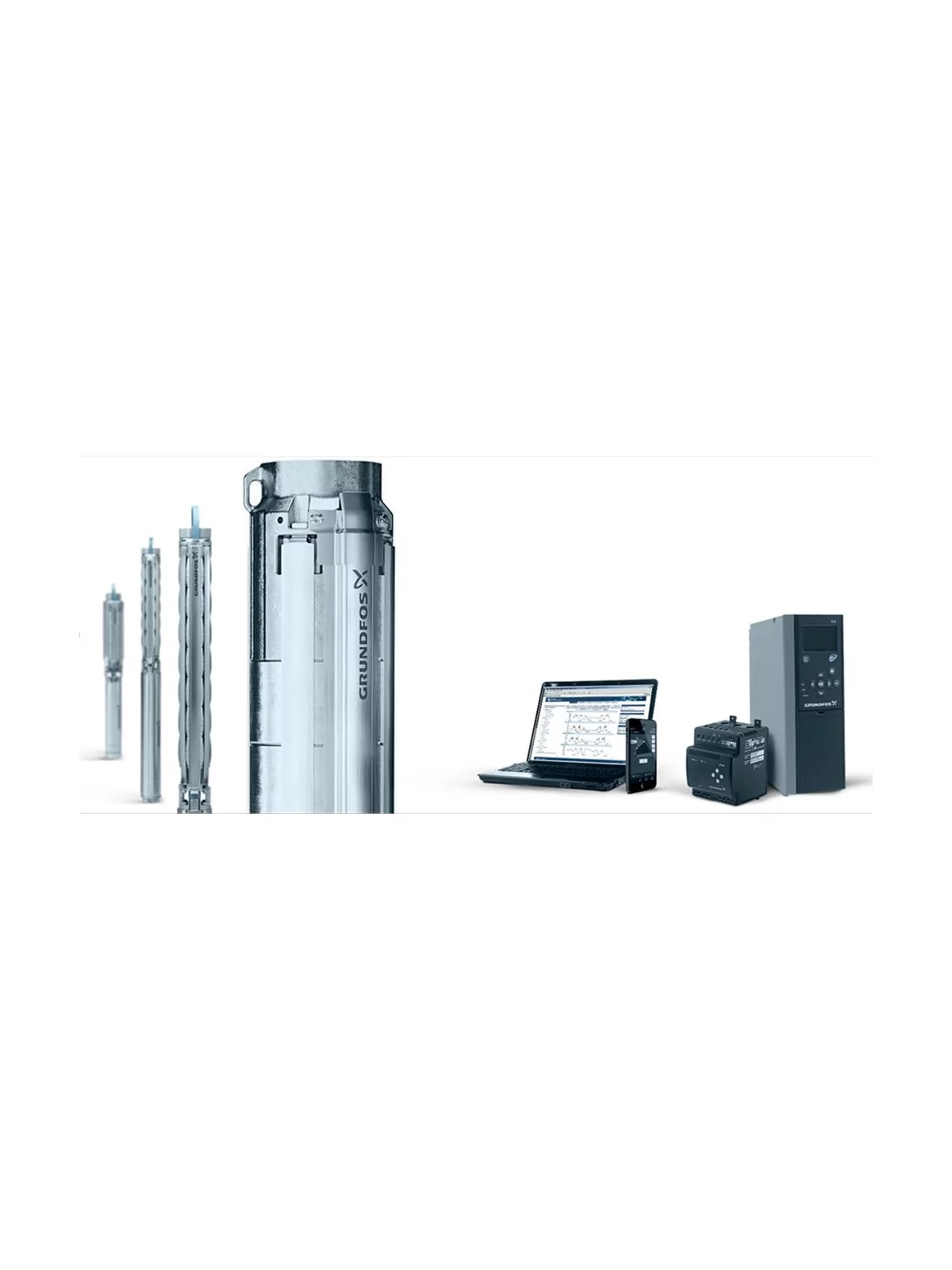

- Monitoring, protection and communication via the MP 204 protection unit and the R100 remote controller
In brief
- High-performance
- Corrosion resistance

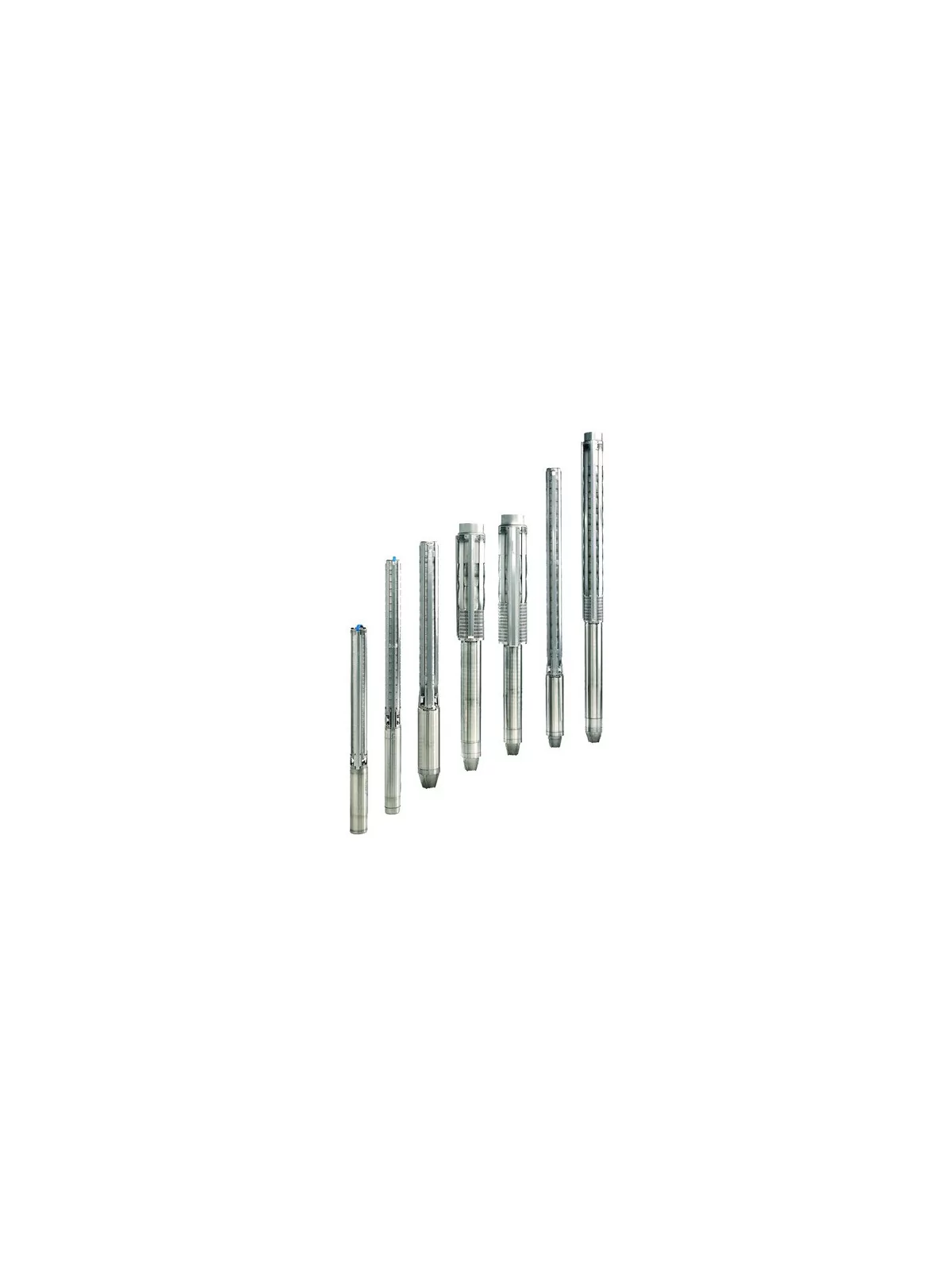

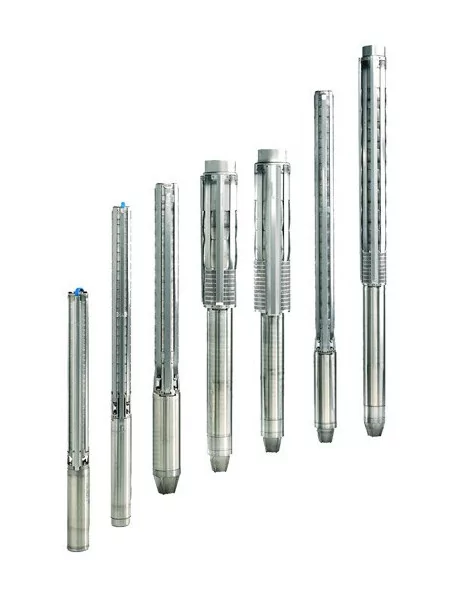

- Full range of pumps and motors
| Pump Ms 46A | SP 46-1 | SP 46-2 | SP 46-3 | SP 46-4 | SP 46-5 | SP 46-6 | SP 46-7 | SP 46-8 | SP 46-9 | SP 46-10 | SP-46-11 | SP 46-12 | SP 46-13 | SP 46-14 | SP 46-15 |
| Temperature liquid | + 40 ° C max | ||||||||||||||
| Index of protection | IP 68 | ||||||||||||||
| MEI | ≥ 0.5 | ||||||||||||||
| Materials | Stainless Steel AISI 304 | ||||||||||||||
| Floors | 46 | ||||||||||||||
| Voltage | 3 x 230V or 3 x 400V | ||||||||||||||
| Diameter pump | 6 " | ||||||||||||||
| Motor diameter | 4 " | 6 " | |||||||||||||
| Connection | PR 3 | ||||||||||||||
| Power (kW) | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 9.2 | 11 | 13 | 15 | 15 | 18.5 | 18.5 | 22 | 22 | 22 |
| In (A) 3x230V | 10 | 14.6 | 24.2 | 32 | 32 | 39.5 | 45 | 54.5 | 62 | 62 | 76.5 | 76.5 | 87.5 | 87.5 | 87.5 |
| In (A) 3 x 400V | 3.4 | 5.5 | 7.9 | 9.6 | 13.6 | 13.6 | 17.6 | 17.6 | 21.8 | 21.8 | 21.8 | 24.8 | 24.8 | 30 | 30 |
| Cable (m) | 1.7 | 2.5 | 5 | ||||||||||||

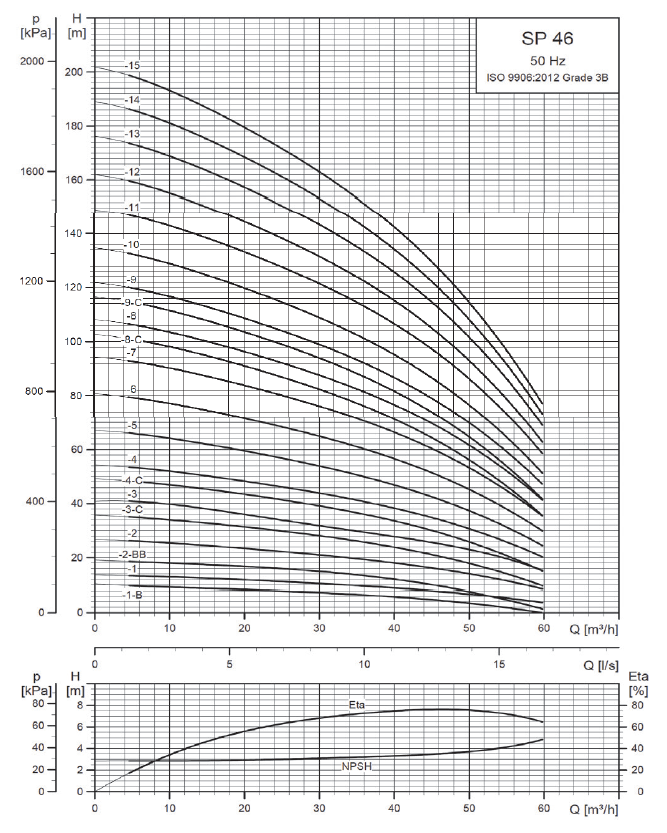

| Height and flow advice | Height (m) | Height min (m) | Flow min. height recommended | Max for height min. recommended flow | Performance |
| SP 46-1 | 10 | 5 | 40 m³/h | 50 m³/h | 75% |
| SP 46-2 | 17 | 10 | |||
| SP 46-3 | 27 | 23 | |||
| SP 46-4 | 37 | 30 | |||
| SP 46-5 | 45 | 35 | |||
| SP 46-6 | 55 | 47 | |||
| SP 46-7 | 65 | 53 | |||
| SP 46-8 | 75 | 62 | |||
| SP 46-9 | 87 | 70 | |||
| SP 46-10 | 93 | 75 | |||
| SP-46-11 | 110 | 85 | |||
| SP 46-12 | 115 | 90 | |||
| SP 46-13 | 127 | 100 | |||
| SP 46-14 | 130 | 110 | |||
| SP 46-15 | 145 | 115 |
