19'' 32U rack cabinet for pylontech black door and tempered glass

€1,230.50
Tax included
rack-19-32U-WL204
0768563820830

Storage cabinet for up to :

  • 6 Pylontech US2000 batteries
  • 7
  • Pylontech US3000 batteries
  • 6
  • Pylontech US5000 batteries

19'' 32U rack cabinet for...

€1,230.50

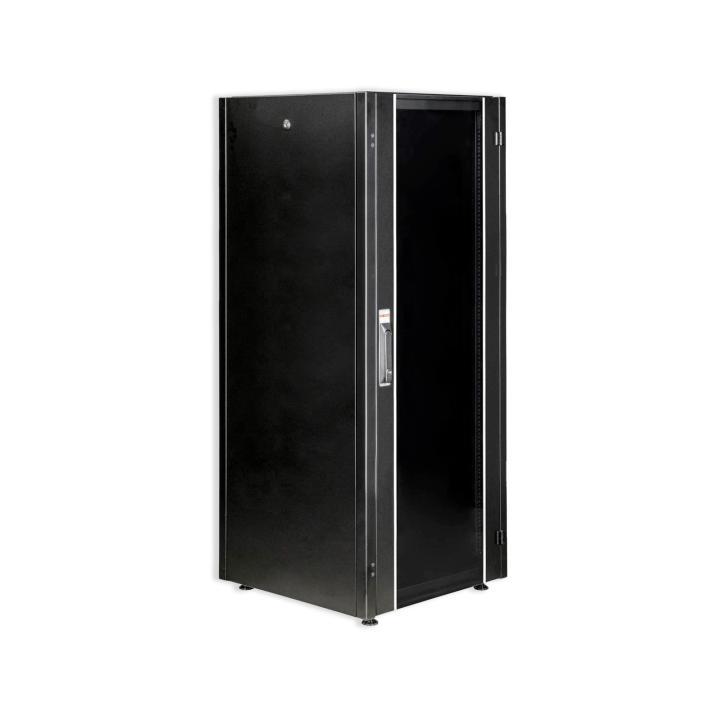

19'' 32U rack cabinet for pylontech black door and tempered glass

RackMatic's MobiRack 19" floor-standing rack cabinet is 32U high. Its external dimensions are 600 mm wide, 600 mm deep and 1536 mm high, excluding castors and levelling feet. It is made of high-quality cold-rolled steel, complying with DC-01, 6112 or 7122 standards and EN 10130, and has a black (RAL9005) finish for a professional appearance. Rack cabinets are supplied loose. They are ideally suited to installation in 19" rack-mounted server rooms, offering the possibility of lateral connection thanks to specialized union kits.

Here are the specifications for the RackMatic MobiRack series 19" rack cabinet, renowned for its superior quality:

  • Cabinet dimensions (W x D x H): 600 x 600 x 1536 mm.
  • Optional wheels for enhanced mobility.

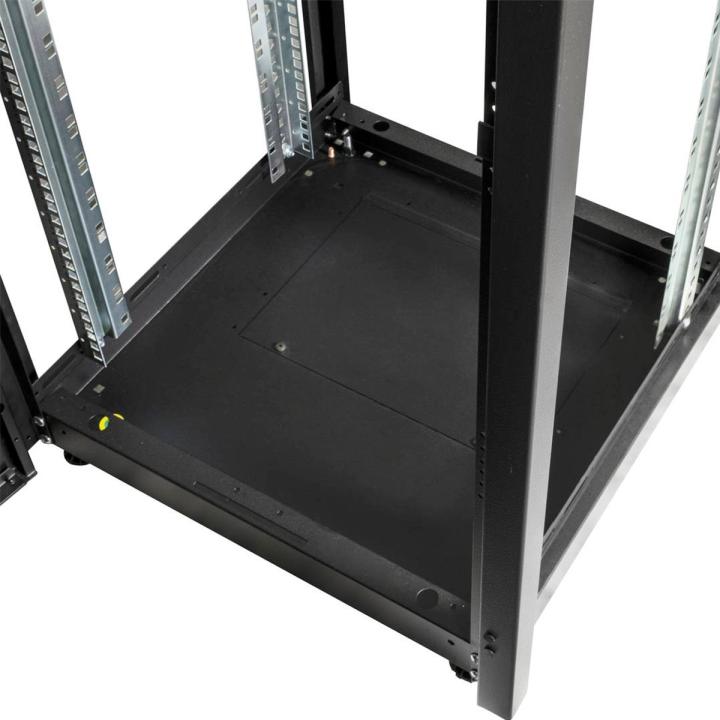

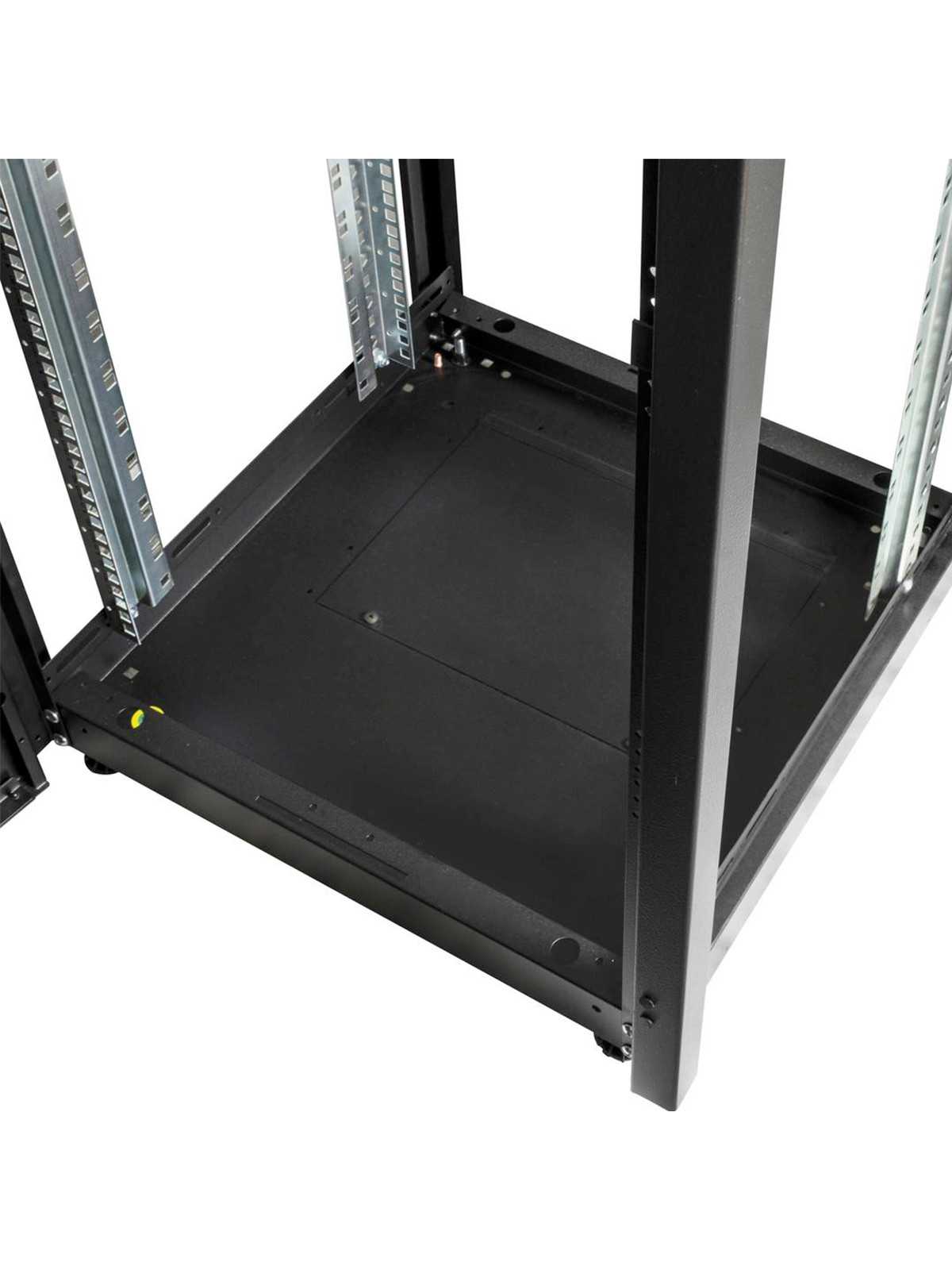

  • Depth-adjustable front/rear 19" rack frames, mounted on rails for easy movement
  • .
  • Rack profile thickness: 1.5 mm.
  • Maximum usable depth of 540 mm, with a recommended distance of 370 mm between front and rear frames (user-configurable).

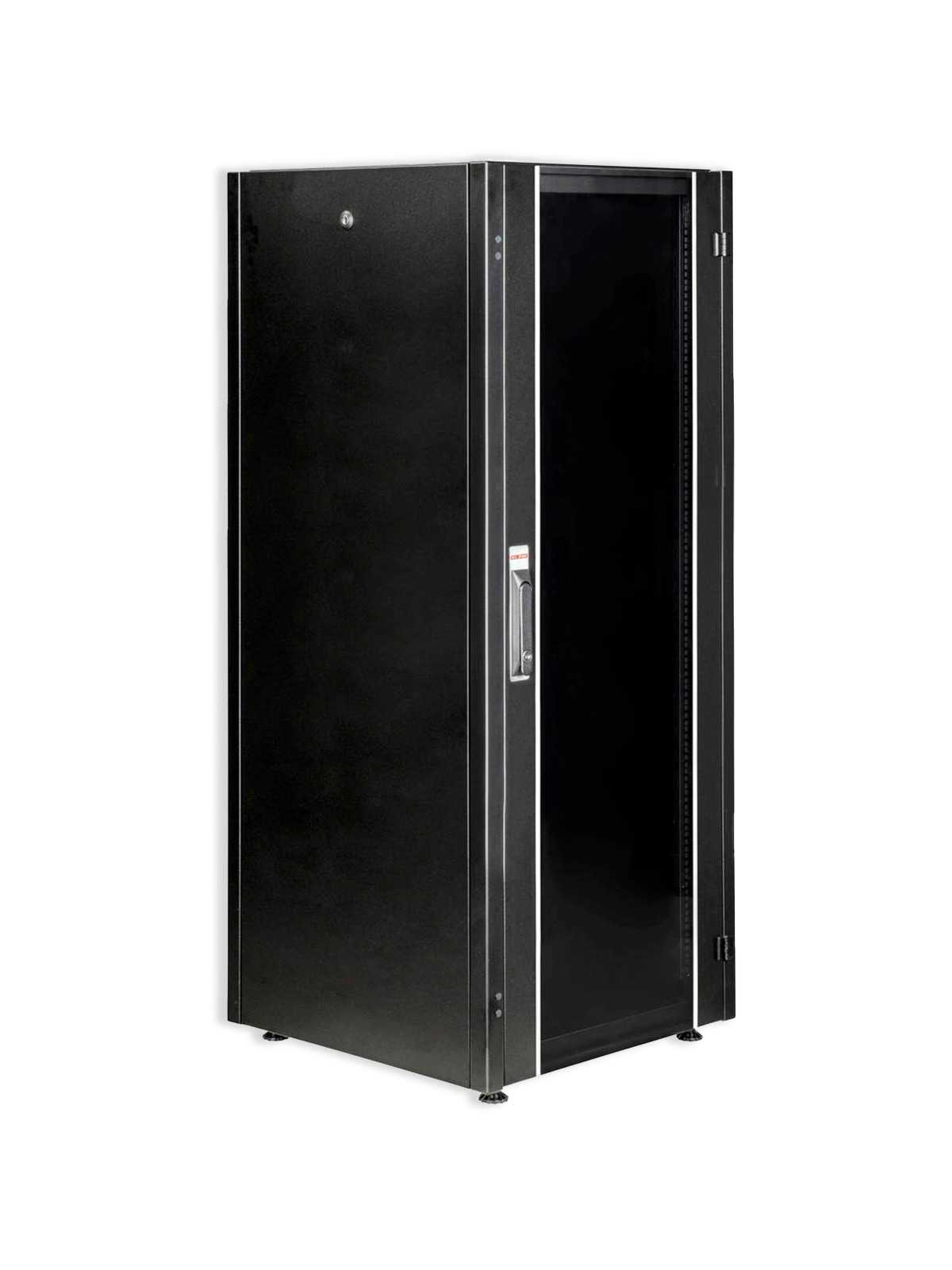

  • EN 12150-1-compliant 4 mm tempered glass front door, with a metal rear door for improved ventilation
  • .

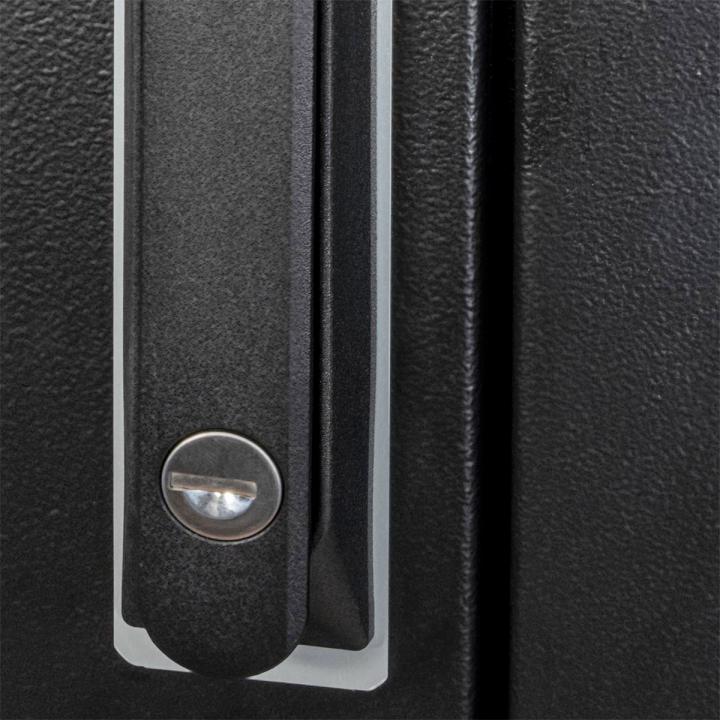

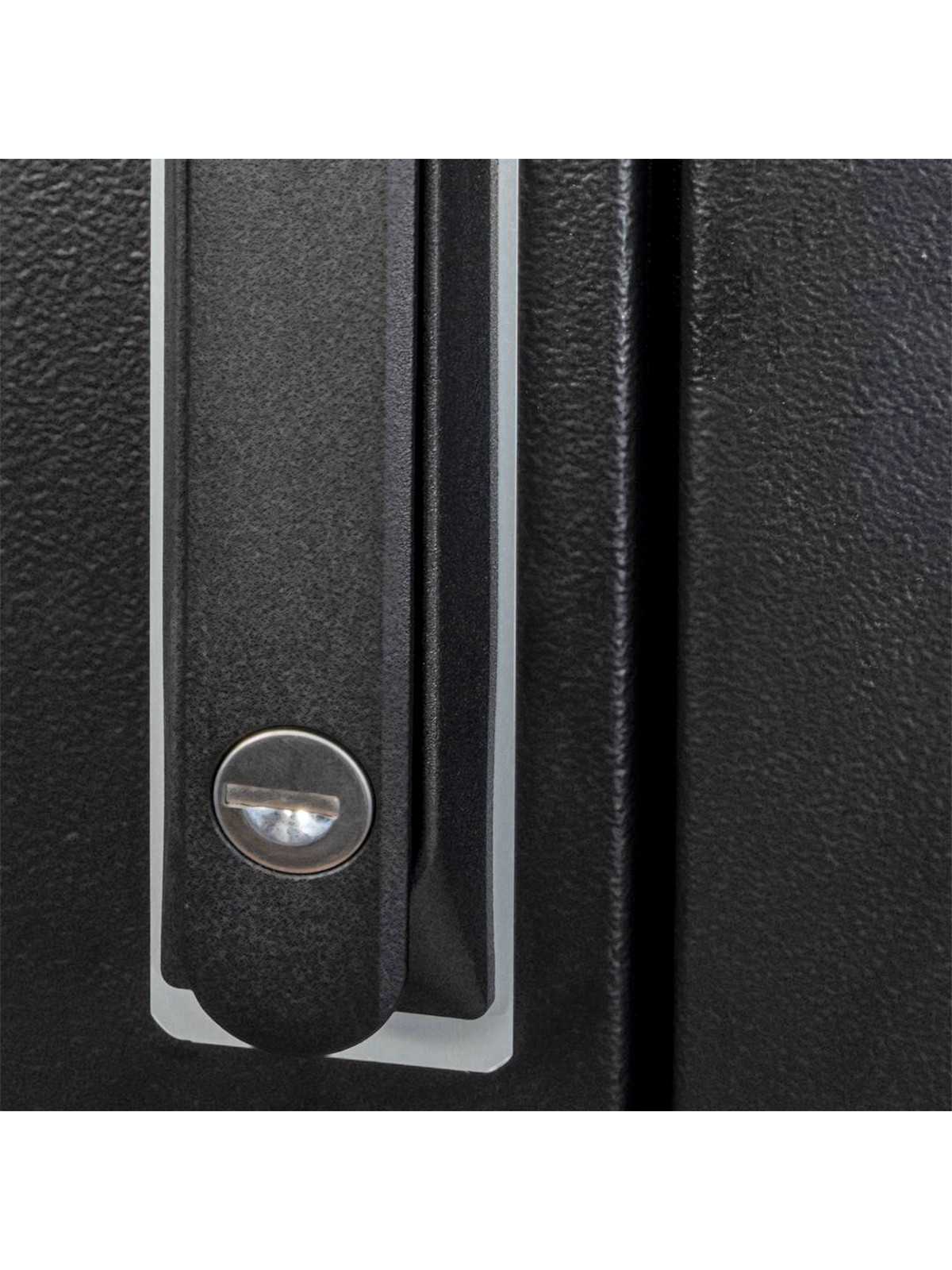

  • Both doors are equipped with a security key.
  • Cable entries on top and bottom covers, providing convenient access to wiring.
  • Top cover prepared for installation of 4 standard 120 mm fans (fans not included), with exclusive ventilation cover.
  • Maximum static load capacity 900 Kg and nominal load 600 Kg.
  • Complies with international 19", ETSI, and various environmental and sustainability regulations
  • .
  • Enclosure in 1.2 mm thick SPCC steel, painted black (RAL9005), supplied disassembled in a flat pack for easy transportation.

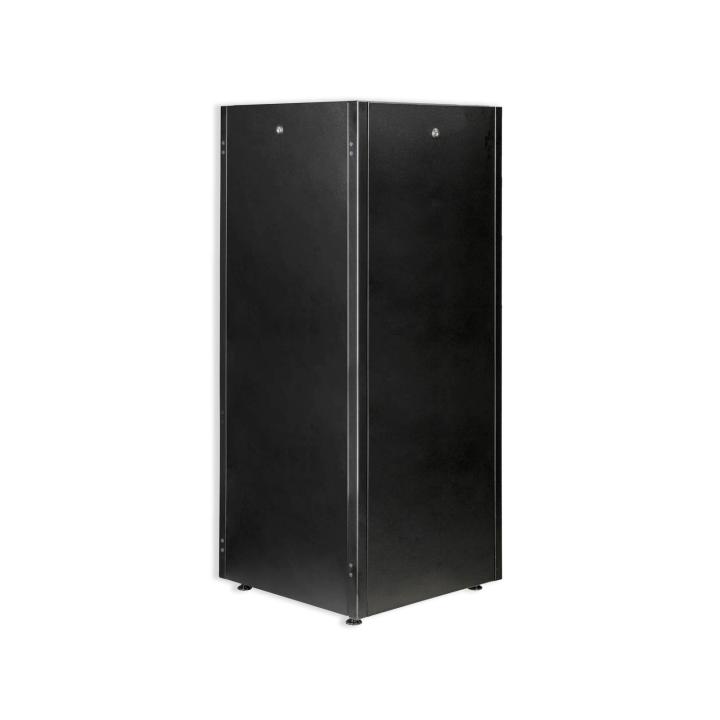

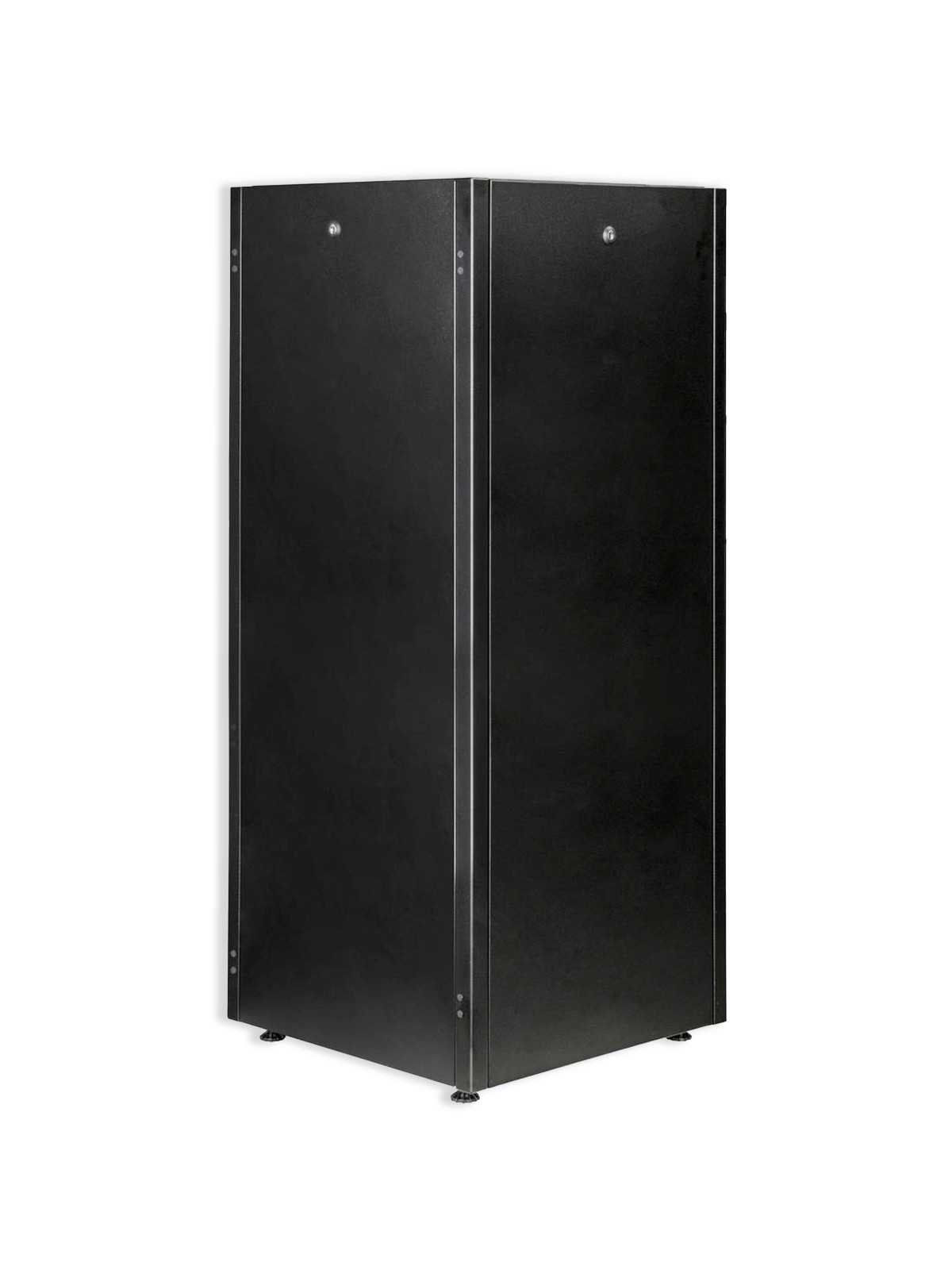

  • Removable side covers with the option of installing a key lock, for easy access to the rack interior.
  • Supplied with 4 levelling feet for a stable, height-adjustable position.
  • Manufactured to the highest production standards, including ISO 9001 and ISO 14001 environmental management systems
  • .

Storage cabinet for up to :

  • 8 Pylontech US2000 batteries
  • 7
  • Pylontech US3000 batteries
  • 6
  • Pylontech US5000 batteries

rack-19-32U-WL204

Data sheet

Type of electrical equipment
Coffret
Color
Full Black
Width
600 mm
Height
1800 mm
Thickness
600 mm

Specific References

UPC
768563820830
EAN13
0768563820830
New
