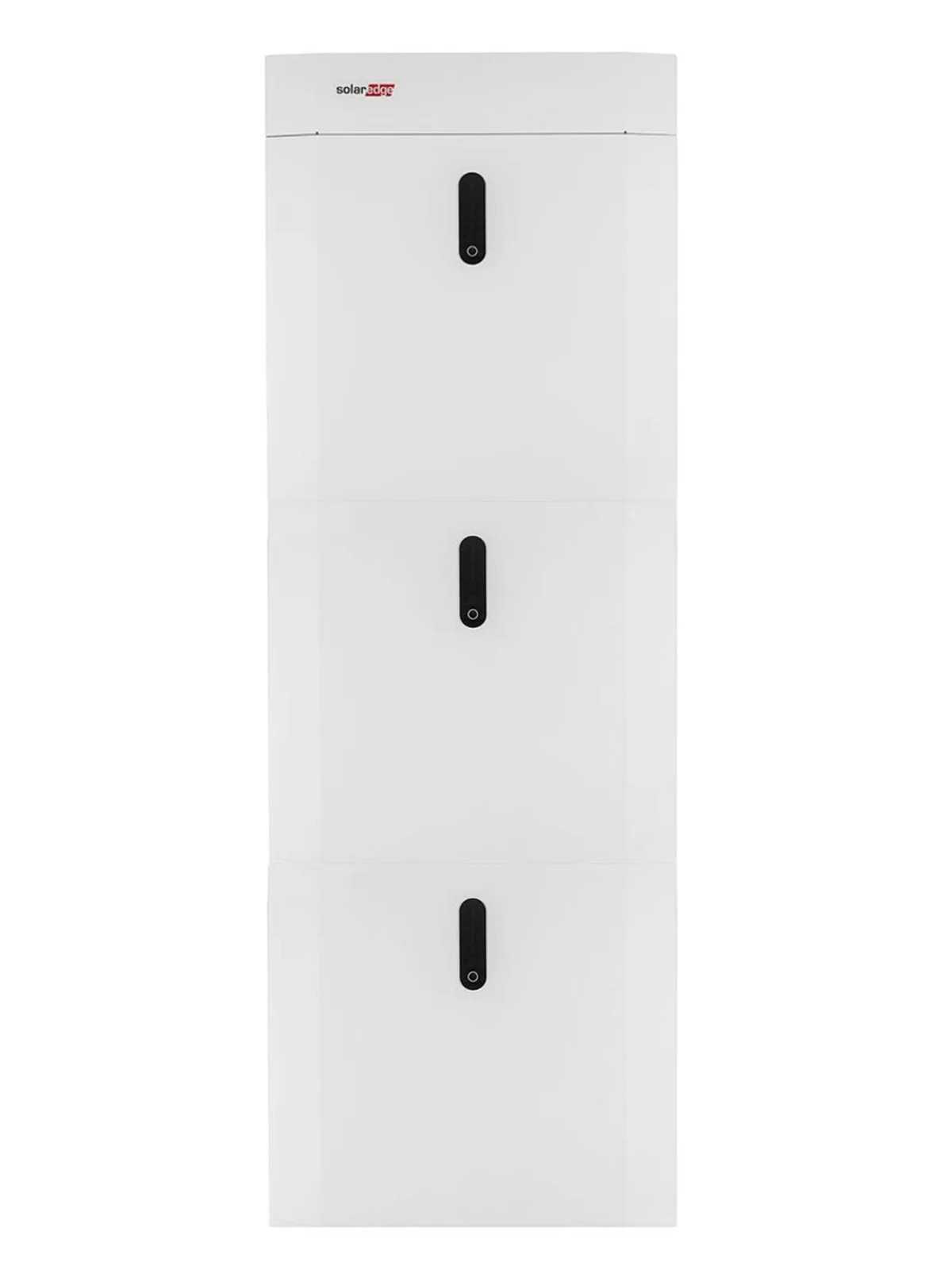

    SolarEdge LV battery 13.8 kWh
    SolarEdge LV 4.6 kWh Batteries

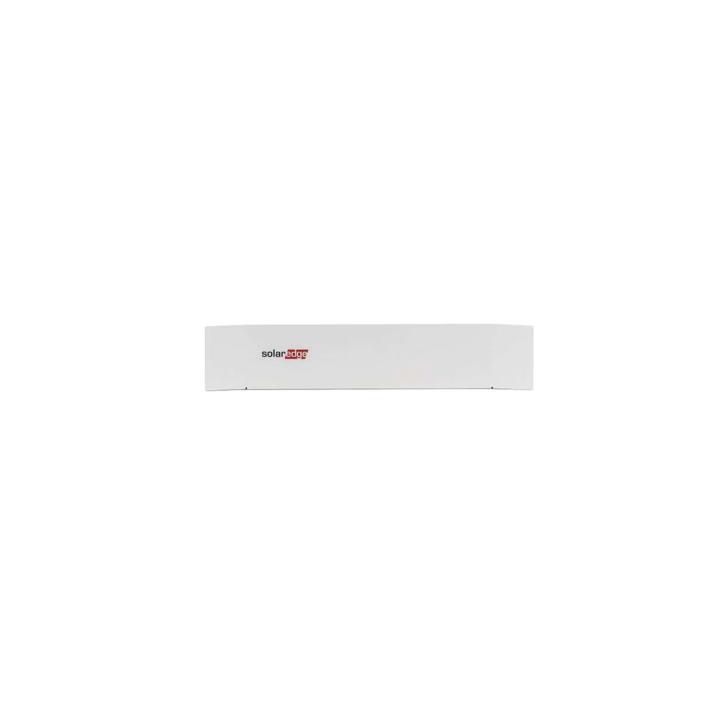

    TOP COVER KIT DOMESTIC BATTERY

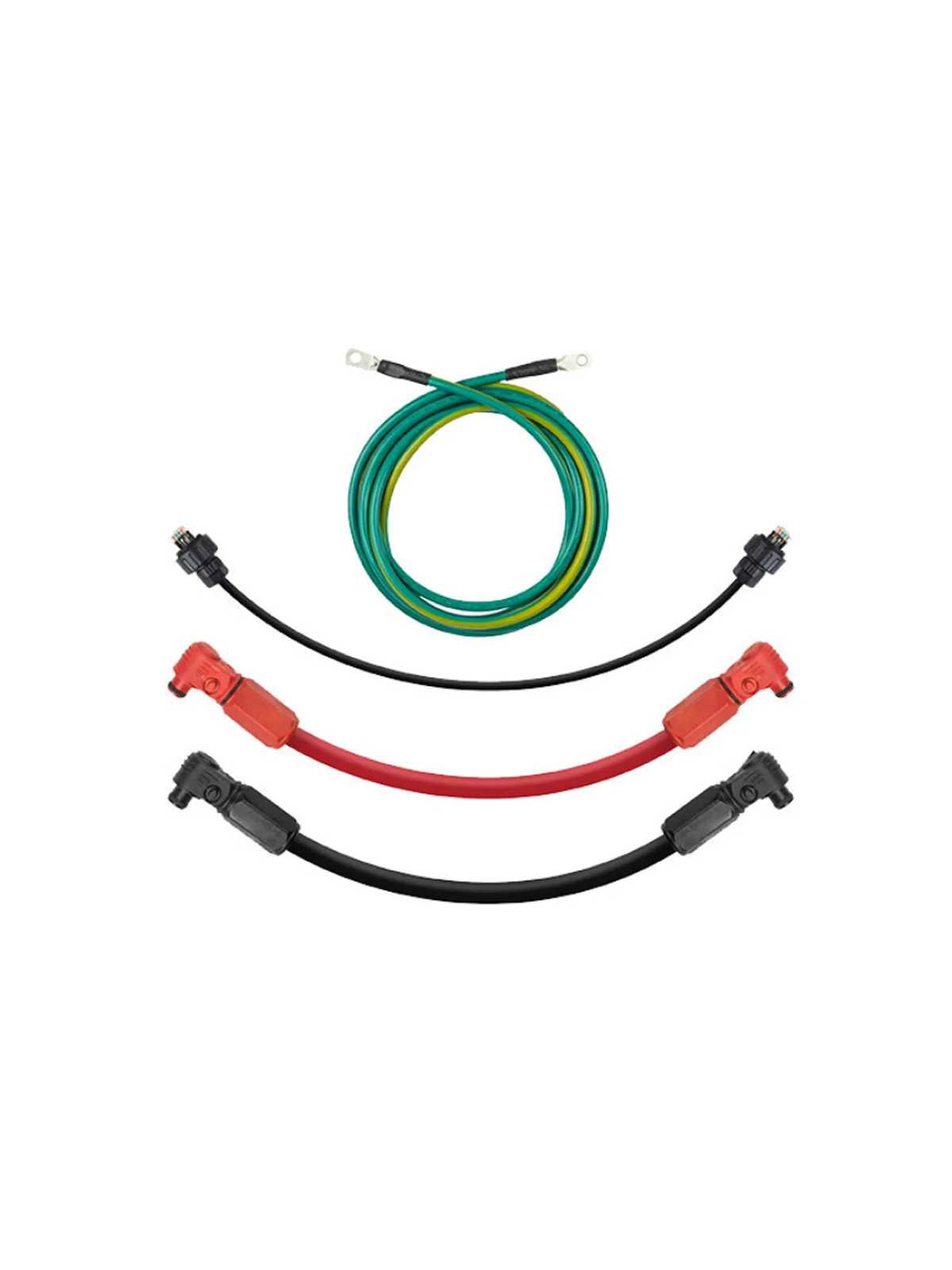

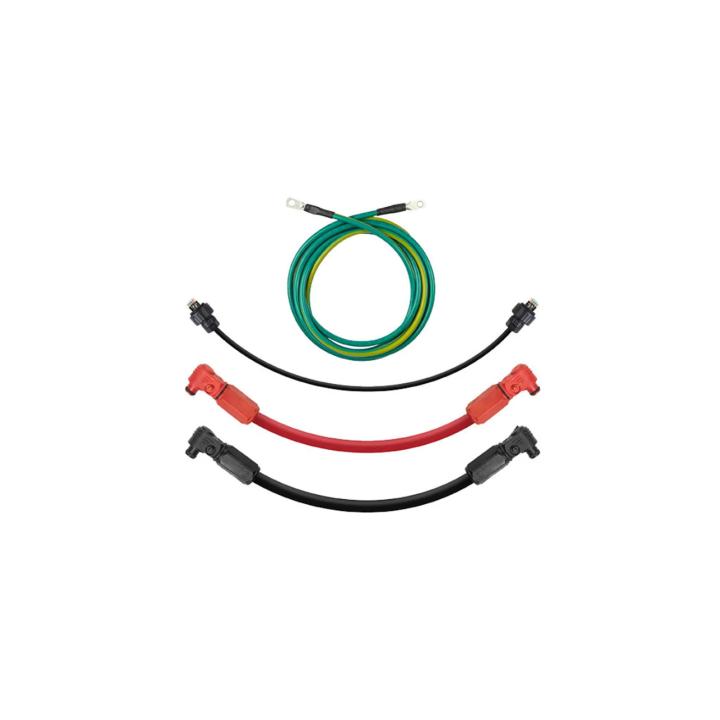

    DOMESTIC BATTERY-DOMESTIC BATTERY CABLE SET

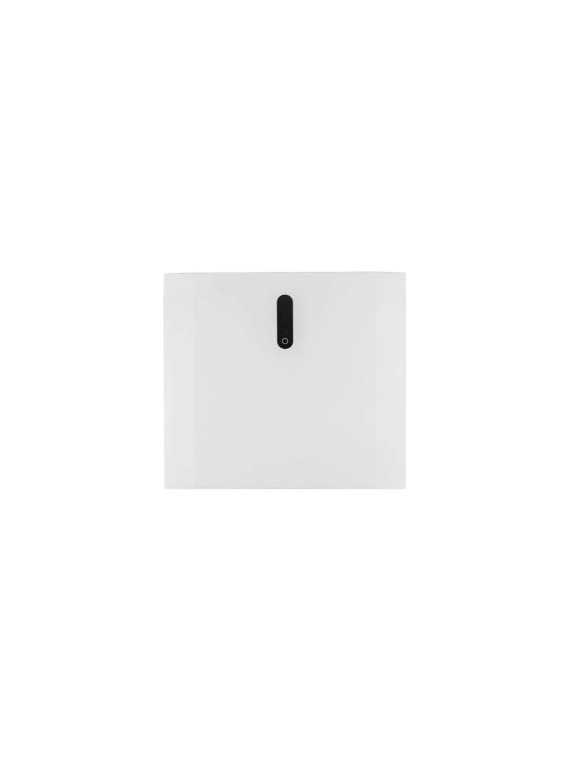

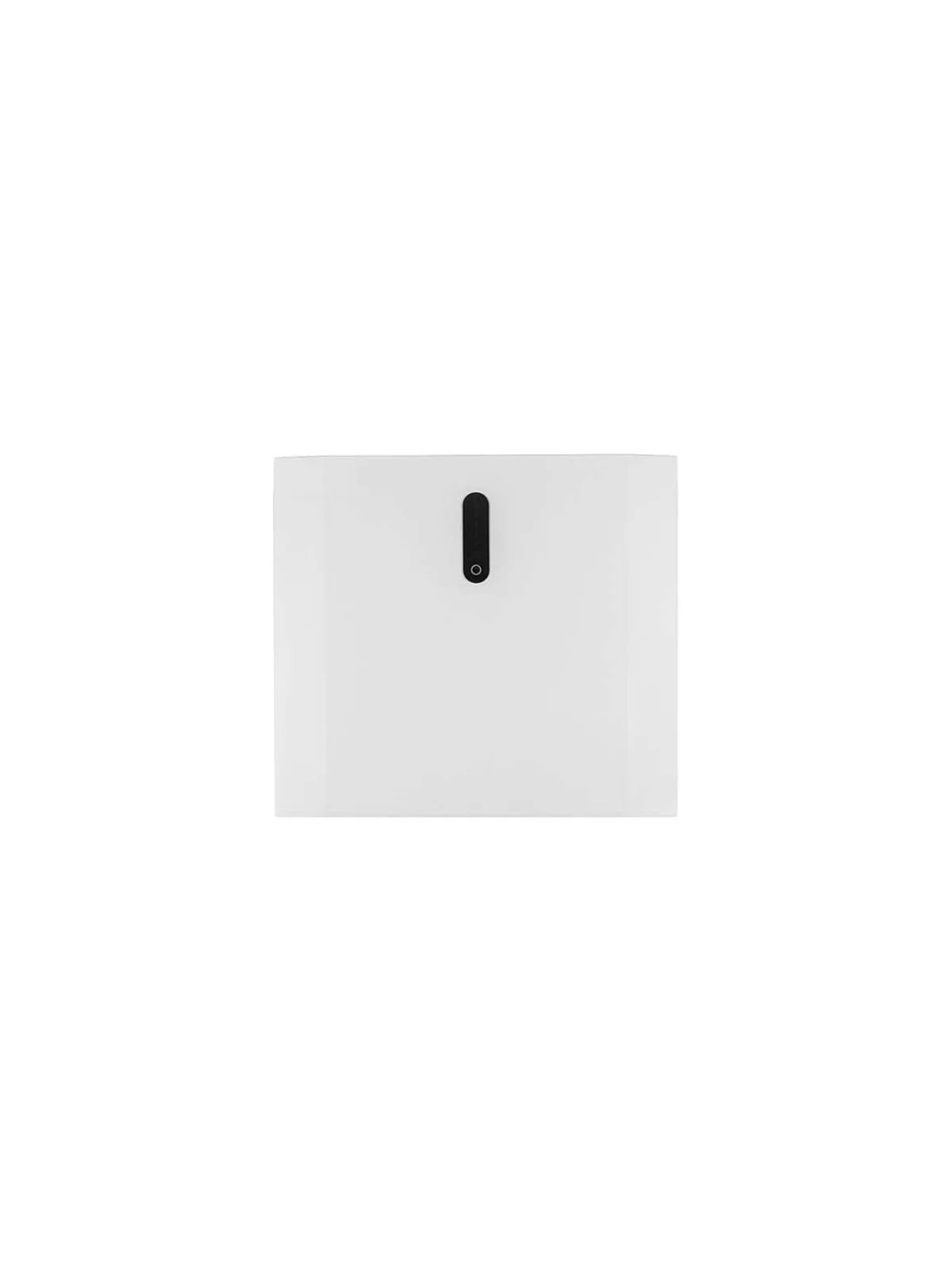

    SolarEdge LV 4.6 kWh Batteries

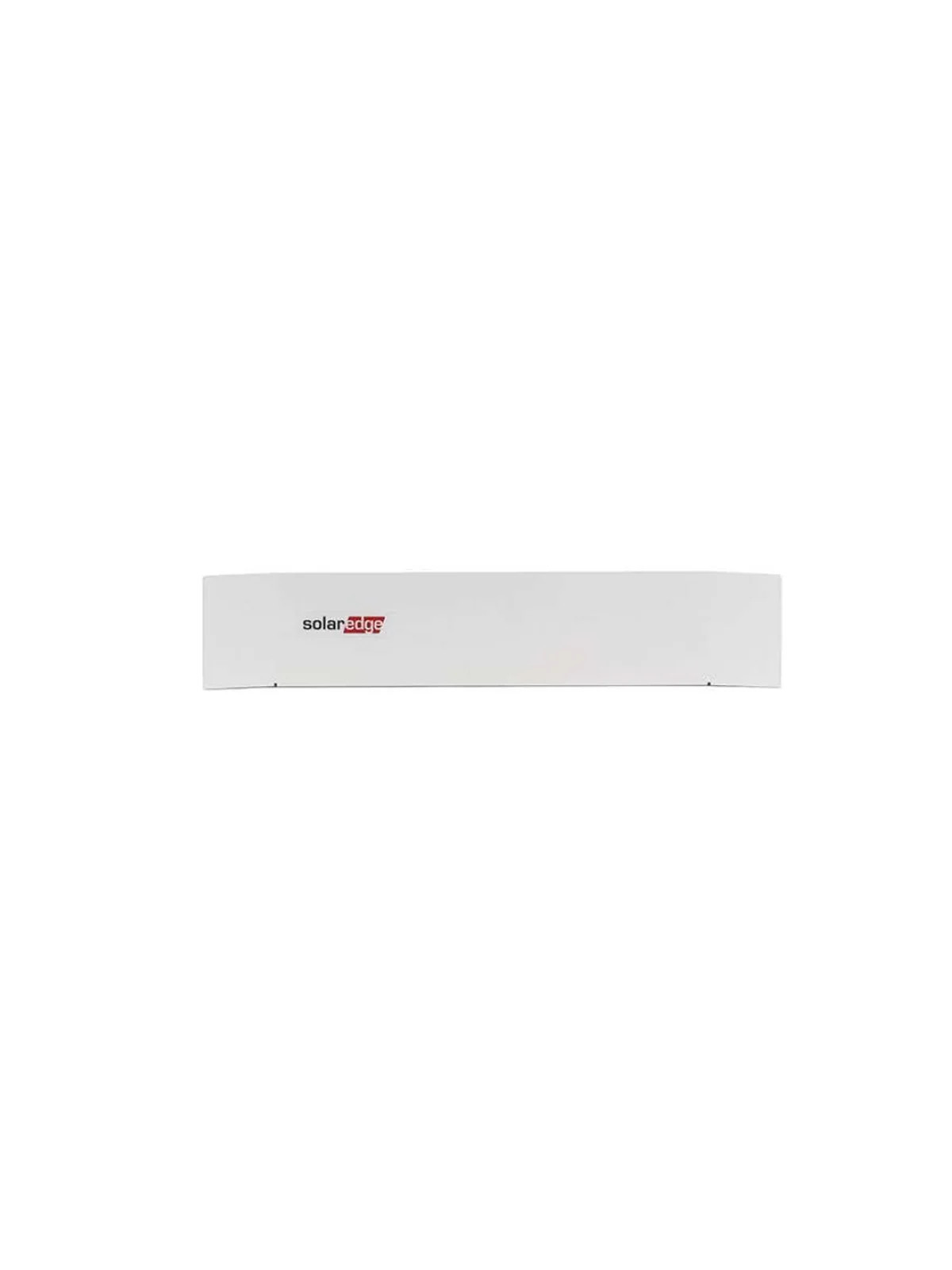

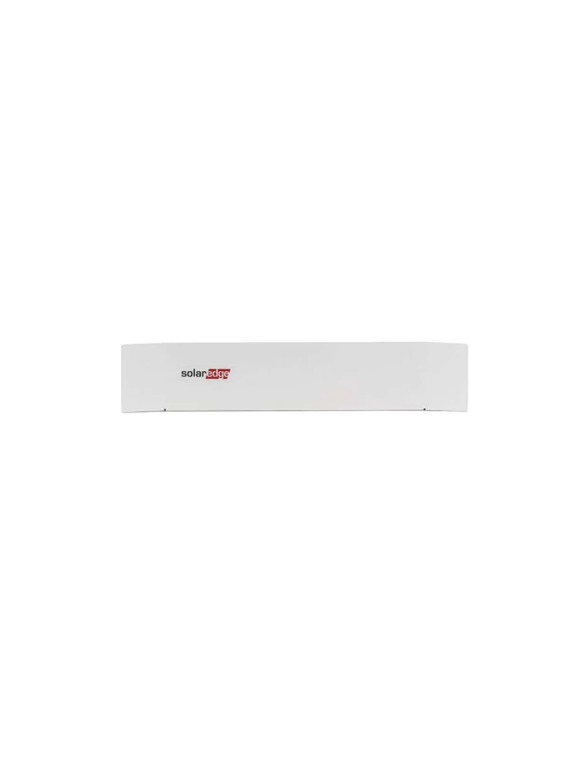

    TOP COVER KIT DOMESTIC BATTERY
    DOMESTIC BATTERY-DOMESTIC BATTERY CABLE SET

    SolarEdge LV 13.8 kWh battery - Stockage Haute Performance

    €9,008.38
    Tax included
    BAT-05K48
    0768563821776

    The LV 13.8 Home Battery is a 13.8 kWh energy storage system specially designed for users of the SolarEdge Home ecosystem. This model is a DC-coupled battery, compatible with SolarEdge Home Hub and Wave three-phase inverters. It enables solar energy to be stored for optimized use in grid or standby mode.

    Sorry, there are no more items in stock.

    SolarEdge LV 13.8 kWh...

    €9,008.38

    SolarEdge Home LV 13.8 kWh : The intelligent solution for storing solar energy



    The LV 9.2 Home Battery is a 13.8 kWh energy storage system specially designed to optimize solar energy storage with the SolarEdge Home ecosystem. This DC-coupled battery model is compatible with SolarEdge Home Hub and Wave three-phase inverters, enabling efficient storage of excess energy, even in the event of grid failure for backup* configurations.




    Batterie domestique Solaredge 4.6 kWh



    Key features



    • Storage capacity: 13.8 kWh
    • Compatibility: Designed for Europe, optimized for SolarEdge Home Hub and Wave inverters
    • Scalable installation: Up to 5 battery modules can be connected in two towers (up to 3 modules per tower)
    • Centralized management:
    • Monitoring of energy production and consumption via a single SolarEdge application
    • Energy efficiency: Up to 94.5% round-trip efficiency, maximized by DC coupling technology






    Vue de l'intérieur de la batterie Solaredge

    A complete solar storage solution



    The SolarEdge Home LV 13.8 Batterystores excess solar energy thanks to the DC oversizing of SolarEdge inverters, up to 200%. This battery is designed to use this energy without conversion loss, directly stored for prolonged, optimized use.

    Designed to work with SolarEdge Hub three-phase inverters, the LV 13.8 is a complete solution, from rooftop to grid, integrating Smart modules with power optimizers, intelligent devices and a backup interface.




    Optimization and management via SolarEdge ONE



    This battery is optimized by SolarEdge ONE, benefiting from advanced battery management modes to maximize efficiency. The SolarEdge ecosystem enables centralized monitoring of solar energy, storage, EV charging and connected devices.




    Fast, flexible installation



    • Plug & Play installation: Fast, simple installation with automatic configuration via the SetApp smartphone app
    • Flexible installation options: Wall-mounted or ground-mounted, indoor or outdoor
    • Easy ordering: A single point of contact for products, warranties, after-sales service and training, ensuring smooth logistics




    application MysolarEdge

    Simplified maintenance with mySolarEdge



    With the mySolarEdge mobile app, owners can easily monitor and manage battery performance:

    • Real-time data and complete visualization of battery performance
    • Automatic alerts with customized troubleshooting recommendations
    • Free lifetime supervision, accessible on computer and smartphone




    Technical specifications



    • Round-trip efficiency:
    • Up to 94.5% thanks to DC coupling
    • Warranty period: 10 years
    • Stackable modules: Up to 5 modules per inverter for increased capacity
    • Battery modes: 4 battery modes optimized by SolarEdge ONE



    *Backup configurations are subject to local regulations and may require the SolarEdge Backup interface and a connection to the Hub SolarEdge Home three-phase inverter.

    BAT-05K48

    Data sheet

    Width
    540 mm
    Height
    1500 mm
    Nominal capacity
    13.8 Wh
    Type of cooling
    Natural convection
    Communication interfaces
    RS485 between battery packs, CAN bus to inverter
    Standard warranty (years)
    10
    Battery Type
    Li-Ion - LFP
    Battery Voltage Range
    44.8 - 56.5 Vdc
    Weight
    164.1 kg
    Maximum operating altitude
    2000 m
    Noise
    inférieur 25 dBA
    Depth
    240 mm
    Continuous output power (charge/discharge) - for a single battery pack
    2825/4096 W
    Continuous output power (charge/discharge) - for multiple battery packs
    5000/5000 W
    Peak cycle efficiency
    More than 95.4
    Battery packs per inverter
    Jusqu’à 5 connectés en parallèle
    Operating temperature (discharge/load)
    -10 to +50 °C
    Storage temperature (12 months between refills)
    -10 to +45 °C
    Housing protection
    IP65 / NEMA 3R - intérieur et extérieur (protection contre l’eau et la poussière)

    Specific References
