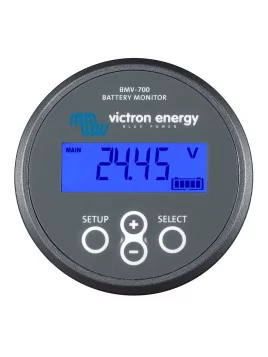

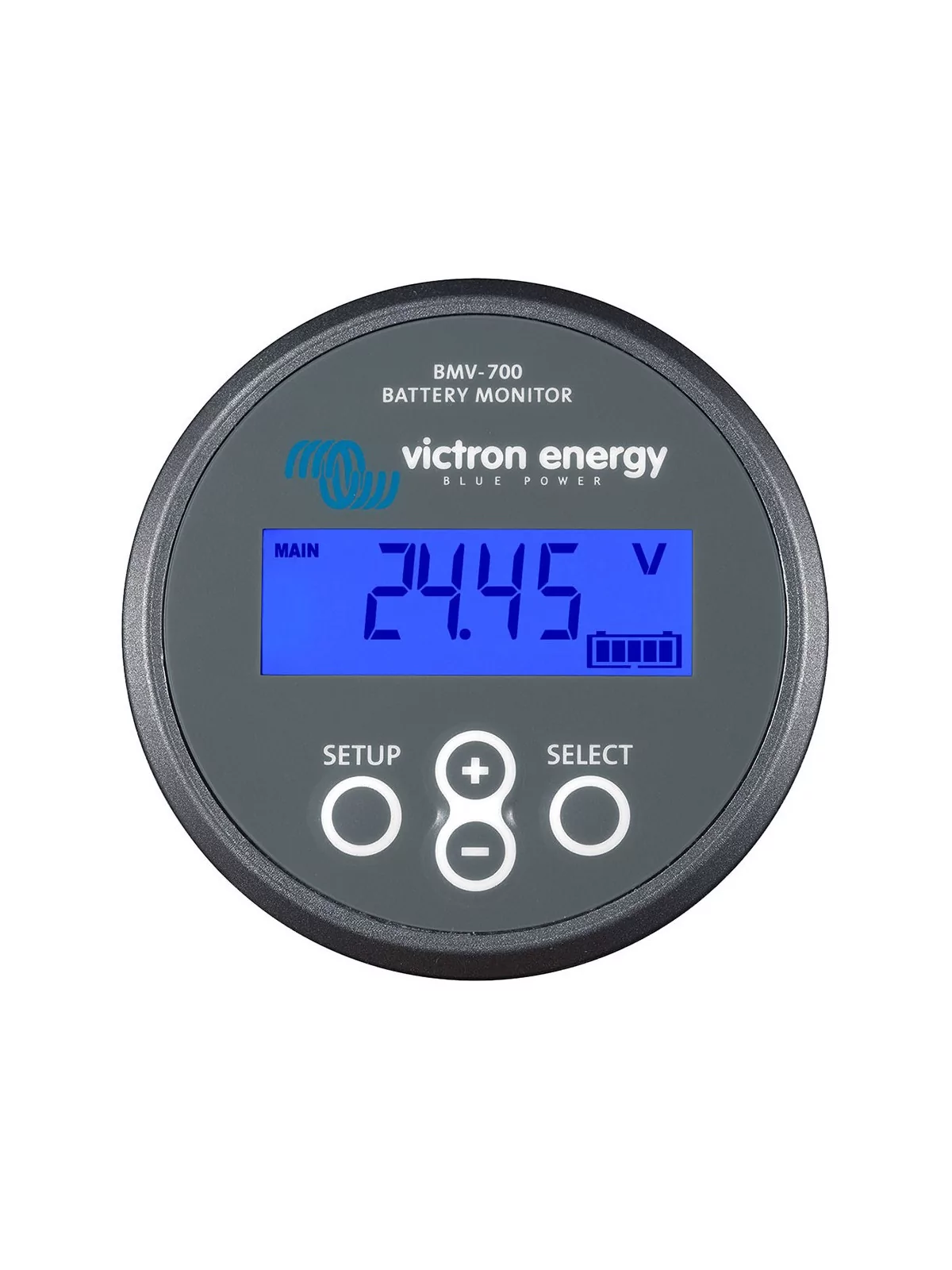

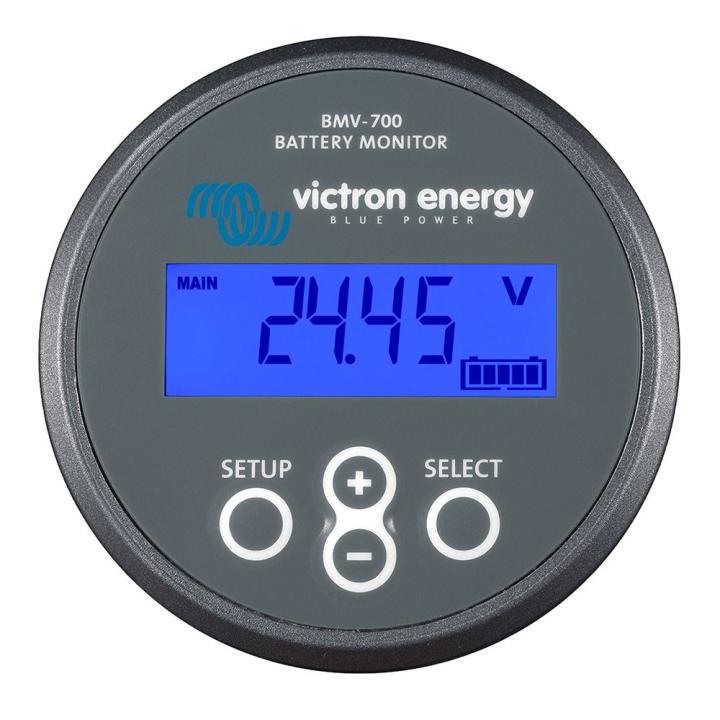

Battery monitor Victron BMV-700 series

"Victron high precision solar battery controller "

The Victron BMV-700 series battery monitors calculate ampere-hour consumption and battery charge level. Consumption is calculated by the flow of current into and out of the battery. Microprocessor-programmed algorithms enable precise control of battery consumption.

Description

Standard information and alarms

• State of charge (%).
• Consumption Ampere-hours (Ah).
• Battery voltage (V).
• Battery charge/discharge current (A).
• Autonomy prediction according to consumption.
• Visual and audible alarm: over- and undervoltage, and/or battery state of charge.
• Programmable alarm



  ---

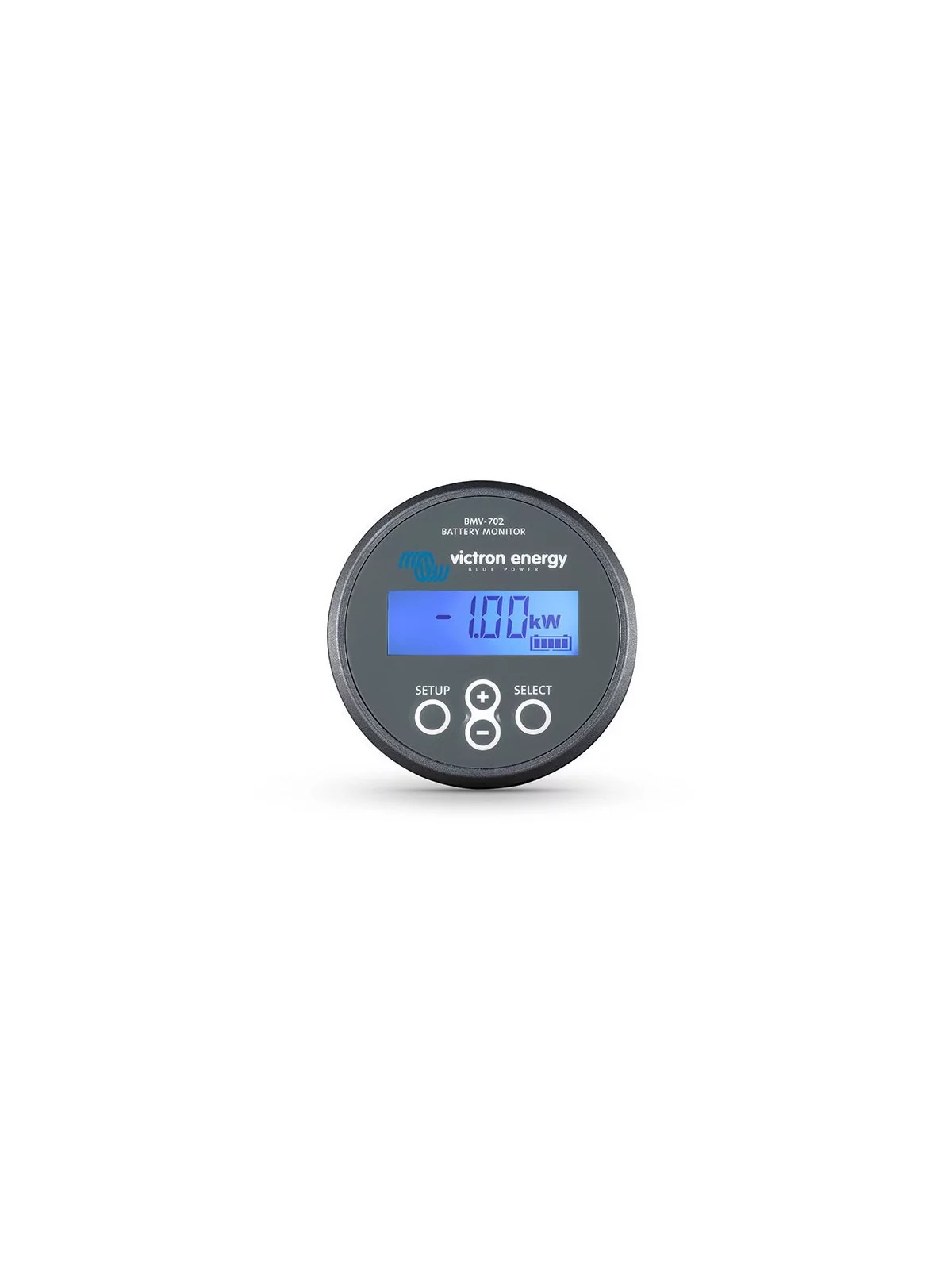

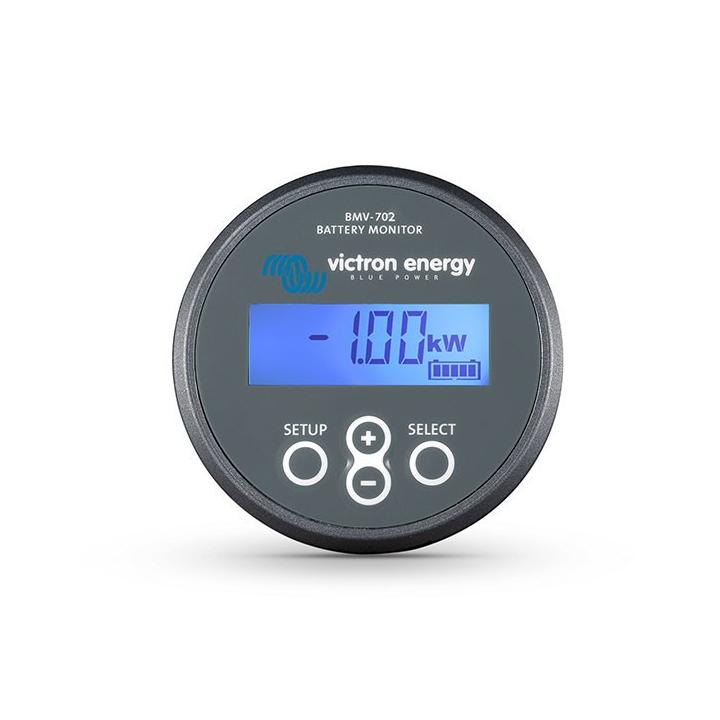

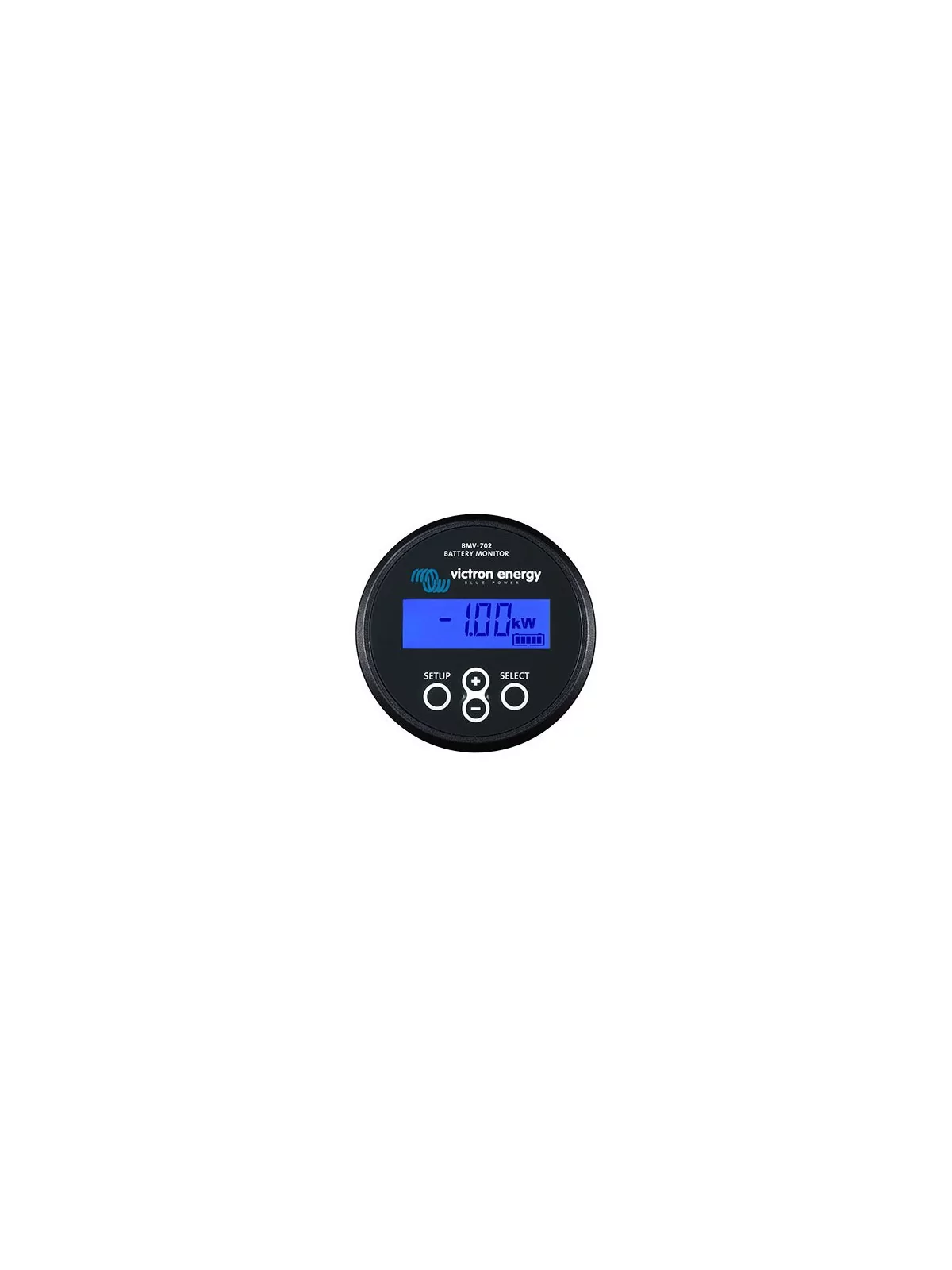

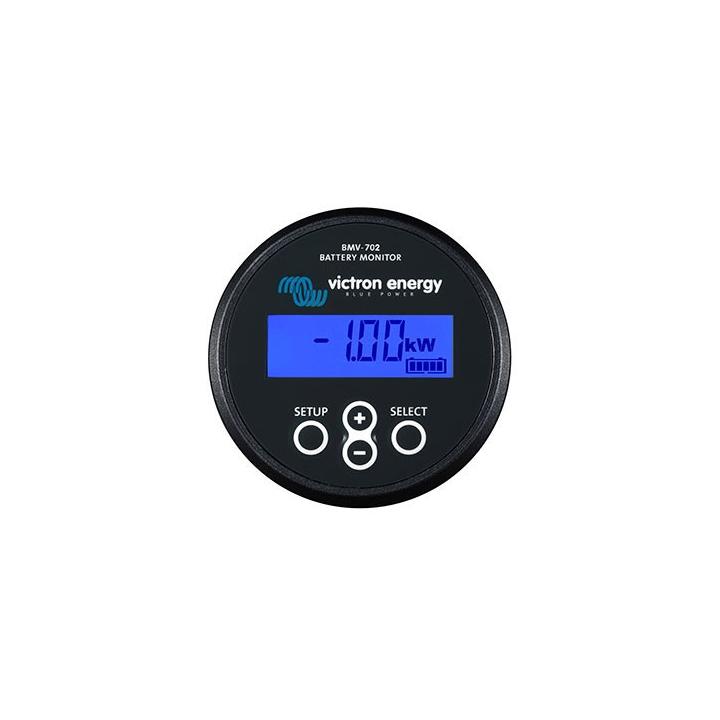

The BMV-702: features an additional input that can be programmed to measure

• voltage (of a second battery),
• temperature
• median voltage.

BMV 700HS: Voltage range from 60 to 385 VDC

Adapter ("prescaler") not required. suitable for systems with negative ground only (battery controller not isolated from {linkpopup id='shunt'}).

Ultra-high-resolution, low-cost controller

• Highest resolution: 10 mA (0.01 A) with 500 A shunt.
• Can be used with 50, 60 or 100 mV shunts, at currents from 100 to 1000 A.
• Lowest current consumption: 4 mA @12 V and 3 mA @ 24 V.

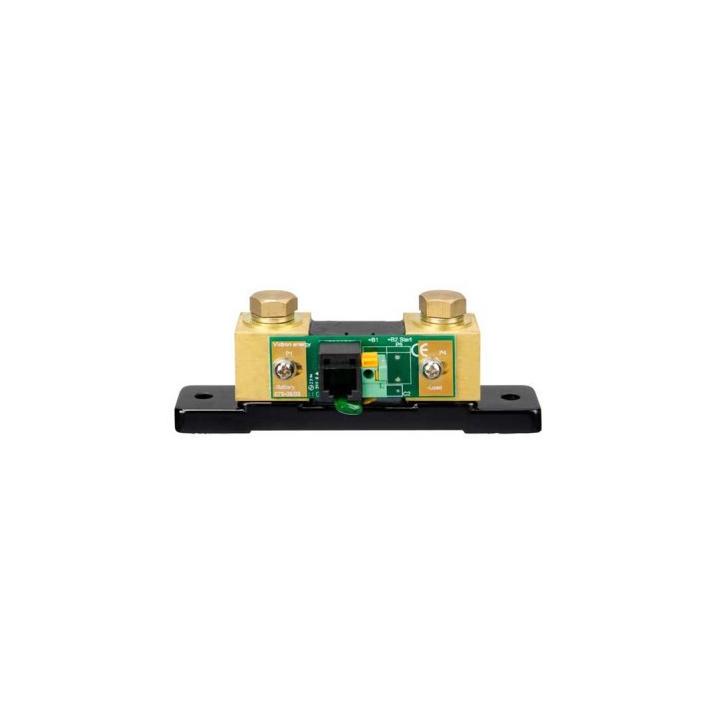

• Easy to connect: supplied with shunt, 10 meters of RJ 12 UTP cable and fused power lead for "+" connection .
• Simple installation: separate front cover for rounded part; ring for rearmounting and screws for front mounting.
• Wider supply voltage range: 9.5 - 95 VDC range without adapter (60-385 VDC for BMV-702HS)

• Communication port (Isolated RS232 interface required for connection to a computer)

Technical data
