Stand-alone photovoltaic kit class 1
€5,071.01
Tax included
config-ac-10pan-5kva
0768563821271
Solar Self-Consumption Kit: Produce Your Own Energy!
Discover our complete solar kit to become energy independent. Composed of 10 high-performance solar panels, a WKS Evo Circle 5.6 kVA 48V hybrid inverter, and a Pylontech US5000 lithium battery, this kit allows you to produce and store your own electricity.
Key Benefits:
- Energy Independence: Reduce your electricity bill.
- Savings: Enjoy substantial long-term savings.
- Storage: Consume your energy when you need it, even without sunlight.
- Easy Installation: Easy to install, without major work.
- Customizable: Adapt the kit to your specific needs.
Estimated Production:
With this kit, you can produce approximately 4 895 kWh per year, representing a potential saving of around €1 468.5. These estimates are for informational purposes only.
Why Choose This Kit?
- WKS hybrid inverter: Simplifies administrative procedures.
- Quality components: Ensure a long lifespan.
- Turnkey solution: Everything you need for a successful installation.
Ready to take the leap towards self-consumption? Contact us for a personalized study.
This kit includes

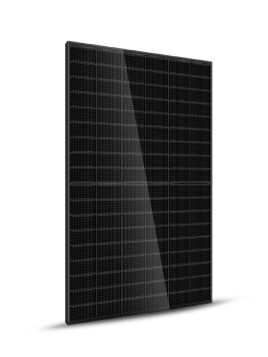

- 10XSunpro Power TOPCON Bifacial 450Wp | High Performance Solar Panel
- 1XWKS Evo Circle 5.6 kVA 48V hybrid inverter
- 2X2X4mm2 solar cable with MC4 type (sold per metre)
- 1X6mm² earth cable (sold by the meter)
- 2XSchneider single-phase 25A circuit breaker
- 1XDifferential switch type A 2P 63A 300ma
- 1XWaterproof legrand 8 modules box
- 1XZJBENY DC double lightning arrester 2 inputs and 1 output 1000V 32A + 2m 10² cable
- 2XPylontech US5000 Lithium Battery - 4.8kWh | High Performance
- 1XPylontech battery connection cable
Select products from the sections below
ZJBENY DC double lightning arrester 2 inputs and 1 output 1000V 32A + 2m 10² cable
Price per unit
€249.35 (Tax incl.)
€249.35 (Tax incl.)
Your needs, our selection
Store your surplus solar production for later use, get rid of the grid.
This set can supply a remote location or a small house with a mains connection.
It is able to work alternately with the public grid or a generator.
This semi-autonomous configuration allows you to gradually become independent of the public grid.
The basic kit contains 10 solar panels, a WKS EVO Circle 5.6 kVA single-phase inverter, solar cables to connect the panels to the inverter, and an optional panel mounting system. (The mounting system as well as the cabling and protections can be modified to suit your needs).
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.
Important notice for our customers in Belgium: An environmental contribution of € 94.41 excluding VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page.
Solar panels
Discover the solar jewel in our kit! Selected from the latest technologies, this panel offers unrivalled efficiency.
See its product sheet in our panels section to find out more.
And don't forget, we offer you the flexibility to choose the panel model you prefer.
We invite you to consult our solar production simulator to determine exactly what your solar production will be.
Different cell types
Perc |
N-Type |
HJT | |
Efficiency | Approximately 19-22% | Approximately 20-23%. | Environ 21-24% |
Cost | Moderate | High | Very high |
Temperature coefficient | Approximately -0.3 à 0.4% per °C | Approximately -0.3% per °C | Approximately -0.2% Per °C |
Annual degradation | Approximately 0.5 - 07% | Approximately 0.4 - 0.5% | Less than 0.5% |
Durability | Good | Very good | Excellent |
Inverters
Choose the best partner to convert your solar energy.
If you want to maximize the use of your photovoltaic solar energy, the hybrid inverter in combination with domestic storage may be the ideal solution for you.
We've selected the WKS range for their performance and excellent value for money.
It's perfectly possible to install several inverters in the same system to increase the power available.
Hybrid inverterWKS EVO Circle |
|
Hybrid inverterWKS EVO MAX II | ||||||||||||
 1 MPPT |  -> 9 Inverters |  2 MPPT | -> 6 Inverters | |||||||||||
Rated power |
Battery voltage |
Rated power |
Battery voltage | |||||||||||
Maximum PV load current |
Maximum AC load current |
Maximum PV load current |
Maximum AC load current | |||||||||||
Key benefits
| Key benefits
| |||||||||||||
🎬 A collection of videos to understand everything 🎥
🔍 Learn to decode the technical labels of your inverters to make the best choice! ▶️ Discover our video guide "decode the labels" and optimize your purchasing decision with confidence.
⚡ Need to measure the voltage in direct current with a voltmeter? ▶️ Follow our video tutorial to master this technique in just a few minutes!
🛡️ Ensure the safety of your installations with a direct current protection box, differential, and grounding! ▶️ Discover our video guide Electrical Protection Box and protect your equipment effectively!
🔧 Optimize your installation by discovering the connections and wiring of Pylontech inverters and batteries! ▶️ Click here to learn more!
⚠️ Protect your equipment from the risks of polarity reversal in a surge protection box! ▶️ Click here to discover how to avoid common mistakes and ensure the safety of your installation!
🔌 Ensure the safety of your installation by understanding the functioning of grounding in a surge protection box! ▶️ Click here to learn everything and effectively protect your equipment!
☀️ Discover how to connect the panels to the inverter to maximize the efficiency of your solar system! ▶️ Click here to master this crucial step and ensure optimal performance!
🔌 Learn to make the AC IN and OUT connection for a perfect connection of your electrical system! ▶️ Click here to master this essential step and ensure the proper functioning of your installation!
⚡ Master the wiring of alternating current by differentiating neutral and phase for a safe and efficient installation! ▶️ Click here to discover best practices and optimize your electrical system!
🔋 Optimize the connection of the Pylontech battery to the WKS Circle inverter to ensure optimal performance of your system! ▶️ Click here to master essential techniques and ensure a successful installation!
📡 How to connect the communication cable to ensure a reliable and efficient connection of your system! ▶️ Click here to master this essential step and improve the efficiency of your installation!
🚀 Discover the essential steps to follow before starting your inverter to ensure optimal and safe performance! ▶️ Click here to be ready and optimize your installation from the start!
⚠️ Make sure that circuits powered exclusively by the inverter are indeed powered to ensure optimal and safe operation! ▶️ Click here to understand this crucial requirement and protect your installation!
🔄 Master the standard startup of the WKS Circle hybrid inverter and understand the basic indications during the launch, as well as the voltage check! ▶️ Click here to navigate this process effectively and ensure the proper functioning of your system!
⚙️ Explore the basic settings of the WKS Circle inverter in conjunction with Pylontech lithium batteries to maximize the performance of your installation! ▶️ Click here to master these essential settings and optimize your energy system!
Our battery selection
Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.
We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.
We offer two different capacities. They are compatible with each other.
Battery storagePylontech US3000C |
|
Battery storagePylontech US5000 | ||||||||||||
 Rated capacity |  DOD 95% | Rated capacity 100 Ah | DOD 95% | |||||||||||
Tension |
Charge/discharge |
Tension |
Charge/discharge | |||||||||||
|
Upgradable |
Cycle |
Upgradable | |||||||||||
Benefits• Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent | Benefits• Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent | |||||||||||||
Cycle
Customization
Council
Optimise your production with Tigo TS4-A-O
(available as an option)
Operation
Maximise the output of each panel by controlling the DC current before the central inverter.
Ideal for
Installations with panels that are partially shaded or exposed to varying conditions.
Benefits
- Improved yield: Even in shaded conditions.
- Lower cost: Cheaper than microinverters.
- Reduced maintenance: Fewer interventions on the roof.
Single-phase connection diagram
Connection to
WKS EVO Circle inverter
Important notice for our customers in Belgium:
As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €94,41 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here
Here's the reference list and the corresponding membership fee!
When purchasing lithium batteries, please add the following product Pylontech US5000 Environmental Fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.
config-ac-10pan-5kva
Data sheet
- Solar kit type
- Kit 230V AC avec batterie
- Inverter power
- 5000VA
- Kit output voltage
- 230V
- Type of need
- Off-grid
- Battery storage
- With storage
- Wind turbine
- Without
- Number of panels
- 10 panels
- Voltage
- 230V
- Battery
- Kit with battery
- Panel type
- Rigids
- Mains re-injection
- off-grid
