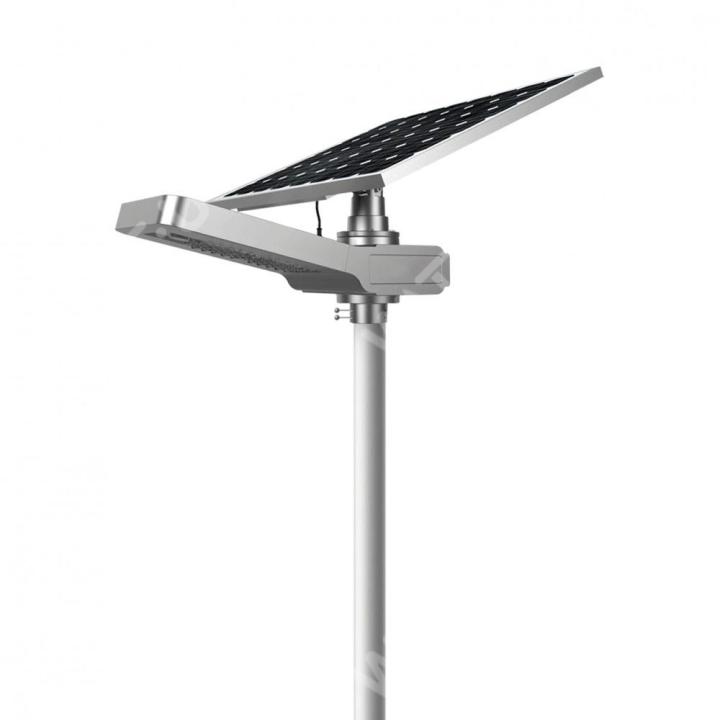

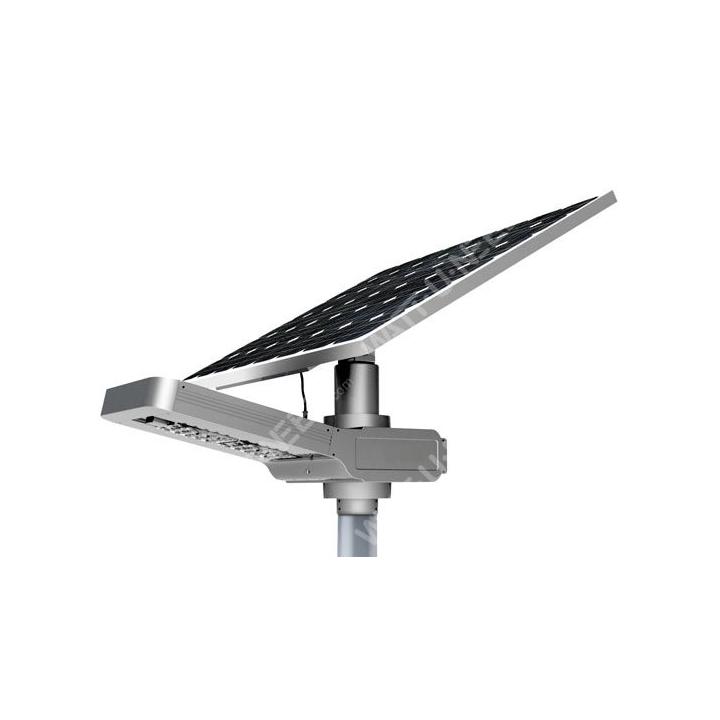

"20W 18V LED solar-powered floor lamp, fully autonomous! "
Its 20 Watt solar spotlight is ideal for lighting your yard, parking lot, driveway or even as street lighting without recourse to the public electricity grid.
This solar-powered lamp is fully autonomous, thanks to its 50Wp solar panel and built-in battery. Handy for lighting up areas not connected to the grid at low cost, or for saving on electricity consumption by using solar power. Ideal for replacing your old high-consumption spotlights!
- Charging time (in full sunlight): 6 hours
- Lighting duration: 3-5 days
- Recommended installation height: 5-8 meters
- Recommended distance between lights: 10-30 meters
Please note that the mast is not included in this product! For all inquiries, please contact info@wattuneed.com

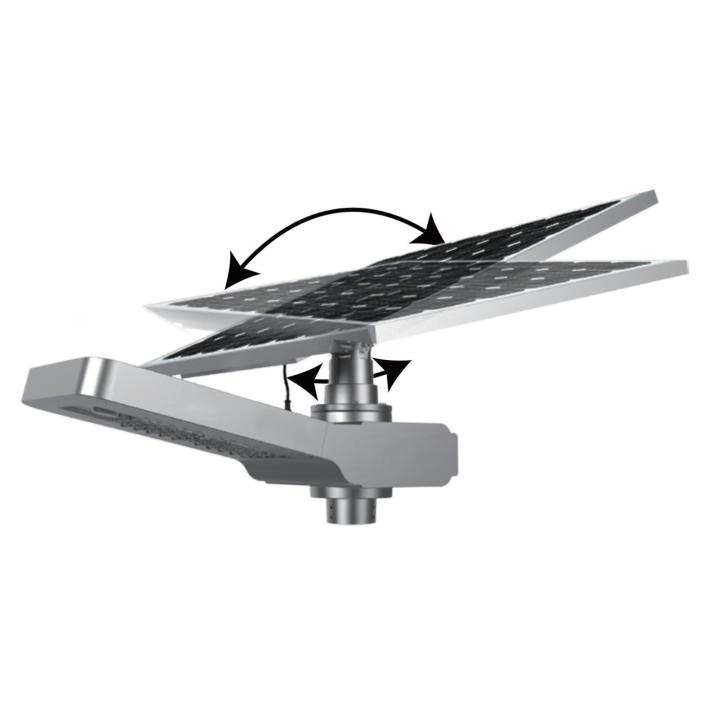

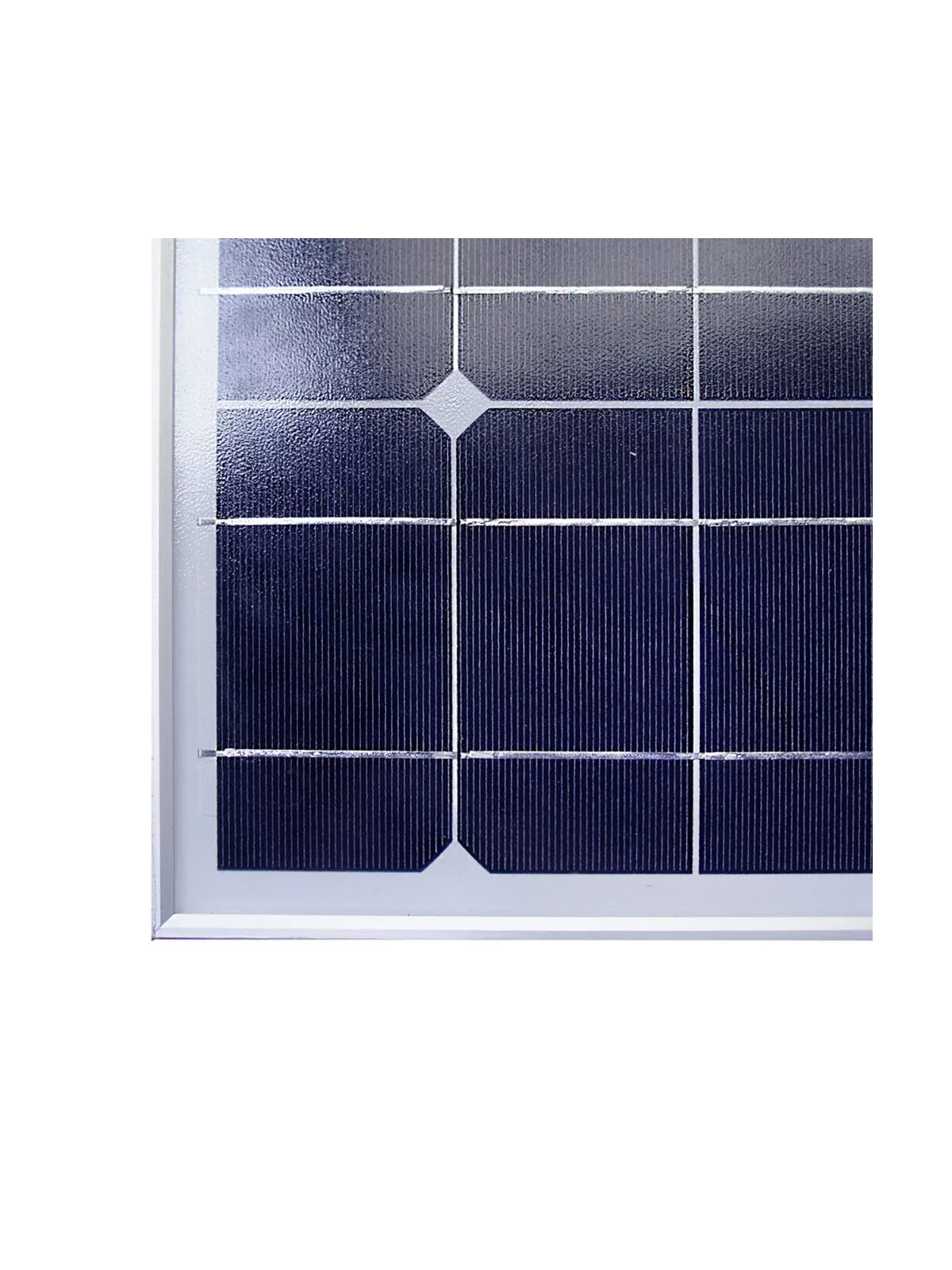

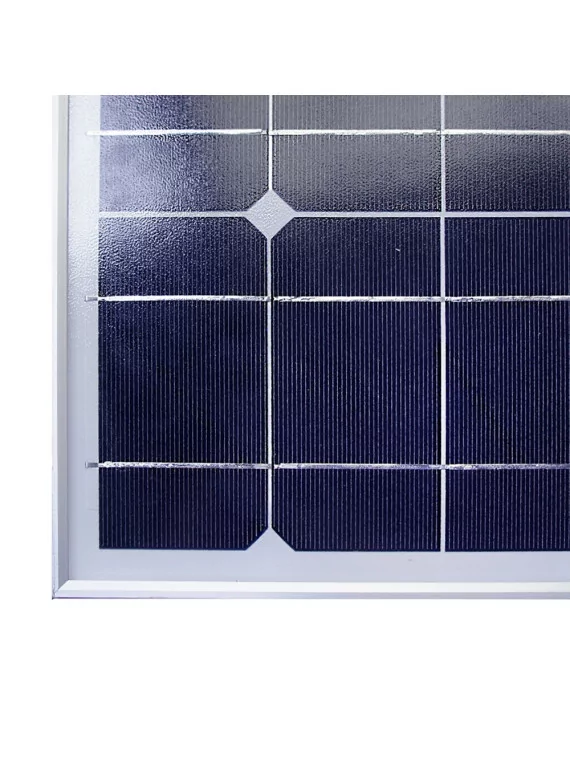

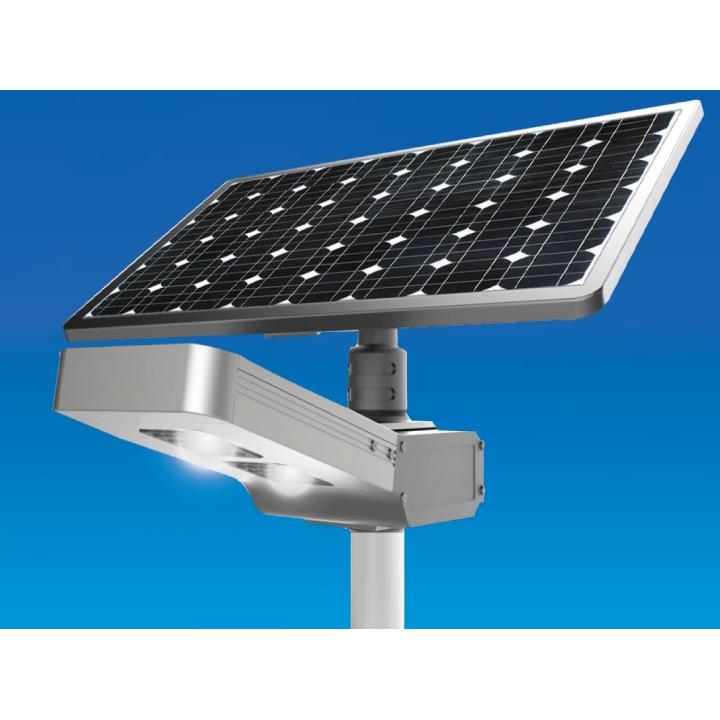

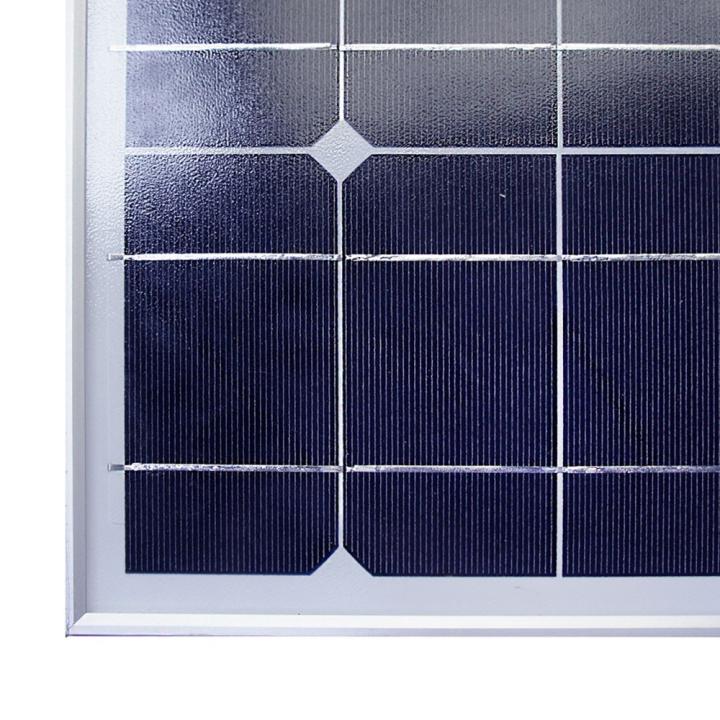

65Wp adjustable photovoltaic panel

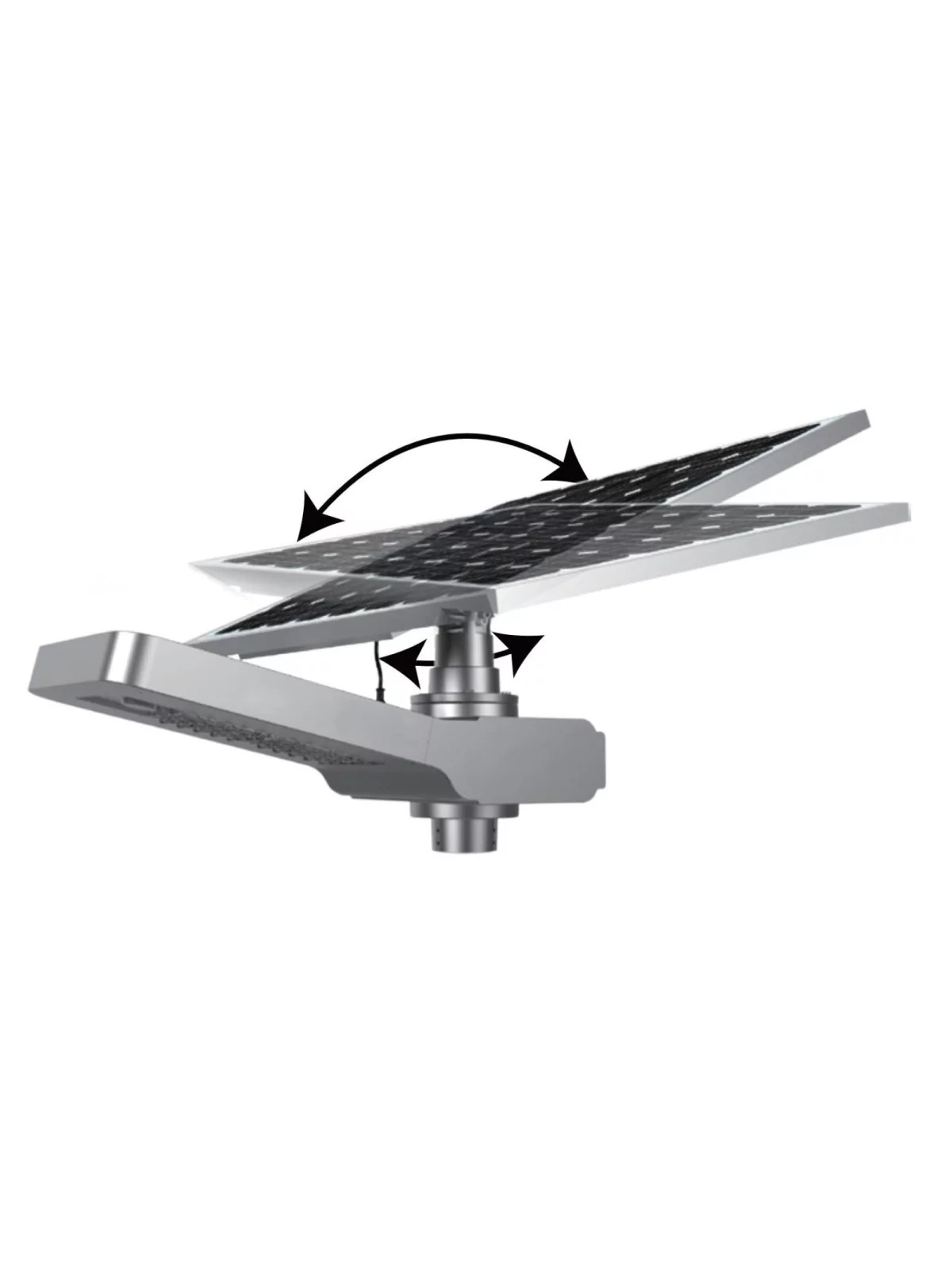

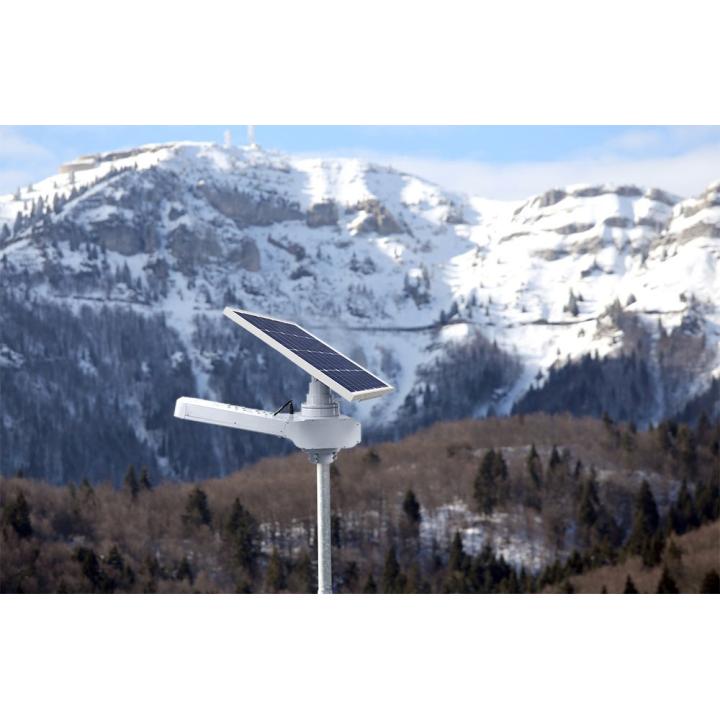

A solar panel is integrated into the top of the lamp post. The special feature of this panel is that it is fully adjustable (360° rotation and fore-and-aft tilt) to ensure correct exposure of the entire panel surface regardless of its location, unlike some lamp posts with fixed panels.
- Monocrystalline cells
- Power: 65 Wp
- Easy and quick to install
- Aluminum frame
Vmp- : 18.0V
- Imp: 2.78A
- Voc: 21.6V
- Isc: 3.02 A
- Dimensions: 610 x 541 x 25 mm

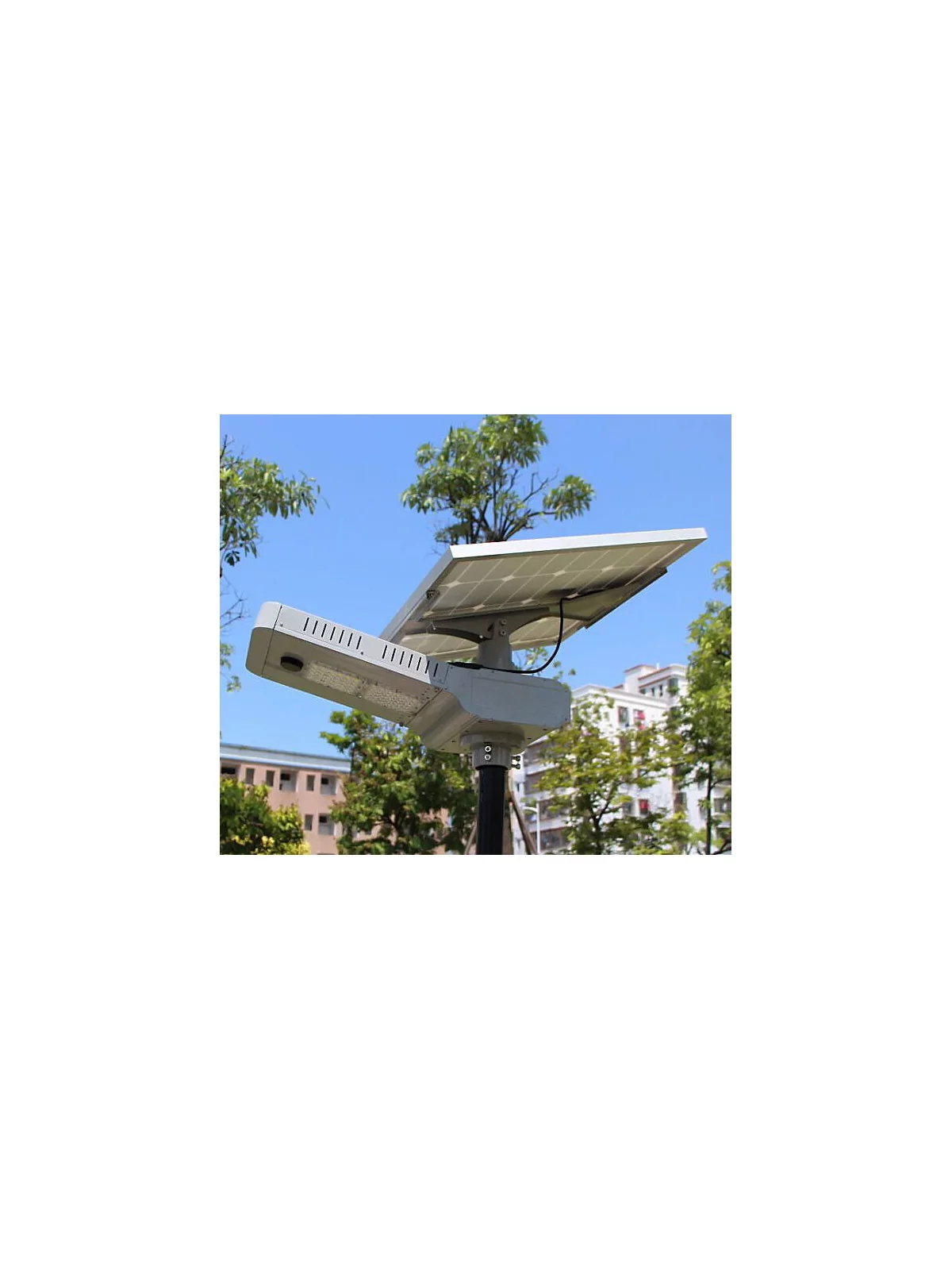

20W solar spotlight
The 20W LED lamp can be used to illuminate parking lots, driveways, streets, etc.
The recommended distance between lampposts is between 10 and 30 meters.
Features :
- Usage: street lighting
- Color temperature: 3000-6500 K
- LLuminous
flux- : 2500-2800 Lm
- LED quantity: 40pcs
- LED chip: Bridgelux
- CCRI: maw 70Ra
- Control voltage: 5V
212 Wh Lithium solar battery
The lamp features a high-capacity Lithium battery for storing energy accumulated during the day.
Service life: 5 to 8 years ( ≥ 2000 charge/discharge cycles)
High resistance to heat

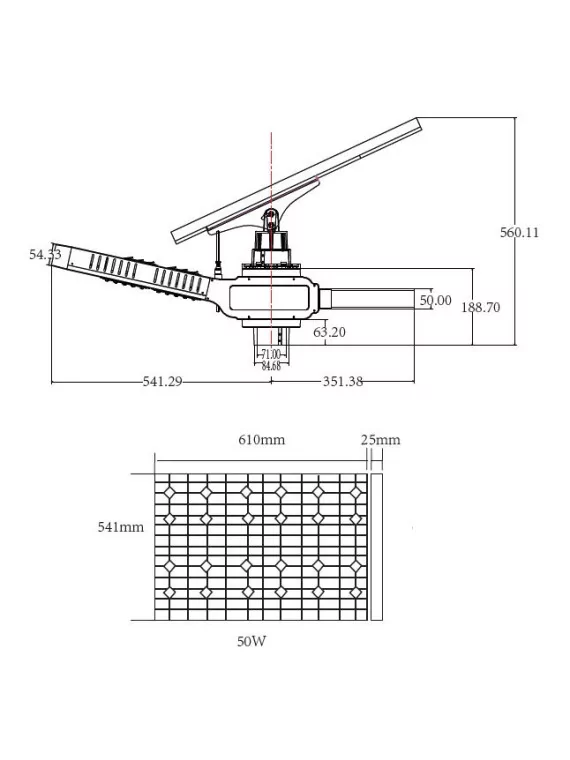

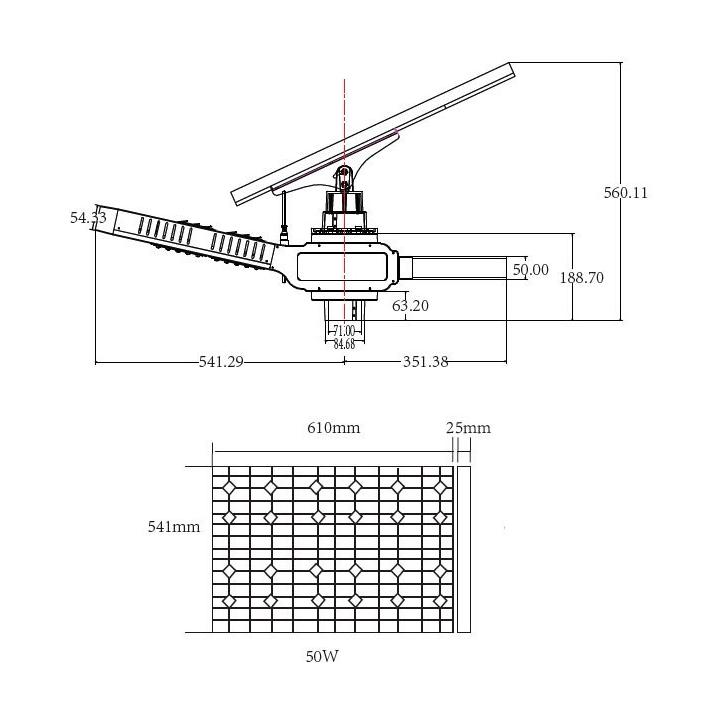

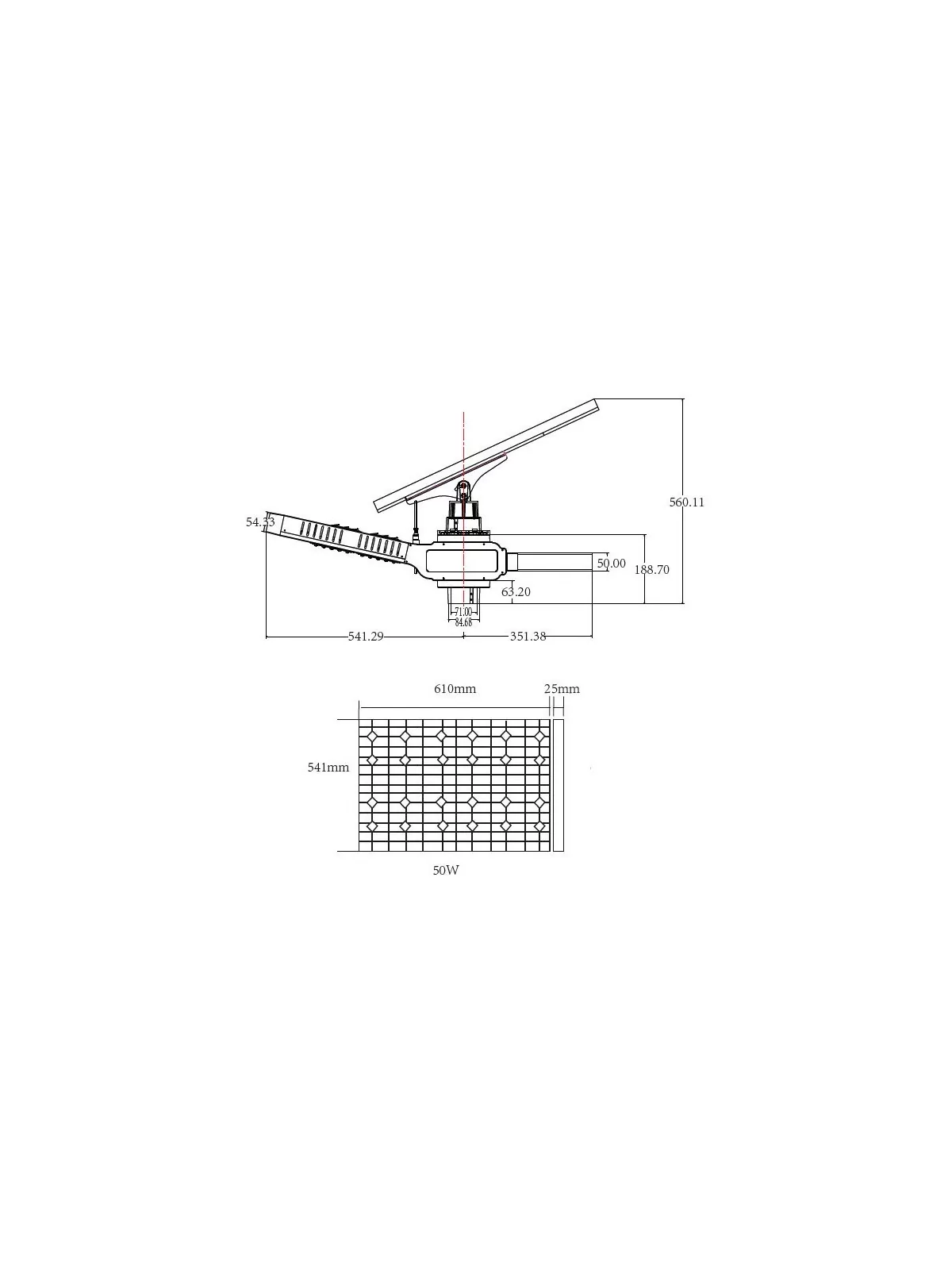

Dimensions of solar spotlight and photovoltaic panel
Description
| WU 65 |
WU| 80 |
WU| 100 |
WU| 150 |
WU| 100PLUS |
| Power | 65W/18V | 80W/18V | 100W/18V | 150W/18V | 100W*2pcs/18V |
| Material | Single-crystal silicon | Silicon |
| monocrystalline | Monocrystalline silicon | Monocrystalline silicon |
| Solar cell efficiency | 19-20% | 19-20% | 19-20% | 19-20% | 19-20% |
| Capacity | 210WH | 340 WH | 420WH |
575WH
| Charging cycle time | 2000 times | 2000 | times | 2000 times | 2000 times | 2000 times |
| Luminous flux | 3000-3500lm | 4500-5000lm | 6000-6500lm |
7200-7500lm
| Luminous efficiency | 20W | 30W | 40W | 50W | 60W |
| LED quantity | 105 pieces | 105 pieces105 pieces | 105 pieces | 105 pieces |
| Color temperature | 3000-6000K |
| Lamp head material | Aluminum alloy |
| Elevation angle | 12° (caution when using Dialux) |
| Light distribution | Batwing lens with polarized light |
| Beam angle | X axis : 140° Y-axis : |
| 50 |
| Lighting duration (full charge) | 2-3 rainy days |
| Operating temperature |
-20℃~60℃
| Mounting height |
5-8m| 7-12m |
7-12| m |
| Installation spacing | 10-20m | 20-30m |

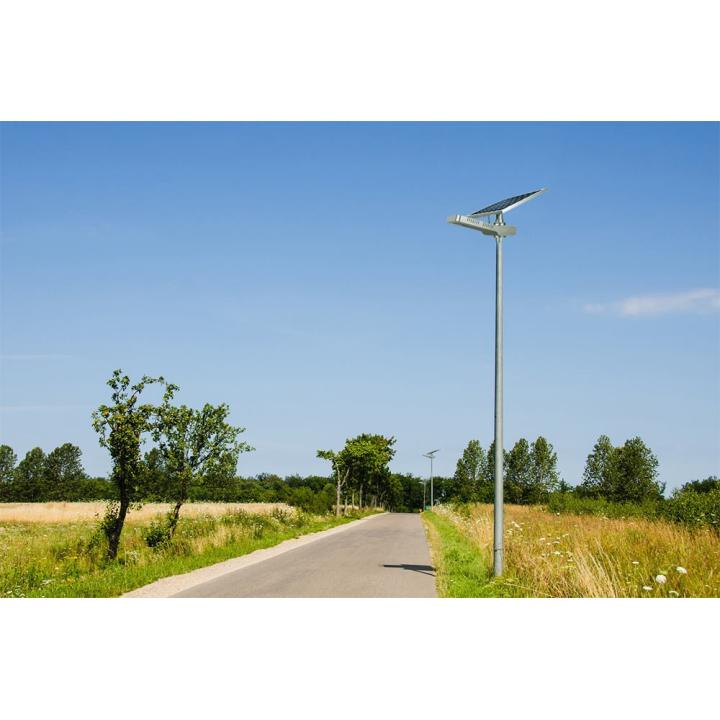

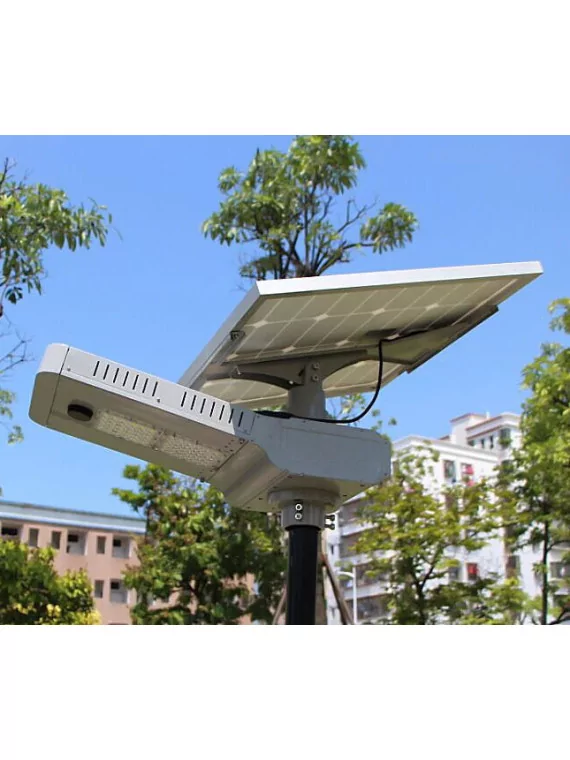

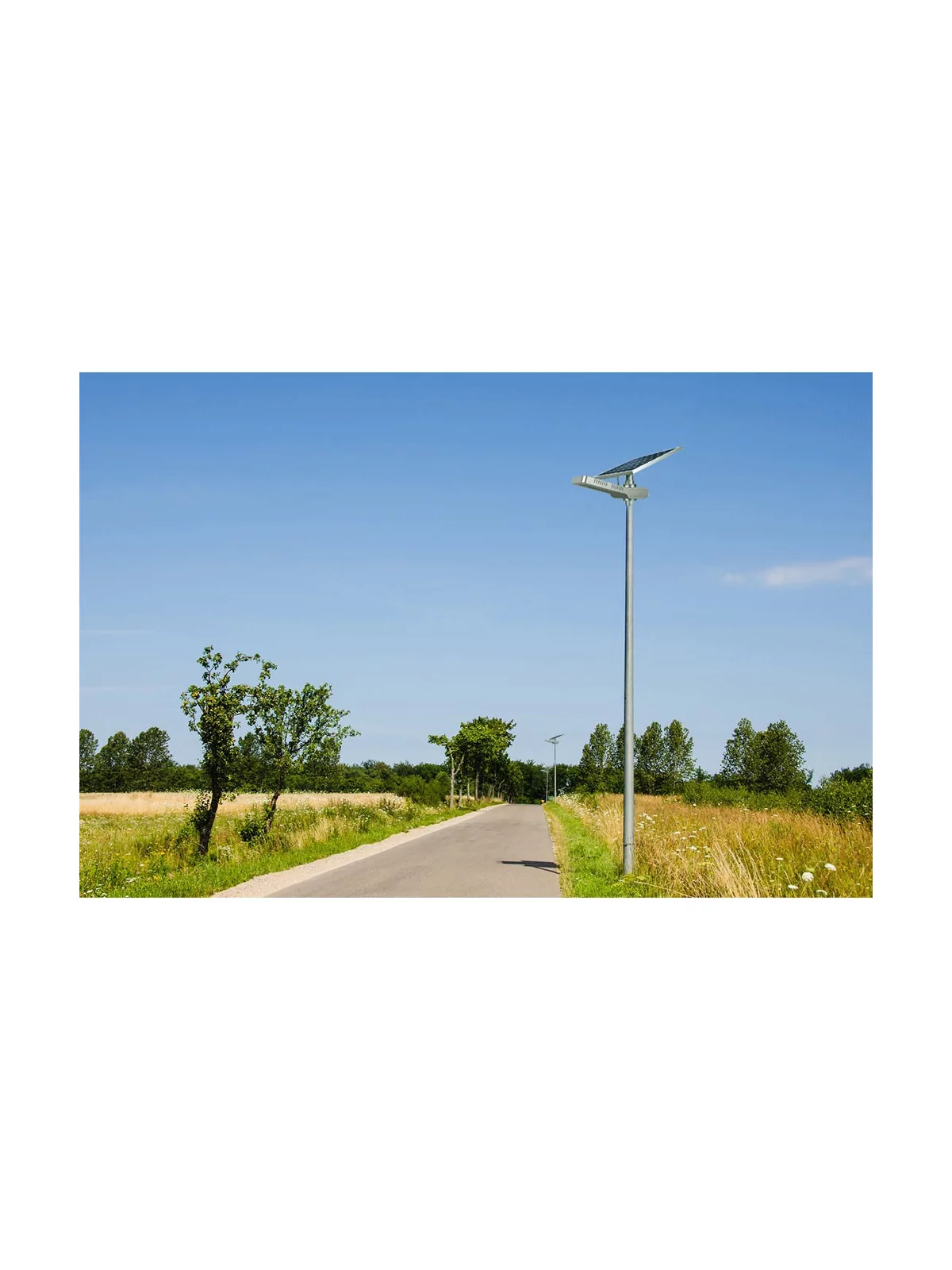

Example of use of 20W solar streetlight
