All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see details of the products you have chosen directly below the price.

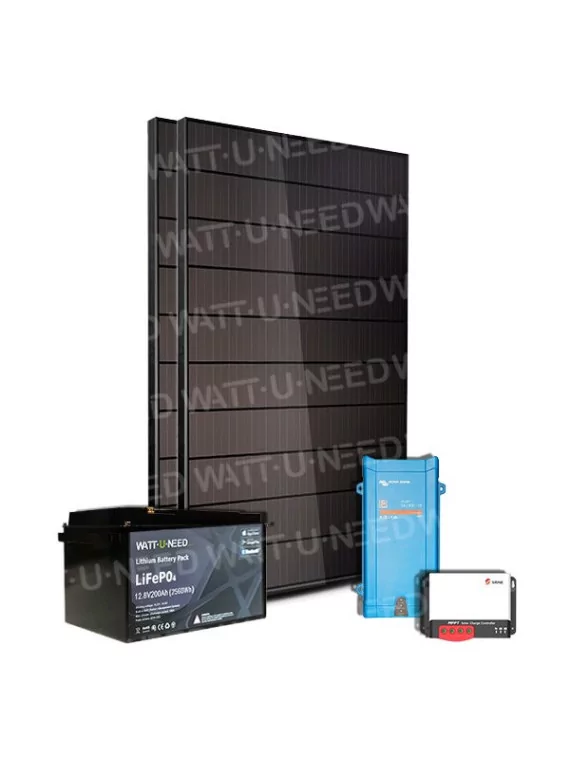

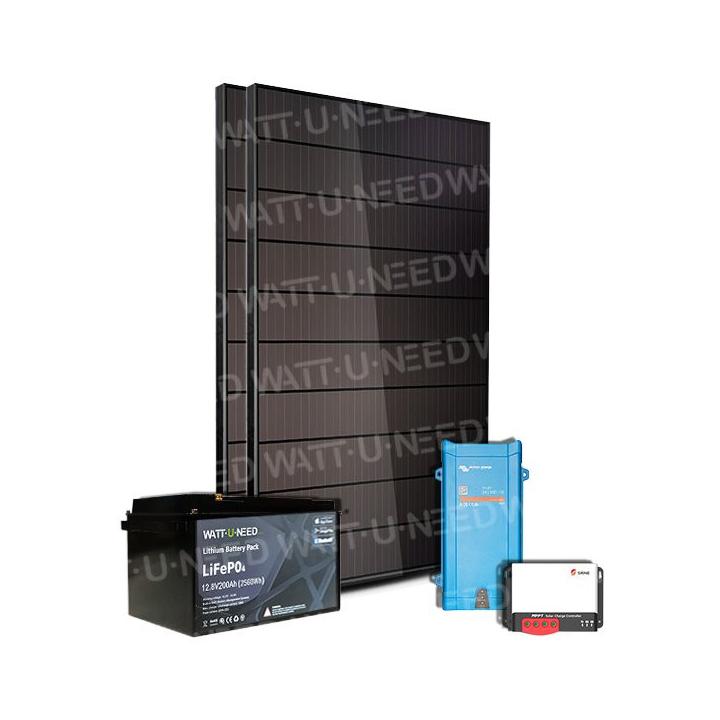

This kit is sized for the general purpose of powering a cabin or small cottage.
The products described are subject to change depending on availability. (See kit composition)
What can I expect from my Lithium batteries?
Generally speaking, lithium batteries can be discharged much faster than stationary lead-acid batteries. They also allow a greater proportion of their capacity to be used. It's common to be able to discharge them in an hour and use up to 90% of their capacity.
How do you know your battery's capacity?
This is expressed in ampere hours, and is the product of multiplying the battery's capacity (Ah) by its voltage (V):
Example: 4 x 100Ah 12V batteries connected in series will produce a voltage of 48V. These batteries will have a total capacity of 4.8kWh
48V * 100Ah = 4800 Wh = 4.8 kWh
How do I calculate my battery requirements?
To make your life easier, we've developed a tool to help you calculate the size of your autonomous solar kit and the size of your battery bank.
Click here!
- CABLES AND CONNECTORS
All cables and connections are pre-wired in our workshops. Our kits are very easy to assemble for beginners. If you're not sure about the technical side of things, our technical team is on hand to help you every day from 8am to 5pm.
- ASSEMBLY
Installation of this kit is straightforward. Our clear instructions make it easy to assemble without any special knowledge. We answer all your questions before, during and after installation.
- WARRANTY
All products come with an individual warranty.
Panels guaranteed for 20 years at 80% of rated power.
Victron inverter 5-year warranty.
Wind turbine 5-year warranty.
Solar panel
The basic panel selected for this kit has been chosen according to our supplies.
You'll find the panel's specifications in the panels category.
Solar Regulator SRNE MPPT 12/24V 50A
Thanks to PowerCatcher MPPT technology, the MC series solar charge controller enables maximum energy tracking for solar panels.
This technology enables the controller to quickly and accurately track the maximum power point of a photovoltaic system in any environment, to obtain maximum output from a solar panel in real time, and to significantly increase the energy utilization efficiency of the solar system.
Features
| Maximum open-circuit PV voltage | 92V(25°C) ; |
| 100V (Lowest ambient temperature) |
| Maximum power point voltage range | 50A |
| Rated charging current |
| 1320W/24V |
| Maximum PV input power | = 98% |
| Charge conversion efficiency | >99% |
| Temperature compensation coefficient | -3mv/°C/2V (default) |
| Lithium battery without temperature compensation |
| Operating temperature |
| / +60°C |
| Communication mode | TTL serial communication |
| Dimensions (mm) | 183*127*69.5 |

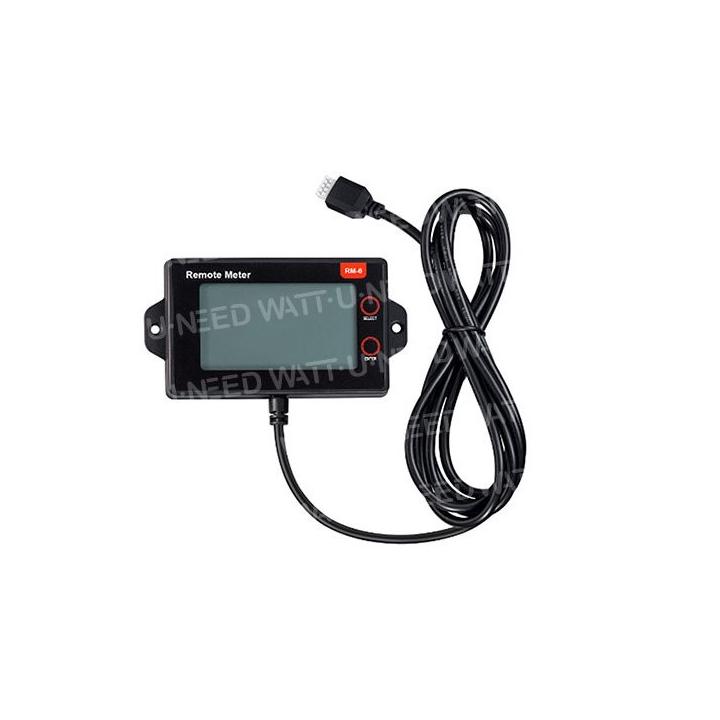

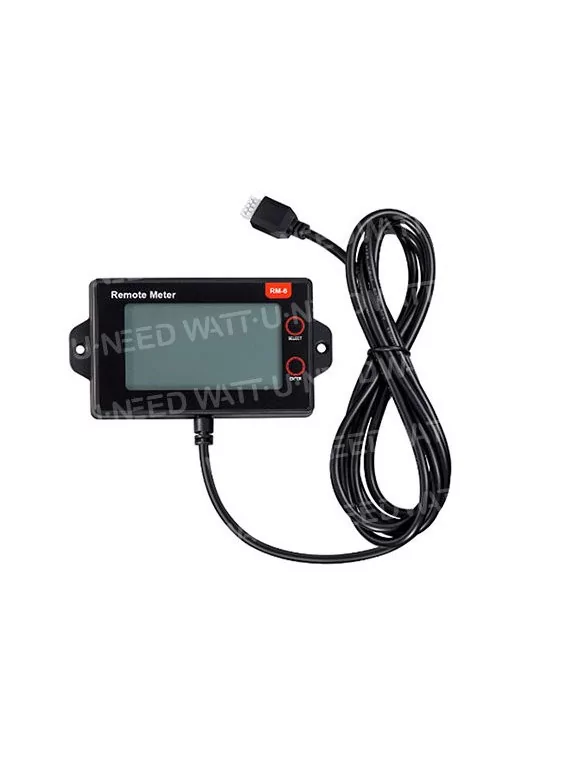

RM-6 LCD display for SRNE MPPT controller
For real-time monitoring of controller data and operating status.
Features
| Apply controller models | MC2420N10/MC2430N10/MC2440N10/MC2450N10 |
| Power consumption in standby mode | <0.03W |
| Power consumption in operation | <0.04W |
| Connection cable length |
| 5M |
| Operating temperature |
| / +65°C |
| Dimensions | 104.5X55.5X11.8 mm |

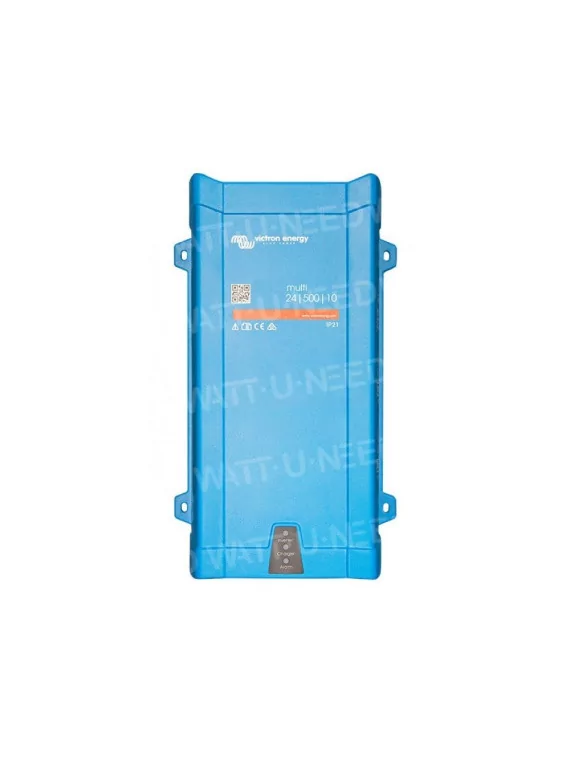

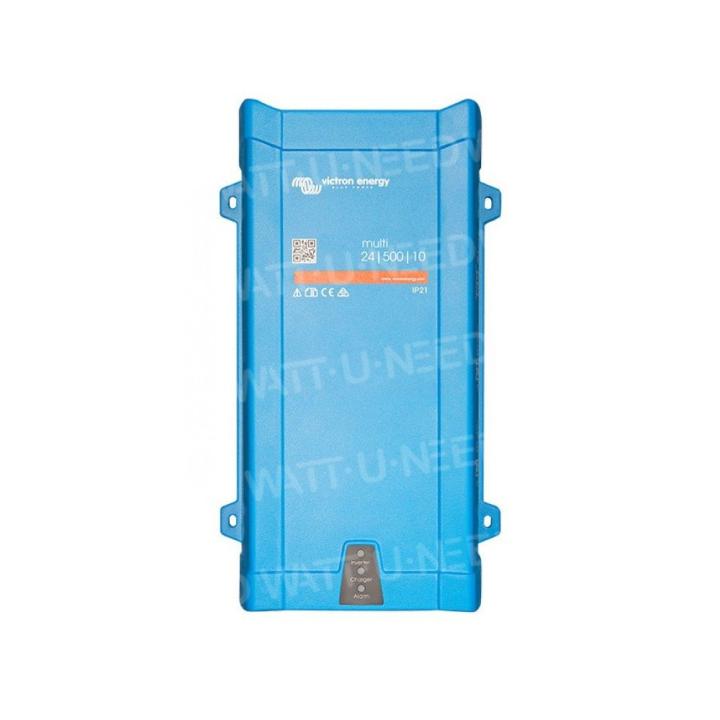

Victron MultiPlus 12V / 24V / 48V - 500VA TO 1200VA
The Phoenix Multiplus from Victron Energy combines in a single device a converter with a very high, perfectly sinusoidal output voltage, a fully-fledged battery charger with a full-power output and a 4A output for the starter battery.
Features
| Multiplus | C120/800 35 C24/800/16 C48/800/9 |
| Input voltage range (VDC) |
| .5 - 17V 19-33V 38-66V |
| Output | Voltage : 230VAC +- |
| 2% |
| Converter output power at 25°C (VA) (3) | 800 |
| Continuous output power at 25°C (W) | 700 |
| Continuous output power at 40°C (W) | 650 |
| Continuous output power at |
| 65°C (W) | 400 |
| Maximum efficiency (%) | 92/93/94% |
| No-load power consumption |
| No-load power consumption in search mode |
| AC input | Supply voltage range : 187-265 VAC Input frequency: 45 - 65 HZ Power factor:1 |
| "Absorption" charging voltage (VDC) | 14.4/28.8/57.6 |
| "Float" charging voltage (VDC) | 13.8/27.6/55.2 |
| Service battery charging current (A) | 35/16/9A |
| Starter battery charging current (A) |
| (12 and 24V models only) |

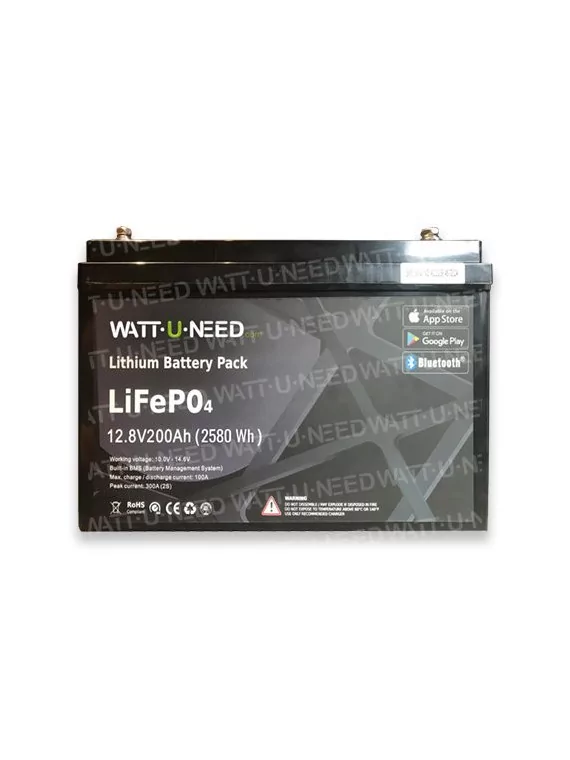

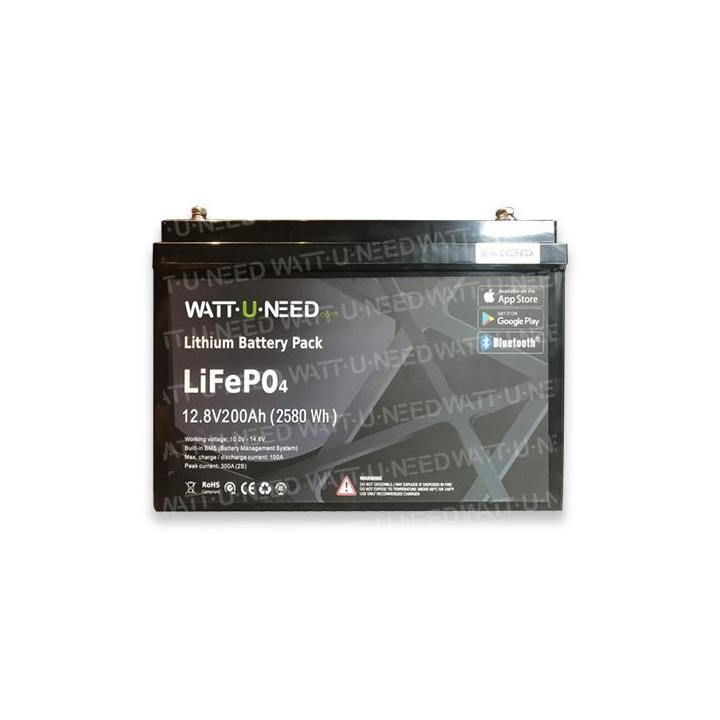

Wattuneed 12.8V 200Ah lithium battery
- Longer life
- Super-safe Lihtium technology (LifePO4)
- Standard size design
- Low weight
- Greater useful capacity
- Wider operating temperature range
- Low self-discharge
- Bluetooth surveillance monitoring
- BMS protection
Features
C
| Charging current |
| xml-ph-0032@ | load current | 150 A |
