Solar kit 750Wp - 100Ah24V - 800VA
€1,113.28
Tax included
0564
0712971130876

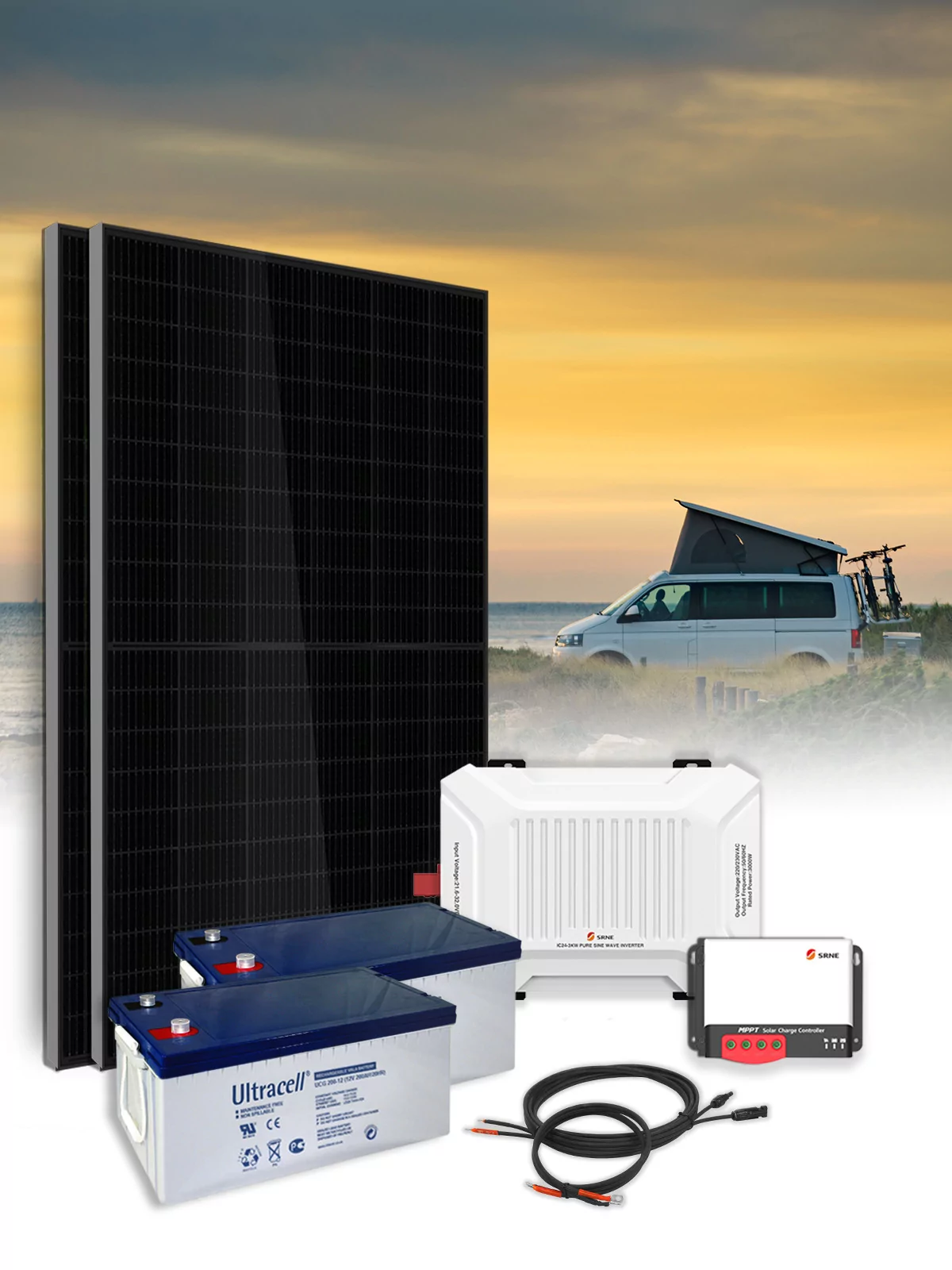

This kit includes
- 2XShinson S-Nano TOPcon Bifacial 445 Wp | High Performance Solar Panel

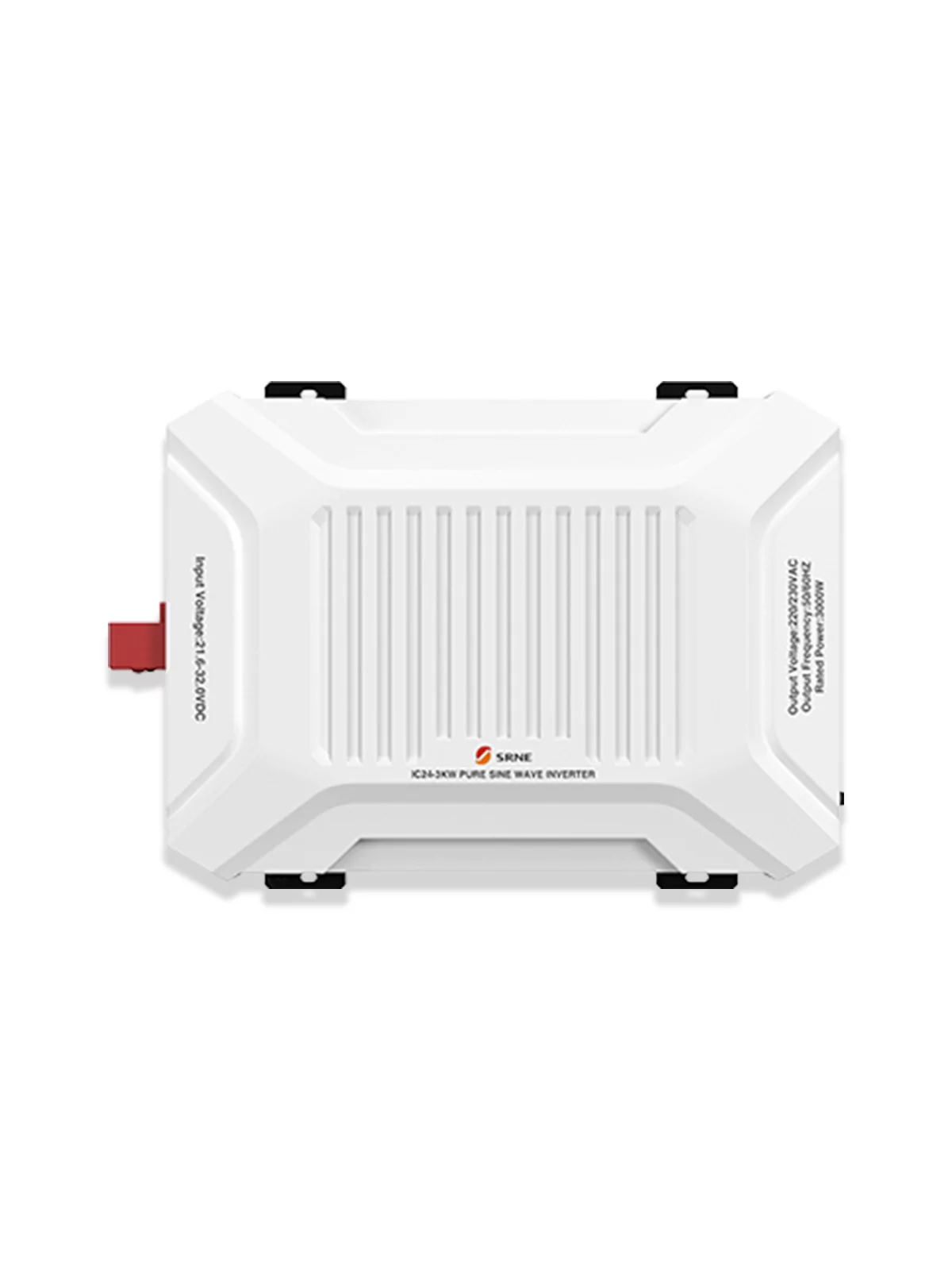

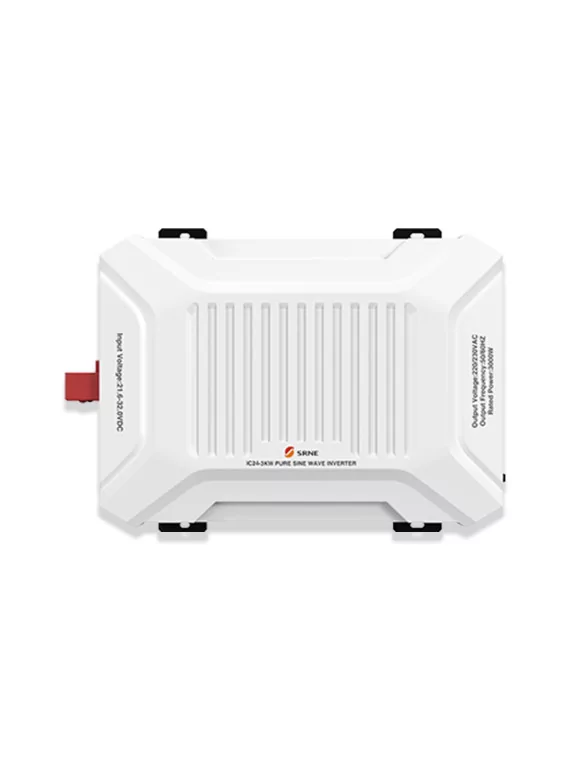

- 1XConverter SRNE IC Series 12V - 1000W
- 1XSolar Regulator SRNE MPPT 12/24V 30A - MC2430N10
- 1X2X4mm2 solar cable with Type MC4 (sold by the meter - 10m)

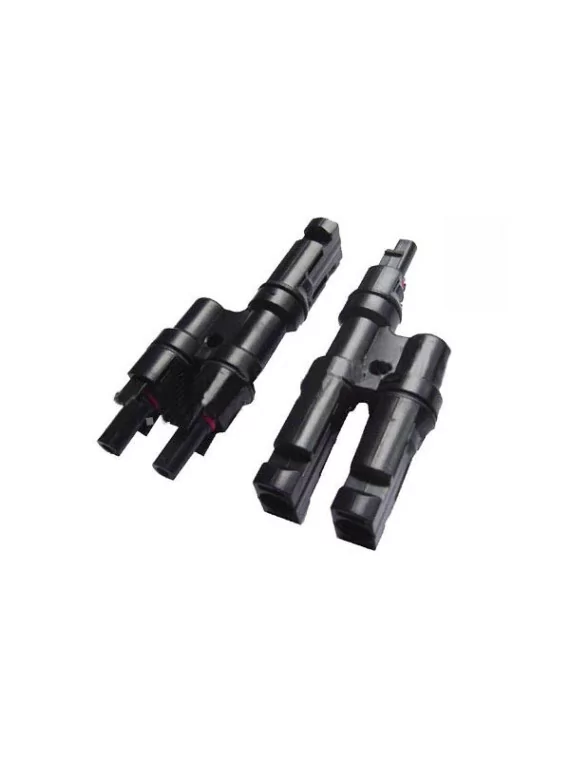

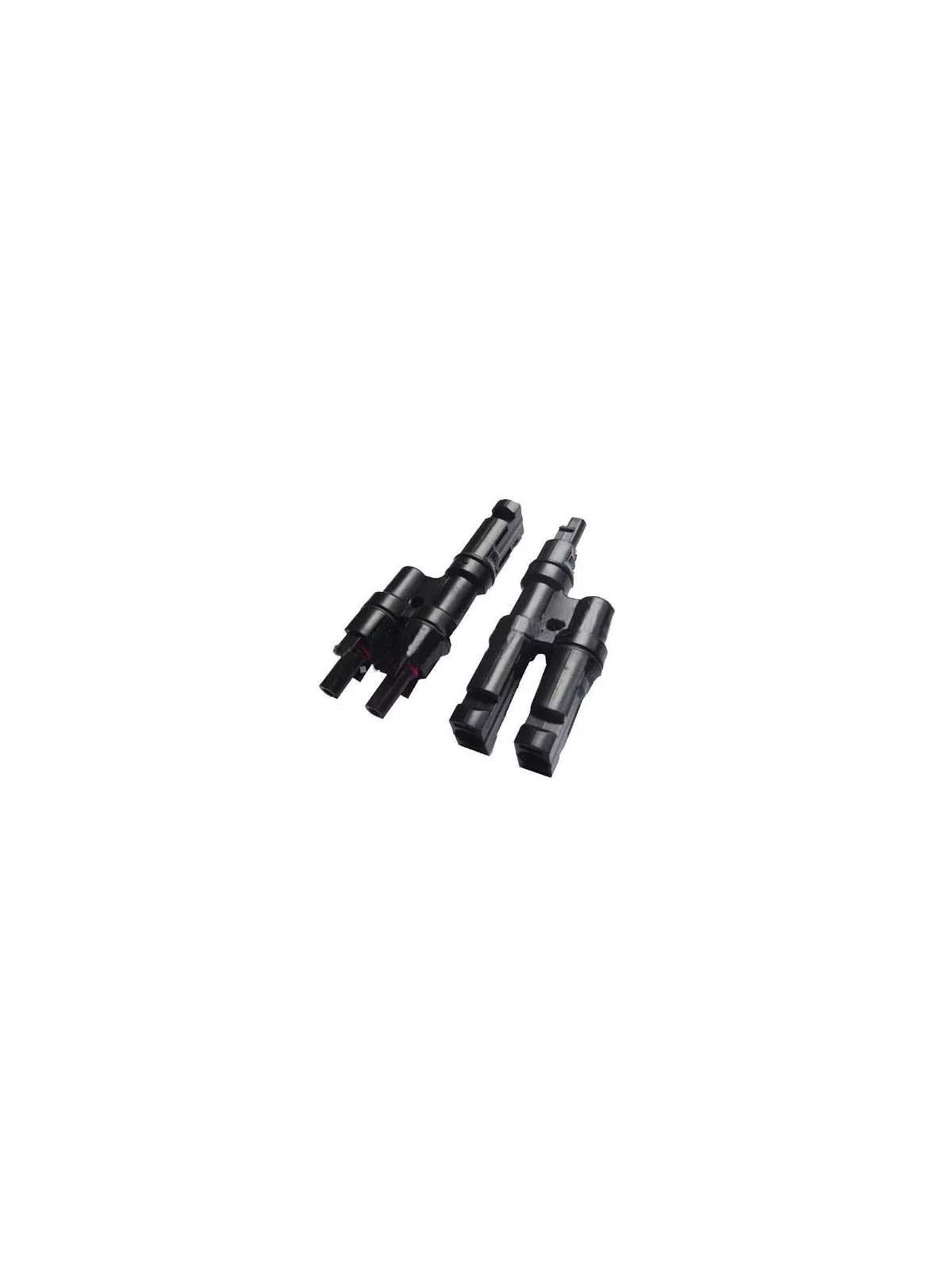

- 1XDouble type MC4-like connector male & female
- 2XUltracel GEL battery 12V 100Ah

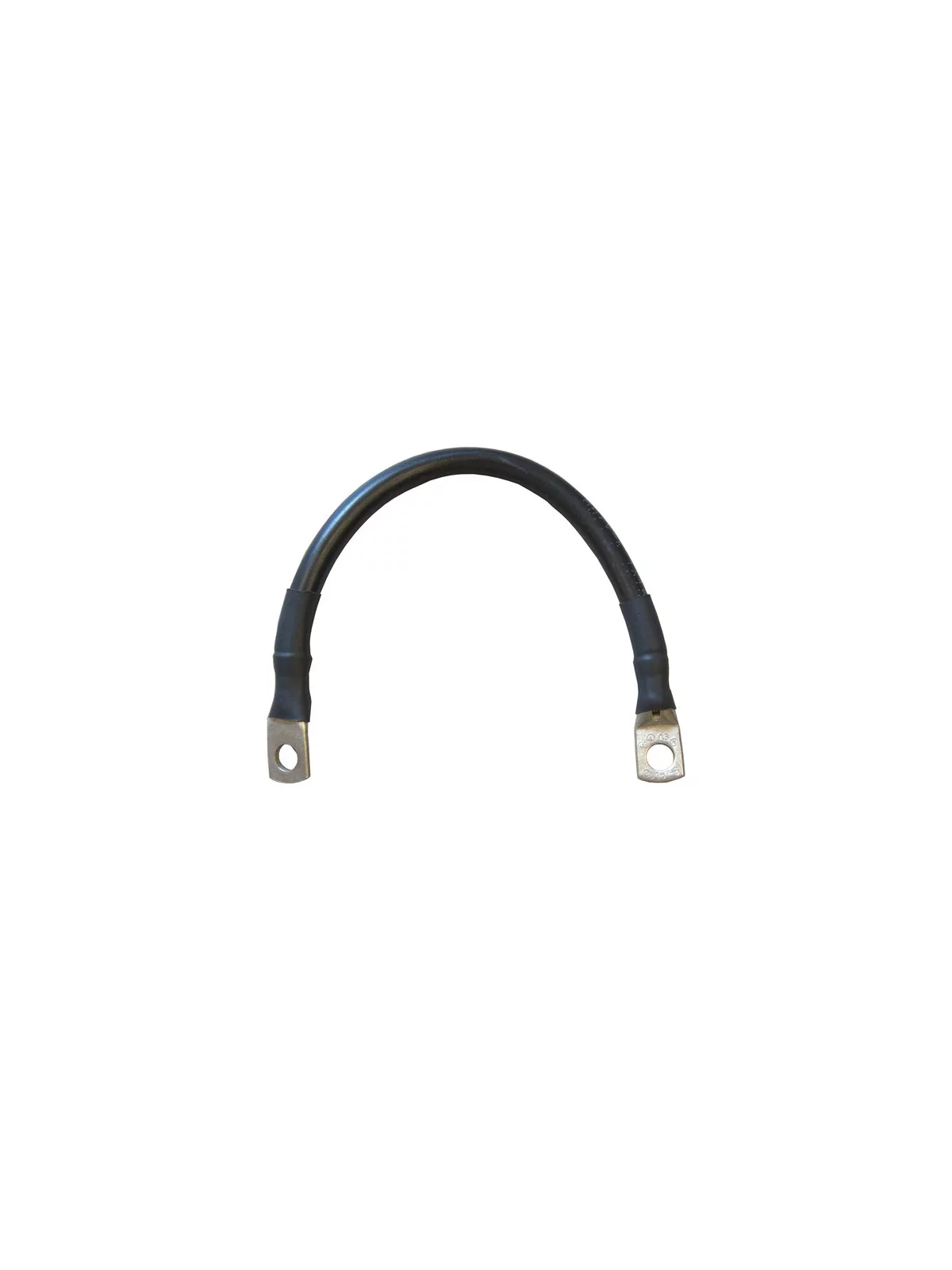

- 2XBattery cable 2x16mm2 - 2m
Select products from the sections below
Shinson S-Nano TOPcon Bifacial 445 Wp | High Performance Solar Panel
Price per unit
€104.50 (Tax incl.)
€104.50 (Tax incl.)
Solar kit for off grid site
Composition
Solar panel
The panel selected as a base in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.
Victron Phoenix VE.Direct 12/24/48V - 800VA
Pure Sine Wave Inverter Victron Phoenix 12/24/48/800VA
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
| Phoenix Inverter | 12V / 800 24V / 800 48V / 800 |
| Cont. power at 25°C (1) | 800 VA |
| Cont. power at 25°C / 40°C | 650 / 560 W |
| Peak power | 1500 W |
| Output AC voltage / frequency (adjustable) | 230 VCA ou 120 VCA +/- 3 % 50 Hz ou 60 Hz +/- 0,1 % |
| Input voltage range | 9,2 - 17 V 18,4 - 34,0 V 36,8 - 62,0 V |
| Low battery shut down (adjustable) | 9,3 V 18,6 V 37,2 V |
| Low battery restart & alarm (adjustable) | 10,9V 21,8V 43,6V |
| Battery charged detect (adjustable) | 14,0V 28,0V 56,0V |
| Maximal efficiency | 90 % 90 % 91 % |
| Zero-load power | 6,5 W 7 W 9,5 W |
| Default zero-load power in ECO mode (default search interval: 2,5 s, adjustable) | 1 1,5 3,0 |
| ECO mode stop and start power setting | Adjustable |
| Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high |
| Operating temperature range | -40 to +60°C (fan assisted cooling) (derate 1,25% per °C above 40°C) |
| Humidity (non-condensing) | max 95% |
| ENCLOSURE | |
| Material & Colour | Châssis en acier et couverture en plastique (Bleu RAL 5012) |
| Battery-connection | Screw terminals |
| Maximum cable cross-section | 25 / 10 / 10 mm² / AWG4 / 8 / 8 |
| Standard AC outlets | 230 V : Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) 120 V : Nema 5-15R |
| Protection category | IP 21 |
| Weight | 5,5 kg |
| Dimensions (HxWxD, mm) | 105 x 216 x 305 (12 V model : 105 x 230 x 325) |
| ACCESSORIES | |
| Remote on-off | Oui |
| Automatic transfer switch | FIlax |
| STANDARDS | |
| Safety | EN-IEC 60335-1 / EN-IEC 62109-1 |
| EMC | EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 |
| Automotive Directive | ECE R10-4 |
| 1) Nonlinear load, crest factor 3:1 |

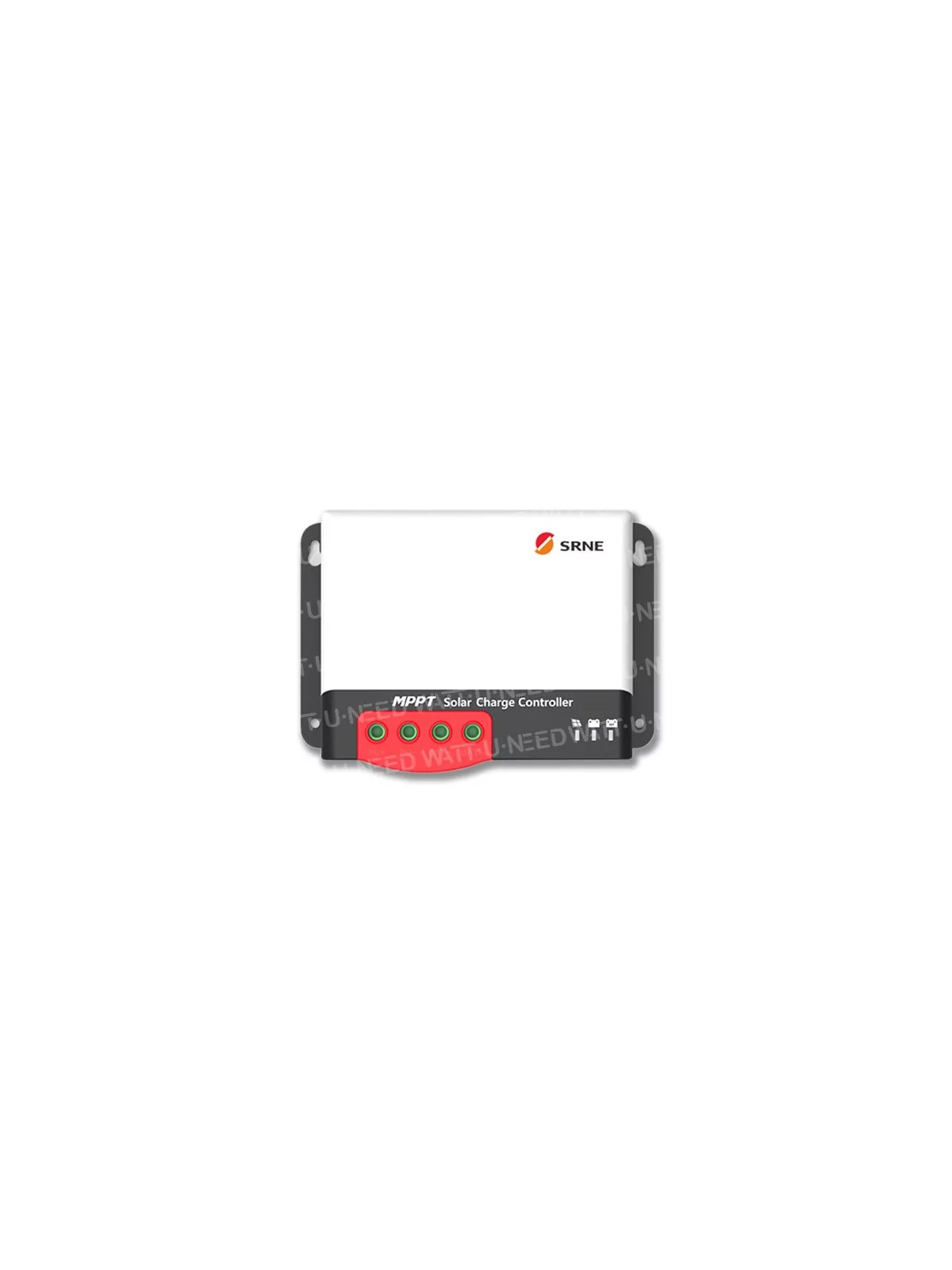

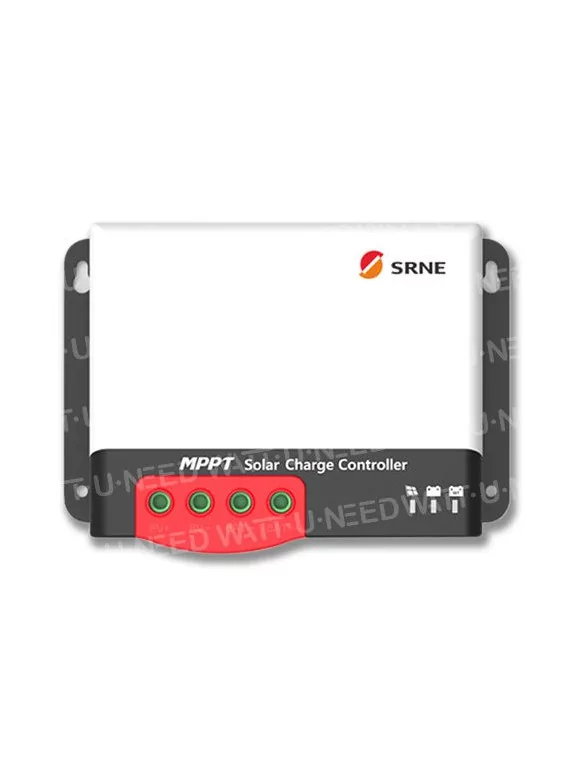

Solar Regulator SRNE MPPT 12/24V 30A
Using PowerCatcher MPPT technology, the MC series solar charging regulator tracks maximum energy for solar panels.
This technology allows the controller to quickly and accurately track the maximum power point of a photovoltaic installation in any environment, achieve the maximum production of a solar panel in real time and increase significantly the energy efficiency of the solar system.
Characteristics
| Articles | Parameter |
| model | MC2430N10 |
| System tension | 12/24V |
| Zero load loss | 10mA |
| Battery voltage | 9V-32V |
| Maximum open circuit PV voltage | 92V (25oC); 100V (Lowest ambient temperature) |
| Maximum voltage range from power point | 30A |
| Nominal load current | 550W/12V 1100W/24V |
| Maximum PV input power | |
| Load conversion return | 99% |
| Temperature compensation coefficient | -3mv/C/2V (defect); Lithium battery without temperature compensation |
| Running temperature | -35C / '60C' |
| IP rating | Ip32 |
| Device weight | 830g |
| How to communicate | Communication series TTL |
| Altitude | |
| Dimensions (mm) | 150-105.6-67.5 |

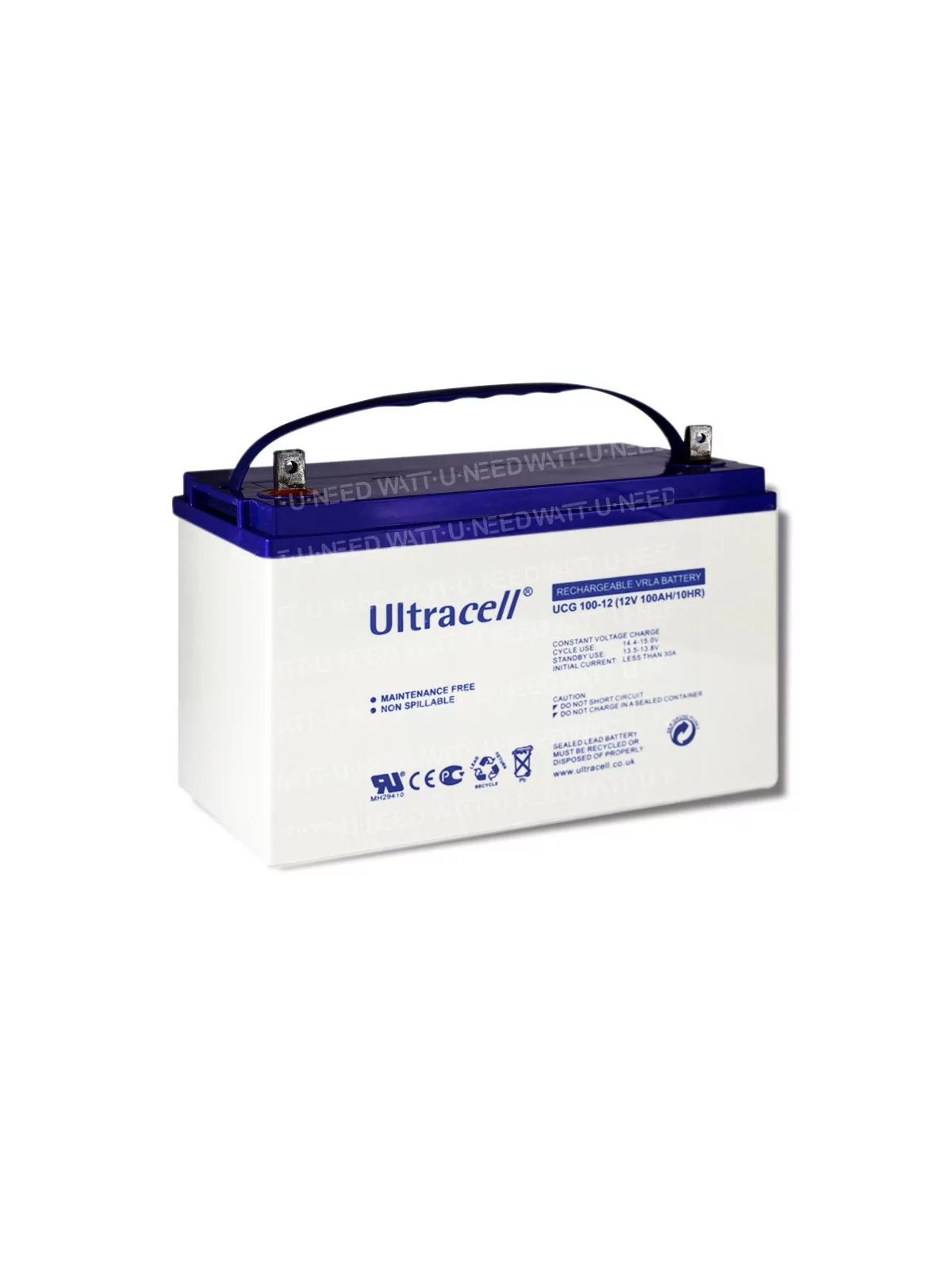

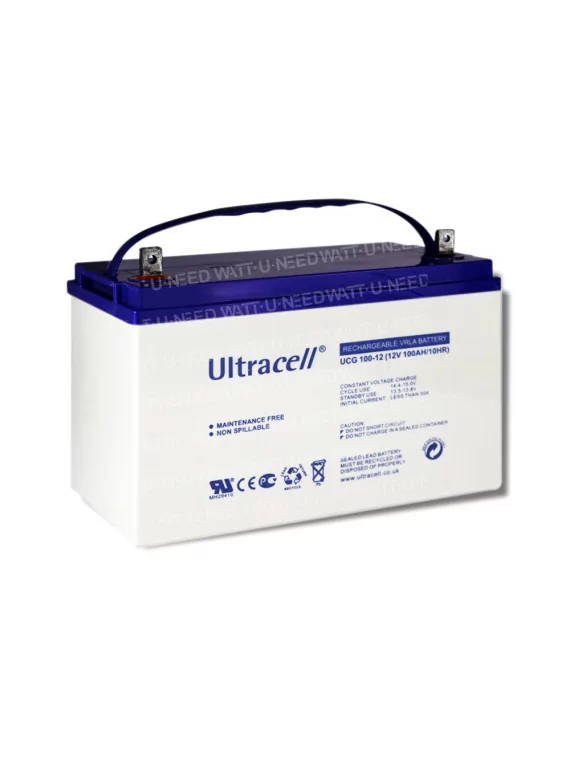

Ultracel GEL Battery 12V 100Ah
Gel batteries are sealed batteries: no maintenance, no addition of distilled water. Strengthened compared to flooded batteries. Safety
A gel battery to withstand the discharge to 50% and its rated capacity when discharged holding time is short. This series has a longer discharge time compared to other batteries. The special plate design increases the life of the battery and especially in warmer temperatures. A separator in the battery improves performance. It also has a longer retention time.
- Rated voltage: 12V
- Capacity: 100Ah
- Dimensions : 327 x 173 x 212 mm
- Weight: 31 Kg

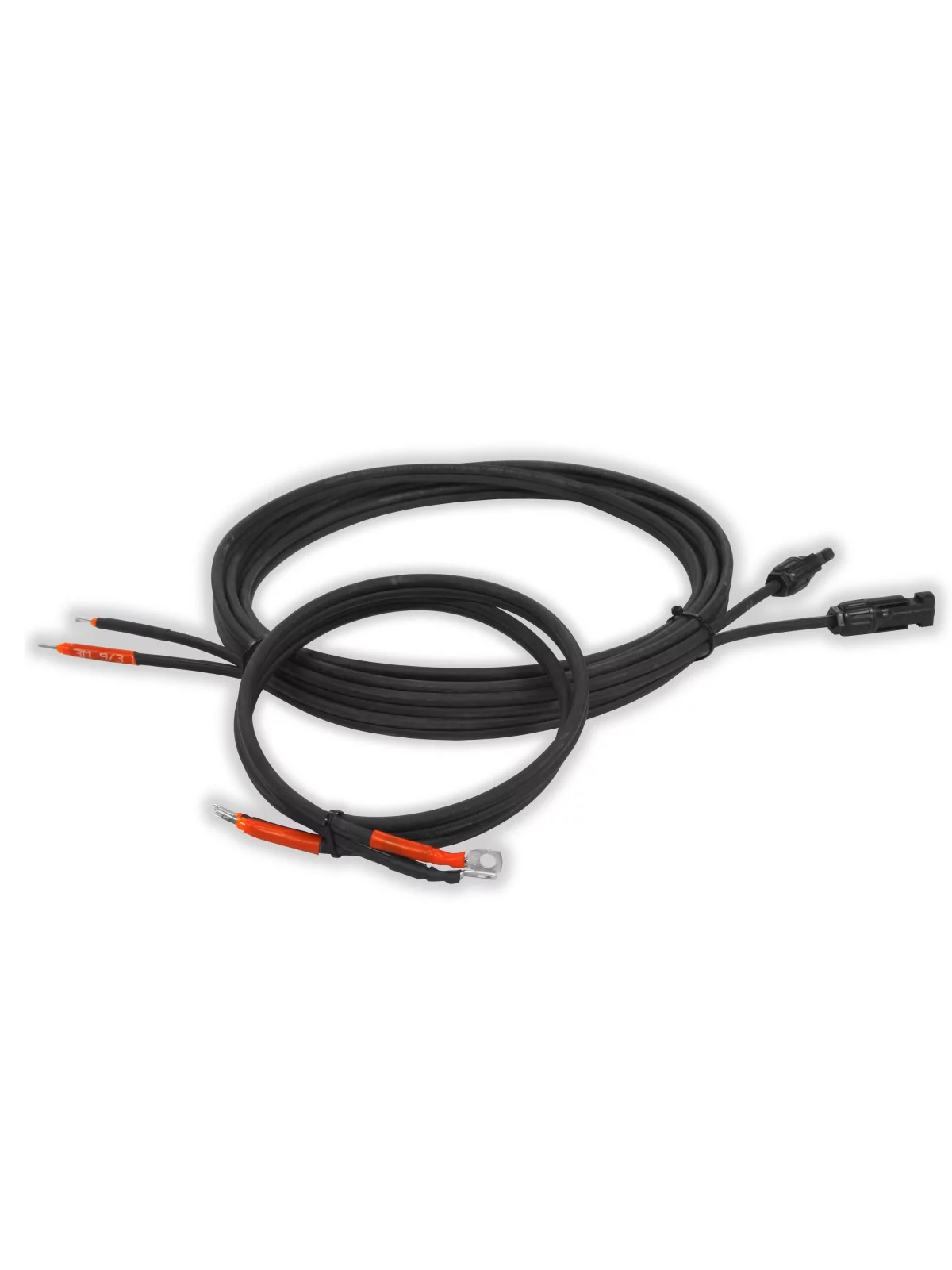

5m solar cable 4mm² + 2m battery cable 4mm²
solar cable 2x4mm² with mc4 connectors crimped on cable
battery cable with pods

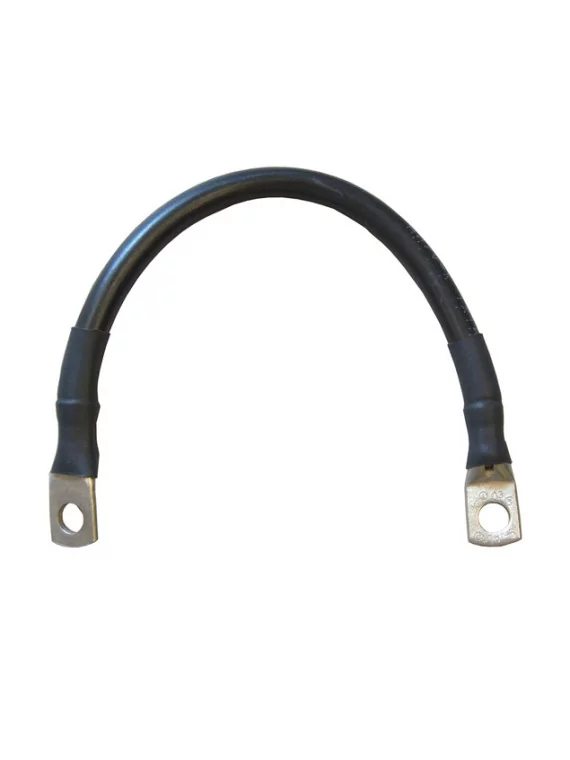

16mm² battery cable with pods
Option : mounting systems
1. Roof installation
Everything for fixing your kit on the roof.
Fixing hook for slates
Fixing hook for tiles
Hexagon head screw M10x25 100x
Hexagon nuts M10
Aluminum track for fastening of the panels superimposed on the roof or structure on the ground. 40 x 40 mm
Fastening clams
- Middle clams
- End clams
Fixed on the aluminum track with bolt and nut (supplied)
—————————————————— OR ——————————————————
2. Floor structure
Adjustable aluminium support (15-20-25-30-35°)
Aluminum track for fastening of the panels superimposed on the roof or structure on the ground. 40 x 40 mm
Fastening clams
- Middle clams
- End clams
Fixed on the aluminum track with bolt and nut (supplied)
0564
Data sheet
- Solar kit type
- Kit 230V AC avec batterie
- Inverter power
- - de 1000VA
- Kit output voltage
- 24V
230V - Type of need
- Garden / Garden's hut
Off-grid - Battery storage
- With storage
- Wind turbine
- Without
- Number of panels
- 2 panels
- Voltage
- 230V
- Battery
- Kit with battery
- Mains re-injection
- off-grid
