Kit 10 panels self-consumption / reinjection tri 3000W SMA without storage
€2,862.63
Tax included
kit-10-sma-tri-3-sans-stock
0712971137998
This kit includes
- 10XShinson S-Nano TOPcon Bifacial 445 Wp | High Performance Solar Panel
- 1XThree-phase inverter SMA Sunny Tripower 3 kVA STP3.0-3AV-40 TL INT BLUE
- 1X2X4mm2 solar cable with MC4 type (sold per metre)
- 1X6mm² earth cable (sold by the meter)
- 1XSchneider 16A tetra circuit breaker
Select products from the sections below
Shinson S-Nano TOPcon Bifacial 445 Wp | High Performance Solar Panel
Price per unit
€104.50 (Tax incl.)
€104.50 (Tax incl.)
Three-phase inverter SMA Sunny Tripower 3 kVA STP3.0-3AV-40 TL INT BLUE
Price per unit
€1,707.47 (Tax incl.)
€1,707.47 (Tax incl.)
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products directly below the price.
This kit is sized with the general purpose of being installed with the public network.
The basic composition of the kit contains 10 solar panels, an SMA Sunny Boy 3.0 inverter and the solar cable to connect the panels to the inverter. (The mounting system as well as the wiring and protections can be modified to meet your needs).
SOLAR PANELS:
In its basic version, this photovoltaic system will bring you an average of 12 Kwh per sunny day. The productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.
We invite you to consult Our solar production simulator to determine precisely what your solar production will be.
Warranty 25 years at 80% of the rated power.
NETWORK:
The new Sunny Boy 3.0 successor to the Sunny Boy 3000TL successfully used worldwide, is much more than a photovoltaic inverter. The Sunny Boy is ideal for solar energy production for single-family homes. Its lightweight design and external fittings allow for quick installation. Compatible with the latest communication standards, the inverter can be equipped with intelligent energy management and SMA storage solutions at any time.
CABLE AND CONNECTORS:
All cables and connections are pre-wired in our workshops. Our kits are very easily assembleable by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.
ASSEMBLY:
The installation of this kit takes no more than 2 hours. Once the VarioTwin structures are positioned, all you have to do is 'clip' the panels on them. Attach the inverter to the wall and connect it to your electrical panel.
GUARANTEE:
All products have an individual warranty.
Panels guaranteed 25 years at 80% of the rated power.
SMA warranty: 5 years (extendable 10 years)
Solar panel
The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.

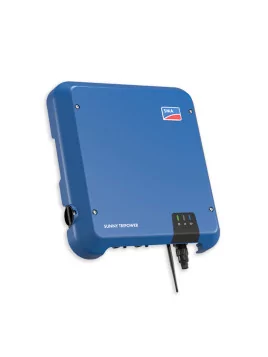

SMA Sunny Tripower STP 3.0 TL INT BLUE
SMA Sunny Tripower three-phase inverter - model: 3.0TL
This inverter is optimal for both traditional residential photovoltaic installations and much more powerful installations.
Characteristics
| Specifications | Sunny Tripower 3.0 |
| Input (DC) | 6000 Wc |
| Max. power of the photovoltaic generator | 850 V |
| Max input voltage | 140 V to 800 V |
| MPP voltage range | 580 V |
| Rated input voltage | 125 V / 150 V |
| Min. input voltage / starting input voltage Max. input current A / B input | 12 A / 12 A |
| Short circuit current max. input A / input B | 18 A / 18 A |
| Number of independent MPP inputs / strings per MPP Output (AC) input | 2 / A:1; B:1 |
| Rated power (for 230 V, 50 Hz) | 3000 W |
| Apparent power AC max. | 3000 VA |
| Rated AC voltage | 3/N/PE; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE; 240 V / 415 V |
| AC voltage range | 180 V to 280 V |
| AC Network Frequency / Range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
| Rated network frequency / rated network voltage | 50 Hz / 230 V |
| Max output current | 3 x 4.5 A |
| Power factor at rated power / adjustable phase shift factor Injection phases / Connection phases | 1 / 0.8 inductive to 0.8 capacitive |
| Yield | |
| Max. yield / European yield | 98,2 % / 96,5 % |
Connection diagram
kit-10-sma-tri-3-sans-stock
1000 Items
Data sheet
- Inverter power
- 3000VA
- Kit output voltage
- 400V
- Type of need
- Self-consumption
- Battery storage
- Without storage
- Wind turbine
- Without
- Number of panels
- 10 panels
- Mains re-injection
- With
- Video Youtube 1 - ID
- zQH0cbvMwj8
