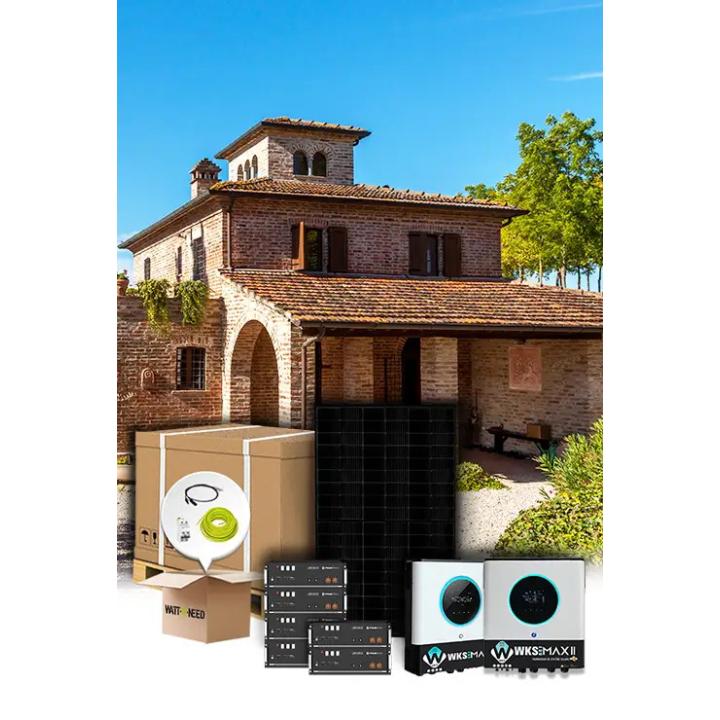

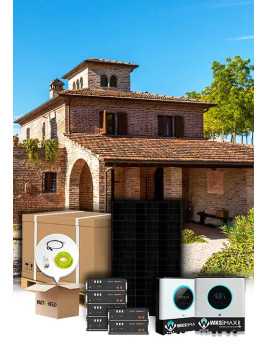

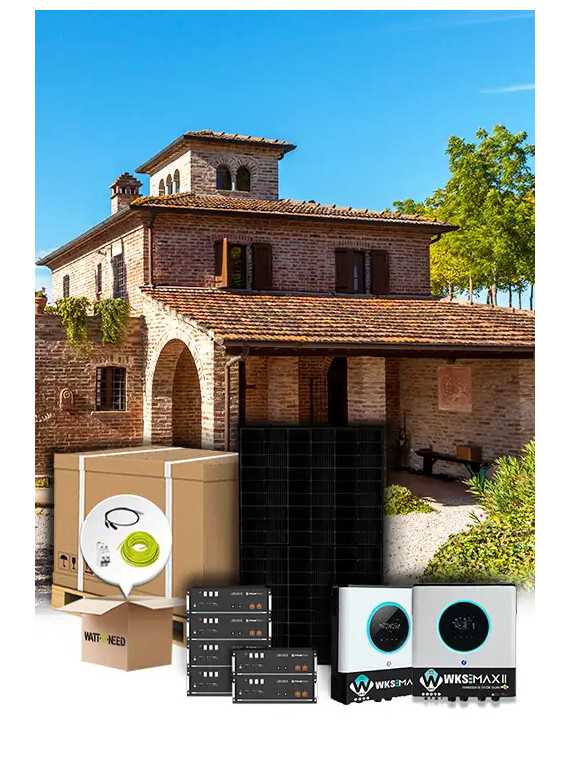

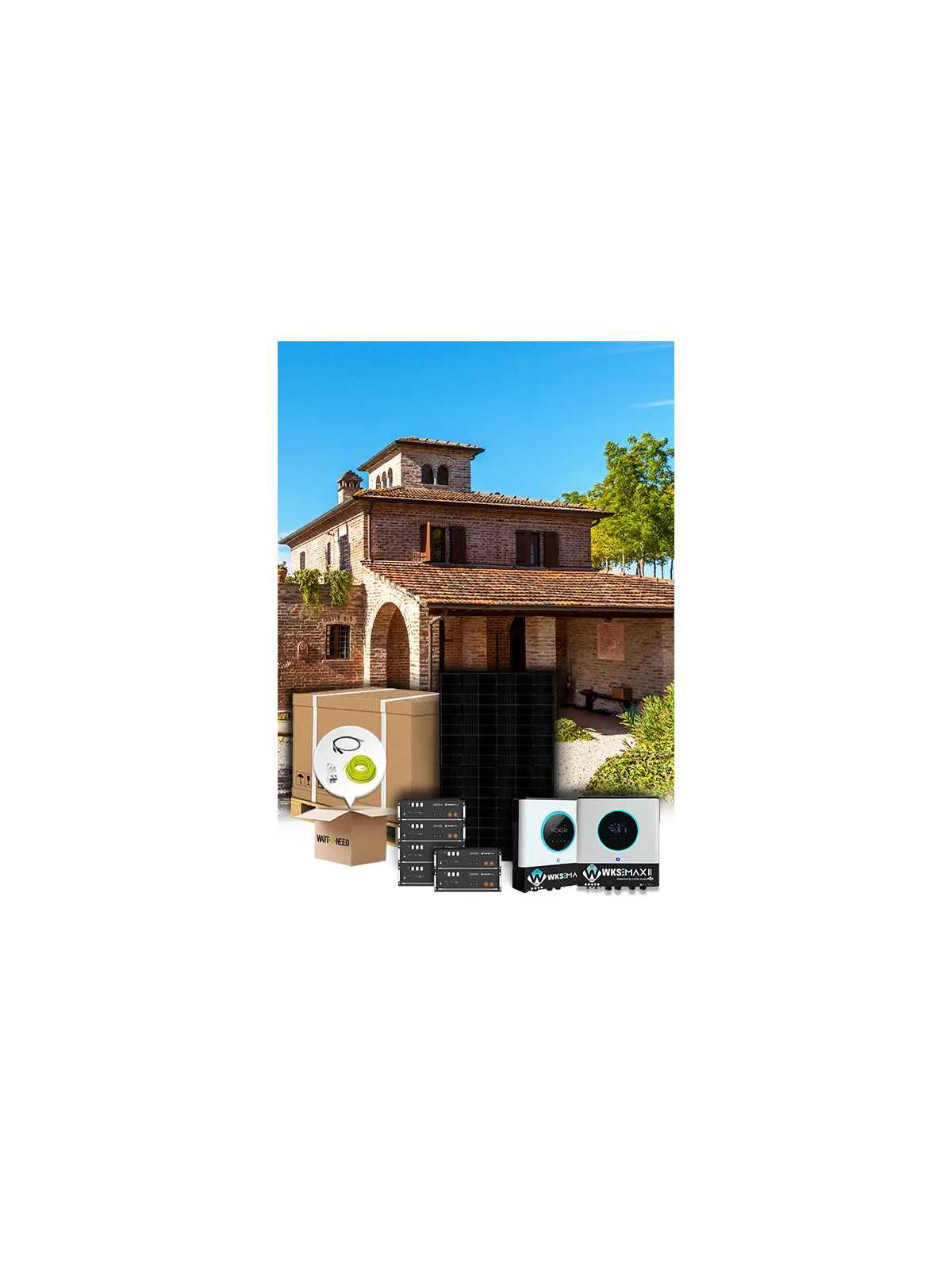

Stand-alone class 3 photovoltaic kit Lithium storage
€15,951.60
Tax included
config-ac-48 pan-20 kva-lithium
0712971139855
High-Performance Solar Self-Consumption Kit
Produce and consume your own energy! Our solar kit provides energy independence with high-performance Omnis Solar Cortex 445Wc panels. The WKS Evo MAX II hybrid inverter transforms solar energy into usable current, and Pylontech lithium batteries store the surplus for nighttime consumption.
Key benefits:
- Maximum self-consumption
- Energy storage
- Easy installation
- Customizable
- No grid connection required
Estimated production :
With this kit, you can produce an average of 19 580 kWh of electricity per year (estimate for the centre of France with an output of 445 Wp per panel). At a feed-in tariff of €0.30 per kWh, you could save around €5 874 a year.
Why choose our kit?
- Cutting-edge technology
- Expertise
- Eco-friendly

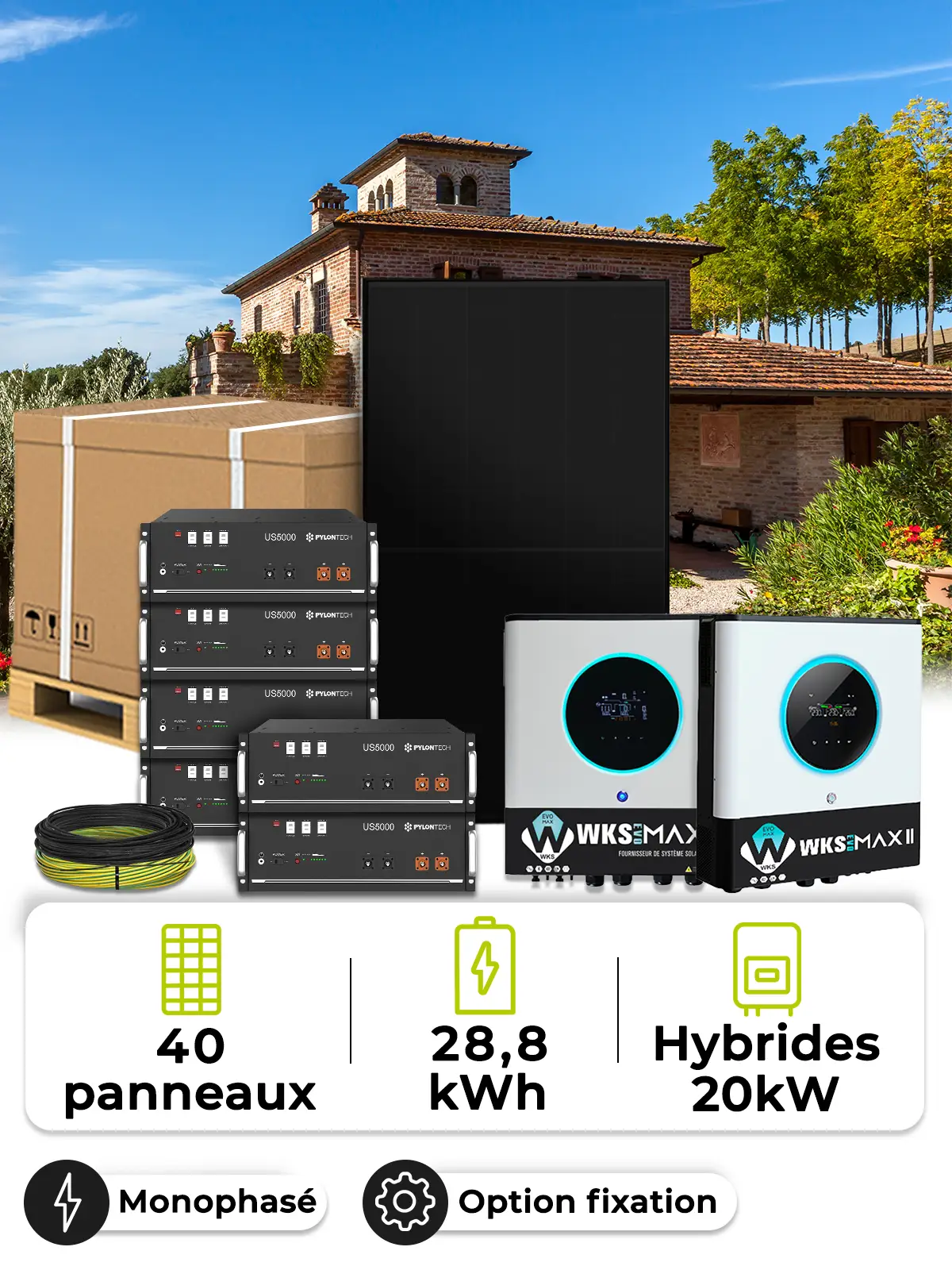

This kit includes

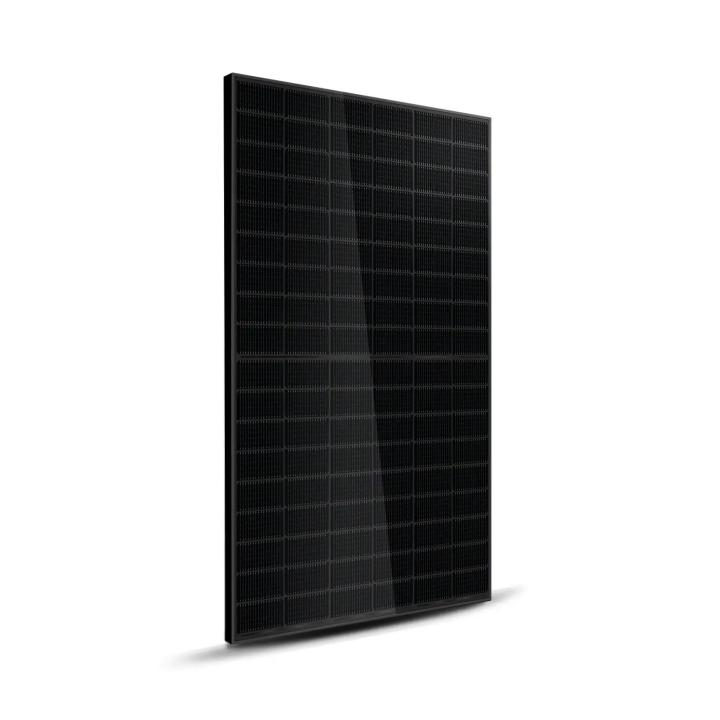

- 40XLeapton N-Type 450Wp TOPCon bifacial | Solar Panel Optimized Solar Output

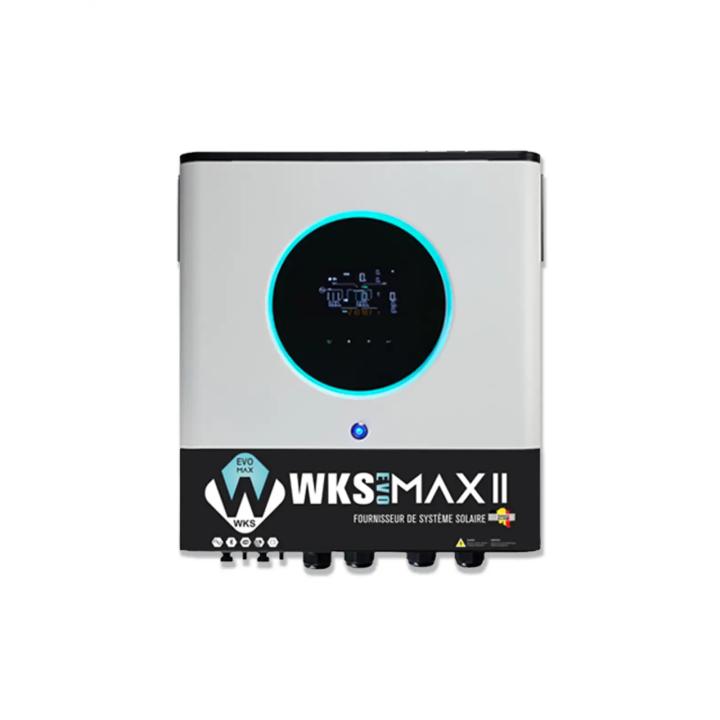

- 2XWKS Evo MAX II 10kVA 48V hybrid inverter
- 4X2X4mm2 solar cable with MC4 type (sold per metre)
- 1X6mm² earth cable (sold by the meter)
- 2Xcopy of Schneider mono 40A circuit breaker
- 1XWaterproof legrand 8 modules box
- 1XDifferential switch type A 2P 63A 300ma
- 2XZJBENY DC double 2 inputs and 2 outputs 1000V 32A

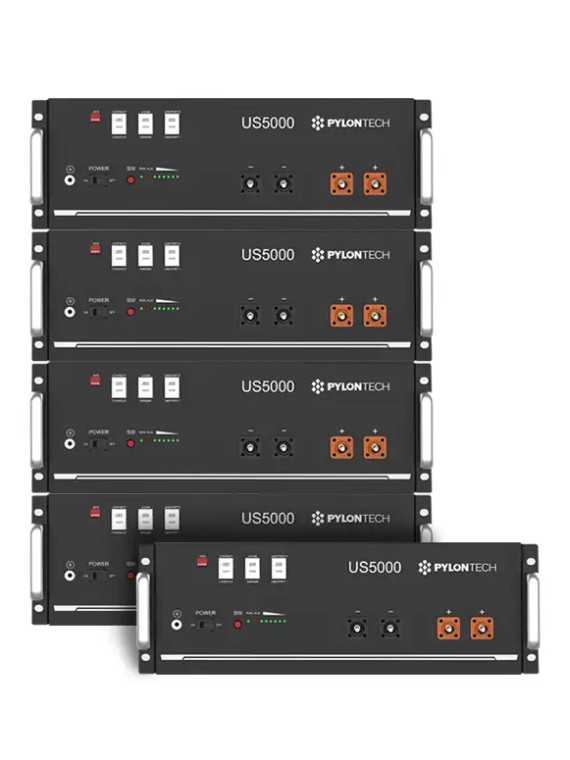

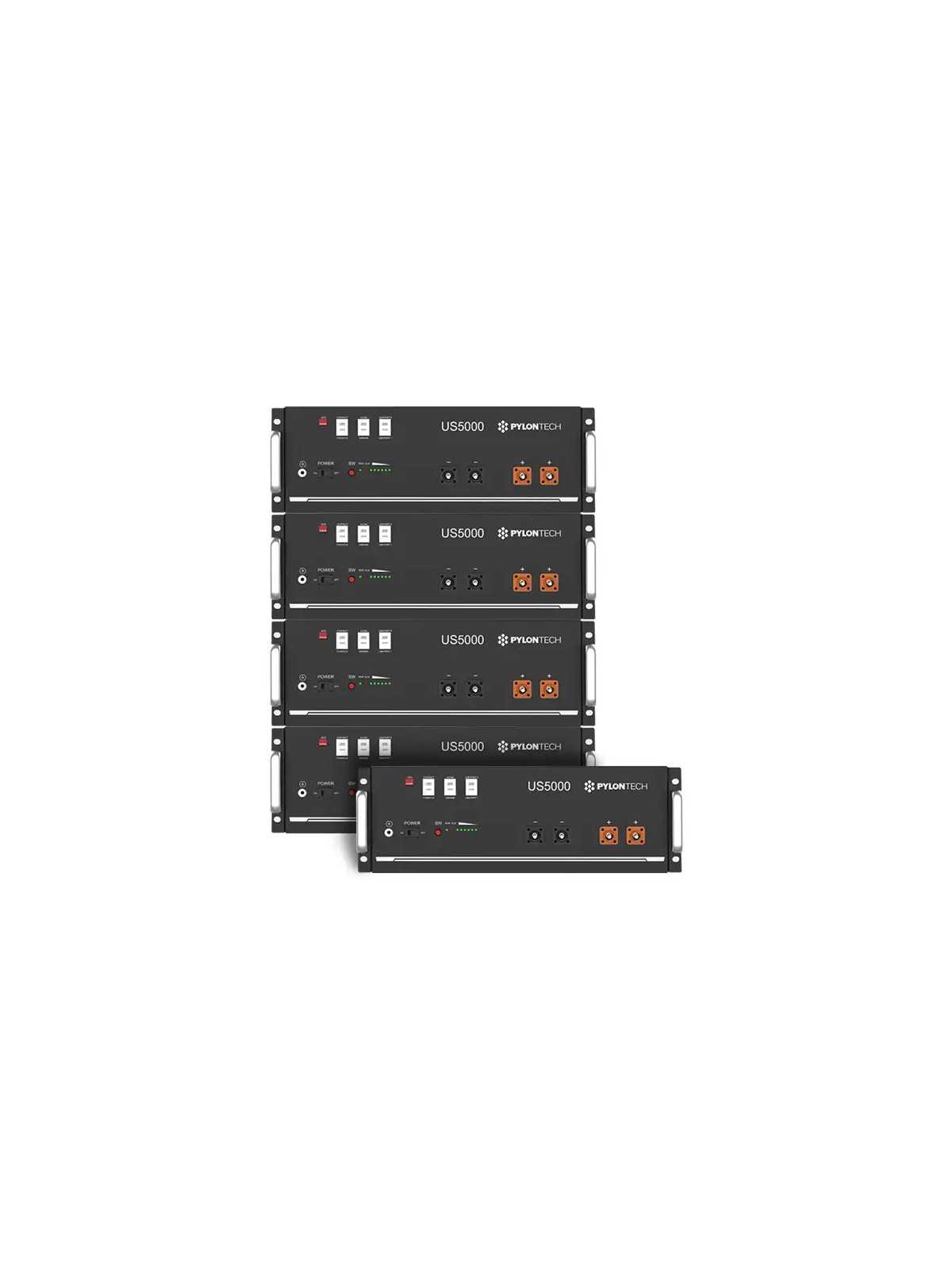

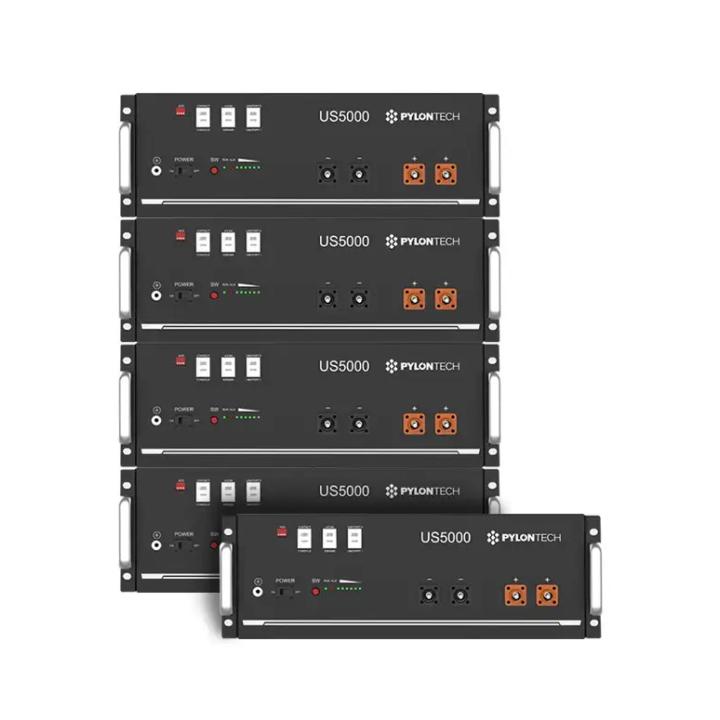

- 6XPylontech US5000 Lithium Battery - 4.8kWh | High Performance
- 1XParallel connection box for Pylontech battery
- 2XPylontech battery connection cable
- 2XBattery cable 2x95mm² - 2m
Select products from the sections below
Leapton N-Type 450Wp TOPCon bifacial | Solar Panel Optimized Solar Output
Price per unit
€97.90 (Tax incl.)
€97.90 (Tax incl.)
Your needs, our selection
Store your surplus solar production for later use, get rid of the grid.
This kit can power an isolated site or a small house connected to the grid.
It can operate alternately with the public grid or with a generator.
This semi-autonomous configuration will enable you to gradually free yourself from the public grid.
The basic kit contains 48 solar panels, four WKS EVO Circle 5.6 kVA single-phase inverters, solar cables to connect the panels to the inverter, and an optional panel mounting system. (The mounting system as well as the cabling and protections can be modified to suit your needs).
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.
 | Important notice for our customers in Belgium: An environmental contribution of € 94.41 excluding VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page. |

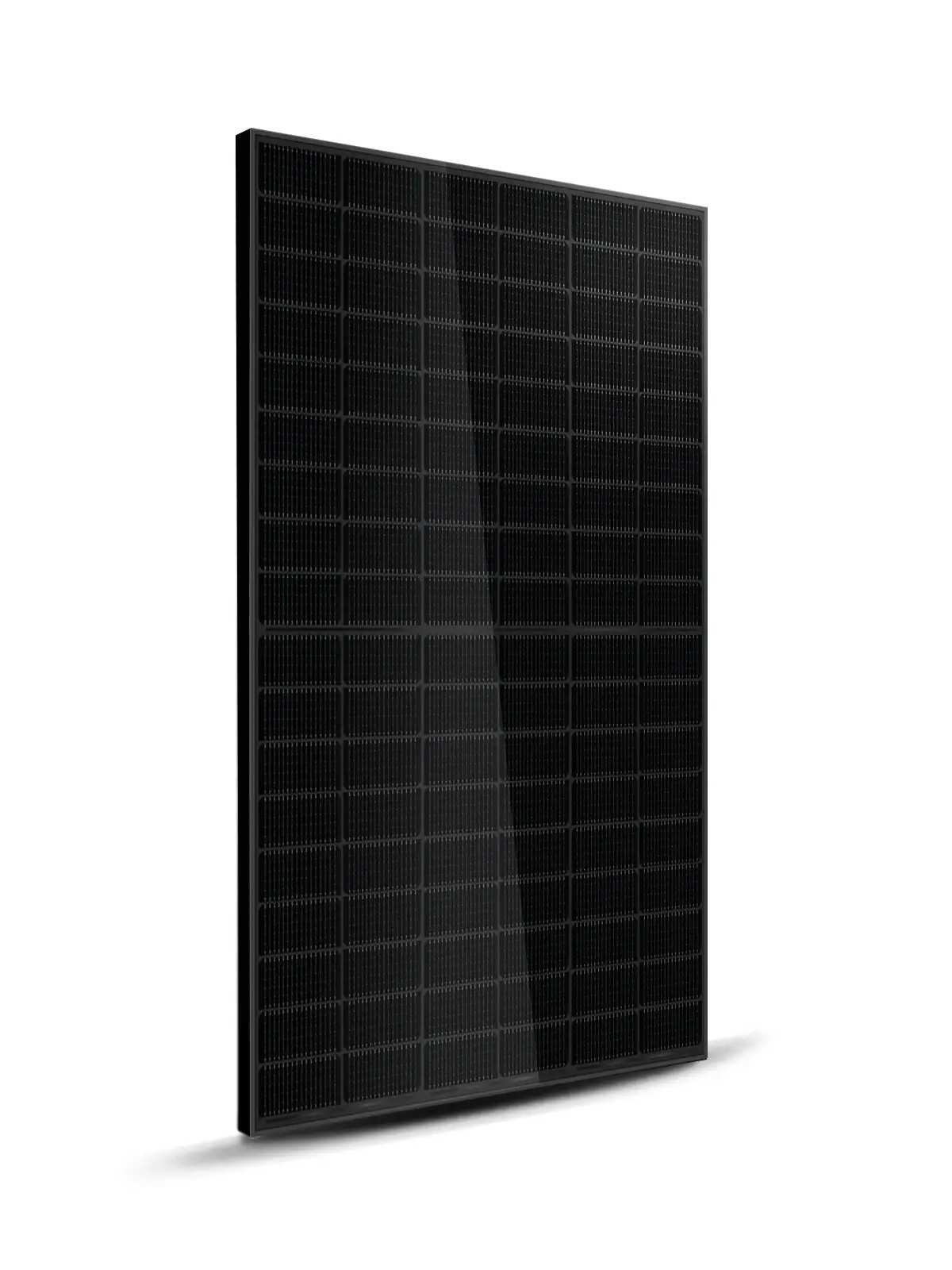

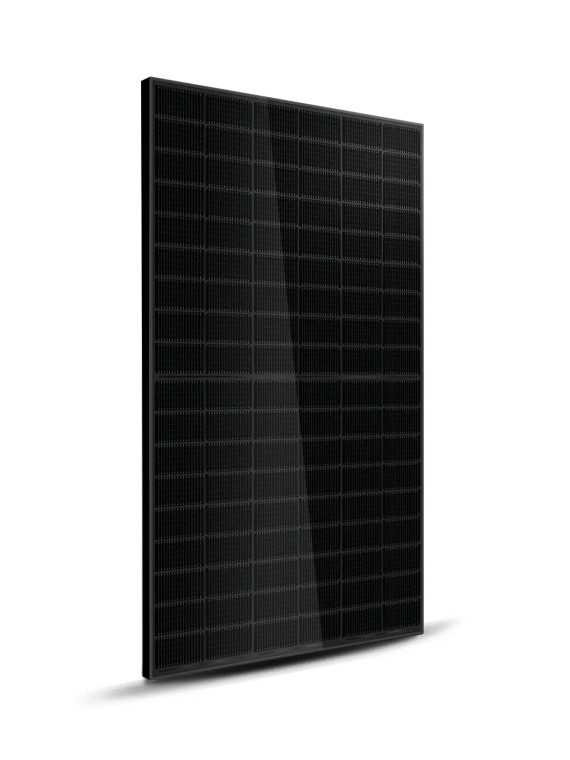

Solar panels
Discover the solar jewel in our kit! Selected from the latest technologies, this panel offers unrivalled efficiency.
See its product sheet in our panels section to find out more.
And don't forget, we offer you the flexibility to choose the panel model you prefer.
We invite you to consult our solar production simulator to determine exactly what your solar production will be.
Different cell types
Perc |
N-Type |
HJT | |
Efficiency | Approximately 19-22% | Approximately 20-23%. | Environ 21-24% |
Cost | Moderate | High | Very high |
Temperature coefficient | Approximately -0.3 à 0.4% per °C | Approximately -0.3% per °C | Approximately -0.2% Per °C |
Annual degradation | Approximately 0.5 - 07% | Approximately 0.4 - 0.5% | Less than 0.5% |
Durability | Good | Very good | Excellent |
Inverters
Choose the best partner to convert your solar energy.
If you want to maximize the use of your photovoltaic solar energy, the hybrid inverter in combination with domestic storage may be the ideal solution for you.
We've selected the WKS range for their performance and excellent value for money.
It's perfectly possible to use several inverters in the same installation to increase the power available.

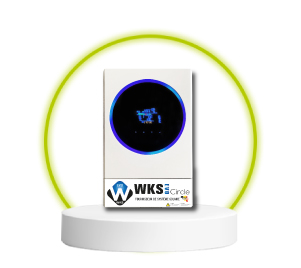

Hybrid inverterWKS EVO Circle |
|

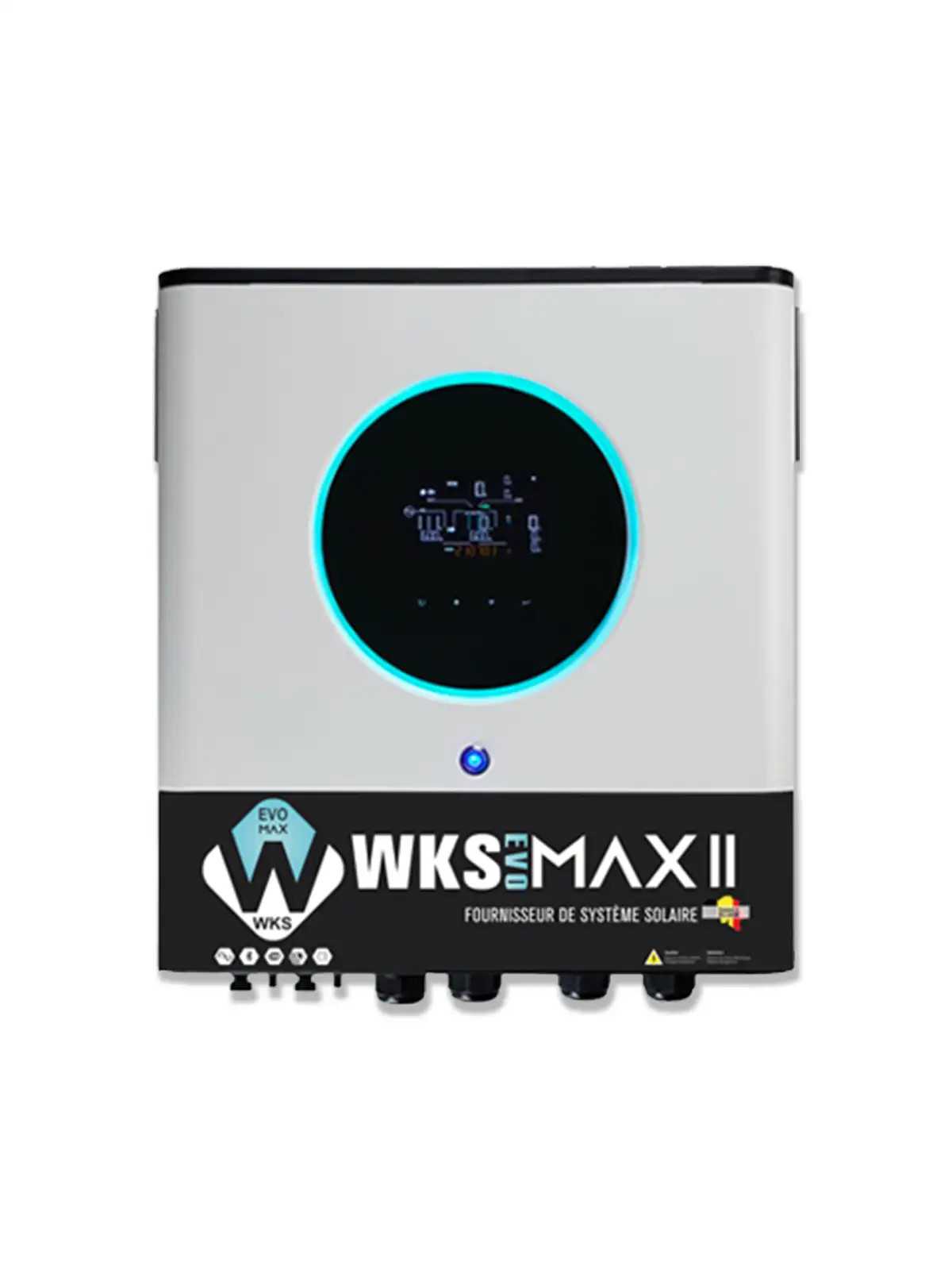

Hybrid inverterWKS EVO MAX II | ||||||||||||
 1 MPPT |  -> 9 Inverters |  2 MPPT | -> 6 Inverters | |||||||||||
Rated power |
Battery voltage |
Rated power |
Battery voltage | |||||||||||
Maximum PV load current |
Maximum AC load current |
Maximum PV load current |
Maximum AC load current | |||||||||||
Key benefits
| Key benefits
| |||||||||||||
Our battery selection
Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.
We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.
We offer two different capacities. They are compatible with each other.
Battery storagePylontech US3000C |
|
Battery storagePylontech US5000 | ||||||||||||
 Rated capacity |  DOD 95% | Rated capacity 100 Ah | DOD 95% | |||||||||||
Tension |
Charge/discharge |
Tension |
Charge/discharge | |||||||||||
|
Upgradable |
Cycle |
Upgradable | |||||||||||
Benefits• Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent | Benefits• Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent | |||||||||||||
Cycle
| Important notice for our customers in Belgium:
|
Customize
Council
Optimise your production with Tigo TS4-A-O
(available as an option)
Operation
Maximise the output of each panel by controlling the DC current before the central inverter.
Ideal for
Installations with panels that are partially shaded or exposed to varying conditions.
Benefits
- Improved yield: Even in shaded conditions.
- Lower cost: Cheaper than microinverters.
- Reduced maintenance: Fewer interventions on the roof.
Connection diagram
Connection to
WKS EVO Circle inverters
config-ac-48 pan-20 kva-lithium
Data sheet
- Solar kit type
- Kit 230V AC avec batterie
- Inverter power
- 10000VA
- Kit output voltage
- 230V
- Type of need
- Off-grid
- Battery storage
- With storage
- Wind turbine
- Without
- Number of panels
- 48 panels
- Voltage
- 230V
- Battery
- Kit with battery
- Panel type
- Rigids
- Mains re-injection
- off-grid
