WKS EVO Circle 5.6 kVA inverter and Pylontech lithium battery pack
€2,408.89
Tax included
WKS-Circle-US5000
0712971127784
Autonomous Solar Kit: Store Your Energy, Reduce Your Bills
This complete solar kit is designed to offer you maximum energy independence. With its WKS Evo Circle hybrid inverter and Pylontech lithium battery, you produce your own electricity and store it for optimized consumption, even in the absence of sunlight.
Key Advantages:
- Simplicity: This kit is designed for easy and quick installation.
- Flexibility: It can be adapted to your specific needs and grow with your consumption.
- Eco-friendly: Reduce your carbon footprint by using clean and renewable energy.
How It Works:
Solar panels (not included in this kit) generate electricity that is converted to alternating current by the inverter. The excess energy is stored in the lithium battery. You can then consume this stored energy when solar production is insufficient or during off-peak hours.
Why Choose This Kit?
- Simplicity: This kit is designed for easy and quick installation.
- Flexibility: It can be adapted to your specific needs and grow with your consumption.
- Eco-friendly: Reduce your carbon footprint by using clean and renewable energy.
Our experts are available to assist you with your project and offer a personalized study.
This kit includes
- 1XWKS Evo Circle 5.6 kVA 48V hybrid inverter
- 1XPylontech US5000 Lithium Battery - 4.8kWh | High Performance
- 1XPylontech battery connection cable
- 1XWKS / Pylontech Communication Cable
- 2XSchneider single-phase 25A circuit breaker
- 1XDifferential switch type A 2P 63A 300ma
Select products from the sections below
WKS EVO Circle 5.6 kVA inverter and Pylontech lithium battery pack
The combination of the WKS Evo 5.6 kVA 48V hybrid inverter with a Pylontech battery pack is the right choice for both domestic and commercial solar power systems. This combination guarantees optimum energy efficiency, intelligent energy management and enhanced system reliability. Pylontech batteries, renowned for their long life and stable performance, perfectly complement the advanced technology of the WKS Evo inverter, providing a sustainable and cost-effective power solution.
All our packages are configurable. In the options you can click on the product to choose another model, or change the quantities to tailor the kit to your needs.
You can also see details of the products you have chosen directly below the price.
Hybrid inverter
A grid-interactive hybrid inverter is an essential device in solar energy systems for converting electricity generated from renewable sources into grid-compatible alternating current (AC).
WKS EVO Circle 5.6kVA
Discover the energy revolution with the WKS EVO Circle, a new-generation solar inverter for intelligent, high-performance power supply. Thanks to its advanced MPPT controller, it optimizes battery charging by adjusting the DC power of your solar panels. No more low battery worries! Its transformerless design guarantees reliable power conversion, all in a compact format that fits into any space.
Cutting-edge technology: With a pure sine wave MPPT solar inverter, you benefit from stable, high-quality current to power all your appliances.
Personalized control: The LED status ring with RGB lights enables instant, personalized visualization of inverter status, adding a touch of modernity and user-friendliness.
Intuitive monitoring: Thanks to integrated Wi-Fi and the dedicated mobile app, monitor and control your UPS in real time, with the option of customizing settings and viewing recorded data.
Versatility and reliability: The inverter offers a wide DC input range, stored data log events and can operate in parallel with up to 9 units, ensuring optimum performance and constant availability.
Adaptive use: You have the power to choose how your UPS operates, thanks to timer-configurable mode options, enabling you to optimize your energy consumption according to your needs.

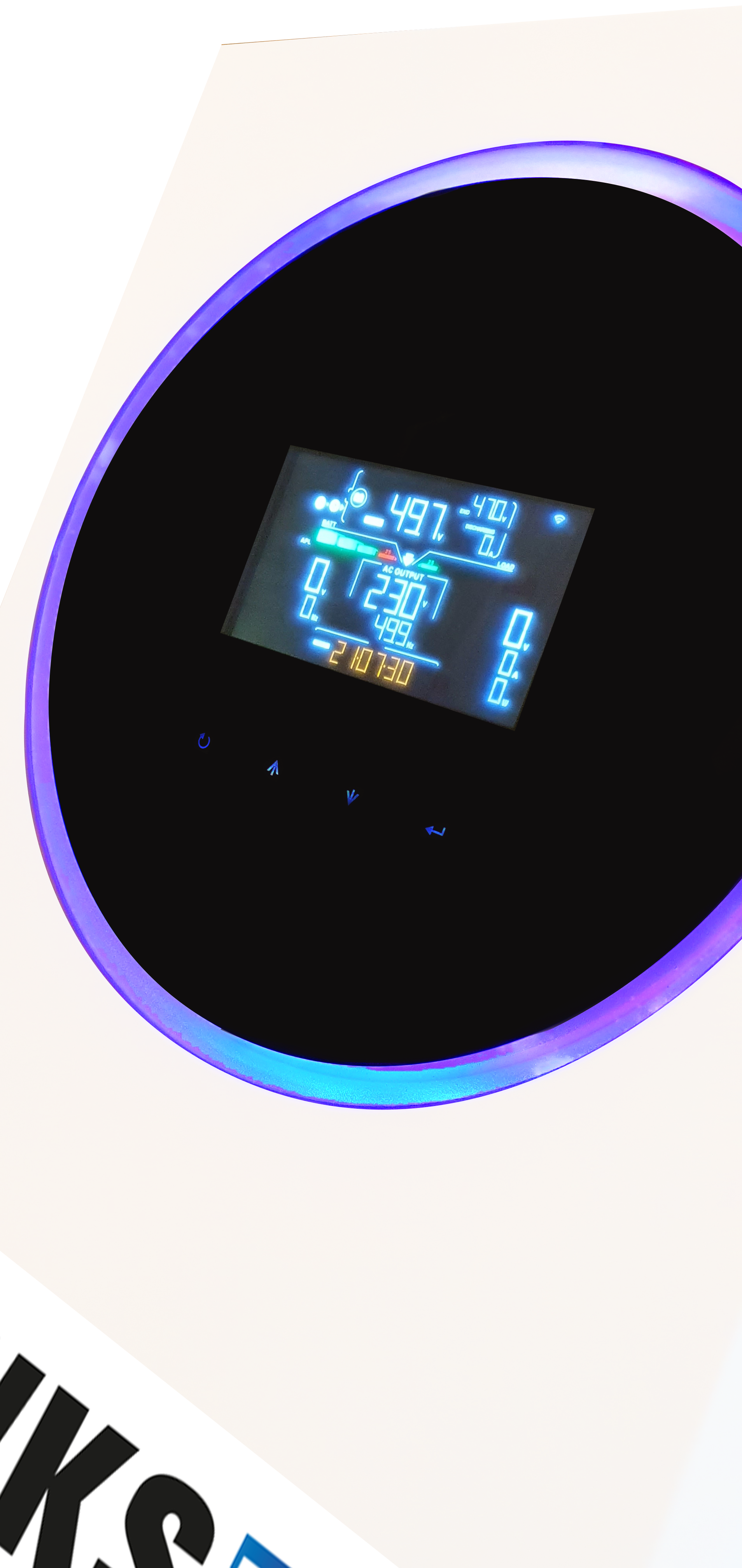

Display and control panel
The inverter's display screen is of crucial importance in monitoring and managing your system. By providing real-time information on solar energy production, energy consumption and system status, and by displaying error messages or alerts in the event of malfunctions, this screen enables users to monitor and optimize the performance of their solar installation. In addition, it offers parameterization and configuration functions, making it easy to customize the system to specific needs.
Three RGB lighting effects
- Circular scrolling: Enjoy fast, continuous scrolling of the selected color in a circular motion.
- Wheel: Illuminate your space with twinkling lights in the color of your choice.
- Chasing: Create a captivating lighting effect by shining your chosen color up and down the circle.

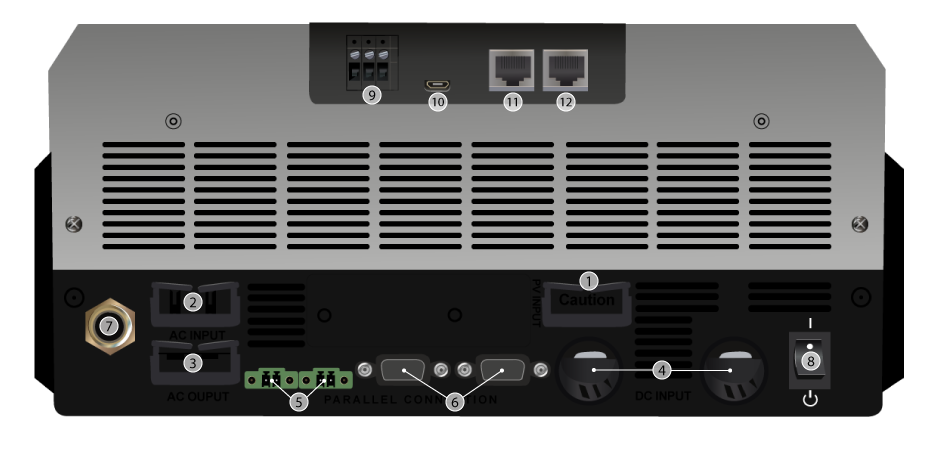

Wiring and connection
1. PV connectors
2. AC input connectors
3. AC output connectors (load connection)
4. Battery connectors
5. Power sharing port
6. Parallel communication port
7. Circuit breaker
8. Power switch
9. Dry contact
10. USB port as USB communication port and USB function port
11. RS-232 communication port
12. BMS communication port: CAN, RS-485 or RS-232
Benefits
- Battery charging current control
- Possibility of limiting or prohibiting charging via the network
- Input voltage from 110 to 280V (useful for fluctuating networks)
- Economy mode (self-consumption limitation)
- Fine-tuning of battery charging characteristics
- Automatic restart in the event of overload or overtemperature
- Possibility of limiting battery discharge to preserve battery life
- Configurable return voltage to battery mode
- Low battery warning
Multi-energy power supply
Example: for a consumption requirement of 3kW, you could have a configuration:
- 1 kW supplied by solar energy 2
- kW supplied by batteries
This multi-supply technique greatly reduces the number of batteries required, and extends their lifespan.
This inverter accepts up to 6000 Wp of photovoltaic panels, and can be connected to the grid or to another renewable energy source if solar production is insufficient.
Applications :
- Residential, commercial and telecommunications
- Areas with unstable electricity supplies
- Areas not connected to the grid

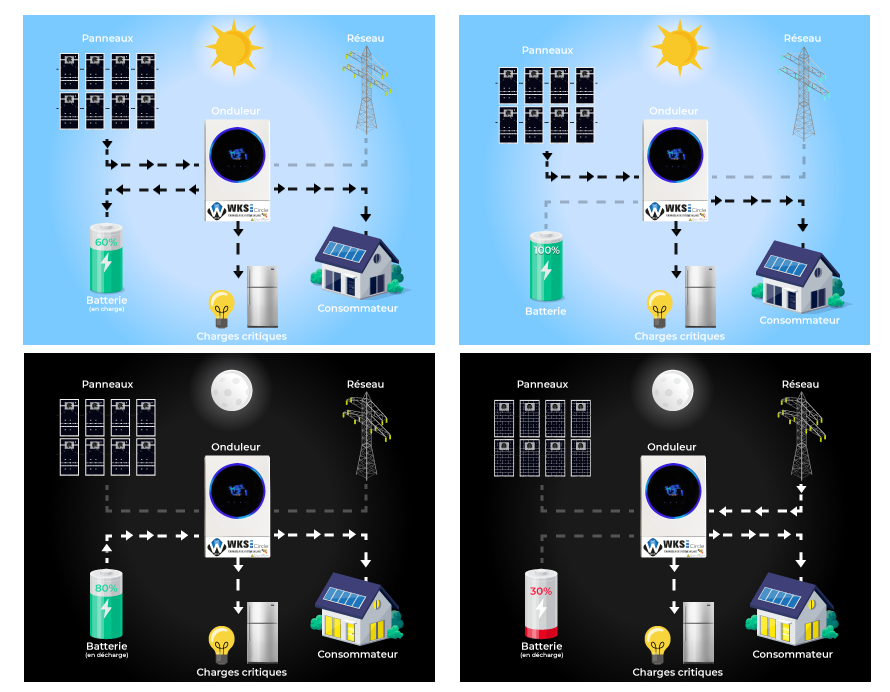

Hybrid operating mode
- If PV production matches consumption, the inverter neither charges nor discharges the battery.
- If PV production exceeds consumption, excess energy is stored in the battery.
- If PV production is lower than consumption, the battery discharges to supply energy to the loads.
- If there is no PV production and the battery is discharged, the grid takes over.
Use in back-up mode
The UPS can be used as a back-up without photovoltaic panels. In this mode, the UPS takes on the role of UPS, protecting your appliances from grid outages.
The UPS protects computers and audio-visual equipment, or any other sensitive load, by supplying a stable current. It guarantees uninterrupted power supply to consumers.
The electricity produced by these pure sinusoidal inverters is stable.
You can protect one or more rooms in your home via the distribution box.
Off-grid operation
In this configuration, the inverter uses the panels to power consumers and charge batteries when the sun is shining. The inverter draws power from the batteries to ensure energy distribution at night.
A generator can be added to the inverter's AC input to provide emergency power.
Hybrid operation
The inverter takes power from the grid only if the batteries are empty and solar production was not sufficient to cover consumption.
The inverter never feeds power back into the grid.
As with the "back-up" mode, you can connect only part of your domestic installation to the inverter. Consumers connected to the inverter will still be powered, even in the event of a mains power cut. What's more, they'll be supplied free of charge!
Pure Sine converter
The WKS is a pure sinusoidal voltage inverter that reproduces a power quality similar to that of the public grid. It can be used to power all types of appliance.
Maximum load current 120A
The WKS integrates an MPPT charge controller developing a maximum charge current of 120A.
MPPT controller
The WKS also features MPPT (Maximum Power Point Tracking) technology, i.e. it constantly searches for the maximum power point, enabling you to get the best performance from your photovoltaic panels. As well as providing a boost in power to an installation, it optimizes battery charging and extends their lifespan. It scans the panel voltage to find the maximum power output point, and is able to adapt the voltage supplied by the panel to match the voltage the battery can receive.
Choice of operating mode via timer
You can determine the operating mode of your device using a timer. Set your own time slot in the settings.
With this setting, you can define the priority of your inverter's output source, so you can, for example, choose to recharge your batteries during off-peak periods.
🎬 A collection of videos to understand everything 🎥
🔍 Learn to decode the technical labels of your inverters to make the best choice! ▶️ Discover our video guide "decode the labels" and optimize your purchasing decision with confidence.
⚡ Need to measure the voltage in direct current with a voltmeter? ▶️ Follow our video tutorial to master this technique in just a few minutes!
🛡️ Ensure the safety of your installations with a direct current protection box, differential, and grounding! ▶️ Discover our video guide Electrical Protection Box and protect your equipment effectively!
🔧 Optimize your installation by discovering the connections and wiring of Pylontech inverters and batteries! ▶️ Click here to learn more!
⚠️ Protect your equipment from the risks of polarity reversal in a surge protection box! ▶️ Click here to discover how to avoid common mistakes and ensure the safety of your installation!
🔌 Ensure the safety of your installation by understanding the functioning of grounding in a surge protection box! ▶️ Click here to learn everything and effectively protect your equipment!
☀️ Discover how to connect the panels to the inverter to maximize the efficiency of your solar system! ▶️ Click here to master this crucial step and ensure optimal performance!
🔌 Learn to make the AC IN and OUT connection for a perfect connection of your electrical system! ▶️ Click here to master this essential step and ensure the proper functioning of your installation!
⚡ Master the wiring of alternating current by differentiating neutral and phase for a safe and efficient installation! ▶️ Click here to discover best practices and optimize your electrical system!
🔋 Optimize the connection of the Pylontech battery to the WKS Circle inverter to ensure optimal performance of your system! ▶️ Click here to master essential techniques and ensure a successful installation!
📡 How to connect the communication cable to ensure a reliable and efficient connection of your system! ▶️ Click here to master this essential step and improve the efficiency of your installation!
🚀 Discover the essential steps to follow before starting your inverter to ensure optimal and safe performance! ▶️ Click here to be ready and optimize your installation from the start!
⚠️ Make sure that circuits powered exclusively by the inverter are indeed powered to ensure optimal and safe operation! ▶️ Click here to understand this crucial requirement and protect your installation!
🔄 Master the standard startup of the WKS Circle hybrid inverter and understand the basic indications during the launch, as well as the voltage check! ▶️ Click here to navigate this process effectively and ensure the proper functioning of your system!
⚙️ Explore the basic settings of the WKS Circle inverter in conjunction with Pylontech lithium batteries to maximize the performance of your installation! ▶️ Click here to master these essential settings and optimize your energy system!
Software
WatchPower 1.17SP1
WatchPower 1.17SP3

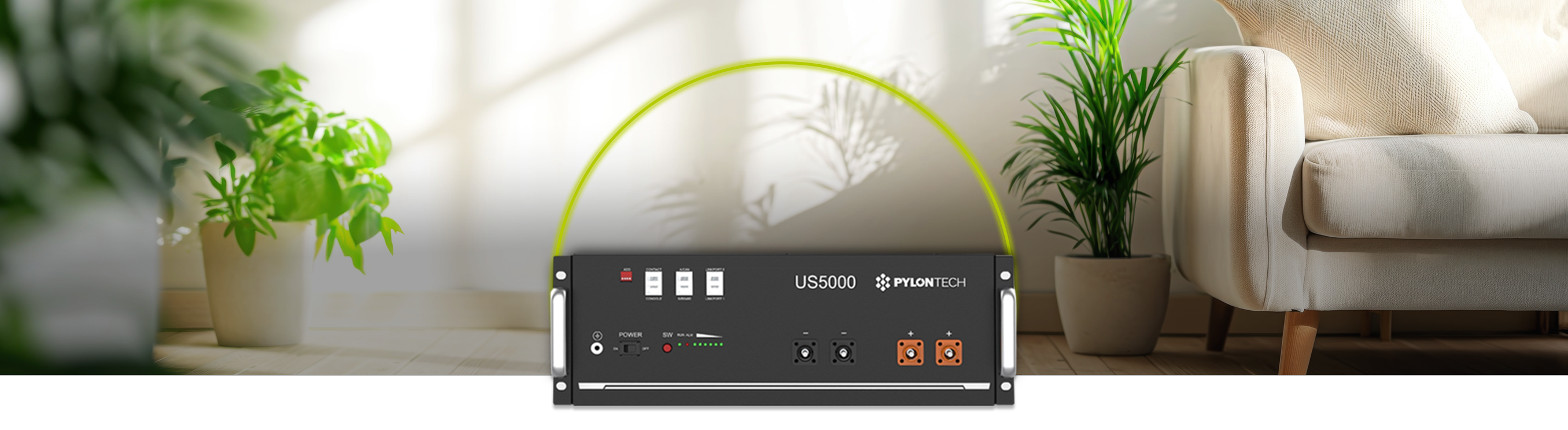

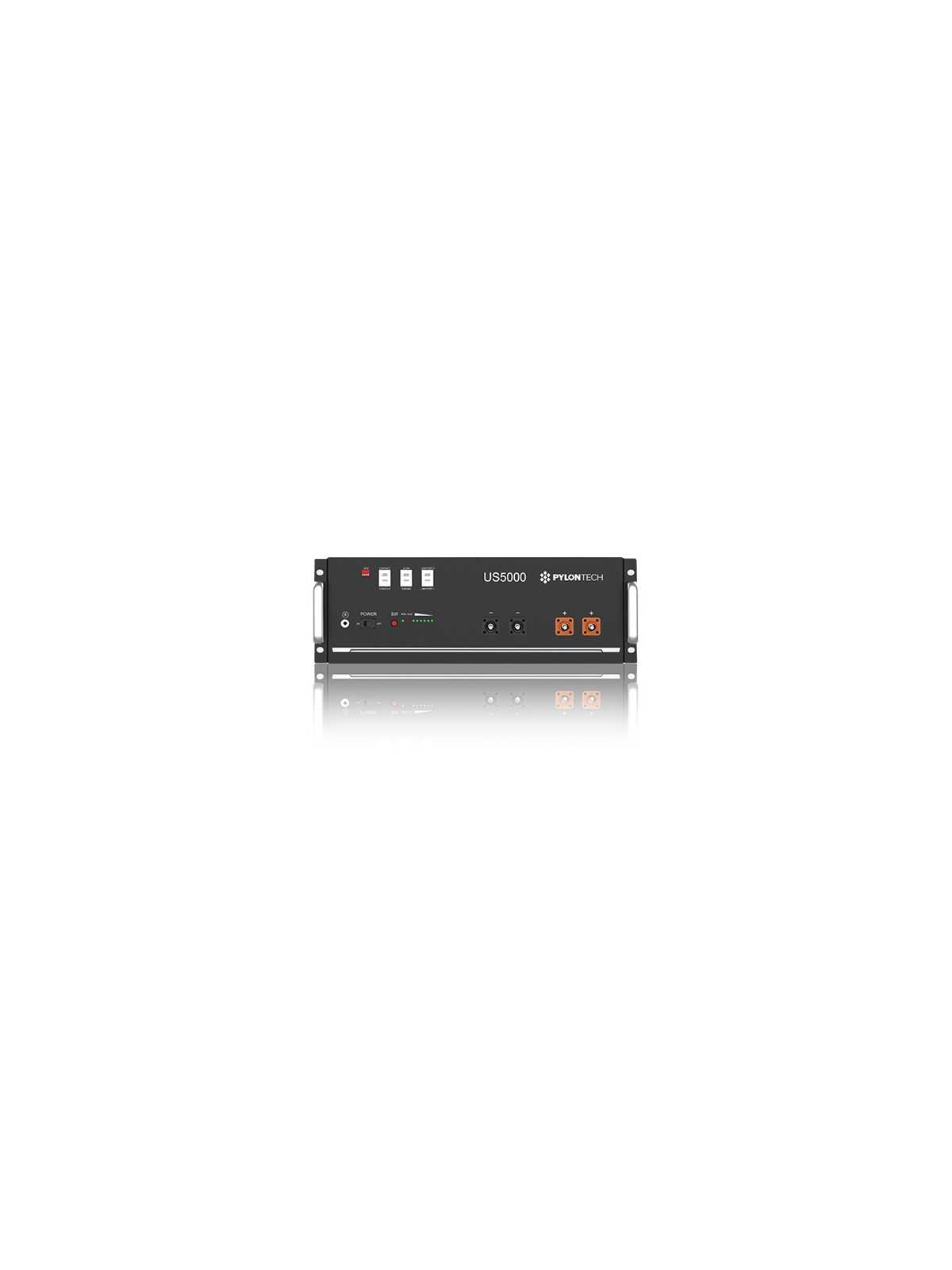

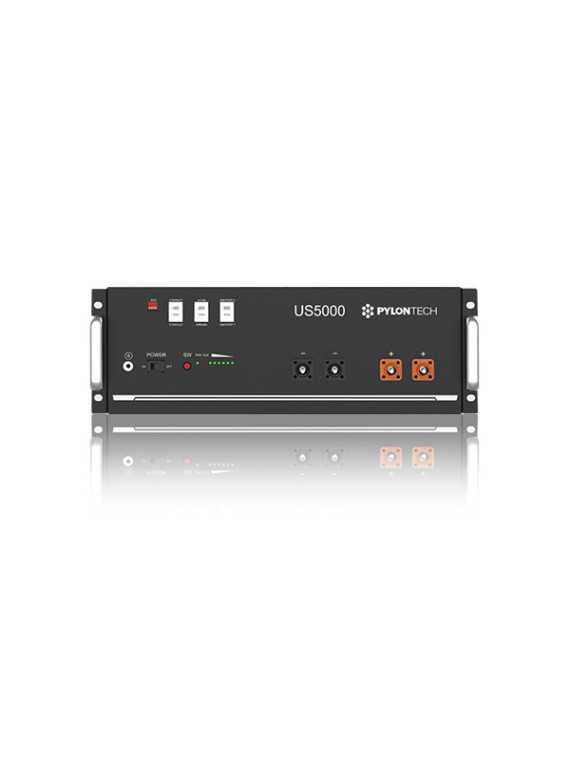

Lithium battery Pylontech US5000 +100 - 4.8kWh
Pylontech's US5000 battery is a versatile new energy storage product, offering reliable power with soft start to reduce current peaks. It features dual BMS protection, automatically adjusts address in multiple connections, and supports wake-up by RJ45 signal. It allows a 95% depth of discharge, complies with environmental standards, and uses LiFePO4 for enhanced safety. The battery management system provides protection and automatic balancing. Compact, lightweight and self-cooling, it offers low self-discharge, no memory effect, and lends itself to flexible parallel configuration.
We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.
Important notice for our customers in Belgium:
As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €94.41 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here
Here's the reference list and the corresponding membership fee!
When purchasing lithium batteries, please add the following product Pylontech US5000 Environmental Fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.
