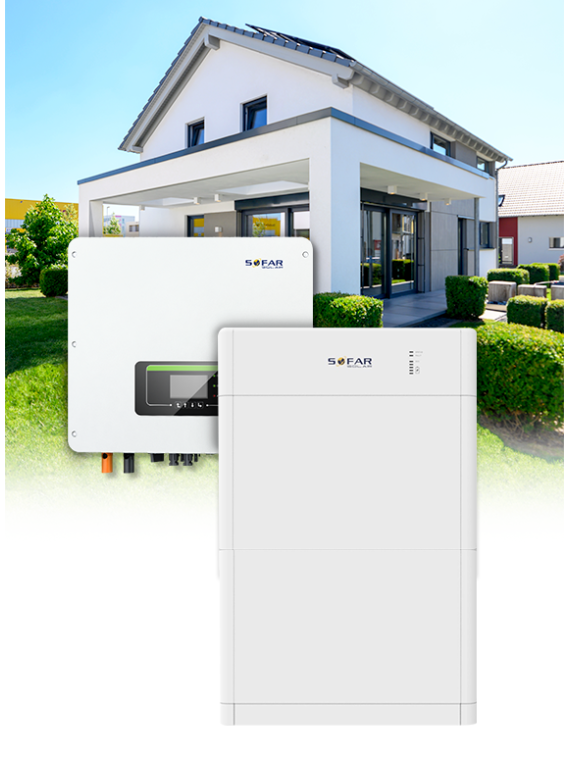

Sofar Solar 10 kVA three-phase inverter pack - HYD-KTL-3PH and 10kWh high-voltage battery

The "Sofar HYD 10 Inverter and Pylontech Lithium Battery Pack" is an integrated energy solution, designed to provide optimal solar energy management for your installation. Thanks to our extensive experience, we have carefully selected these components for their outstanding performance and compatibility.

The Pylontech battery series, renowned for its reliability and efficiency, is perfectly matched to the Sofar inverter, offering a durable and powerful energy storage solution. This pack is specially designed for those looking to maximize their self-consumption and reduce their dependence on the grid, while still having a reliable source of backup power.

This combination of inverter and battery not only offers increased energy efficiency, but also peace of mind thanks to the inverter's integrated energy management function, enabling optimized use of stored energy. What's more, with the included WiFi key, you can easily connect the UPS to the Sofar monitoring portal for real-time monitoring and management of your energy system.

By choosing the "Sofar HYD 10 Inverter and Pylontech Lithium Battery Pack", you are opting for a state-of-the-art energy solution, designed to meet the needs of modern residential installations, while benefiting from our expertise and dedicated technical support.

All our packages are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.

Important notice for our customers in Belgium: An environmental contribution of € 119.50 excluding VAT will be applied to the purchase of each Sofar Solar BTS 5K Lithium Battery. More information at the bottom of the page.

Three-phase hybrid inverter

A three-phase inverter is an essential electrical device for converting electricity between direct current (DC) and alternating current (AC) in systems using three-phase power. It is frequently used in industrial and commercial contexts, enabling efficient distribution of electrical energy to power equipment such as electric motors or three-phase loads.

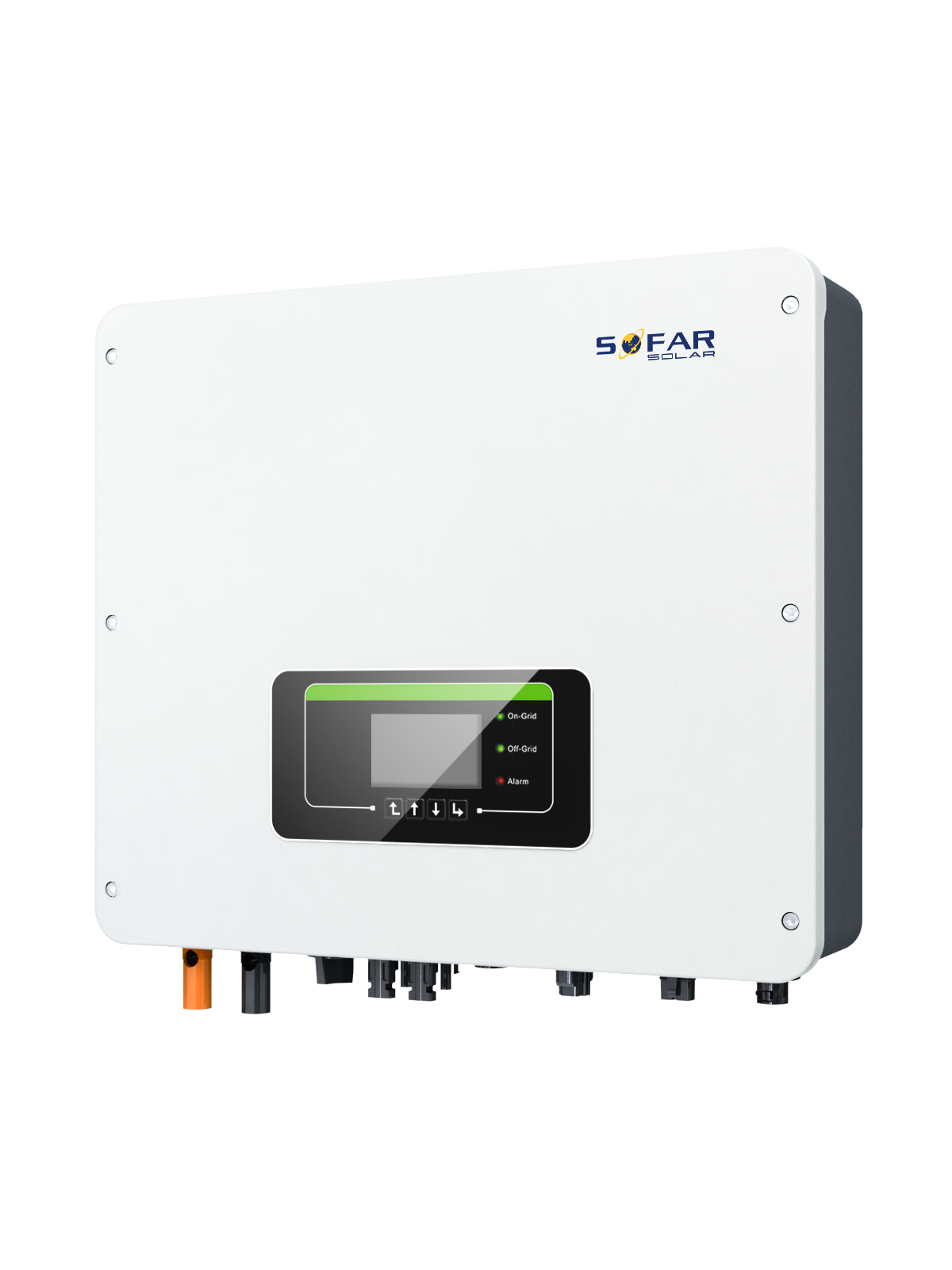

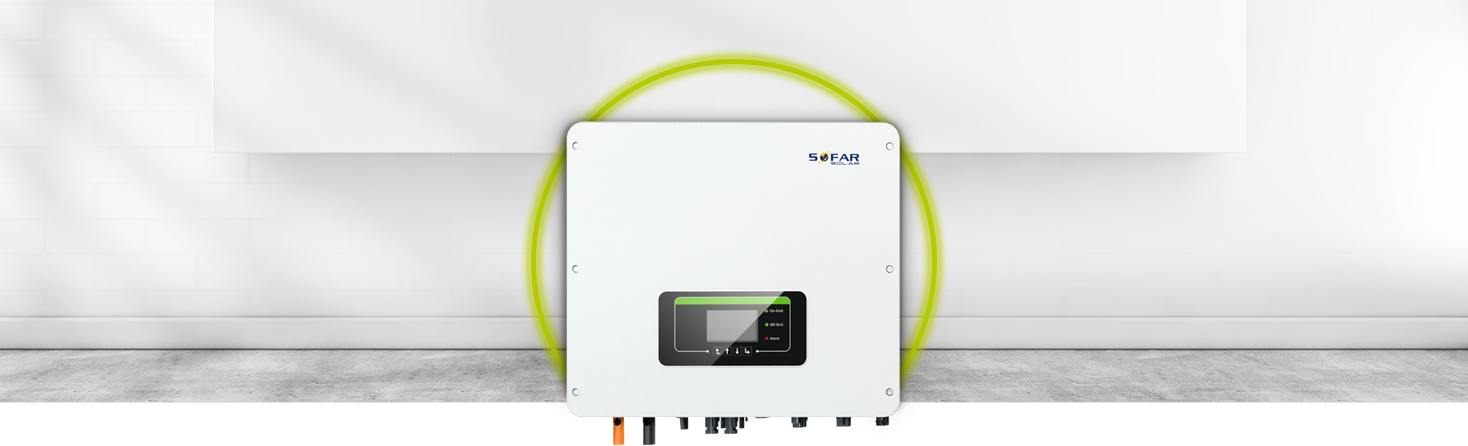

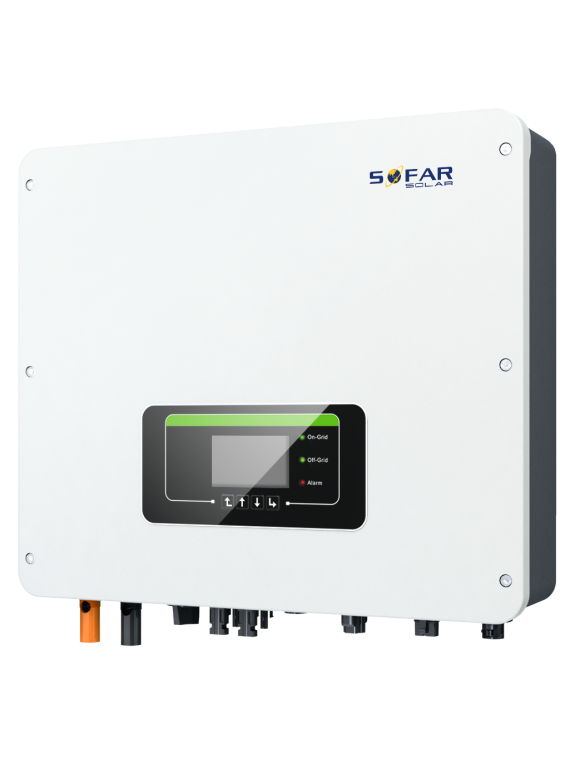

Sofar Solar tri 10 kVA - HYD-KTL-3PH

The HYD 5K...20KTL-3PH three-phase hybrid inverter from SofarSolar is a versatile solution for energy storage in photovoltaic systems, offering back-up power up to 20 kW in 10 ms. Equipped with two MPPTs and two independent battery ports, it can be configured in a variety of ways.

Up to 10 inverters can be connected in parallel for microgrids. The energy management system features user-friendly modes and compatibility with the AMASS Store battery unit. The DC output can be used for grid feeding or battery charging. The emergency power mode ensures rapid switching for inductive loads, with temporary overloads of up to 10% possible.

With two MPPs and 1.5 times overload, it offers a smooth transition between grid and storage. Maximum charge/discharge efficiency reaches 97.8%. Monitoring is via RS485 and WiFi, optionally via Bluetooth/GPRS.

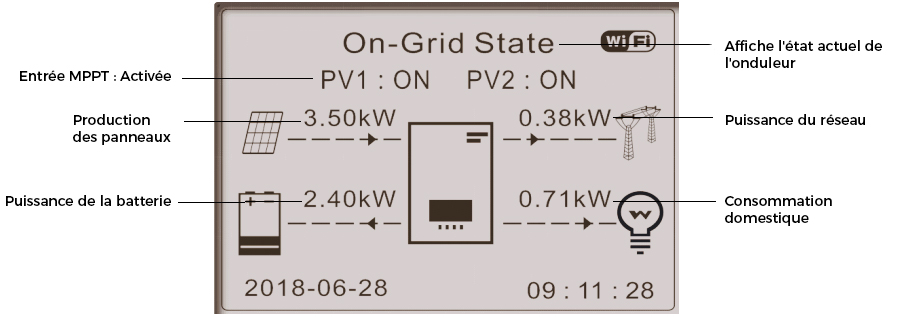

Standard display

The display shows all relevant inverter information.

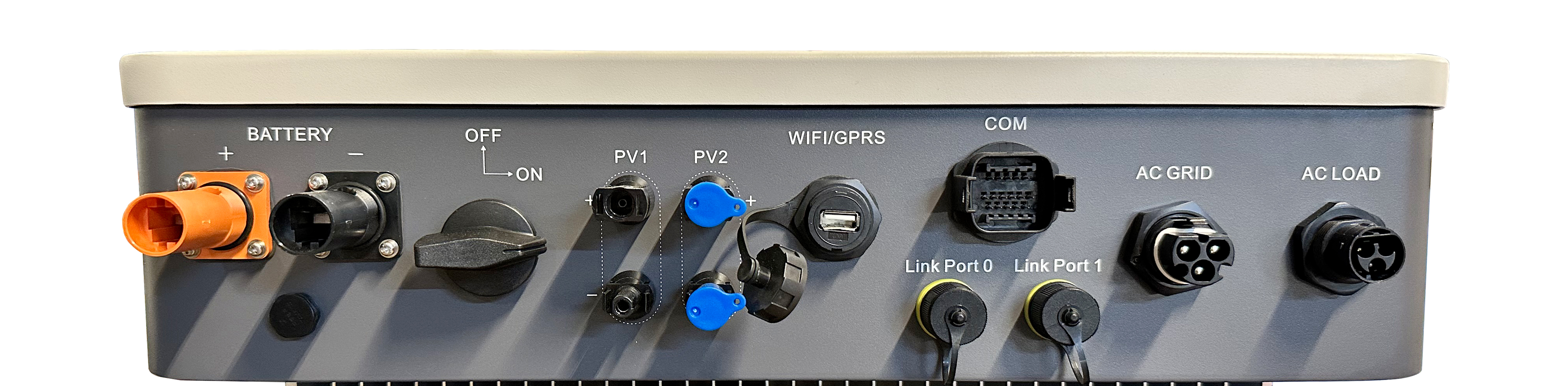

Wiring and connection

1. BATTERY - Battery + and - input terminals
2. OFF / ON - DC switch
3. PV 1 & PV 2 - Solar inputs (male and female)
WIFI
4. - GPRS - USB key connection - Wi-Fi
5. COM - Communication port
6. Link Port 0 &
7. 1 - 0 & 1 link port
8. Grid connection port
9. Load connection port
10. External LCD Terminal - External LCD connection port

Hybrid Inverters: Operating modes

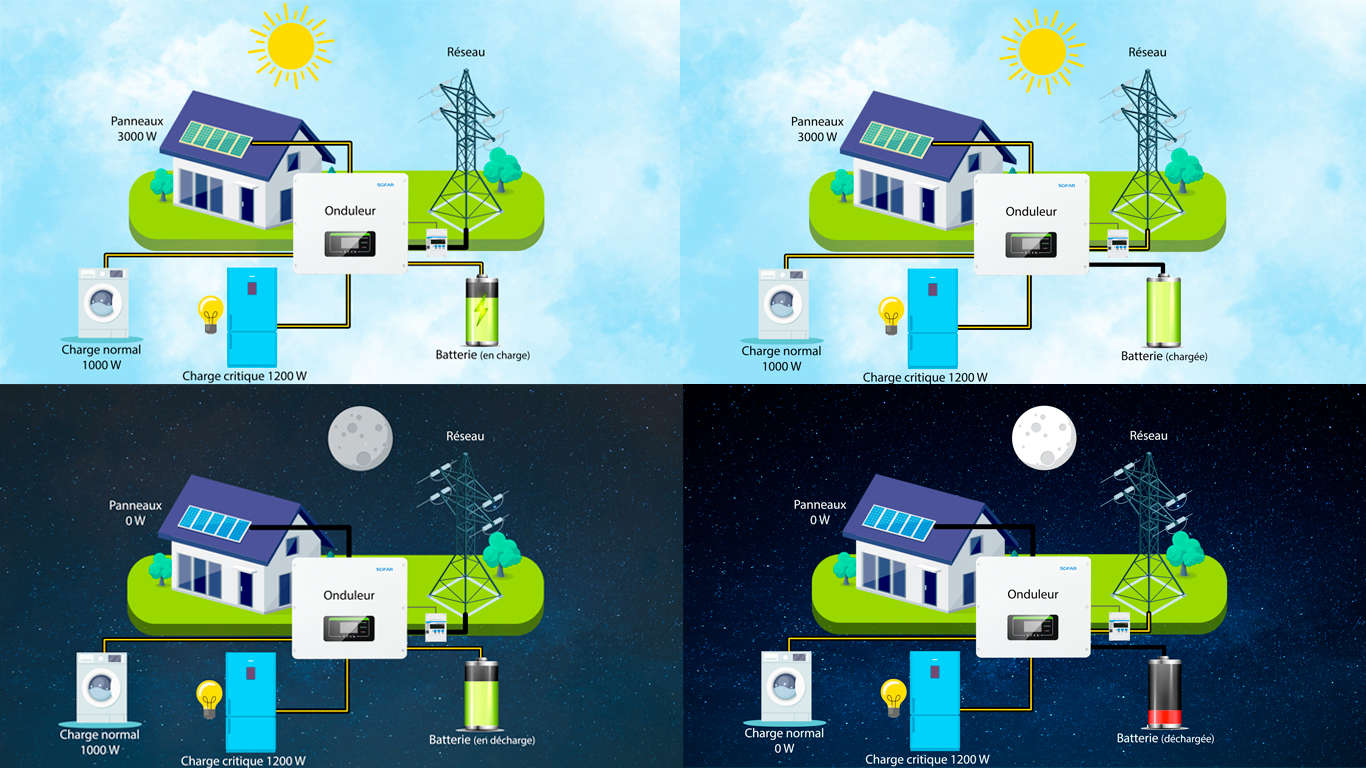

Self-use mode

1. If PV production matches consumption, the inverter neither charges nor discharges the battery.
2. If PV production exceeds consumption, surplus energy is stored in the battery.
3. If the battery is full or at maximum charging capacity, surplus energy is exported to the grid
.
4. If PV production is lower than consumption, the battery is discharged to supply energy to the loads.
5. If load is higher than PV production plus battery, the inverter imports energy from the grid.
6. Supply priority: PV > Battery > Grid
7. Consumption priority: Loads > Battery > Grid

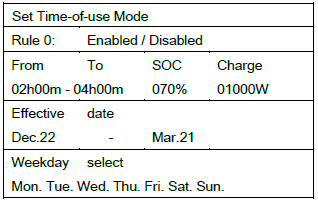

Time-of-Use Mode:

1. The user can define up to four rules on when the battery should be charged.
2. Each rule can be activated or deactivated and includes time of day, percentage of battery charge (SOC), charging power, efficiency date and days of the week
.

Timing Mode.

1. The user can define fixed times of the day to charge or discharge the battery with a given power.
2. Up to four rules can be defined, and each rule can be activated or deactivated separately for charging or discharging
.

Passive Mode.

1. Intended for systems with external energy management systems using the Modbus RTU protocol to control the inverter.
2. If the battery is fully charged or at its maximum charging power, PV production is reduced by adjusting the maximum power point (MPPT).
3. If PV production is lower than consumption, the battery supplies the loads
.

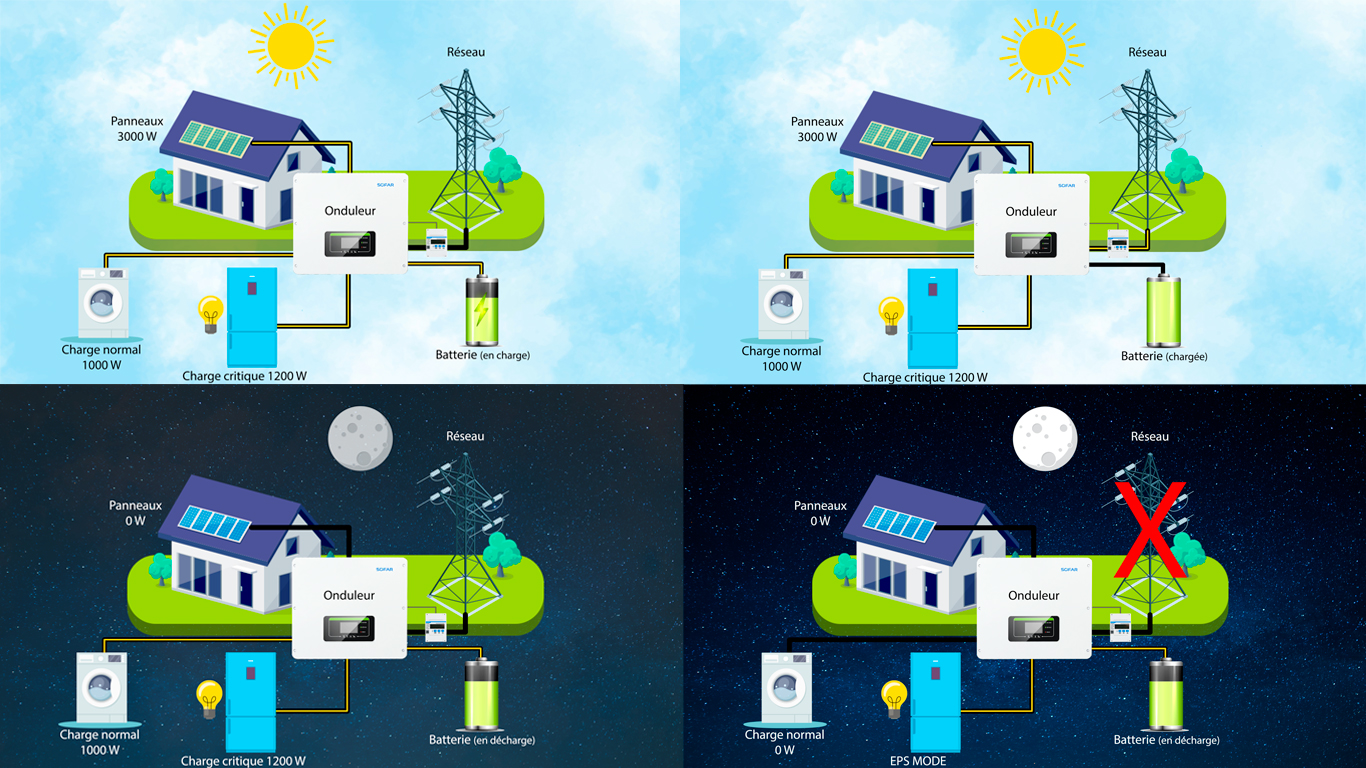

EPS Mode (EPS Mode).

1. When this mode is activated, the inverter supplies energy to loads when it is off-grid, for example when there is no connection to the public grid or during power failures.
2. If PV production exceeds consumption, the surplus is stored in the battery
.

These modes allow the user to flexibly manage how energy is stored and used, optimizing the use of batteries and solar power generation.

Retro-Fit

Optimization of an existing grid-connected installation

SolarMan Smart

SofarSolar redefines the future of energy with smart inverters. Equipped with advanced monitoring features, our inverters include WiFi Stick as standard, paving the way for seamless connectivity. Choose your path to efficiency with options such as Ethernet, GPRS or LTE keys. Transform every installation into a digital symphony, where solar power becomes a connected, intelligent and sustainable experience. SofarSolar, your partner for smarter, brighter energy.

Apple Store - Solarman Smart

Android - Google Play - Solarman Smart

Configuration steps:

1. After starting the application, register as a new user or enter your current SOLARMAN access data.
2. Create a new system and save the system data.
3. Scan the stick logger barcode to assign an inverter to the system.
4. Access the newly created system to configure the stick logger (device/logger).
5. Press the WiFi stick button for 1 second to activate the stick's WPS mode so that the smartphone can be connected to the WiFi stick.
6. Now select your local WiFi network for Internet access and enter your WiFi password.
7. The WiFi key is configured with access data.

5-year warranty for reliable energy

Dive into the energy future with confidence with Sofar Solar hybrid inverters, because we guarantee the outstanding performance of our products for 5 years. Symbolizing our commitment to quality, this warranty offers the peace of mind you need to fully embrace the potential of hybrid energy, transforming your everyday life into a reliable and sustainable energy experience.

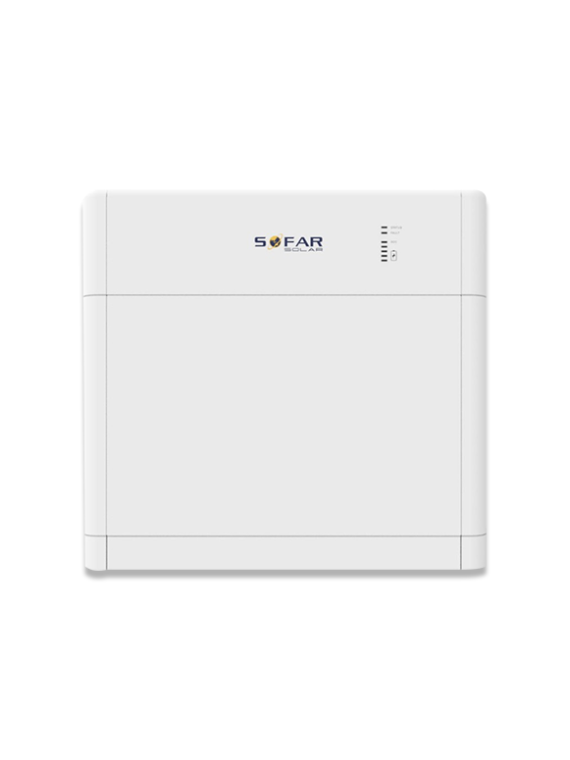

Sofar Solar 10 kWh Lithium Battery BTS + BDU

SOFARSOLAR's BTS E5-E20-DS5 is an intelligent battery system consisting of the BTS 10K battery module and a BTS 10-BDU battery distribution unit. Operating at high DC input and output voltages, its modular design allows flexible configuration according to user requirements, with storage capacities ranging from 5 to 40 kWh. The modular design facilitates installation and transport, and the system is compatible with Sofar Solar HYD 5...20KTL-3PH inverters.

The system offers balanced battery management, flexible capacity expansion, low power consumption, and supports one-touch start/stop functions. It is specially designed for Sofar Solar HYD 5...20KTL-3PH inverters and can be connected in parallel for a total storage capacity of 40 kWh.

In short, the BTS E5-E20-DS5 is an intelligent residential energy storage system, modular, flexible, with efficient battery management and compatible with Sofar Solar HYD 5...20KTL-3PH inverters.

Important notice for our customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €119.50 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here Here is the reference list and the corresponding fee! When purchasing lithium batteries, please add the following product Sofar Solar BTS 5K Lithium Battery environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.
