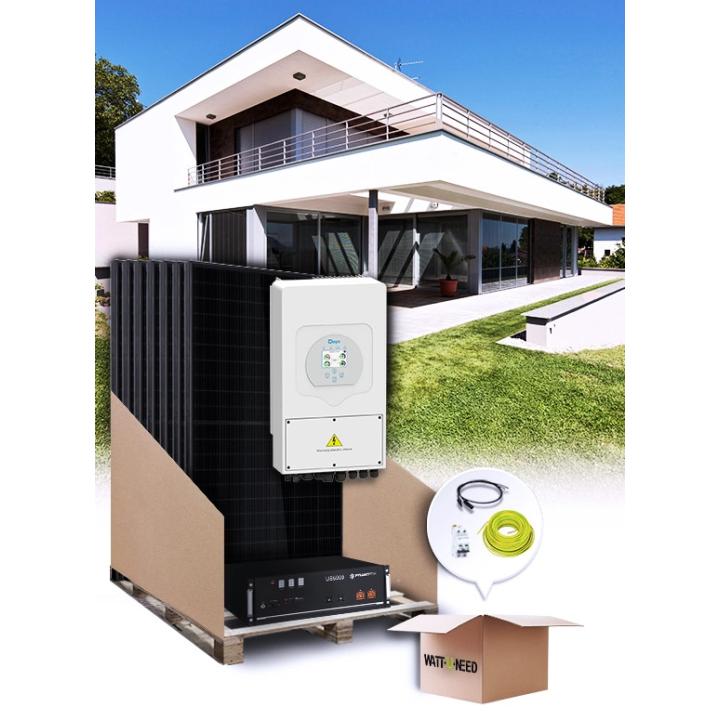

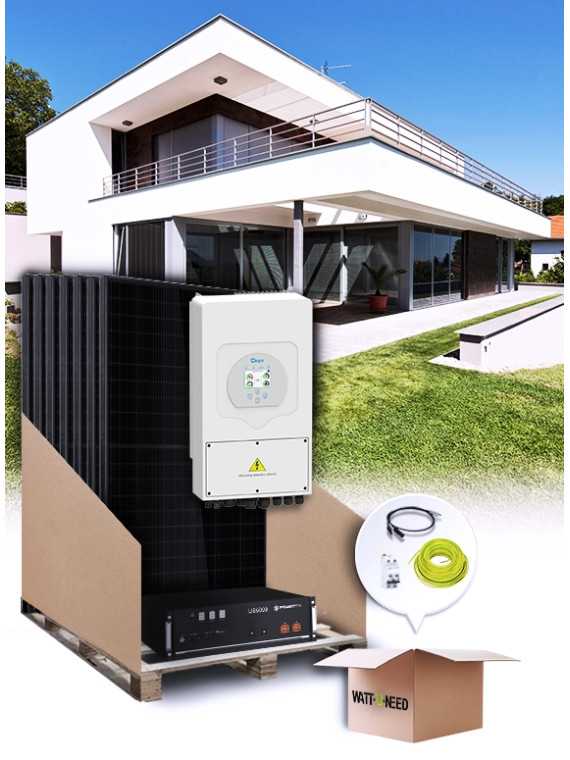

12-panel 5 kVA self-consumption kit with lithium storage

A bright choice for a sustainable, economical future.

Simplify your life with our complete solar kit, combining power, performance and independence.
Capture the sun's energy and light up your future with confidence.

Imagine a solar kit that makes everything simple - with 12 solar panels, the powerful Deye 5 kVA single-phase hybrid inverter, 2x Pylontech US5000 lithium batteries, solar cables to connect every piece of the energy puzzle, from panel to inverter to your electrical panel.
Want even more customization? No problem! Choose the mounting system that suits you best. We'll also customize the cables, protection and everything else you need to make sure it fits perfectly with YOUR requirements. Solar energy your way, that's the way!

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.

Important notice for our customers in Belgium: An environmental contribution of € 94.41 excl. VAT will be applied to the purchase of each Pylontech US5000 lithium battery. Pour chaque achat de batterie lithium Pylontech US3000, la contribution environnementale a ajouter est de 76,48 € HTVA . Plus d'informations en bas de page.

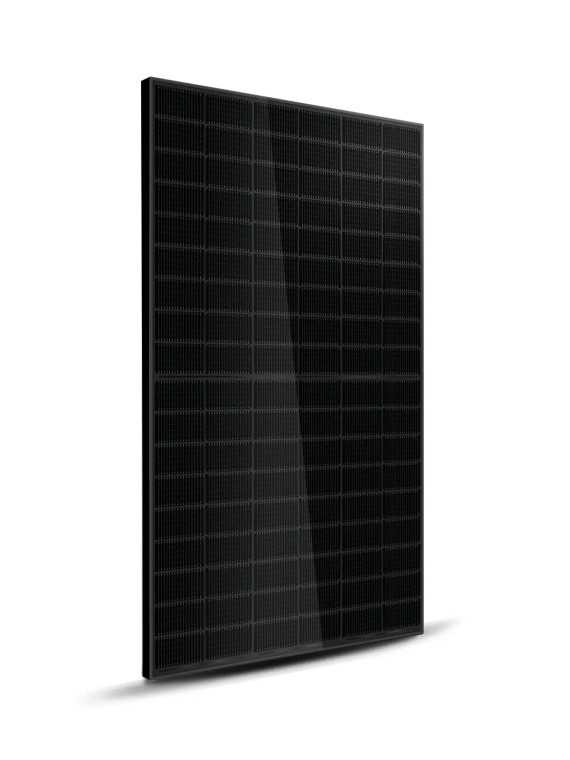

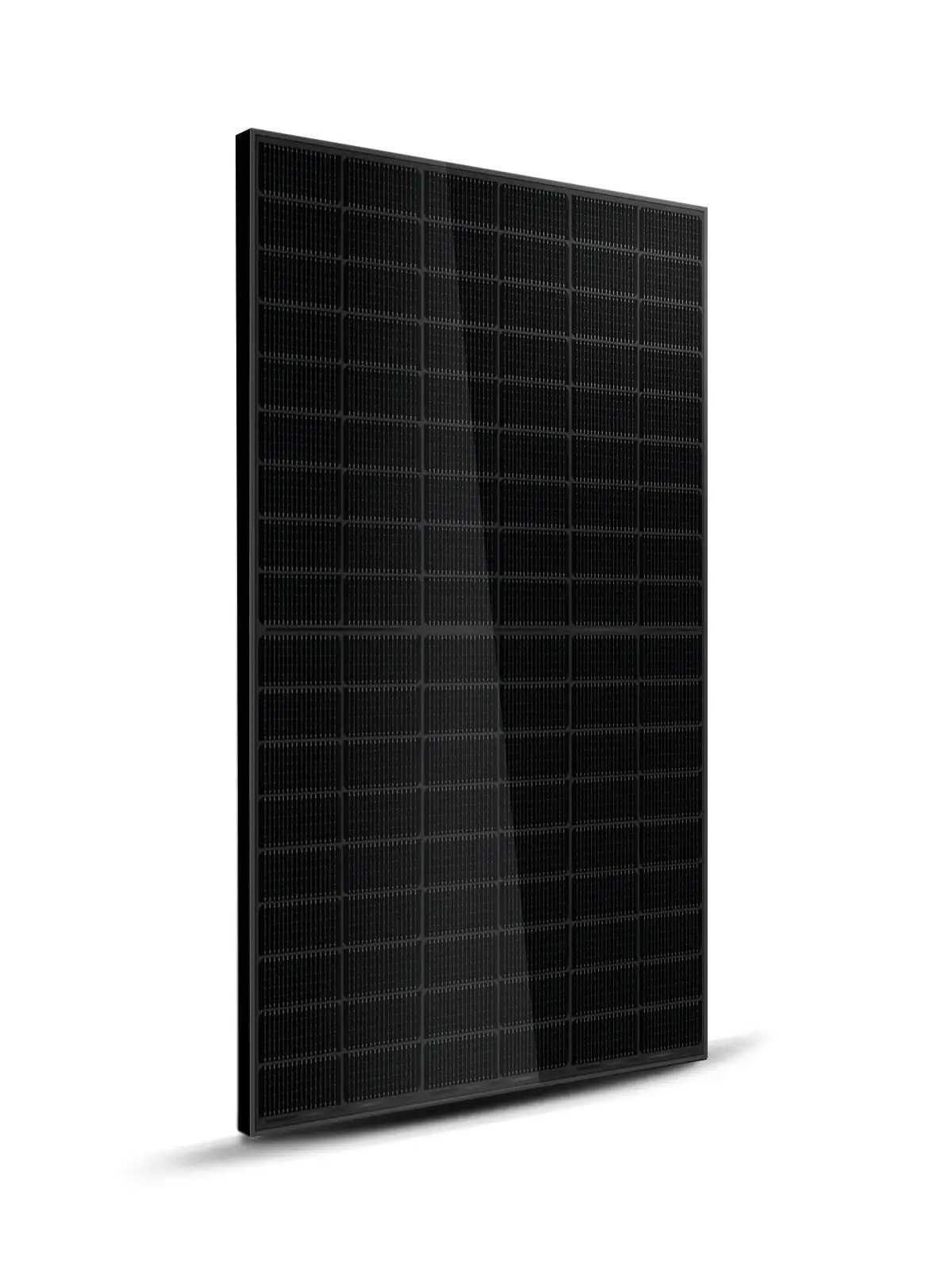

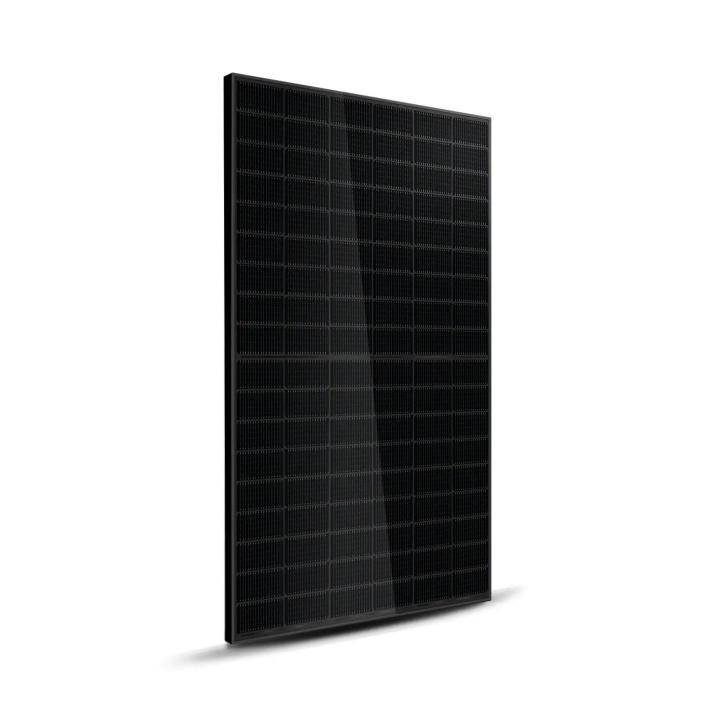

Solar panels

Single-phase inverter

A single-phase inverter is an electrical device that converts direct current (DC) electricity into alternating current (AC) with a single phase, typically used in domestic and light-duty applications. It is commonly used in residential solar energy systems to transform the energy produced by solar panels into a form compatible with standard electrical appliances.

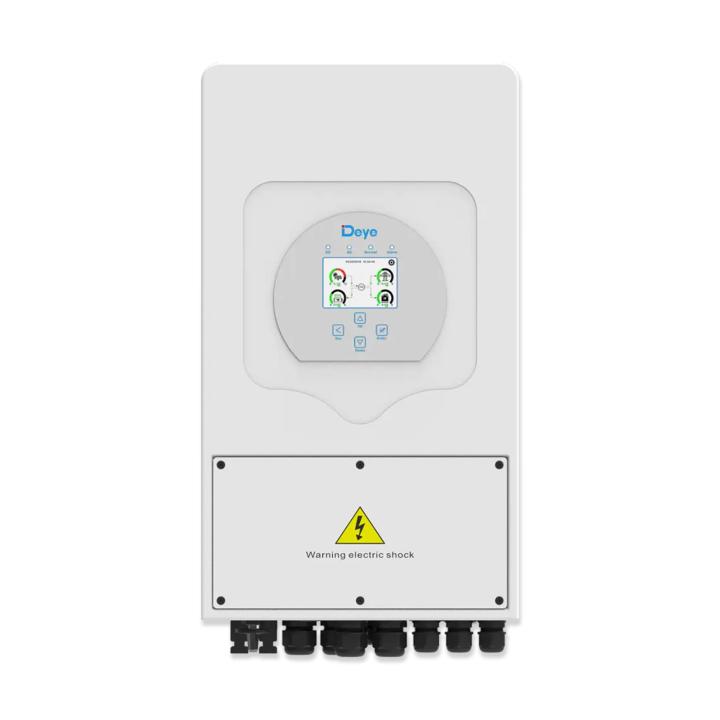

Deye 5 kVA - SUN-5K-SG01/03/LP1-EU

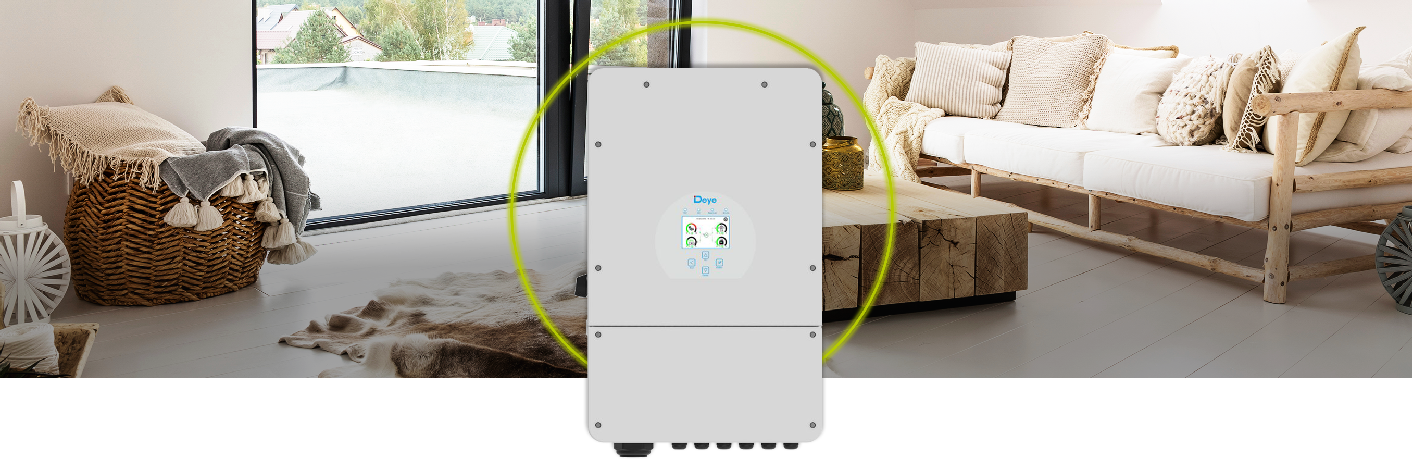

The Deye SUN-(5-8K)K-SG01/03/LP1-EU hybrid inverter is designed to offer optimal energy management for homes and small businesses. It combines maximum performance and reliability with a high charge/discharge capacity of 190A, compatible with generators and adaptable to growing needs thanks to its scalability.
This inverter can be easily integrated into existing solar systems and enables intelligent energy management via an intuitive user interface and LCD touchscreen. It is compatible with both lead-acid and lithium-ion batteries, and offers high efficiency, exceeding 97.6%.
In addition, it offers advanced monitoring and communication options, ensuring robust connectivity and flexible integration.

---

UPS operation with Pylontech batteries

Help with storage choices

Lead-acid GEL batteries (gel electrolyte) are ideal for daily discharge of 50% of their capacity, ensuring optimum performance. For example, if your fleet has a capacity of 4.8kWh, it's advisable to consume no more than 2.4kWh per day to comply with the manufacturer's recommendations. You can, however, allow for a slight margin, as these batteries can withstand faster discharges over shorter periods.

Lithium batteries, on the other hand, offer additional advantages: they can be discharged much faster than lead-acid batteries, and allow you to use up to 90% of their capacity. So you can count on greater flexibility of use with lithium batteries.

To determine the capacity of your battery, simply multiply its capacity (Ah) by its voltage (V). For example, 4 x 100Ah 12V batteries connected in series will give a voltage of 48V and a total capacity of 4.8kWh.

And to make your life easier, our sizing tool will help you calculate your precise battery requirements for your stand-alone solar kit. Put your trust in our expertise and embark on a tailor-made energy solution!

Our battery selection

Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.

We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.

We offer two different capacities. They are compatible with each other.

Battery storage Pylontech US3000C

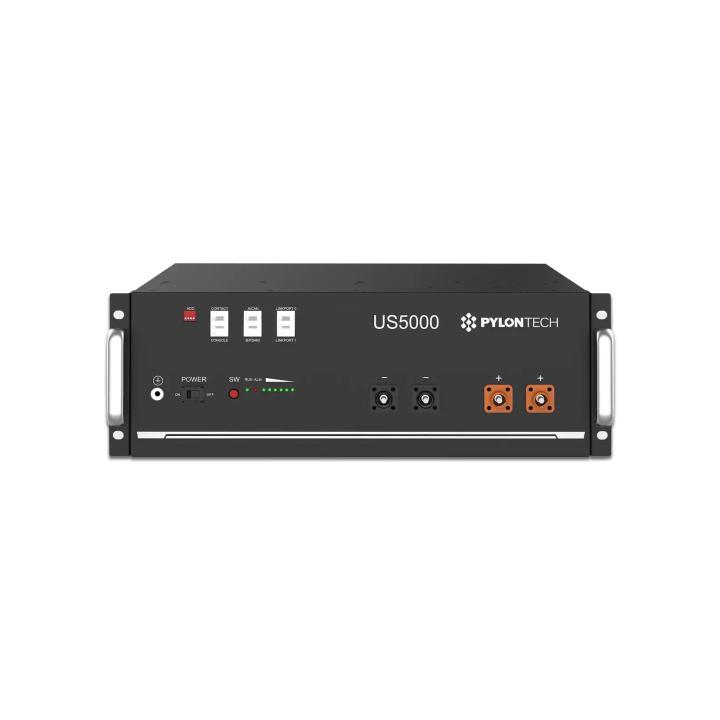

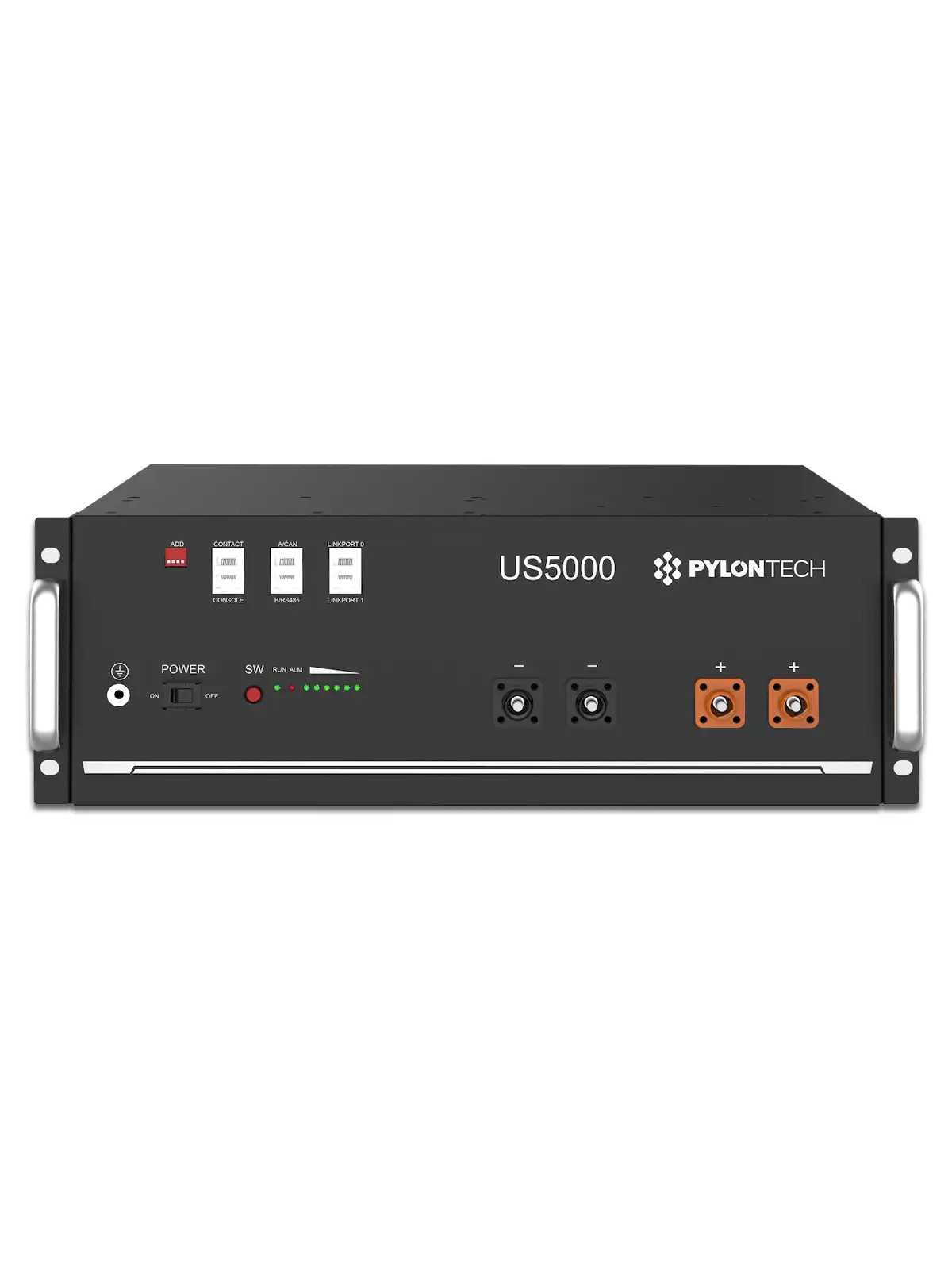

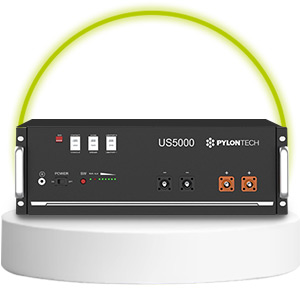

Battery storage Pylontech US5000

Rated capacity 74 Ah

DOD 95%

Rated capacity 100 Ah

DOD 95%

Tension 48 VDC

Charge/discharge 37 Ah (recommended) 37 Ah@ (Maximum)

Tension 48 VDC

Charge/discharge 80 Ah (recommended) 120 Ah@ 15min (Max.)

Cycle >6000, 25°C

Upgradable -> 16 batteries

Cycle >6000, 25°C

Upgradable -> 16 batteries

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW  • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate  • Price per kwh: 0.08 cent

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW  • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent

Low Voltage Hybrid System DEYE with Pylontech Battery - Introduction Video and Installation Guide

---

Important notice for our customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €94.41 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here. Here is the reference list and the corresponding fee! When purchasing lithium batteries, please add the following product Pylontech US5000 Environmental Fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase. If you choose the Pylontech US3000C battery, Belgian customers are also subject to this compulsory environmental contribution. This amount is €76.48 excluding VAT and is compulsorily applied to each battery purchased and paid to Bebat.  If you choose this option, please add the following product Pylontech US3000C environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after purchase.

Personalization

Advice

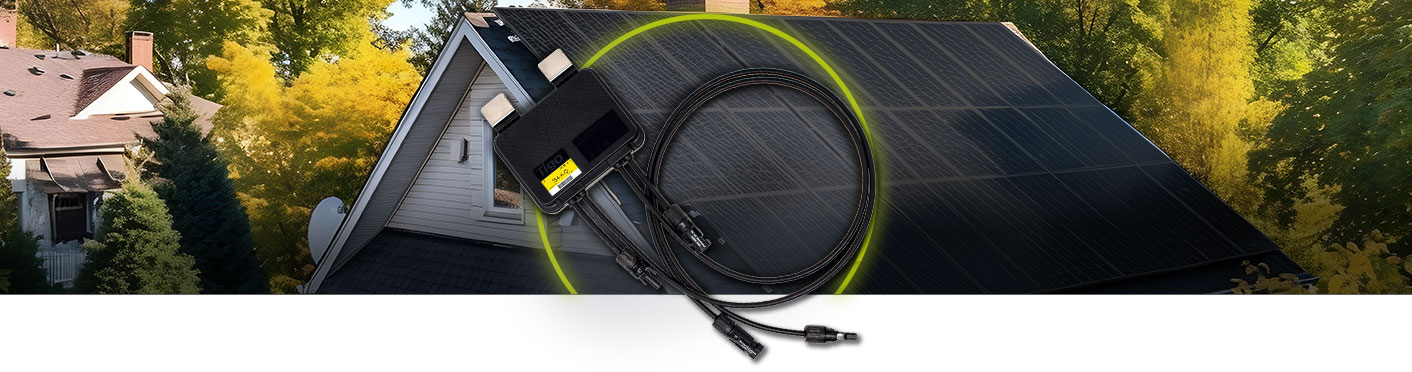

Optimize your production with Tigo TS4-A-O

(available as an option)

Operation

Maximize the production of each panel by controlling the DC current before the central inverter.

Ideal for

Installations with partially shaded panels or panels exposed to varying conditions.

Benefits

• Improved yield: Even in shaded conditions.
• Lower cost:
Cheaper
• than microinverters.
• Reduced maintenance: Fewer interventions on the roof
.
