This kit includes
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products directly below the price.
This kit is sized with the general purpose of being installed with the public network.

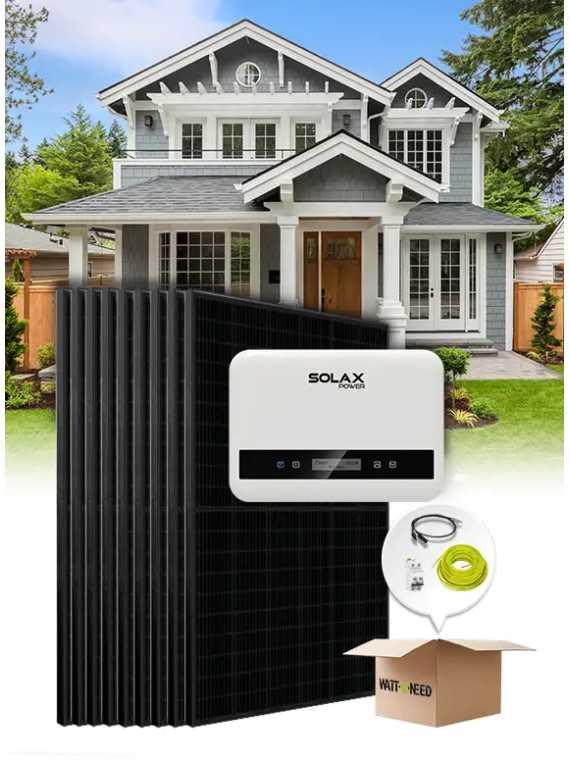

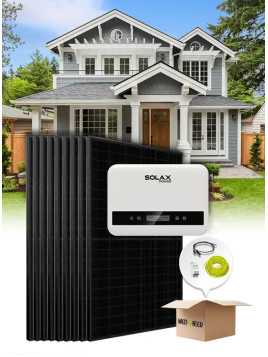

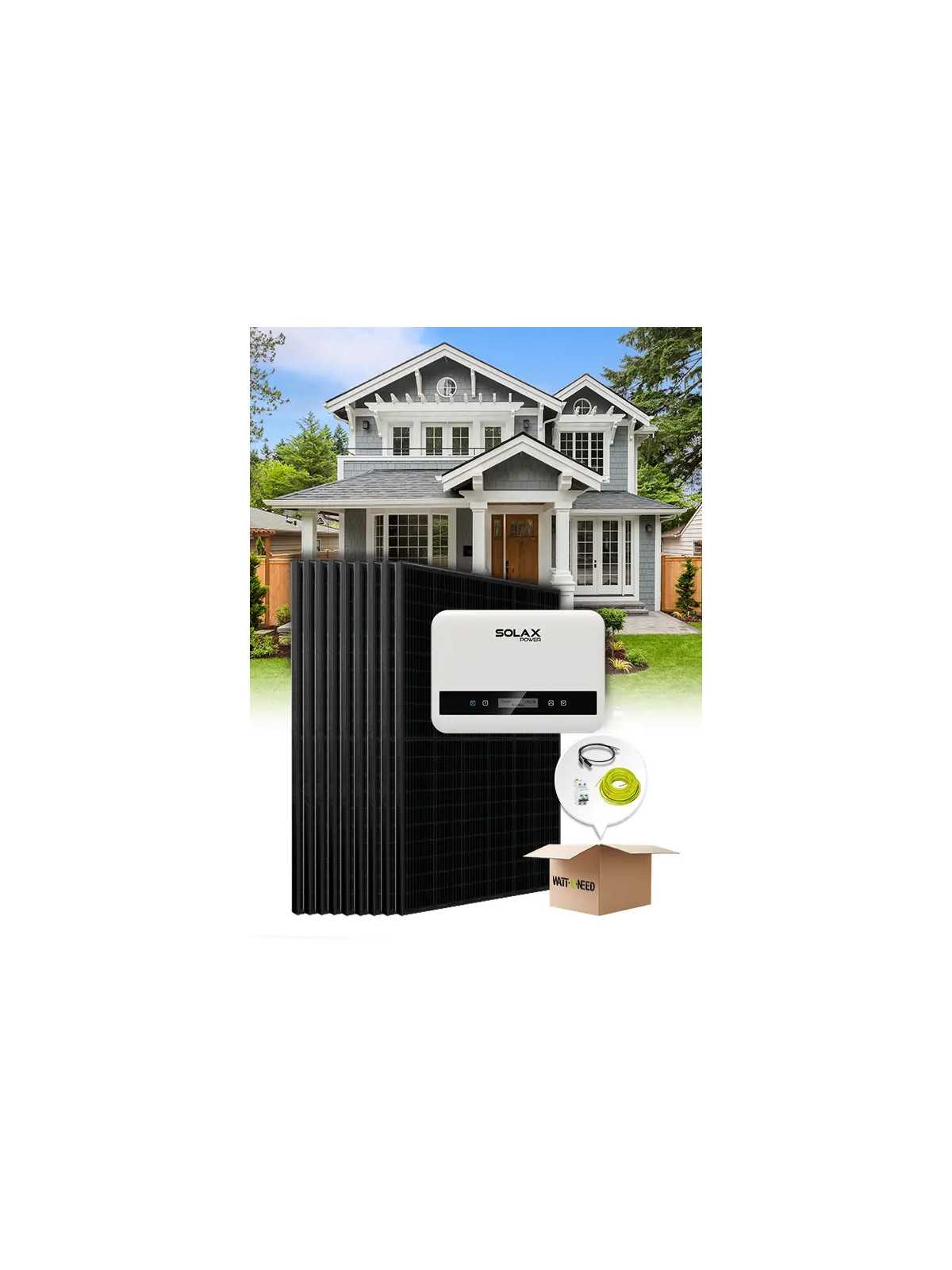

The basic composition of the kit contains 10 375 Wp Solar panels, a SolaX X1 Mini 3.0 Single Phase Inverter and the solar cable to connect the panels to the inverter. (The mounting system as well as the wiring and protections are modifiable to meet your needs).

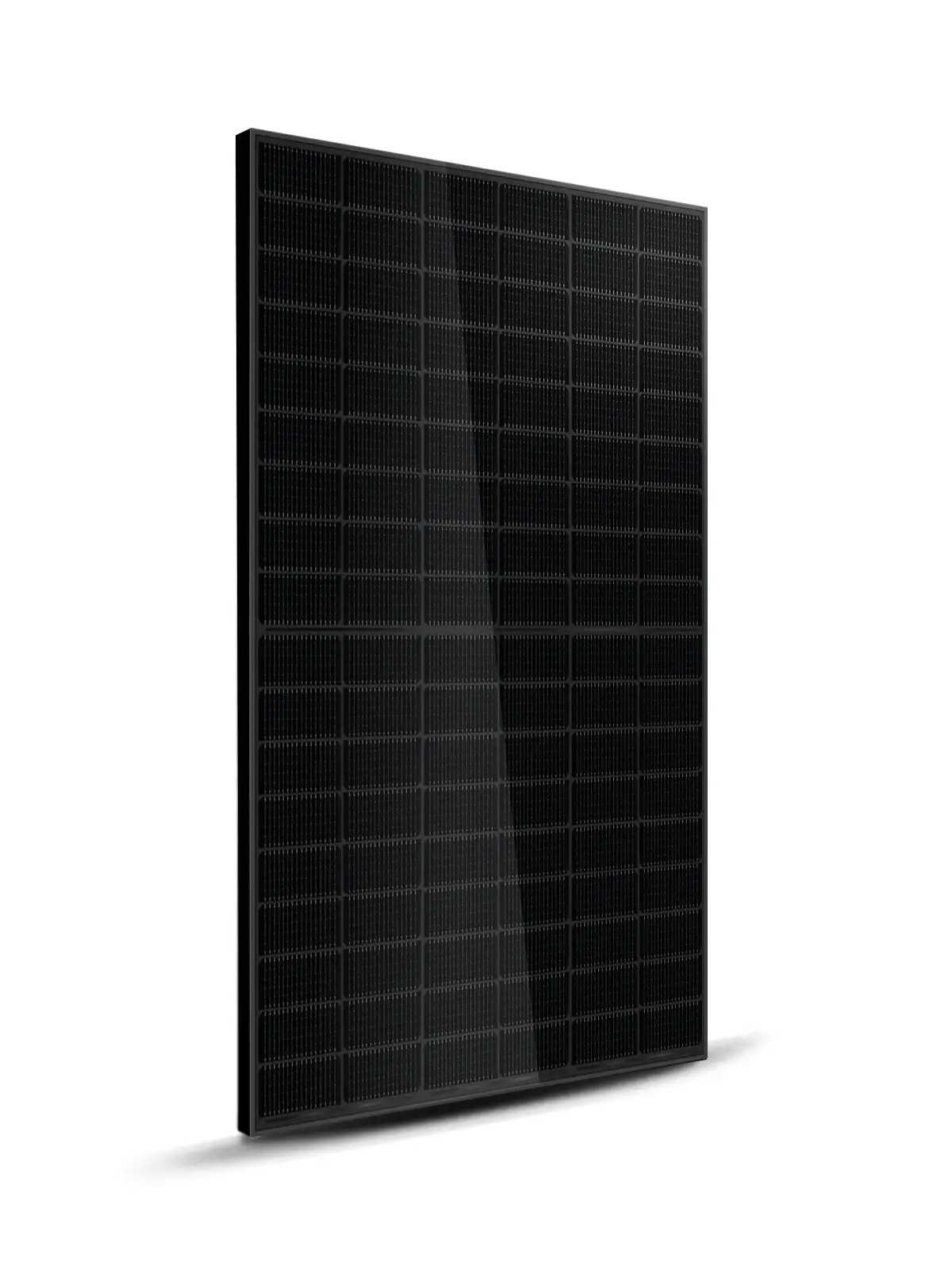

SOLAR PANELS:
In its basic version, this Photovoltaic system will bring you an average of 12 Kwh per sunny day. The productions will depend on the seasons (summer/winter) the geographical position and the inclination of the panels.
We invite you to consult our solar production simulator to determine precisely what your solar production will be.
Warranty 25 years at 80% of rated power.
NETWORK INVERTER:

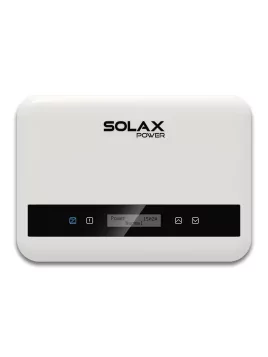

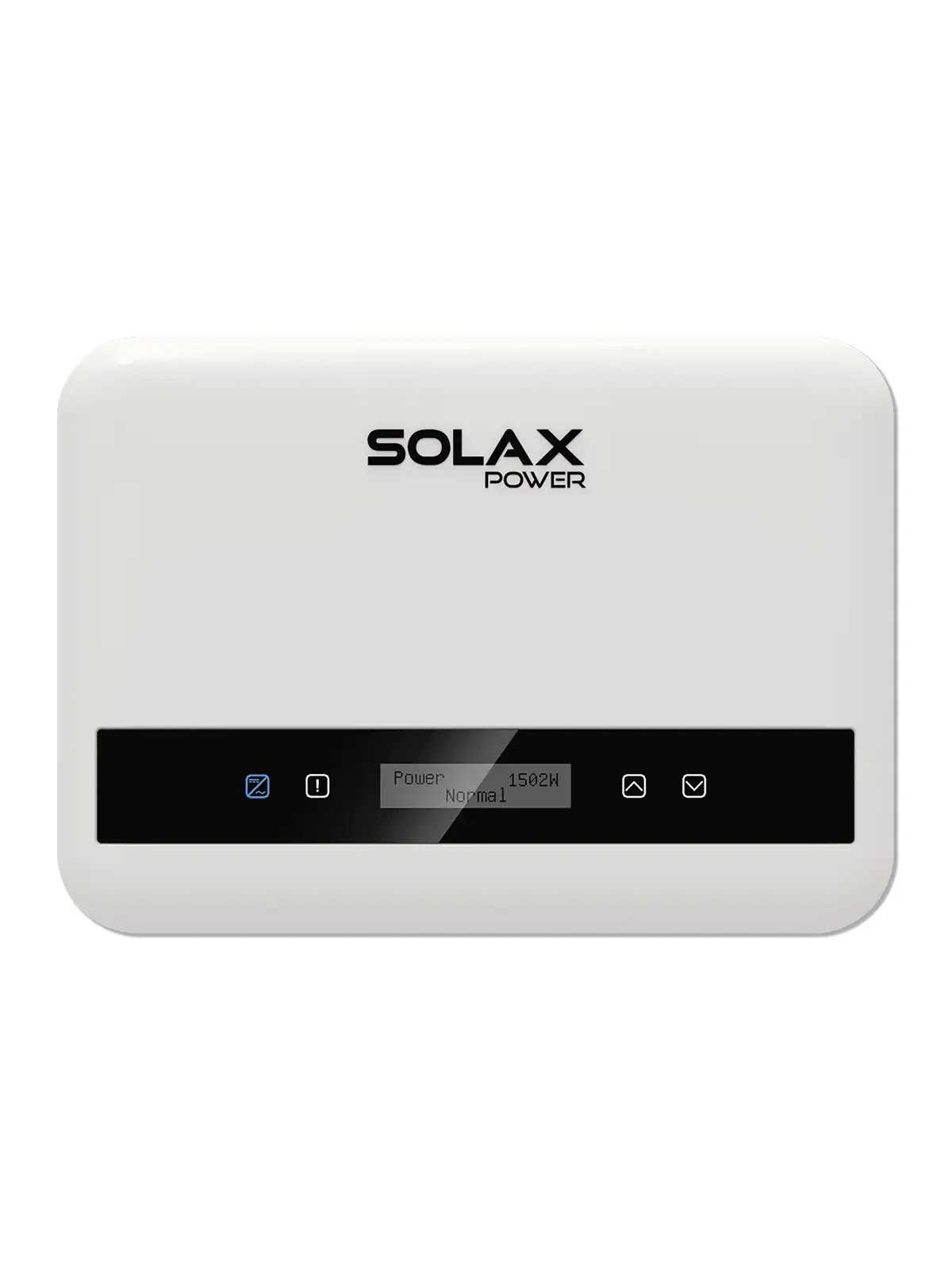

The SolaX X1 Mini range of inverters is designed and manufactured for small PV networks. With a starting voltage of 70V and a maximum efficiency of 97.1%, the X1 Mini promises unparalleled performance, allowing you to harvest as much energy as possible from your PV system.
CABLE AND CONNECTORS:
All cables and connections are pre-wired in our workshops. Our kits are very easily mountable by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.
ASSEMBLY:
The installation of this kit takes no more than 2 hours. Once the VarioTwin structures are positioned, all you have to do is 'clip' the panels on them. Attach the inverter to the wall and connect it to your electrical panel.
GUARANTEE:
All products have an individual warranty.
Panels guaranteed for 25 years at 80% of the rated power.
Solax inverter warranty 10 years.
The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.

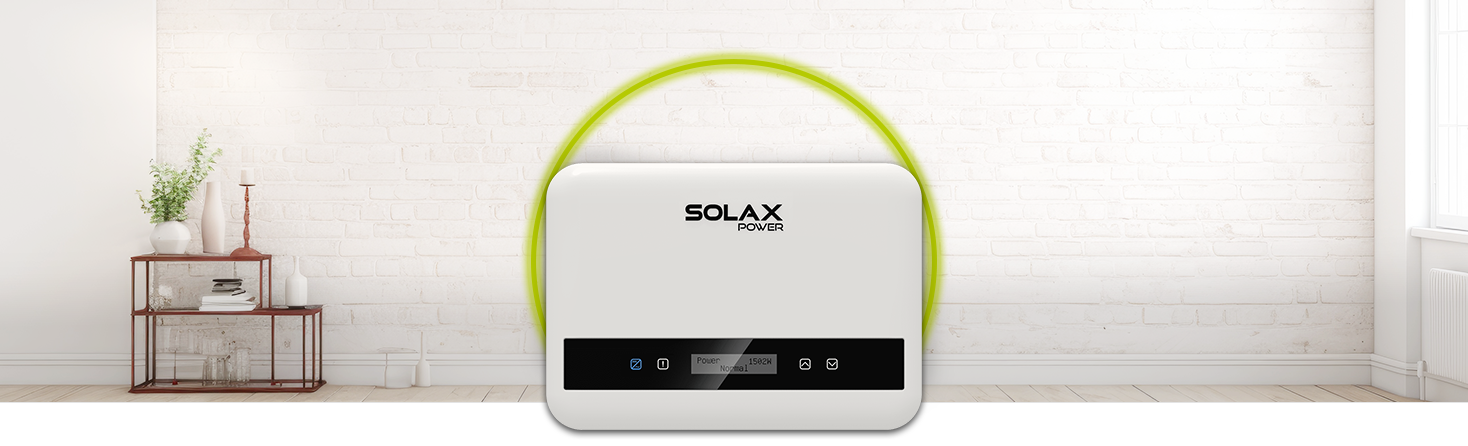

The X1 Mini inverter is the perfect solar solution for small photovoltaic solar panels ranging from 0.6 kW to 3.6 kW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.
The X1 Mini has been designed to be installed in the smallest of spaces, with a footprint of only 35cm and weighing only 7kg, the X1 Mini is small but does not lack performance.
The X1 Mini is rated IP66, which means it can be installed indoors or outdoors, giving you the option to choose where to install the system.
ENTRANCE | |
Max. power of photovoltaic panels (Wc) | 4500 |
Max DC voltage (VI) | 550 |
Nominal DC working voltage (V) | 360 |
Input current max. (A) | 14 |
Short circuit current max. (A) | 16 |
MPPT voltage range (V) | 55-530 |
Startup service voltage (V) | 70 |
# of MPP/MPPT follow-ups | 1 |
Channels by MPP/MPPT tracking | 1 |
AC OUTPUT | |
Rated AC Power (VA) | 3000 |
Max AC power (VA) | 3300 |
Rated voltage of the electrical network (AC voltage range) | 220/230/240; 180~280 |
Frequency/Rated Range of the Power Grid (Hz) | 50/60; ±5 |
Rated AC current (A) | 13,04 |
Current AC max. (A) | 14,3 |
Displacement power factor | 0.8 capacitive – 0.8 inductive |
THDi, rated power(%) | <3 |
YIELD | |
MPPT Performance (%) | 99,9 |
European yield (%) | 96,5 |
Max yield (%) | 98 |
POWER ABSORBED | |
Standby (night) consumption (W) | 0 |
STANDARDS | |
Surge protection | Yes |
Overcurrent protection | Yes |
DC Insulation Resistance Monitoring | Yes |
Ground Fault Current Monitoring | Yes |
DC injection monitoring | Yes |
Differential circuit breaker protection | Yes |
Security | IEC 62109-1/-2 |
EMC | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3 |
Certification | EN62109-1/-2; G98; AS/NZS 4777.2; VDE4105; EN50438 |
ENVIRONMENTAL LIMITS | |
Degree of protection (according to IEC 60529) | IP66 |
Operating temperature range (°C) | -25 to + 60 (downgrading to 45) |
Max operating altitude (m) | <2000 |
Humidity(%) | 0 to 100 (condensation) |
Storage temperature (°C) | -30~70 |
Typical sound level (dB) | <25 |
DIMENSIONS AND WEIGHT | |
Dimensions (W x W x D) (mm) | 267 x 328 x 116 |
Weight (kg) | 6 |
Type of cooling | Natural |
Topology | Non-isolated |
Communication interfaces | SR485 DRM Wi-Fi LAN GPRS (optional) USB |
LCD | Yes |
Standard warranty (years) | 5 - 10 |
