    18-panel 10 kVa self-consumption kit with storage and installation in Belgium
    18-panel 10 kVa self-consumption kit with storage and installation in Belgium
    18-panel 10 kVa self-consumption kit with storage and installation in Belgium
    18-panel 10 kVa self-consumption kit with storage and installation in Belgium
    18-panel 10 kVa self-consumption kit with storage and installation in Belgium
    18-panel 10 kVa self-consumption kit with storage and installation in Belgium
    18-panel 10 kVa self-consumption kit with storage and installation in Belgium

    18-panel 10 kVa self-consumption kit with storage and installation in Belgium

    €10,214.24
    Tax included
    kit-install-WKS-BE-18pv
    0768563818561

    Kit Solaire Autoconsommation: Produce your own energy!

    Discover our complete solar kit for energy self-sufficiency. Comprising 18 high-performance solar panels, a WKS Evo MAX II 10 kVA 48V hybrid inverter and two Pylontech US5000 lithium battery, this kit enables you to produce and store your own electricity.

    Key benefits:

    • Energy independence: Reduce your electricity bill.
    • Savings: Benefit from substantial savings over the long term.
    • Storage: Consume your energy when you need it, even without sunlight.
    • Simple installation: Easy to install, no major work required.
    • Customizable: Adapt the kit to your specific needs.

    Estimated production :

    With this kit, you can produce around 8,811 kWh per year, representing potential savings of around €2,643.30. These estimates are given for information only (0.30€/kWh).

    Why choose this kit?

    • WKS hybrid inverter: simplifies the administrative process.
    • Quality components: ensure a long service life.
    • Turnkey solution: everything you need for a successful installation.

    Ready to make the leap to self-consumption? Contact us for a personalized study.

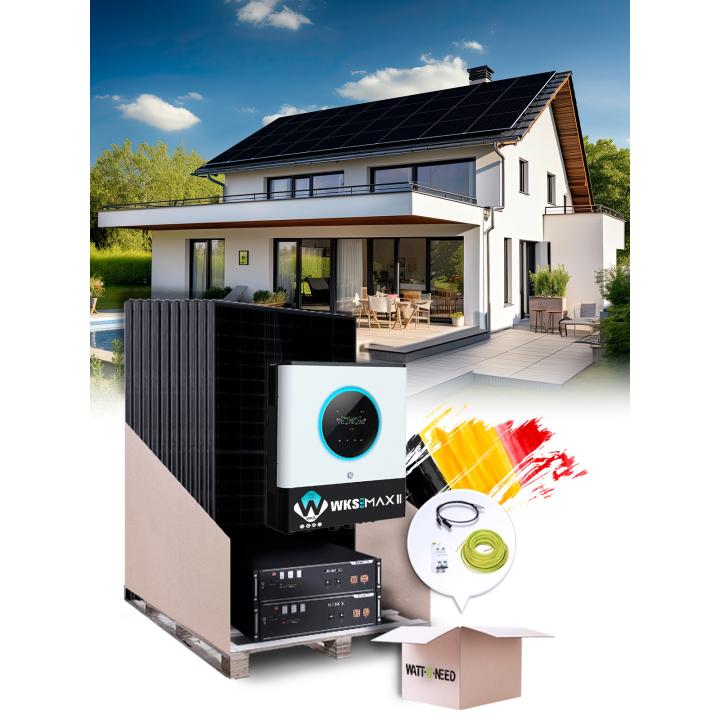

    This kit includes

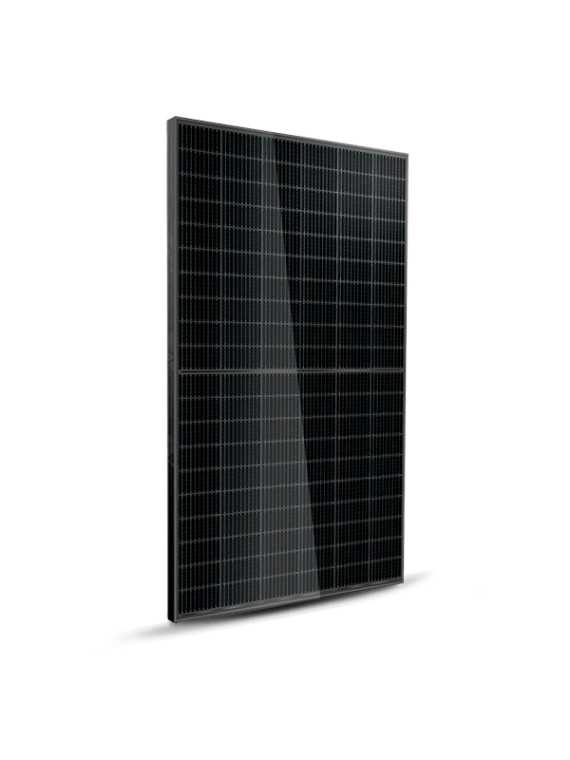

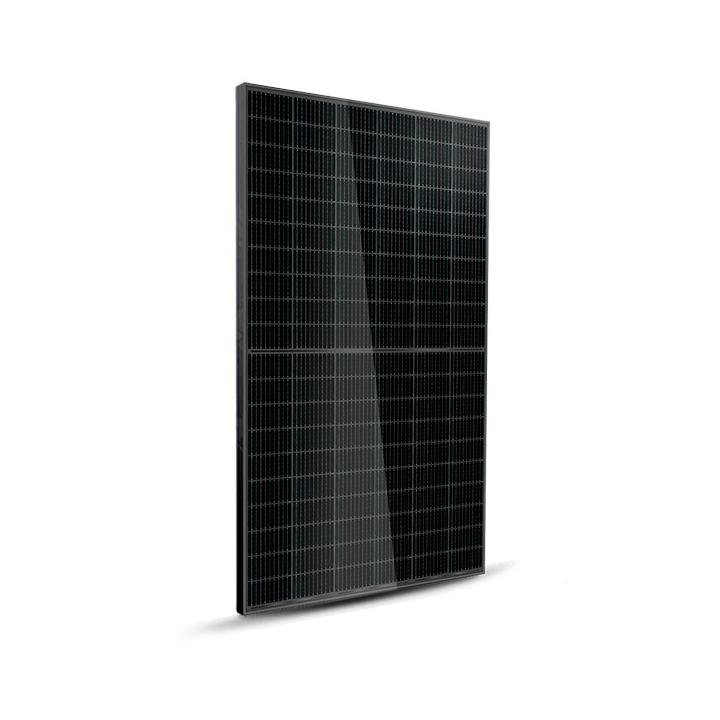

    • 18XLeapton N-Type 450Wp TOPCon bifacial | Solar Panel Optimized Solar Output

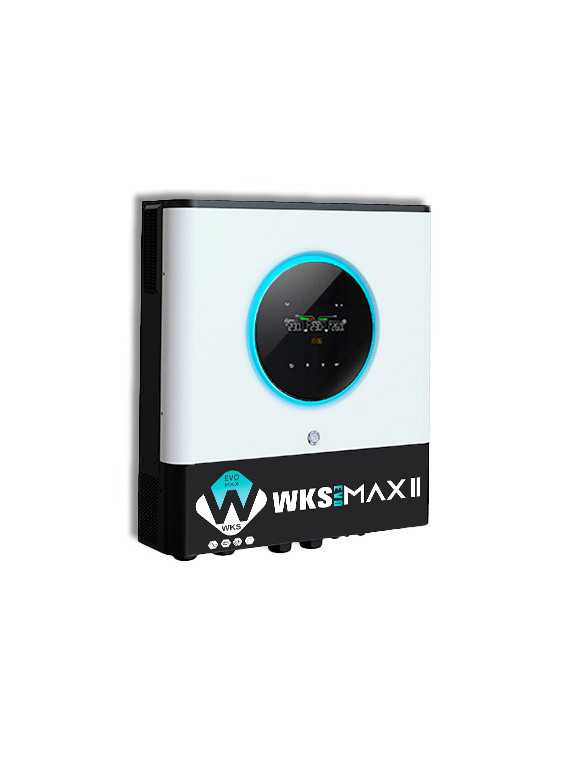

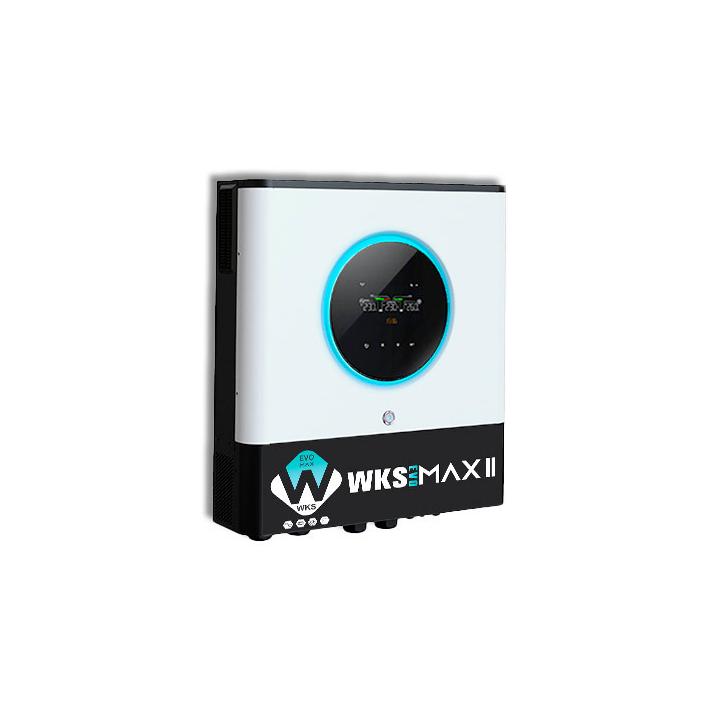

    • 1XWKS Evo MAX II 10kVA 48V hybrid inverter
    • 2XTile roof mounting kit
    • 2X2X4mm2 solar cable with MC4 type (sold per metre)
    • 1X6mm² earth cable (sold by the meter)
    • 2XEarth cable 16mm² - 1m
    • 18XRayvolt grounding clip
    • 1XSchneider mono 40A circuit breaker

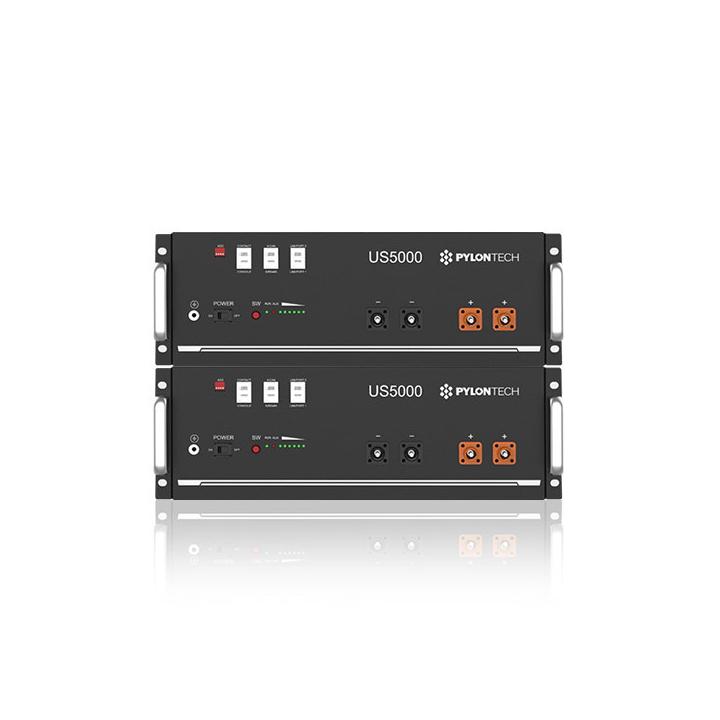

    • 2XPylontech US5000 Lithium Battery - 4.8kWh | High Performance
    • 1XPylontech battery connection cable
    • 2XEnvironmental contribution Bebat Pylontech US5000
    • 1X18-panel installation package - Belgium
    • 1Xcopy of Package installs battery park up to 6 batteries
    • 1XElectrical installation labour in Belgium
    • 1XCommissioning in Belgium
    • 1XSmall equipment package (tubes, fasteners, etc.) in Belgium
    • 1XAdministrative formalities package: CWAPE - GRD - Reception
    Request a quote

    Select products from the sections below
    Panneaux
    info
    Choix de l'onduleur
    info
    WKS Evo MAX II 8kVA 48V hybrid inverter
    WKS Evo MAX II 10kVA 48V hybrid inverter
    Price per unit
    €1,676.00  (Tax incl.)
    Choix du système de montage
    info
    mounting system for tile roofs
    Tile roof mounting kit
    Price per unit
    €468.90  (Tax incl.)
    Câblage et connectique
    info
    2X4mm² Solar cable with MC4 (by the metre)
    2X4mm2 solar cable with MC4 type (sold per metre)
    Price per unit
    €96.91  (Tax incl.)
    Câblage et connectique
    info
    6mm² earth cable (sold by the meter)
    6mm² earth cable (sold by the meter)
    Price per unit
    €75.90  (Tax incl.)
    Câblage et connectique
    info
    Earth cable 16mm² - 1m
    Earth cable 16mm² - 1m
    Price per unit
    €6.60  (Tax incl.)
    Rayvolt
    info
    Rayvolt grounding clip
    Rayvolt grounding clip
    Price per unit
    €1.63  (Tax incl.)
    Protections et accessoires AC
    info
    Schneider Breaker mono 40A
    Schneider mono 40A circuit breaker
    Price per unit
    €18.80  (Tax incl.)
    Protections et accessoires DC
    info
    No products selected
    No products selected
    Price per unit
    €0.00  (Tax incl.)
    Choix des batteries
    info
    Accessoires batteries
    info
    Pylontech battery connection cable
    Pylontech battery connection cable
    Price per unit
    €25.65  (Tax incl.)
    Cotisation nvironnementale obbtligatoire
    info
    Environmental contribution Bebat Pylontech US5000
    Environmental contribution Bebat Pylontech US5000
    Price per unit
    €114.24  (Tax incl.)
    Forfait pose et installation en Belgique
    info
    18-panel installation package - Belgium
    18-panel installation package - Belgium
    Price per unit
    €1,980.00  (Tax incl.)
    Forfait pose et installation en Belgique
    info
    Pose kit 3kw par un sous-traitant
    copy of Package installs battery park up to 6 batteries
    Price per unit
    €181.50  (Tax incl.)
    Forfait pose et installation en Belgique
    info
    Electrical installation labour in Belgium
    Electrical installation labour in Belgium
    Price per unit
    €399.30  (Tax incl.)
    Forfait pose et installation en Belgique
    info
    Commissioning in Belgium
    Commissioning in Belgium
    Price per unit
    €122.82  (Tax incl.)
    Forfait pose et installation en Belgique
    info
    Forfait pose et installation en Belgique
    info

    18-panel 10 kVa...

    €10,214.24

    Control your energy?
    Our All-in-One Kit with installation in Belgium, for carefree energy autonomy!






    Discover our turnkey solution for generating your own electricity from the sun. Our basic kit includes 18 solar panels based on the latest technology, WKS Evo MAX II 10 kVA 48V hybrid inverter and a Pylontech US5000 lithium battery, a fixing system suitable for tiled roofs and all the components needed for installation. We select the most efficient panels for you to optimize your system's energy production.

    Why choose solar energy?

    By opting for a solar installation, you're choosing to :

    • Reduce your electricity bill
    • Reduce your carbon footprint
    • Enhance the value of your property
    • Become more energy independent

    A personalized quote for your project

    We offer you a personalized study to determine the ideal configuration for your installation. By sending us a few photos of your roof and indicating your electricity consumption and type of connection (single-phase or three-phase), we can provide you with a precise quote.

    Fast, professional installation

    Once your project has been approved, our team of qualified installers will set up your solar system as quickly as possible. We guarantee careful installation in compliance with current standards.

    The advantages of choosing Wattuneed

    • Expertise: Benefit from our know-how to make your project a success.
    • Quality: High-performance materials and professional installation.
    • Simplicity: A turnkey solution to make your life easier.
    • Guarantee: We monitor your installation and offer a ten-year guarantee.

    An offer adapted to your needs

    Our offer is valid for accessible installations requiring no major lifting equipment. For more complex projects, we can propose a customized solution.

    Would you like to find out more?

    Please contact us for a free, customized quote:info@wattuneed.com

    Important notice for our customers in Belgium: An environmental contribution of €94.41 excl. VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page.

    Take the step towards energy autonomy!


    Solar panels

    Présentation panneaux solaires

    Discover the solar jewel in our kit! Selected from the latest technologies, this panel offers unrivalled efficiency.

    See its product sheet in our panels section to find out more.
    And don't forget, we offer you the flexibility to choose the panel model you prefer.




    We invite you to consult our solar production simulator to determine exactly what your solar production will be.

    Different cell types



    Icone cellule

    Perc
    (Passivated Emitter and Rear Cell)

    Icone cellule

    N-Type

    Icone cellule

    HJT

    Efficacité

    Efficiency

    Approximately 19-22%Approximately 20-23%.Environ 21-24%

    icone euro

    Cost

    ModerateHighVery high

    Icone température

    Temperature coefficient

    Approximately

    -0.3 à 0.4% per °C
    Approximately

    -0.3% per °C
    Approximately

    -0.2% Per °C

    Icone dégradation

    Annual degradation

    Approximately 0.5 - 07%Approximately 0.4 - 0.5%Less than 0.5%

    icone durabilité

    Durability

    GoodVery goodExcellent

    see panels





    séparation




    Inverters

    Choose the best partner to convert your solar energy.

    If you want to maximize the use of your photovoltaic solar energy, the hybrid inverter in combination with domestic storage may be the ideal solution for you.

    We've selected the WKS range for their performance and excellent value for money.
    It's perfectly possible to install several inverters in the same system to increase the power available.

    Onduleur WKS EVO Circle

    Hybrid inverter

    WKS EVO Circle

    VS

    Onduleur hybride WKS EVO MAX II

    Hybrid inverter

    WKS EVO MAX II

    Icone 1 MPPT

    1 MPPT
    Icone Upgradable
    -> 9 Inverters
    Icone nombre de MPPT
    2 MPPT
    Icone Upgradable
    -> 6 Inverters

    Icone Puissance nominal

    Rated power
    5600 VA - 5600W

    Tension batterie

    Battery voltage
    48 VDC

    Icone Puissance nominal

    Rated power
    10000 VA - 1000W

    Tension batterie

    Battery voltage
    48 VDC

    Icone courant de charge PV maximum

    Maximum PV load current
    120 A

    Icone courant de charge AC maximum

    Maximum AC load current
    120 A

    Icone courant de charge PV maximum

    Maximum PV load current
    150 A

    Icone courant de charge AC maximum

    Maximum AC load current
    150 A

    Key benefits

    • Intuitive design: Customizable LED ring, 4.3-inch color LCD screen, touch button.
    • Flexibility: Option to choose operating mode via timer.
    • Connectivity: Built-in Wi-Fi, USB On-The-Go port, BMS communication port.
    • Performance: High-performance MPPT controller, wide DC input range.
    • Reliability: Transformerless design, parallel operation up to 9 units.

      Notable technical features

    • Power: 5.6 kVA
    • MPPT Solar Charger: 120A
    • LCD Screen: Color, 4.3 inches
    • Wi-Fi: Built-in
    • Parallel Operation: Up to 9 units
    • LED Ring: Customizable with RGB effects

    Key benefits

      • Energy flexibility: maximum self-consumption, storage, grid injection.
      • High performance: Two independent MPPT trackers, high efficiency.
      • Reliability and durability: microprocessor control, robust construction.
      • Ease of use: Intuitive LCD display, communication options.
      • Safety: Overload and short-circuit protection.
      • Environment: Clean energy, reduced carbon footprint.

    • Notable technical features

      • Power: 10kW
      • Two independent MPPT trackers: Optimization of solar production
      • Communication: Several options for home automation integration
      • Environmentally-friendly: Solar energy



    Our battery selection

    Optimize your installation by choosing a suitable, high-performance storage solution.
    Store your surplus solar production for later use to get rid of the grid.


    We chose Pylontech lithium batteries for many reasons:
    - 7 to 10-year product warranty;
    - Fast charge/discharge speed;
    - Possibility of upgrading capacity whenever you want;
    - No technical capacity limits.

    We offer two different capacities. They are compatible with each other.

    Batterie Pylotench US3000C

    Battery storage

    Pylontech US3000C

    VS

    Onduleur hybride WKS EVO MAX II

    Battery storage

    Pylontech US5000

    icone capacité batterie

    Rated capacity
    74 Ah

    Icone DOD
    DOD
    95%
    icone capacité batterie

    Rated capacity
    100 Ah
    Icone DOD
    DOD
    95%

    Tension batterie

    Tension
    48 VDC

    Icone charge-décharge

    Charge/discharge
    37 Ah (recommended)
    37 Ah@ (Maximum)

    Tension batterie

    Tension
    48 VDC

    Icone charge-décharge

    Charge/discharge
    80 Ah (recommended)
    120 Ah@ 15min (Max.)

    Icone cycleCycle
    >6000, 25°C

    Icone Upgradable

    Upgradable
    -> 16 batteries

    Icone cycle

    Cycle
    >6000, 25°C

    Icone Upgradable

    Upgradable
    -> 16 batteries

    Benefits

    • Over 6000 cycles at 95% discharge

    • Compact modular design for easy capacity expansion

    • Supplies up to 3.552KW

    • Useful capacity of 4560Wh

    • Short current/time duration of <2000A/1ms

    • TüV CE UN38.3 safety certificate

    • Price per kwh: 0.08 cent

    Benefits

    • Over 6000 cycles at 95% discharge

    • Compact modular design for easy capacity expansion

    • Supplies up to 4.8KW

    • Useful capacity of 3374Wh

    • Short current/time duration of <4000A/2ms

    • TüV CE UN38.3 safety certificate

    • Price per kwh: 0.08 cent






    Important notice for our customers in Belgium:


    As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of 94,41 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here

    Here's the reference list and the corresponding membership fee!


    When purchasing lithium batteries, please add the following product Pylontech US5000 Environmental Fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.



    kit-install-WKS-BE-18pv

    Data sheet

    Inverter power
    10000 VA
    Type of need
    Kits with installation in Belgium
    Battery storage
    With storage
    Wind turbine
    Without
    Number of panels
    18 panels
    Mains re-injection
    off-grid
