Kit self-consumption 25 panels 10 kVA with storage and installation in France

Take control of your energy!
Our All-in-One Kit with installation in France for worry-free energy autonomy!

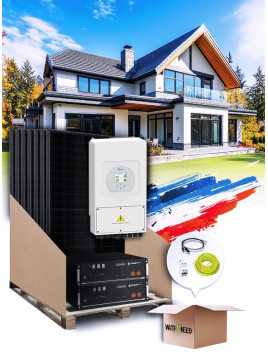

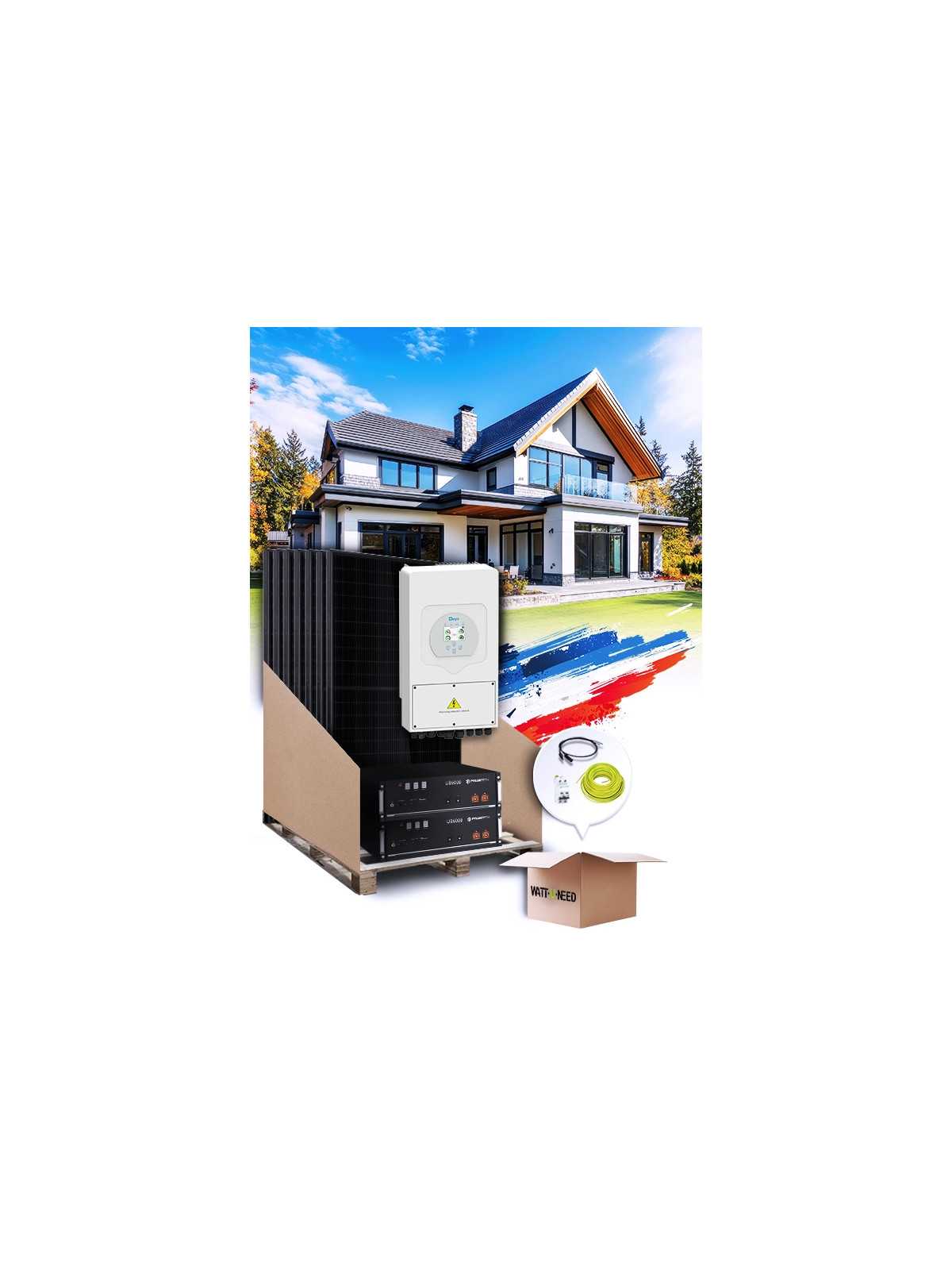

Discover our turnkey solution to produce your own electricity using solar energy. This complete and customizable solar kit is designed to help you generate your own electricity and significantly reduce your energy bills. Composed of 25 high-performance solar panels, a 10 kVA Deye three-phase hybrid inverter, and two Pylontech US5000 lithium batteries, this system provides a clean and reliable energy solution. We select the most efficient panels for you to optimize the energy production of your installation.

Why choose solar energy?

By opting for a solar installation, you choose to:

• Reduce your electricity bill
• Lower your carbon footprint
• Increase your property value
• Become more energy independent

A personalized quote for your project

We offer a personalized study to determine the ideal configuration for your installation. By sending us a few photos of your roof and providing your electricity consumption as well as the type of connection (single-phase or three-phase), we can provide you with a precise quote.

Fast and professional installation

Once your project is confirmed, our team of qualified installers takes care of setting up your solar system promptly. We guarantee a clean installation in compliance with current standards.

The benefits of choosing Wattuneed

• Expertise: Benefit from our know-how for a successful project.
• Quality: High-performance materials and professional installation.
• Simplicity: A turnkey solution to make your life easier.
• Warranty: We ensure the follow-up of your installation and the installer provides a ten-year guarantee.

An offer tailored to your needs

Our offer applies to installations accessible without significant lifting equipment at ground level or R+1 (first floor). For projects requiring more complex access conditions, we will work together to find the best technical and economical solution. There may be budget and equipment adjustments based on the criteria mentioned earlier. Access to the residence must be easy without complexity and on an unprotected site. Travel expenses are covered for the first 50 km. Beyond that, a mileage fee of €1 will apply.

Want to know more?

Feel free to contact us for a free personalized quote: info@wattuneed.com

Take the step towards energy independence!

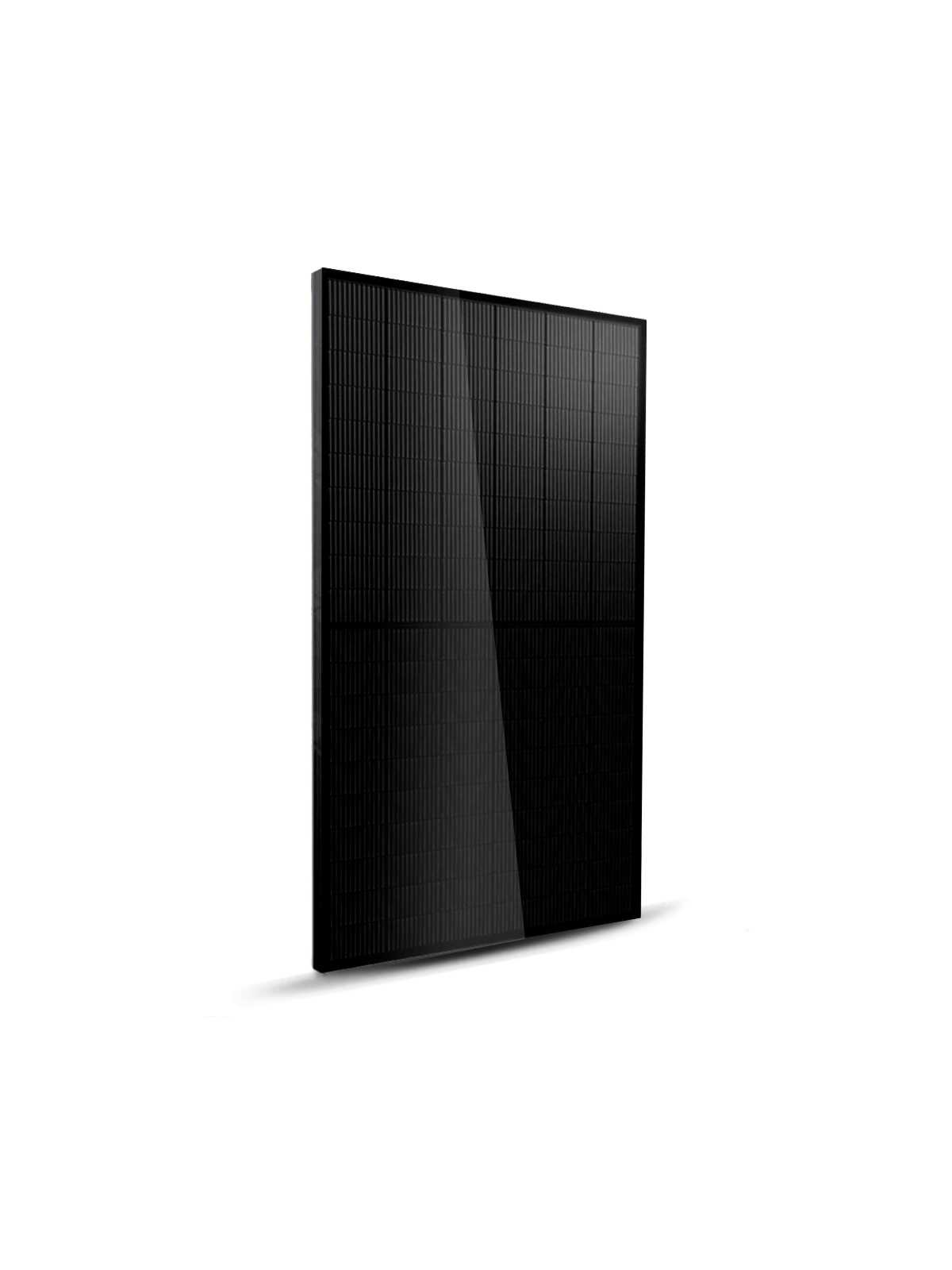

Solar Panels

Selected from the latest technologies, this panel ensures exceptional efficiency.

Discover all its details in the product sheet in our panels section. And above all, take advantage of our flexibility by choosing the panel model that suits your needs.

We invite you to check out our solar production simulator to precisely determine your solar production.

Different Types of Cells

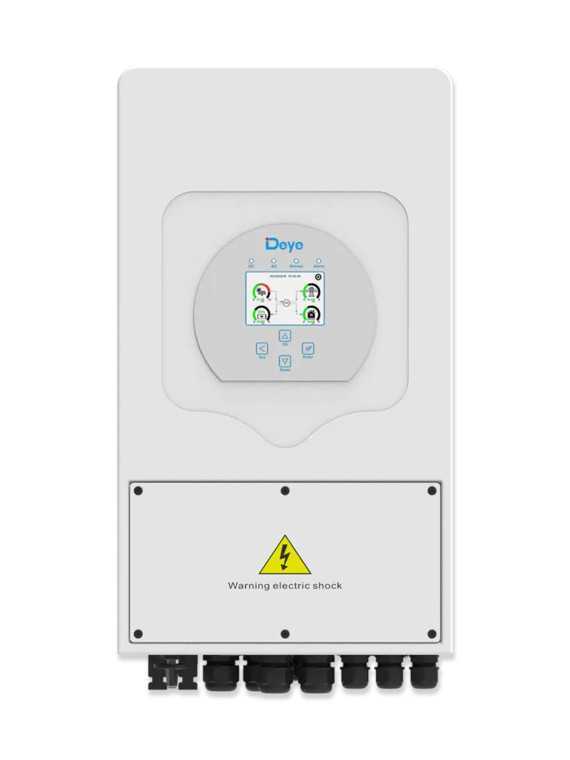

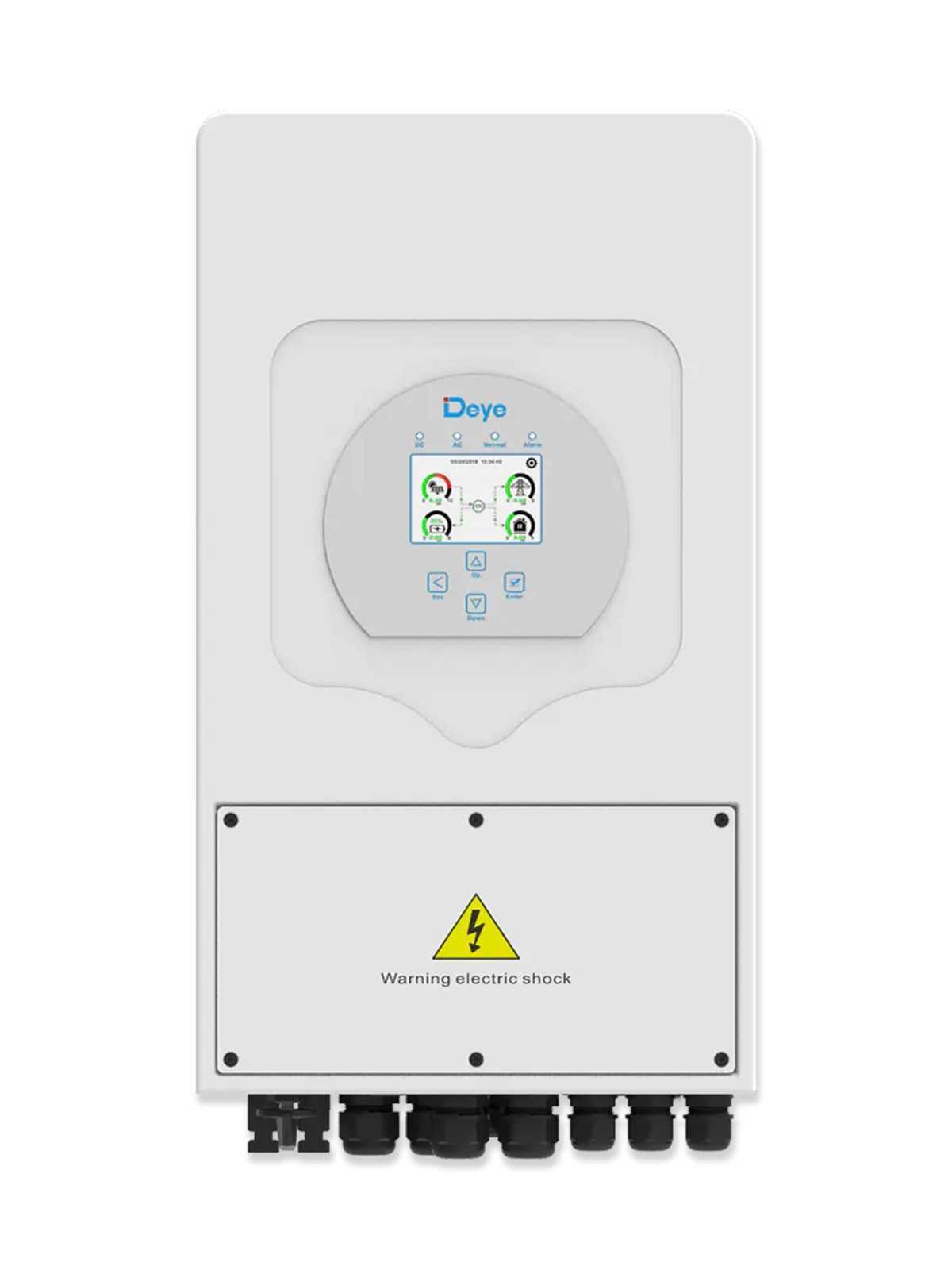

Deye 10 kVA - SUN-10K-SG04/LP3-EU

This solar inverter is the ideal solution to make your home energy-independent by optimizing your solar energy production and reducing reliance on the electrical grid. It converts the energy produced by your solar panels into usable electricity, offering optimal efficiency thanks to advanced technical features.

Key Points:

• Versatility: Compatible with both lead-acid and lithium-ion batteries.
• High Power: Maximum PV input of 13,000W and 10,000W AC output.
• Efficiency: High conversion rate to maximize solar energy usage.
• Flexible Installation: Adapts to various configurations.
• Reliability: Designed to operate under extreme conditions.

Benefits:

• Energy Independence: Produce your own electricity independently.
• Energy Savings: Significantly reduce your electricity bills.
• Eco-friendly: Reduce your carbon footprint.
• Reliability: Stable power supply even in case of outages.

Technical Features:

• Batteries: Lead-acid or lithium-ion (40-60V).
• PV input power: Up to 15,600W.
• AC output power: 10,000W.
• PV input voltage: Maximum 800V.

Additional Features:

• Touchscreen LCD: Displays system information and any potential errors.
• Smart Monitoring: Remote shutdown in case of incidents and remote parameter updates.

This device provides a complete and reliable solution for an energy-efficient and environmentally friendly home.

---

UPS operation with Pylontech batteries

Help with storage choices

Lead-acid GEL batteries (gel electrolyte) are ideal for daily discharge of 50% of their capacity, ensuring optimum performance. For example, if your fleet has a capacity of 4.8kWh, it's advisable to consume no more than 2.4kWh per day to comply with the manufacturer's recommendations. You can, however, allow for a slight margin, as these batteries can withstand faster discharges over shorter periods.

Lithium batteries, on the other hand, offer additional advantages: they can be discharged much faster than lead-acid batteries, and allow you to use up to 90% of their capacity. So you can count on greater flexibility of use with lithium batteries.

To determine the capacity of your battery, simply multiply its capacity (Ah) by its voltage (V). For example, 4 x 100Ah 12V batteries connected in series will give a voltage of 48V and a total capacity of 4.8kWh.

And to make your life easier, our sizing tool will help you calculate your precise battery requirements for your stand-alone solar kit. Put your trust in our expertise and embark on a tailor-made energy solution!

Our battery selection

Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.

We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.

We offer two different capacities. They are compatible with each other.

Battery storage Pylontech US3000C

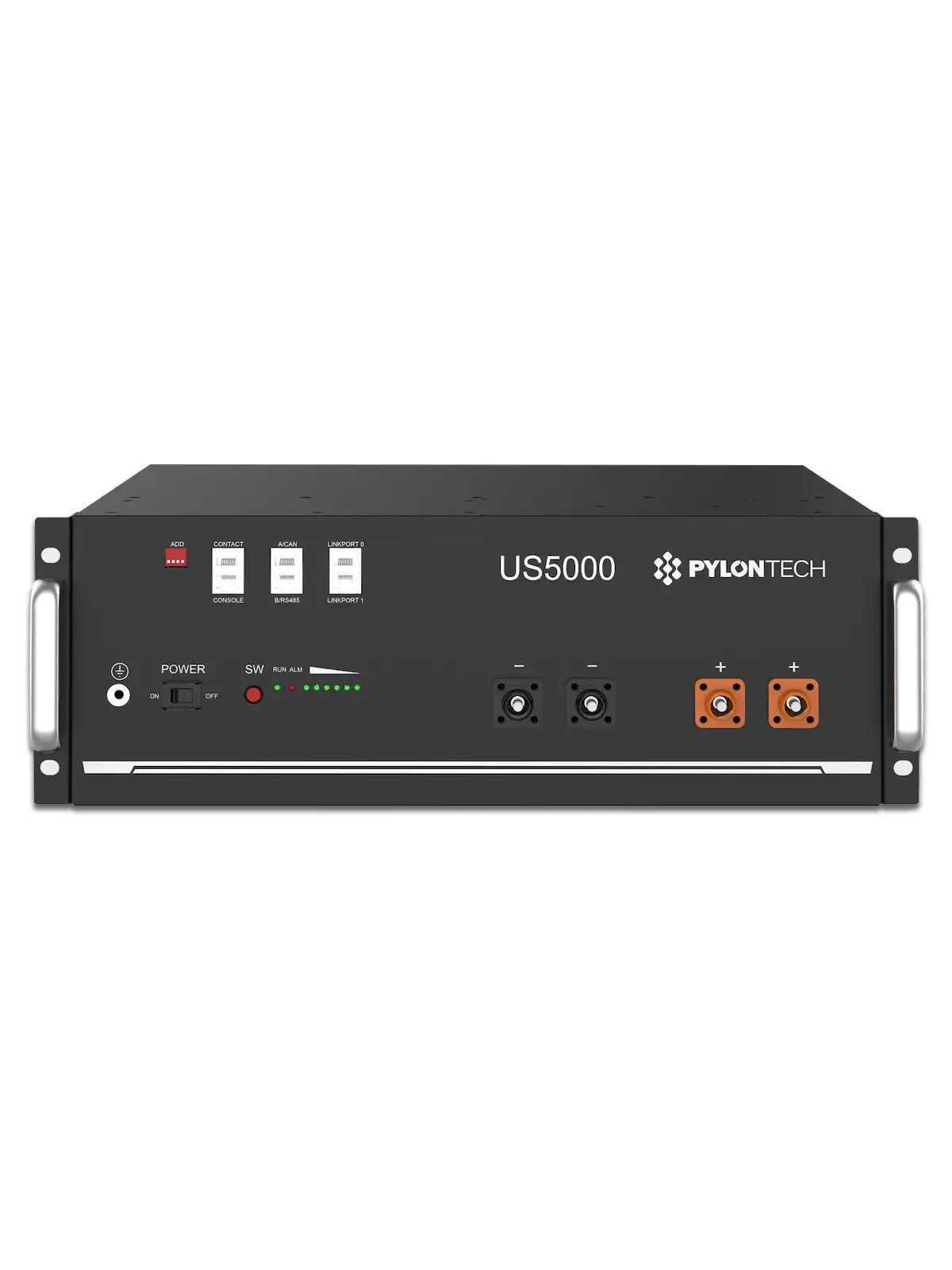

Battery storage Pylontech US5000

Rated capacity 74 Ah

DOD 95%

Rated capacity 100 Ah

DOD 95%

Tension 48 VDC

Charge/discharge 37 Ah (recommended) 37 Ah@ (Maximum)

Tension 48 VDC

Charge/discharge 80 Ah (recommended) 120 Ah@ 15min (Max.)

Cycle >6000, 25°C

Upgradable -> 16 batteries

Cycle >6000, 25°C

Upgradable -> 16 batteries

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW  • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate  • Price per kwh: 0.08 cent

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW  • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent

Low Voltage Hybrid System DEYE with Pylontech Battery - Introduction Video and Installation Guide

Personalization
