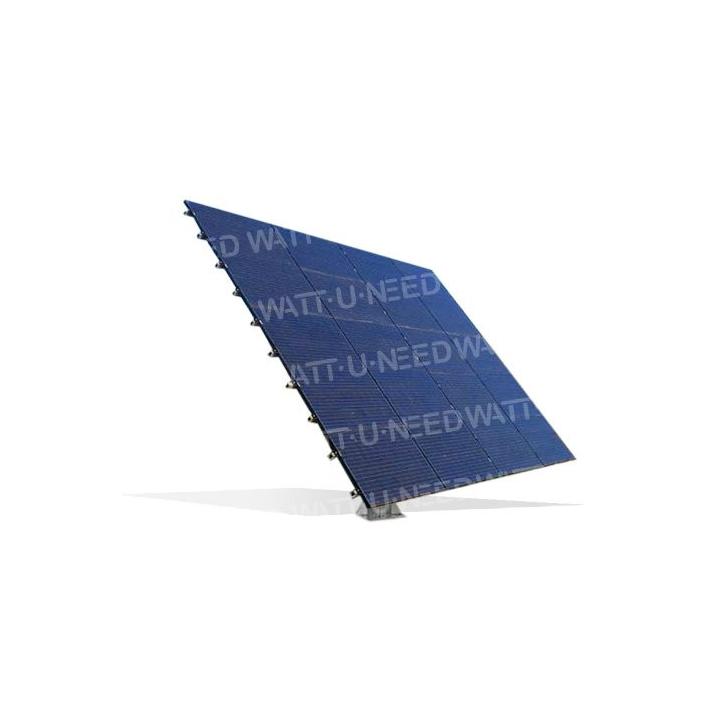

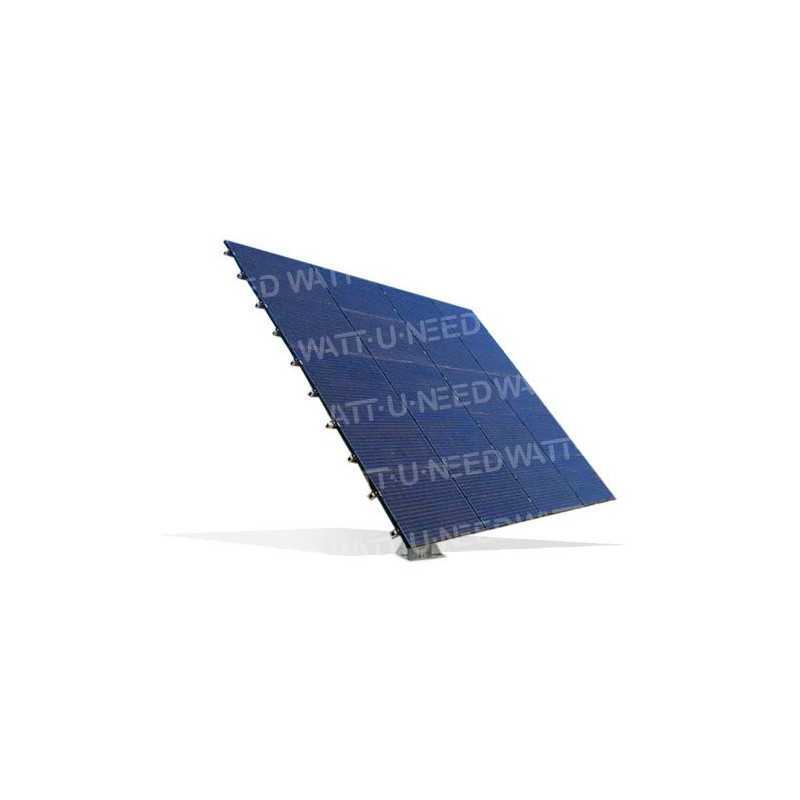

2-axis photovoltaic tracker 20 panels
€12,826.00
Tax included
0245
0768563817366
This solar tracker can support between 16 and 20 panels (depending on panel size), up to 25% more yield than a south-facing installation.
Made to order. Please contact us for further information.
"STS solar trackers optimize the performance of a photovoltaic installation."
More instant production and longer production periods thanks to the tracker.
A solar tracker keeps the panels oriented optimally towards the sun's rays. This optimal orientation maximizes the electricity production of the photovoltaic panels. This type of structure increases electricity production compared to fixed panels:
25% increase compared to a south-facing installation
40% increase compared to an east or west-facing installation
• Automated two-axis tracking system
• Hourly positioning calculator and via brightness sensor
• Hot-dip galvanized steel structure
• Compatible with all brands of photovoltaic panels
• Robustness
• Performance
Advantages
- Increase of 25% in production compared to a fixed south-facing installation.
- Possible installation without a roof or with a poorly oriented roof.
- High compactness thanks to the high yield.
The installation includes
- The structure
- The detection and orientation system (electronics + motor)
Installation for professionals
- You communicate the image of a company concerned with ecology and the environment.
- You make your company known.
- You invest in the future with guaranteed profitability.
Foundation Features
| STS 20 | |
| Width | 2.25 m |
| Length | 2.25 m |
| Depth | 1 m |
| Volume | 5.1 m³ |
| Weight | 11600 Kg |
Structure Features
The structure has two degrees of freedom: horizontal rotation to adjust the azimuth and vertical rotation for the tilt. The horizontal rotation allows tracking the sun’s movement throughout the day. The vertical rotation adjusts the structure according to the seasonal declination of the sun.
| Materials | Steel/Aluminum |
| Area | 33 m² |
| Number of columns | 4 |
| Number of rows | 5 |
| Pole height | 2 m |
| Panel height | 5 m |
| Total width | 6.6 m |
| Total height | 4.5 m |
| Power (440Wc panels) | 8800Wc |
| Annual production | 9500 Kwh |
| Weight | 1150 Kg |
| Maximum admissible wind speed | 120 Km/h |
| Manufacturing | 100% Belgian |
Motorization Features
Our solar tracker has automatic panel orientation based on the daily declination of the sun (from east to west) throughout the day. This orientation is done every 10 minutes through an electric motor. The structure's orientation according to the seasonal declination of the sun (from 73° at the winter solstice to 27° at the summer solstice) is also automatic. The installed power is adjustable upon request. A standard installation is around 4kWc, with 25.6m² of installed PV panels.
| Horizontal axis | 220 ° |
| Vertical axis | 60° |
| Operating voltage | 24 Volts |
| Motor power | 2 X 60W |
| Operating consumption | 200Wh/day |
| Tracking system | Hourly + brightness sensor |
