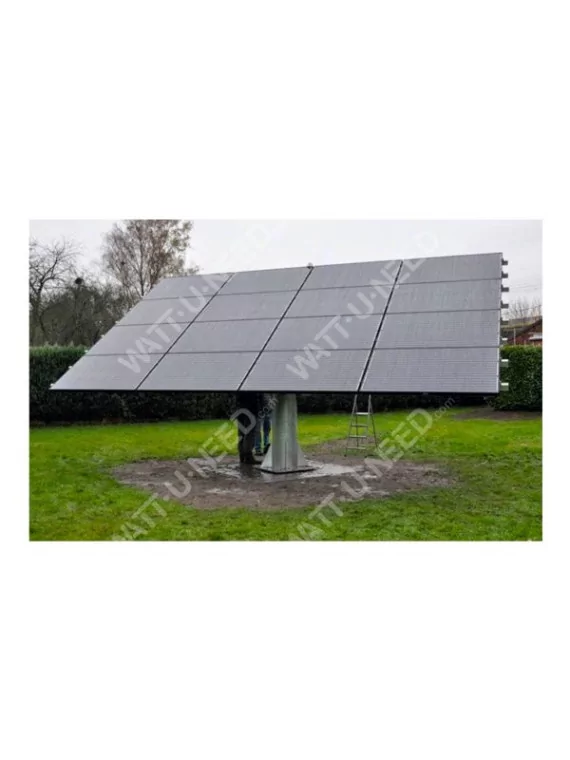

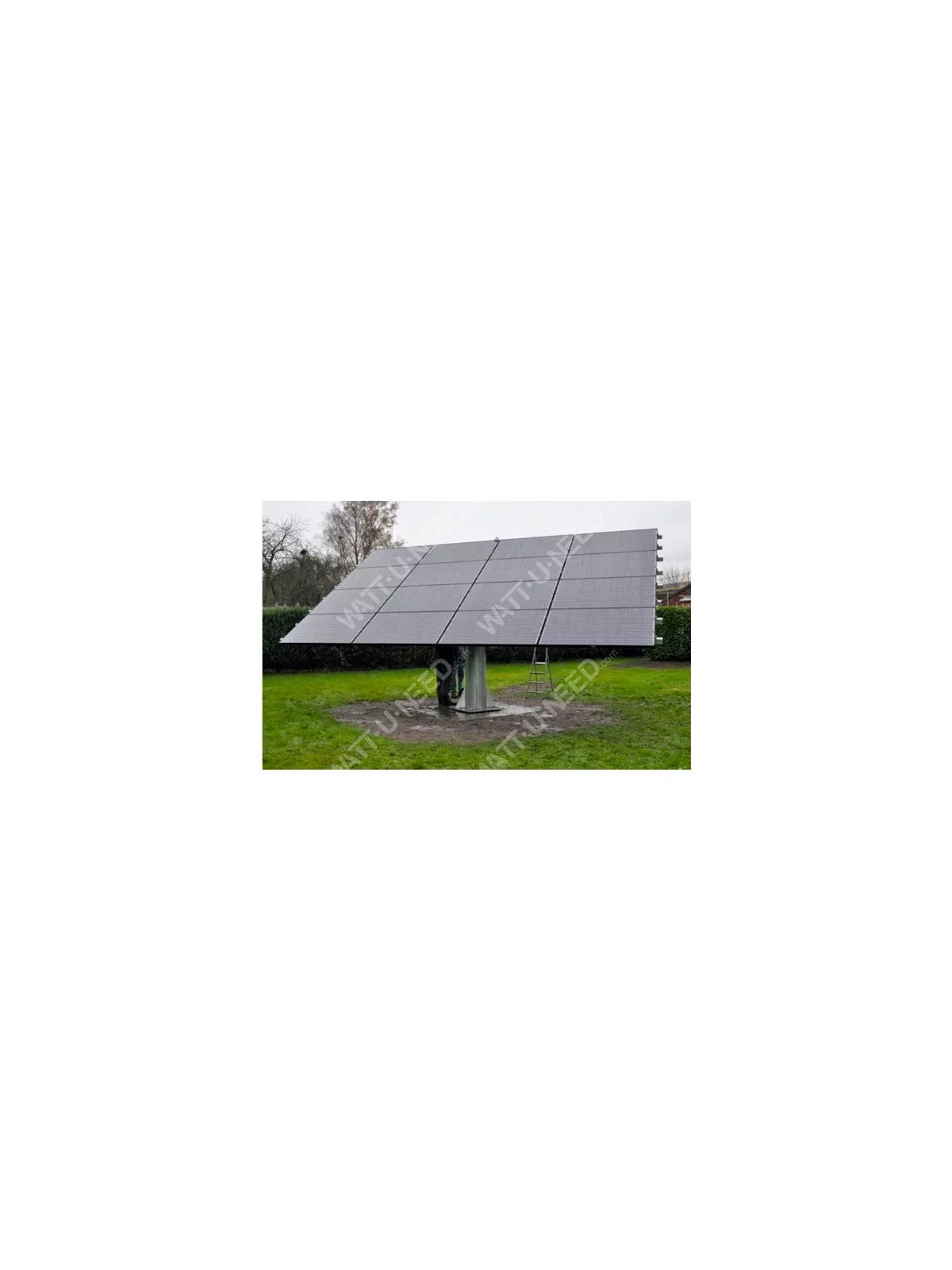

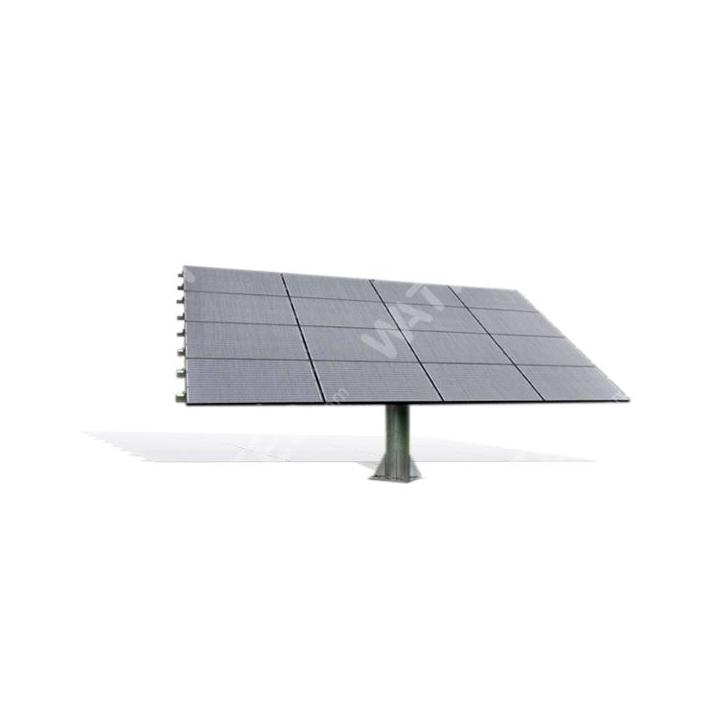

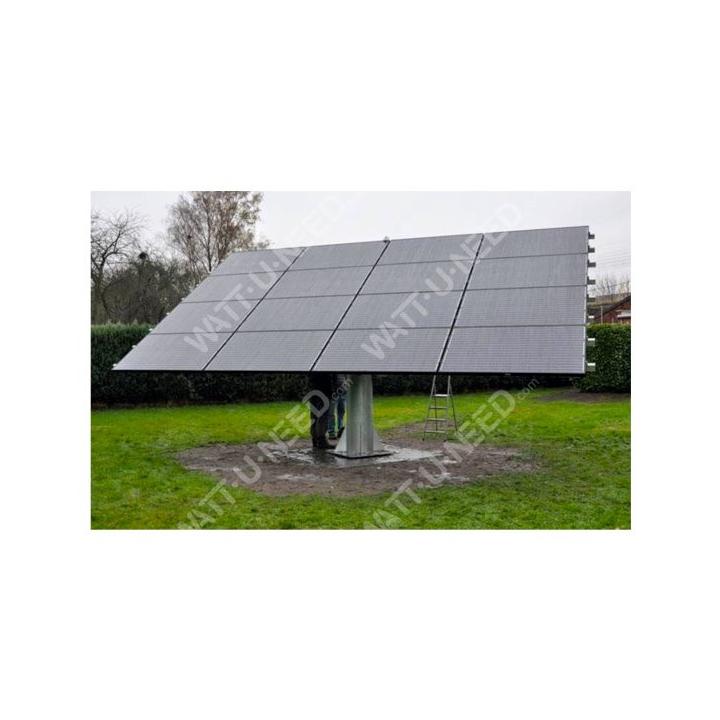

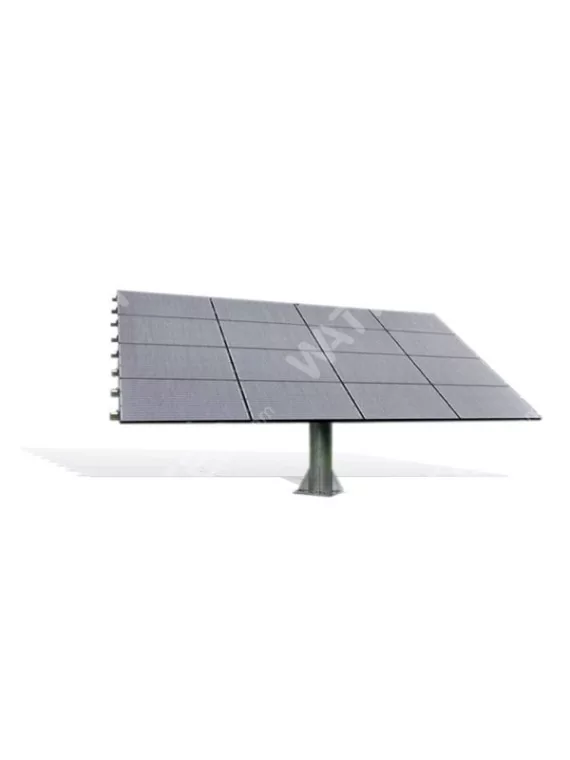

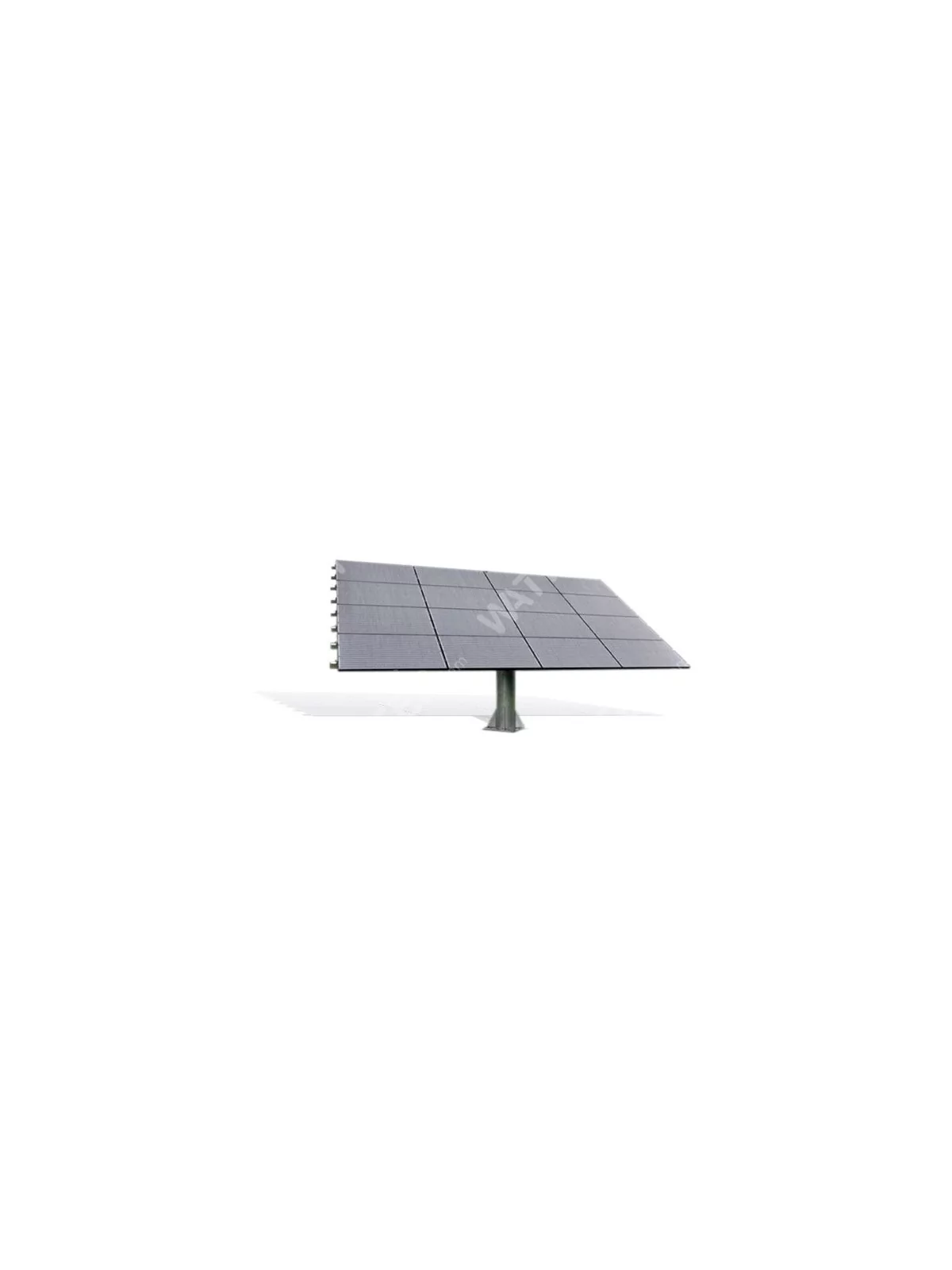

2-axis 16-panel photovoltaic tracker
This solar tracker can support between 16 and 18 panels (depending on panel size), up to 25% more yield than a south-facing installation.
Made to order. Please contact us for further information.
"STS solar trackers optimize the performance of a photovoltaic system."
More instantaneous production and longer production period thanks to the tracker.
A solar tracker ensures an optimal orientation of the panels in relation to the sun's rays. This optimal orientation helps maximize the electricity production of photovoltaic panels. This type of structure allows for an increase in electricity production compared to fixed panels:
25% increase compared to a south-facing installation
40% increase compared to an east or west-facing installation
• Automated two-axis tracker system
• Hourly positioning calculator and via luminosity
• Hot-dip galvanized steel structure
• Suitable for all brands of photovoltaic panels
• Durability
• Performance
Advantages
- Increase in production by 25% compared to a fixed south-facing installation.
- Possible installation in the absence of a roof or poorly oriented roof.
- Great compactness due to high efficiency.
The installation includes
- The structure
- The detection and orientation system (electronics + motor)
Installation for professionals
- You convey the image of a company concerned with ecology and the environment.
- You make your company well-known.
- You invest in the future with guaranteed profitability.
Foundation Features
STS 16 | |
Width | 2 m |
Length | 2 m |
Depth | 1 m |
Volume | 4 m³ |
Weight | 9200 Kg |
Structure Features
The structure has two degrees of freedom: a horizontal rotation to adjust the azimuth and a vertical rotation for inclination. The horizontal rotation allows tracking of the sun's movement throughout the day. The vertical rotation adjusts the structure according to the sun's seasonal declination.
Materials | Steel/Aluminum |
Area | 26 m² |
Number of columns | 4 |
Number of rows | 4 |
Height of mast | 2m |
Panel height | 4m |
Total width | 6.6m |
Total height | 4.1m |
Power (260Wc panels) | 4160Wc |
Annual production | 4800 Kwh |
Weight | 1000Kg |
Maximum wind speed admissible | 120 Km/h |
Manufacture | 100% Belgian |
Motorization Features
Our solar tracker features automatic panel orientation according to the daily sun declination (from east to west) throughout the day. This orientation occurs every 10 minutes via an electric motor. The structure's orientation according to the sun's seasonal declination (orientation at 73° in winter solstice to 27° in summer solstice) is also automatic. The installed power is adjustable upon request. A standard installation is around 4kWc, with an installed area of 25.6m² of PV panels.
Azimuth Axis | 220 ° |
Vertical Axis | 60° |
Operating voltage | 24 Volts |
Motor power | 2 X 60W |
Operating consumption | 200Wh/day |
Tracking system | Hourly + luminosity sensor |
