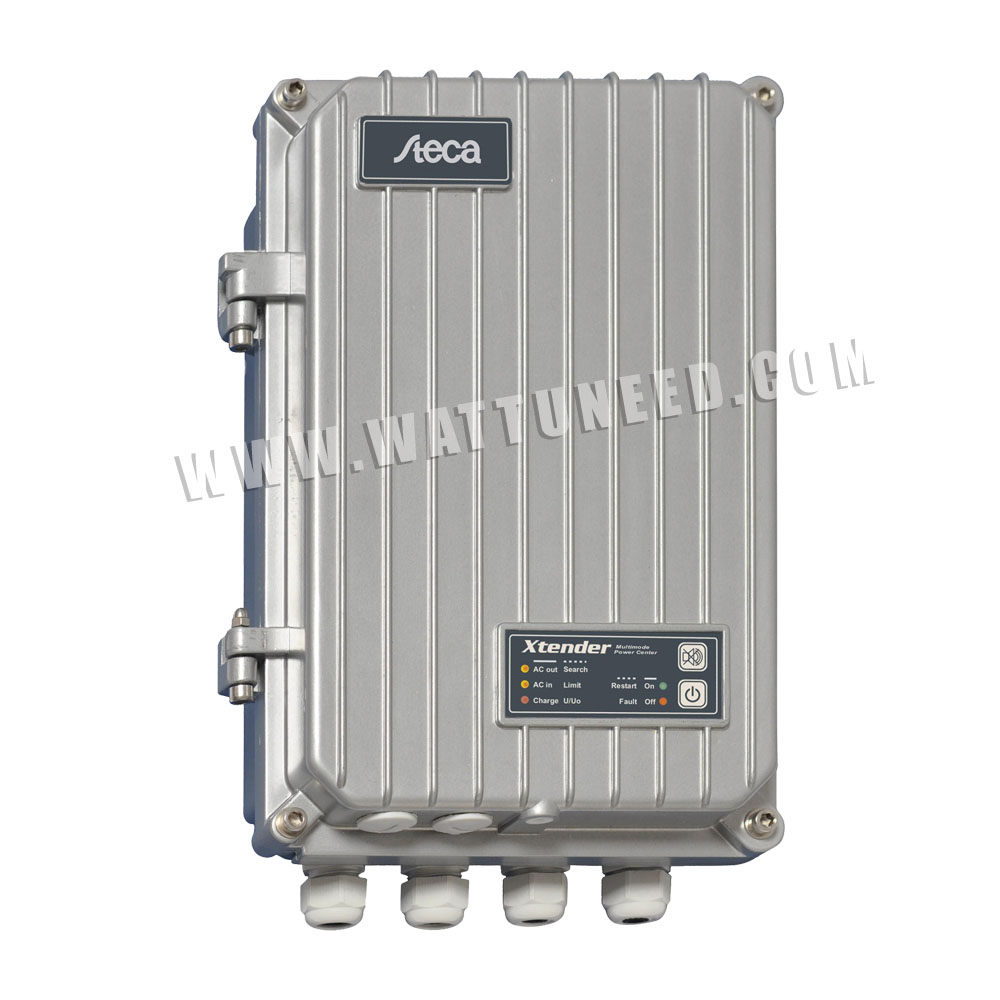

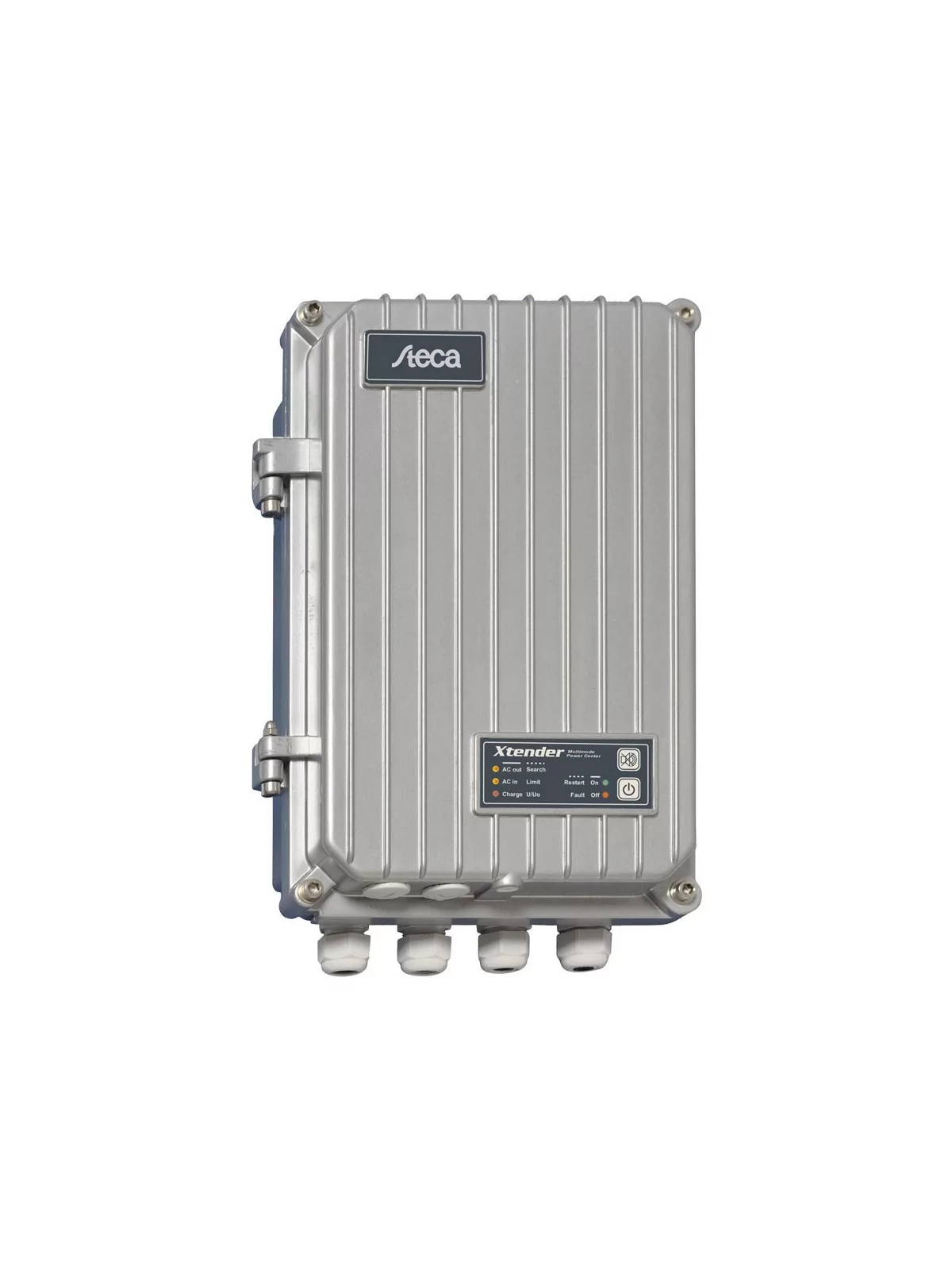

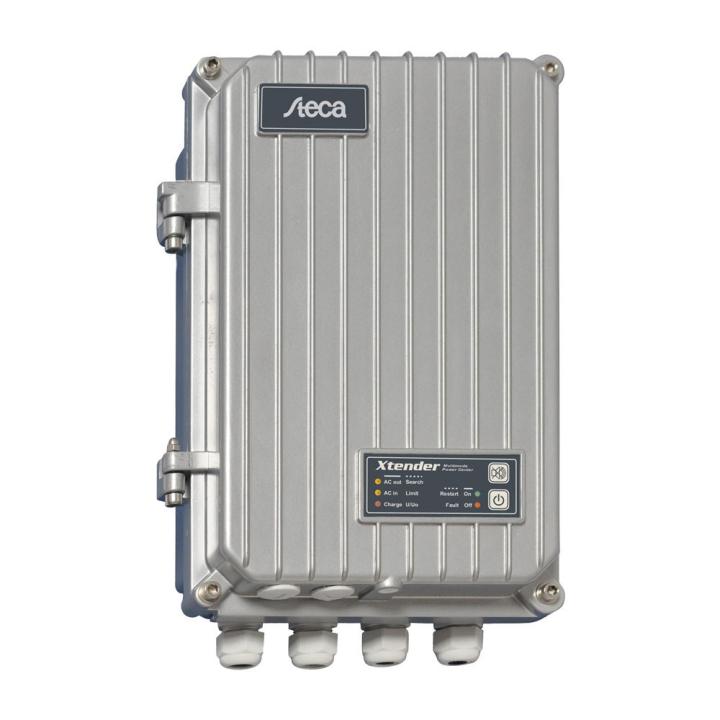

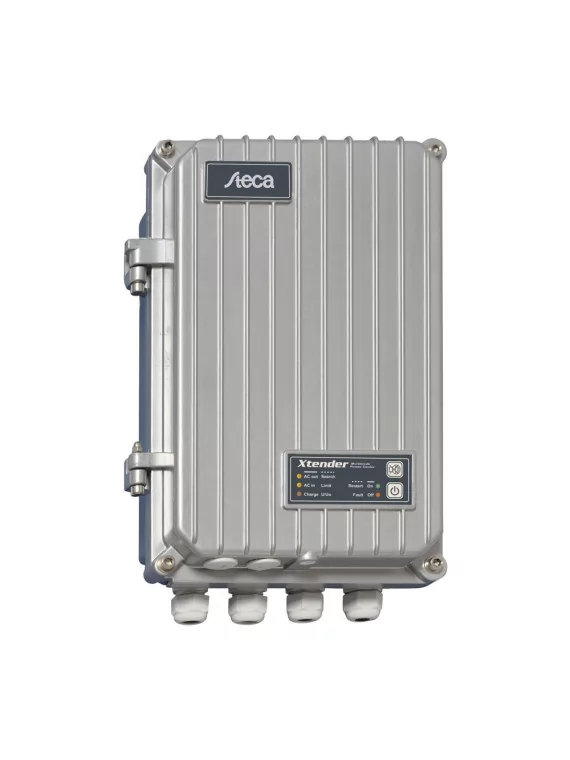

Steca Xtender XTS from 1000-12 to 1400-48
Several Steca Xtender XTS inverters can be connected in parallel and in three-phase.
"High-end pure sinus inverter with low power consumption".
Inverter, battery charger, switching function and backup of external AC sources are the basic functions of the Steca Xtender series combination inverter. These functions can be combined and controlled fully automatically, offering outstanding operating convenience and excellent use of available energy.
Several Steca Xtender XTS inverters can be connected in parallel and in {linkpopup id='three-phase'}. This means that up to nine Steca Xtender XTS units can be operated simultaneously.
Multifunction contacts
These potential-free contacts can be programmed for many different applications. They can react to any external or internal UPS event (grid availability, battery voltage, error message, etc.). They can also be programmed as timers, or activated during a defined period (night, weekend, etc.). They can therefore be used as a generator start-up device, to disconnect smaller consumers, display a malfunction and charge the battery according to the situation, etc.
Smart-Boost function
The Smart-Boost function can be used to boost the power of another AC source, such as a generator or a ground connection, even if these are special consumers (inductive, asymmetrical or with high inrush current). The Steca Xtender XTS can also be combined with virtually any existing inverter to increase the power available.
Product features
- Pure sinusoidal voltage
- Excellent overload capacity
- Optimum battery protection
- Adjustable integrated battery charger
- Multi-position programmable battery charger with power factor correction (PFC)
- Automatic load recognition
- Standby load recognition can be set from a low value over a wide range
- Parallel connection option
- High reliability for
- use as an emergency system or uninterruptible power supply (UPS)
- Multifunctional contact
- Adjustable power sharing
- Reliable and unobtrusive for all types of consumer
- Adding AC sources (Smart Boost)
- Automatic adding in the event of high power peaks (Power Shaving)
- Fast switching relay
- High energy efficiency
- Digital Signal Processor (DSP) regulation
Electronic protection functions
- Deep discharge protection
- Disconnection in the event of battery overvoltage
- Overtemperature and overload protection
- Short-circuit protection
- Reverse polarity protection via internal fuse
- Acoustic alarm in the event of deep discharge or overheating
Displays
- 5 LEDs indicate operating states
Control
- Main switch
- Adjustable load recognition
Certificates
- Complies with European (CE) standards
- Complies with RoHS directive
Characterization of operating performance |
voltage |
s
ystem |
12V |
Continuous power |
500 VA / 650 VA |
xml- |
7
00 VA / 1000 VA |
Power 5 sec. |
2
500 VA |
Max. efficiency |
9
3% |
Own consumption standby / ON |
4
W / 7 W |
Input |
Input voltage |
< 265 V AC (adjustable : 150 V AC ... |
265 V AC |
Adjustable load current |
A . |
35 A |
Max. current |
o
f transfer system |
16 A |
Input frequency |
5 Hz |
Battery |
Battery voltage |
.5 V ... |
17 V |
AC output |
Mains voltage |
230 V AC +/-2 % / 190 V AC ... |
245 V AC (pure sine curve) / 120 V AC |
Mains frequency |
50 Hz, adjustable: 45 Hz ... |
65 Hz +/-0.05 % (quartz-controlled) |
Consumer recognition (standby) |
W .. |
2
5 W |
Operating conditions |
Ambient temperature |
°C .. |
+
55 °C |
Installation and construction |
Degree of protection |
I
P 54 |
Dimensions (X x Y x Z) |
2
10 x 310 x 110 mm |
Weight |
,2 kg |
Option
The entire Steca Xtender XTS range as an option (in the drop-down menu above)
1000-12, 1200-24, 1400-48
(Datasheet download)
