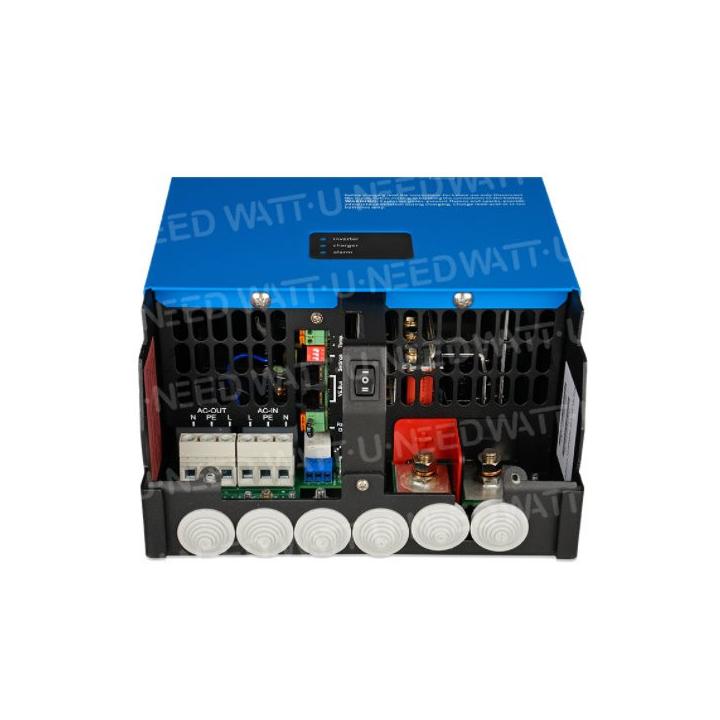

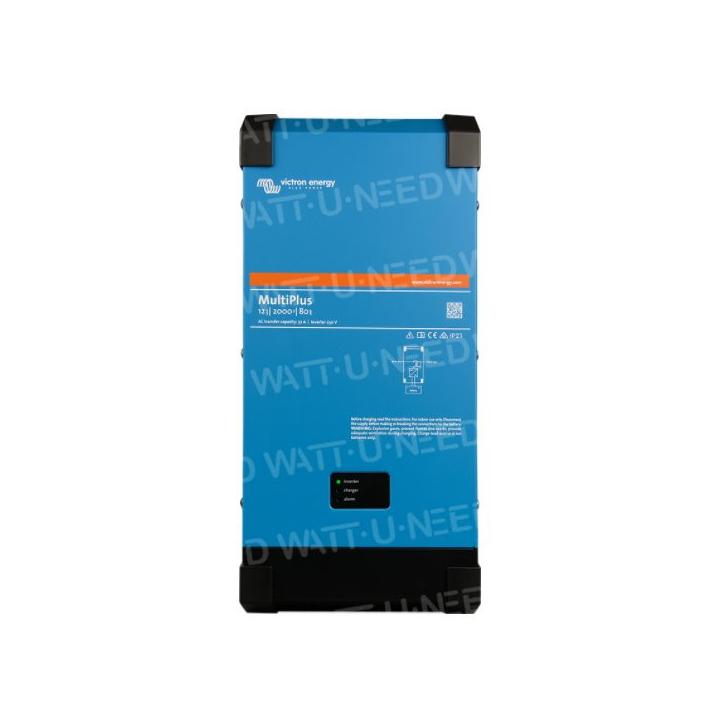

Converter/charger Victron MultiPlus 12V / 24V / 48V - 2000VA

MultiPlus 2000 VA 120 V inverter/charger

Multifunctional, with intelligent energy management

The MultiPlus combines a powerful sine wave converter, a sophisticated charger with adaptive charging technology and an ultra-fast AC transfer switch in a single compact package. In addition to these basic functions, the MultiPlus offers a number of advanced features described below.

Parallel and three-phase operation capability

Up to 6 Multi units can be operated in parallel to obtain more power output.
In addition to parallel connection, three units can be configured for three-phase output.

PowerControl - Adapt to generator, shore or mains limits

The Multi Control panel can be used to limit the power to be supplied by the shore or generator. The MultiPlus then takes into account the AC power demand at the output and uses only the surplus for the load, thus avoiding any overloading of the quay or a generator.

PowerAssist - More power from the shore or generator

This function adds an extra dimension to the PowerControl principle by enabling the MultiPlus to supplement the capacity of the alternative source. If a high peak power demand is required for a short period, the MultiPlus ensures that the lack of power from the grid or generator is immediately compensated for by energy

Four-stage adaptive charging and charging of two battery banks

The main output delivers a powerful charge to the battery system thanks to advanced "adaptive charging" software. The software adjusts the three steps of the automatic process to suit the state of the battery, and adds a fourth step for long periods of float charging. The adaptive charging process is detailed in the Phoenix Charger datasheet and on our website, in the Technical Information section. In addition, the MultiPlus will charge a second
second battery using a compensation charge output for a motor or main starter battery generator.

High starting power

Necessary for starting loads with high inrush currents, such as power converters for LED or halogen bulbs, or power tools.

Search mode

If Search mode is set to "on", the converter's power consumption is reduced by around 70% if no load is available. With this mode, when the Multi is operating in converter mode, it is switched off if there is no load or a very low load, then switched on every two seconds for a short period. If the load current exceeds the set level, the inverter continues to operate. Otherwise, the inverter stops again.

Programmable relay

By default, the programmable relay is configured as an alarm relay, i.e. the relay is de-energized in the event of an alarm or pre-alarm (inverter almost too hot, input ripple almost too high, battery voltage almost too low).

Remote On/Off / Charger On

Three-pole connector

On-site system configuration, monitoring and control

Once installed, the MultiPlus is ready for use.

Parameters can be modified using DIP switches: battery charge voltage / search mode. For more parameters, use VE.Config or the VE.Bus Smart dongle.

Remote configuration and supervision

Install a Cerbo GX or other GX product for Internet connection.
Operating data can be stored and displayed on our free VRM (Victron Remote Management) website.
If your systems are connected to the Internet, you can access them remotely and modify their configuration.

Technical data
