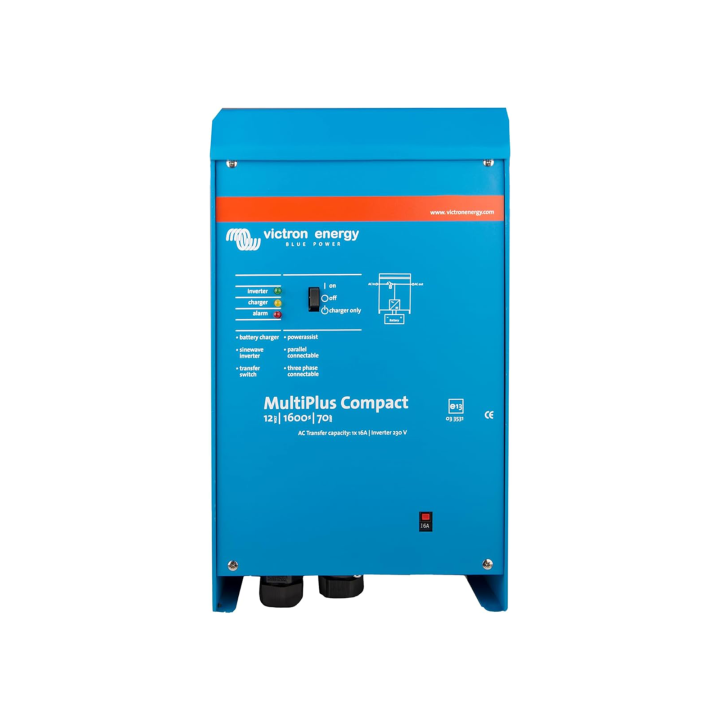

Victron Multiplus Compact 12V / 24V - from 800 to 2000

"Multifunctional inverter, with intelligent energy management".

The Victron Multiplus inverter has many functions. It combines a sine wave converter, a sophisticated charger and an ultra-fast AC transfer switch in a single compact housing. It's a powerful battery charger that demands high currents. Charging power can be limited via the control panel.

The most important functions are "Powerassist" and "Powercontrol". These functions take energy from the batteries and add it to the output when demand exceeds the capacity of the genset or shore power. Thanks to these functions, it is possible to manage peak currents in excess of the power of a generator or connection for a given period of time. Surplus power is used to recharge batteries when power demand falls.

Description

2 AC outputs

The main output provides a continuous power supply. In the event of grid disconnection or failure, the multiplus inverter takes over very quickly (20 milliseconds) to supply the connected loads, so that the operation of connected electronic devices is not disrupted. The second output is active when AC is available on one of the inverter inputs. It can be used to connect devices that would not discharge the battery (a water heater, for example).

More output power

You can connect up to 6 multiplus inverters in parallel to boost output power.

Three-phase

You can connect 3 multiplus inverters of the same model for three-phase output. (up to 6 series of 3 inverters)

Powercontrol

The powerful battery charger built into the unit requires high currents when connected. The control panel limits this power and uses only the surplus for charging, thus avoiding overloads.

Powerassist

This function supplements the capacity of the AC source in the event of short-term power demand. When power demand falls, the surplus is used to recharge the batteries.

Simple installation

The multiplus inverter is ready to use straight out of the box, with no need for a PC to program it. Operation can be programmed using DIP switches.

Warranty

Victron inverters come with a 2-year warranty.

Technical data

Victron Energy application

Monitor and manage your Victron Energy system. Log in with your VRM account to see all your products. Tap on a product to see its schematic, system status and energy flow.

The Victron app is available free of charge from the Apple app store.

Options

The entire Victron MultiPlus range is available as an option (in the drop-down menu at the top of the page).

(Datasheet available for download)
